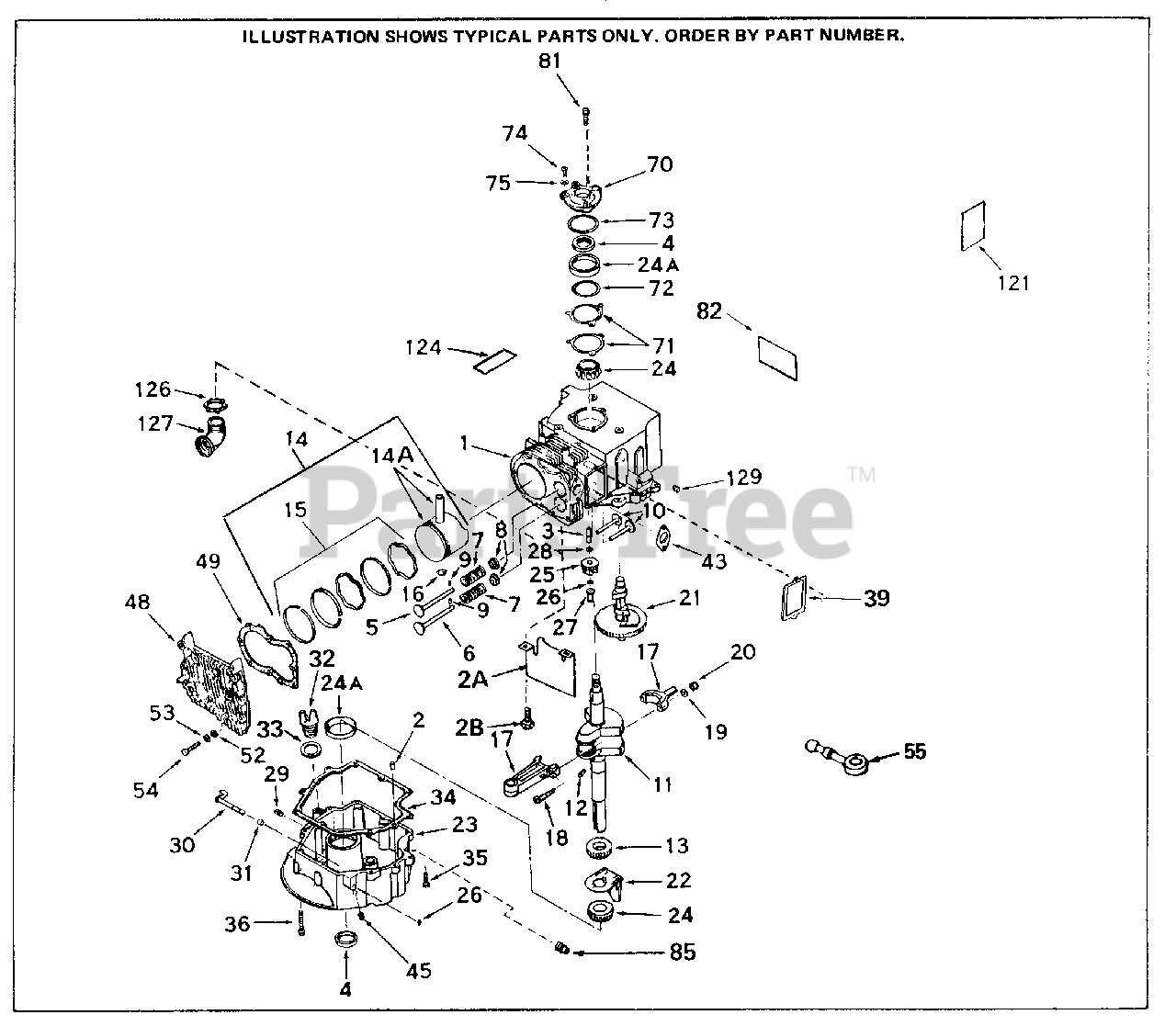

SBV-SBV-251 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

Engine Parts List Parts Diagram

  • Title
1

Tecumseh 33089

"Cylinder (Incl. 2,2A,2B,3,4,82) 3-5/1 6" Bore

$

$

Currently unavailable

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

2A

Tecumseh 33359

Oil Baffle Not used in early product ion

$

$

Not available

2B

Tecumseh 650128

Screw, 10-24 x 1/2" Not in early pro d.

$5.49

$

In Stock, only 2 left!

0

3

Tecumseh 31930

Shaft, Mechanical governor

$

$

Not available

4

Tecumseh 31950

Seal, Oil

$17.99

$

In Stock, only 1 left!

0

5

Tecumseh 31940

Intake Valve (Std.)

$

$

Not available

5

Tecumseh 31941

Intake Valve (1/32" OS) (Incl. 8)

$

$

Not available

6

Tecumseh 31942

Exhaust Valve (Std.)

$95.99

$

Usually ships in 3-12 days

0

6

Tecumseh 31943

Exhaust Valve (1/32" OS) (Incl. 8)

$

$

Not available

7

Tecumseh 31944

Spring, Valve

$

$

Not available

8

Tecumseh 31945

Cap, Valve spring (Std.)

$9.49

$

In Stock, only 1 left!

0

8

Tecumseh 31946

Cap, Valve spring (1/32" OS)

$8.99

$

In Stock, only 4 left!

0

9

Tecumseh 20810

Pin, Valve spring retaining

$1.99

$

In Stock, Qty 6

0

10

Tecumseh 31939

Lifter, Valve

$10.99

$

Usually ships in 3-12 days

0

11

Tecumseh 33409A

Crankshaft Incl. 12, 13, 22, 24 & 24 A

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Crankshaft gear

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 33091

Gear, Crankshaft

$

$

Currently unavailable

14

Tecumseh 34508

Piston, Pin & Ring Set (Std.) 3-5/16 " Bore

$

$

Not available

14

Tecumseh 34509

Piston, Pin & Ring Set (.010" OS)

$186.99

$

In Stock, only 1 left!

0

14

Tecumseh 34510

Piston, Pin & Ring Set (.020" OS)

$183.99

$

Usually ships in 3-12 days

0

14

Tecumseh 34523

Piston, Pin & Ring Set (.040" OS)

$

$

Currently unavailable

14A

Tecumseh 32001C

Piston & Pin Ass'y. (Incl. 16)(Std.) 3-5/16"

$111.99

$

In Stock, only 1 left!

0

14A

Tecumseh 32002B

Piston & Pin Ass'y. (Incl. 16) .010" OS

$123.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 32003B

Piston & Pin Ass'y. (Incl. 16) .020" OS

$123.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 32619A

Piston & Pin Ass'y. (Incl. 16) .030" OS
(Superseded to 32619B)

$

$

Currently unavailable

14A

Tecumseh 32620B

Piston & Pin Ass'y. (Incl. 16) .040" OS

$

$

Currently unavailable

15

Tecumseh 32004

Ring Set (Std.) (3-5/16" Bore)

$58.99

$

Usually ships in 3-12 days

0

15

Tecumseh 32005

Ring Set (.010" OS)

$58.99

$

Usually ships in 3-12 days

0

15

Tecumseh 32006

Ring Set (.020" OS)

$58.99

$

In Stock, only 2 left!

0

15

Tecumseh 32321

Re-Ringing Set, Piston

$

$

Currently unavailable

15

Tecumseh 32623

Ring Set (.030" OS)

$

$

Not available

15

Tecumseh 32624

Ring Set (.040" OS)

$

$

Currently unavailable

16

Tecumseh 31919

Ring, Piston pin retaining

$1.99

$

In Stock, only 2 left!

0

17

Tecumseh 33093A

Connecting Rod Ass'y. (Incl. 18,19,20 ) (Std.)

$

$

Not available

17

Tecumseh 34383

Connecting Rod Assy. (Incl. 18,19,20) . 010" OS

$

$

Not available

17

Tecumseh 34384

Connecting Rod Assy. (Incl. 18,19,20) . 020" OS

$

$

Not available

18

Tecumseh 32077

Screw, Connecting rod

$3.99

$

Usually ships in 3-12 days

0

19

$

$

Not available

20

Tecumseh 28264

Nut, Connecting rod, 5/16-24

$3.99

$

In Stock, only 2 left!

0

21

Tecumseh 32150

Camshaft (MCR)

$155.99

$

Usually ships in 3-12 days

0

22

Tecumseh 33092

Dipper, Oil

$

$

Currently unavailable

23

Tecumseh 33094

Flange, Mounting (Incl. 4, 45 & 85)

$

$

Currently unavailable

24A

Tecumseh 31928

Cup, Bearing

$22.99

$

Usually ships in 3-12 days

0

24

Tecumseh 31932

Bearing, Tapered roller

$60.99

$

In Stock, only 2 left!

0

25

Tecumseh 31947

Gear Assy., Governor

$

$

Not available

26

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

27

Tecumseh 31948

Spool, Governor
(Superseded to 31948A)

$12.99

$

In Stock, only 2 left!

0

28

Tecumseh 35479

WASHER
(Superseded to 651080)

$1.99

$

In Stock, Qty 8

0

29

Tecumseh 31927

Oil Drain Plug, 3/8-18

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 32425

Rod Assy., Governor

$

$

Not available

31

Tecumseh 32426

Spacer, Governor rod

$1.99

$

In Stock, Qty 9

0

32

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 7

0

33

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, only 3 left!

0

34

Tecumseh 31956A

Gasket, Mounting flange
(Superseded to 31956B)

$9.99

$

In Stock, only 1 left!

0

35

Tecumseh 650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 650588

Screw, 1/4-20 x 2"

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 31958

Gasket, Breather
(Superseded to 31958A)

$2.49

$

In Stock, only 1 left!

0

43

Tecumseh 31960

Gasket, Carburetor
(Superseded to 31960A)

$1.49

$

In Stock, Qty 7

0

45

Tecumseh 28534

Oil Drain Plug

$1.99

$

In Stock, only 4 left!

0

48

Tecumseh 33034

Head, Cylinder

$121.99

$

Usually ships in 3-12 days

0

49

Tecumseh 32000A

Gasket, Cylinder head
(Superseded to 32000B)

$9.49

$

In Stock, only 1 left!

0

52

Tecumseh 650691

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

53

Tecumseh 650690

Washer, Belleville
(Superseded to 730324)

$9.99

$

In Stock, only 1 left!

0

54

Tecumseh 650711

Screw, 5/16-18 x 1-5/8"

$1.99

$

Usually ships in 3-12 days

0

70

Tecumseh 32677

Cover, Cylinder NOTE: Determine the gap between the cover and the machine d surface on the cylinder, which can be from .001" up to .007", in which c ase NO SHIM GASKETS WILL BE REQUIRED. Use of gaskets must be limited to a combined tot al of .010" t

$

$

Currently unavailable

71

Tecumseh 31971

Gasket, Shim (.004/.005 thick) NOTE: Determine the gap between the cover and the machined surface on the cylin der, which can be from .001" up to .0 07", in which case NO SHIM GASKETS WI LL BE REQUIRED. Use of gaskets must be limited to a combined t

$4.49

$

Usually ships in 3-12 days

0

71

Tecumseh 31972

Gasket, Shim (.005/.007 thick) NOTE: Determine the gap between the cover and the machined surface on the cylin der, which can be from .001" up to .0 07", in which case NO SHIM GASKETS WI LL BE REQUIRED. Use of gaskets must be limited to a combined t

$2.49

$

Usually ships in 3-12 days

0

72

Tecumseh 32031

Spacer, Steel (.010 thick) NOTE: Det ermine the gap between the cover and the machined surface on the cylinder, which can be from .001" up to .007", in which case NO SHIM GASKETS WILL B E REQUIRED. Use of gaskets must be l imited to a combined tot

$3.99

$

Usually ships in 3-12 days

0

73

Tecumseh 32599

"O" Ring

$8.49

$

Usually ships in 3-12 days

0

74

Tecumseh 792028

Screw, 5/16-18 x 7/8"

$4.49

$

In Stock, only 4 left!

0

75

Tecumseh 650679

Washer, Lock, 5/16

$

$

Not available

81

Tecumseh 650669

Screw, 5/16-18 x 1-1/4"

$

$

Currently unavailable

82

Tecumseh 34028

Decal, Model & Serial Number

$

$

Not available

85

Tecumseh 33726

Plug, Pipe, 3/4-14

$

$

Currently unavailable

121

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available

124

Tecumseh 550223

Decal, Name & H.P.

$

$

Not available

126

Tecumseh 650590

Nut, Muffler

$

$

Currently unavailable

129

Tecumseh 28534

Oil Drain Plug adless)

$1.99

$

In Stock, only 4 left!
