SBV-SBV-170 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

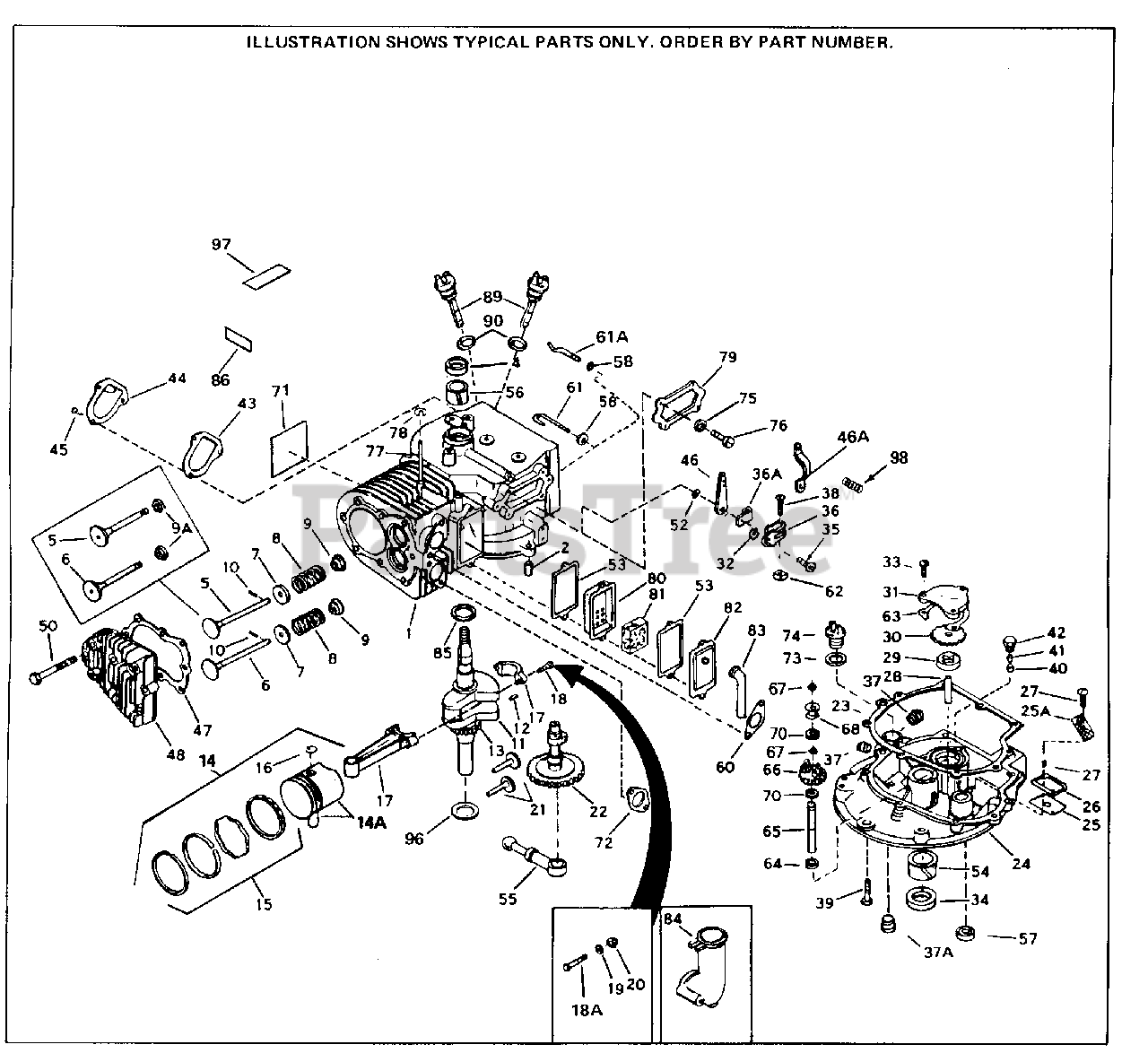

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 32220A

"Cylinder (Incl. 2,4,5,9A,43,44,45,86) (2-5/8")

$

$

Currently unavailable

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

4

Tecumseh 27876B

Seal, Oil

$12.99

$

Usually ships in 3-12 days

0

5

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

Usually ships in 3-12 days

0

5

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

6

Tecumseh 31469A

Exhaust Valve (Std) (Incl. 9A)
(Superseded to 27878A)

$23.99

$

Usually ships in 3-12 days

0

6

Tecumseh 31470A

Exhaust Valve (1/32" OS) (Incl. 9A)
(Superseded to 27880A)

$

$

Not available

7

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

8

Tecumseh 27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

9

Tecumseh 30964

Cap, Lower valve spring (1/32" OS)

$5.49

$

Usually ships in 3-12 days

0

9

Tecumseh 27883

Cap, Lower valve spring

$

$

Not available

10

Tecumseh 20810

Pin, Valve spring retaining

$1.99

$

In Stock, Qty 6

0

11

Tecumseh 31730

Crankshaft

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Crankshaft gear only)

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27884

Crankshaft Gear Early production only

$11.99

$

In Stock, only 1 left!

0

14

Tecumseh 34503

Piston, Pin & Ring Set (Std) 2-5/8"Bo re
(Superseded to 34531)

$

$

Not available

14

Tecumseh 34504

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

14

Tecumseh 34505

Piston, Pin & Ring Set (.020" OS)

$

$

Not available

14

Tecumseh 34531

Piston, Pin & Ring Set (Std) 2-5/8"Bo re

$

$

Not available

14

Tecumseh 34532

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

14

Tecumseh 34533

Piston, Pin & Ring Set (.020" OS)

$

$

Not available

14A

Tecumseh 31797B

Piston & Pin Ass'y. (Std)(Incl. 16) 2 -5/8"
(Superseded to 33312B)

$

$

Not available

14A

Tecumseh 31798B

Piston & Pin Ass'y. (.010" OS) Incl. 16

$

$

Not available

14A

Tecumseh 31799B

Piston & Pin Ass'y. (.020" OS) Incl. 16

$77.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 33312B

Piston & Pin Ass'y. (Std)(Incl. 16) 2 -5/8"

$

$

Not available

14A

Tecumseh 33313B

Piston & Pin Ass'y. (.010" OS) Incl. 16

$55.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 33314B

Piston & Pin Ass'y. (.020" OS) Incl. 16

$61.99

$

Usually ships in 3-12 days

0

15

Tecumseh 34854

Ring Set (Std) (2-5/8" Bore)

$

$

Not available

15

Tecumseh 34855

Ring Set (.010" OS)

$

$

Not available

15

Tecumseh 34856

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 31295C

Rod Assy., Connecting (Incl. 18)

$

$

Not available

17

Tecumseh 31380C

Rod Assy., Connecting (Incl. 18)

$

$

Not available

18

Tecumseh 650662C

Bolt, Connecting rod (2 pcs.)

$3.99

$

Usually ships in 3-12 days

0

18A

Tecumseh 30682

Connecting Rod Bolt Early prod. on V6 0/VH60

$

$

Currently unavailable

18A

Tecumseh 32077

Connecting Rod Bolt Early prod. on V5 0/VH50

$3.99

$

Usually ships in 3-12 days

0

19

Tecumseh 26073

Washer duction)

$

$

Not available

20

Tecumseh 28264

Connecting Rod Bolt Nut Early product ion

$3.99

$

In Stock, only 2 left!

0

21

Tecumseh 34034

Lifter, Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

22

Tecumseh 31296

Camshaft (No Compression Release)

$

$

Currently unavailable

22

Tecumseh 32114

Camshaft (MCR)

$92.99

$

Usually ships in 3-12 days

0

23

Tecumseh 30667

Gasket, Mounting flange

$

$

Not available

24

Tecumseh 32221A

Mtg.Flange Ass'y. Incl. 34, 37, 54, 6 5 & 70

$

$

Currently unavailable

25

Tecumseh 29325

Screen, Oil filter

$

$

Currently unavailable

25A

Tecumseh 31355

Screen, Oil filter (Use as required)

$5.49

$

Usually ships in 3-12 days

0

26

Tecumseh 29326

Retainer, Oil filter screen

$

$

Currently unavailable

27

Tecumseh 29117

Screw, 8-32 x 5/16" (Use as required)

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

29

Tecumseh 27648

Gear, Oil pump

$

$

Currently unavailable

30

Tecumseh 27643

Gear, Oil pump drive

$

$

Currently unavailable

31

Tecumseh 27653

Cover, Oil pump

$

$

Currently unavailable

33

Tecumseh 29517

Screw, 10-32 x 3/4"

$

$

Currently unavailable

34

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, Qty 17

0

37A

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)quire d)

$1.99

$

In Stock, only 2 left!

0

37

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)uired )

$1.99

$

In Stock, only 2 left!

0

39

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

40

Tecumseh 28746

Plunger, Oil relief

$

$

Currently unavailable

41

Tecumseh 28745

Spring, Compression

$

$

Currently unavailable

42

Tecumseh 28744

Plug, Oil relief

$

$

Currently unavailable

47

Tecumseh 28938C

Gasket, Cylinder head

$9.99

$

In Stock, Qty 5

0

53

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 10

0

54

Tecumseh 31462

Bushing, Crankshaft

$

$

Not available

56

Tecumseh 31461

Bushing, Crankshaft

$24.99

$

In Stock, only 1 left!

0

58

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

60

Tecumseh 27915A

Intake Pipe Gasket

$5.99

$

In Stock, Qty 20+

0

61

Tecumseh 30669

Rod, Governor (Incl. 58)

$7.49

$

In Stock, only 1 left!

0

63

Tecumseh 28803

Gasket, Shim (.005 thick)

$

$

Currently unavailable

63

Tecumseh 28804

Gasket, Shim (.010 thick)

$

$

Currently unavailable

64

Tecumseh 31707A

Spacer, Governor gear (Incl. 70)

$1.99

$

In Stock, only 2 left!

0

65

Tecumseh 30668

Shaft, Mechanical governor

$1.99

$

Usually ships in 3-12 days

0

66

Tecumseh 30591

Gear Assy., Governor (Incl. 70)

$13.99

$

In Stock, only 1 left!

0

67

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

68

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

70

Tecumseh 35479

WASHER
(Superseded to 651080)

$1.99

$

In Stock, Qty 8

0

71

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available

72

Tecumseh 27930A

Gasket, Muffler
(Superseded to 35865)

$2.49

$

In Stock, only 2 left!

0

85

Tecumseh 650625

Washer, Thrust

$3.99

$

Usually ships in 3-12 days

0

86

Tecumseh 34028

Decal, Model & Serial No.

$

$

Not available

97

Tecumseh 550223

Decal, Name

$

$

Not available
