SBV-SBV-10495 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

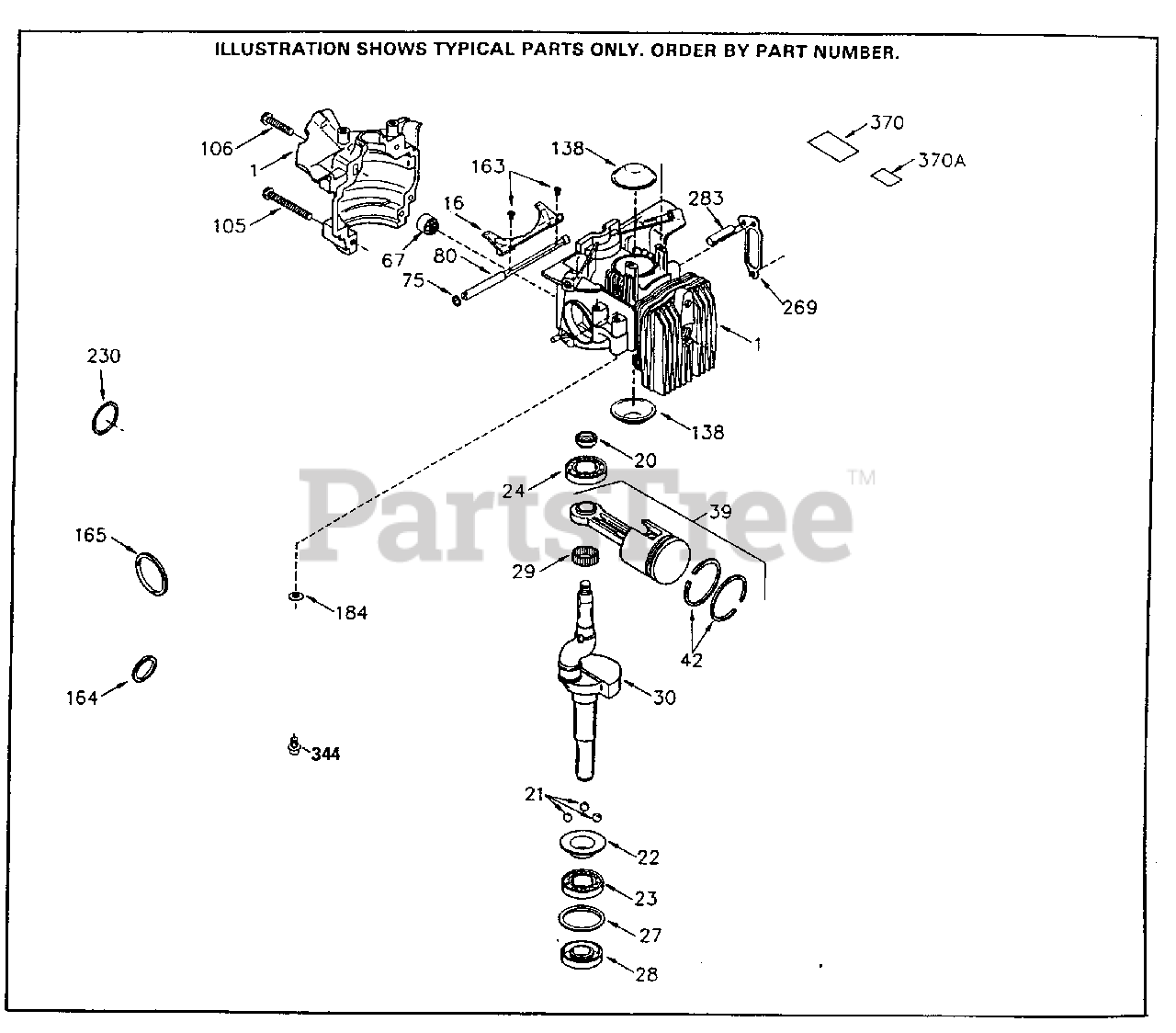

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 250288

"Cylinder (Incl. 67, 105, 106 & 138)

$243.99

$

Usually ships in 3-12 days

0

16

Tecumseh 490304

Lever, Governor

$5.49

$

Usually ships in 3-12 days

0

20

Tecumseh 510340

Seal, Oil (flywheel end)

$5.49

$

In Stock, only 1 left!

0

21

Tecumseh 570673

Ball

$1.99

$

Usually ships in 3-12 days

0

22

Tecumseh 510338

Ring, Slide

$3.99

$

Usually ships in 3-12 days

0

23

Tecumseh 530158

Bearing, Ball

$26.99

$

In Stock, only 1 left!

0

24

Tecumseh 530161

Bearing, Ball

$22.99

$

In Stock, only 1 left!

0

27

Tecumseh 530159

Retainer, Bearing

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 510339

Seal, Oil (PTO end)

$7.49

$

Usually ships in 3-12 days

0

29

Tecumseh 530164

Bearing Strip (31 needles)

$13.99

$

Usually ships in 3-12 days

0

30

Tecumseh 290617

Crankshaft

$125.99

$

Usually ships in 3-12 days

0

39

Tecumseh 310277B

Piston & Rod Assy. (Incl. 29 & 42)
(Superseded to 310291A)

$106.99

$

Usually ships in 3-12 days

0

42

Tecumseh 310278

Ring Set, Piston

$

$

Not available

67

Tecumseh 430233

Filter, Fuel (w/brass collar)

$3.99

$

Usually ships in 3-12 days

0

75

Tecumseh 510337

Seal, Oil

$3.99

$

Usually ships in 3-12 days

0

80

Tecumseh 490305

Shaft, Governor

$11.99

$

Usually ships in 3-12 days

0

105

Tecumseh 650891

Screw, 5/16-18 x 1-5/8"

$

$

Not available

106

Tecumseh 650892

Screw, 5/16-18 x 2-3/16"

$1.99

$

In Stock, only 1 left!

0

138

Tecumseh 570683

Cover, Port

$3.99

$

Usually ships in 3-12 days

0

163

Tecumseh 650506

Screw, 4-40 x 3/16"

$1.49

$

In Stock, Qty 16

0

164

Tecumseh 510341

"O" Ring

$1.49

$

In Stock, Qty 5

0

165

Tecumseh 510342

"O" Ring

$1.49

$

In Stock, Qty 5

0

184

Tecumseh 27110

Gasket
(Superseded to 27110A)

$2.49

$

Usually ships in 3-12 days

0

230

Tecumseh 510344

"O" Ring

$1.49

$

Usually ships in 3-12 days

0

269

Tecumseh 510343A

Gasket, Muffler

$3.99

$

In Stock, only 1 left!

0

283

Tecumseh 390315

Pin, Spirol

$3.49

$

Usually ships in 3-12 days

0

344

Tecumseh 650894

Screw, 5/16-18 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

370A

Tecumseh 34028

Decal, Model & Serial No.

$

$

Not available

370

Tecumseh 550230A

Decal, Fuel mix

$

$

Currently unavailable
