SBV-SBV-10483 - Tecumseh Short Block Engine Parts List Parts Diagram

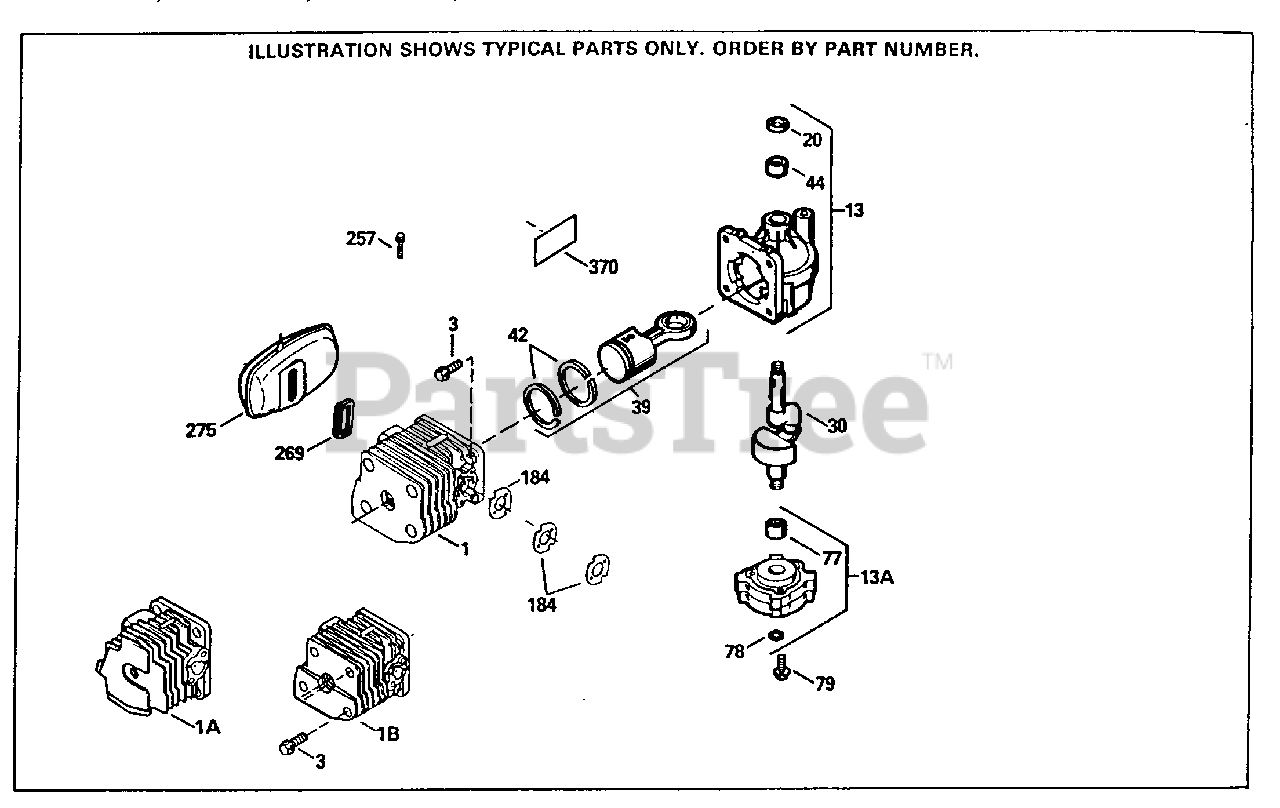

Short Block

Engine Parts List Parts Diagram

  • Title

1A

Tecumseh 250287A

"Cylinder
(Superseded to 250287B)

$73.99

$

Usually ships in 3-12 days

0

3

Tecumseh 650888

Screw, Torx 1/4-20 x 43/64"

$1.99

$

In Stock, only 1 left!

0

13

Tecumseh 270288

Crankcase Assy. (Incl. 20 & 44)
(Superseded to 270288A)

$51.99

$

Usually ships in 3-12 days

0

13A

Tecumseh 270291

Cover Assy., Crankcase Incl. 77 & 78

$

$

Not available

20

Tecumseh 510328

Seal, Oil

$10.99

$

Usually ships in 3-12 days

0

30

Tecumseh 290619

Crankshaft

$

$

Not available

39

Tecumseh 310286

Piston & Rod Assy. (Incl. 42)
(Superseded to 310286A)

$

$

Not available

42

Tecumseh 310271

Ring Set, Piston

$

$

Not available

44

Tecumseh 530163

Bearing, Cartridge

$17.99

$

Usually ships in 3-12 days

0

77

Tecumseh 530162

Bearing, Cartridge

$16.99

$

Usually ships in 3-12 days

0

78

Tecumseh 510329

Seal, Oil

$10.99

$

In Stock, only 3 left!

0

79

Tecumseh 650844

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

184

Tecumseh 510327A

Gasket, Adapter
(Superseded to 510327B)

$5.49

$

In Stock, Qty 12

0

269

Tecumseh 510336A

Gasket, Exhaust

$1.99

$

Usually ships in 3-12 days

0

370

Tecumseh 550237

Decal, Instruction

$

$

Not available
