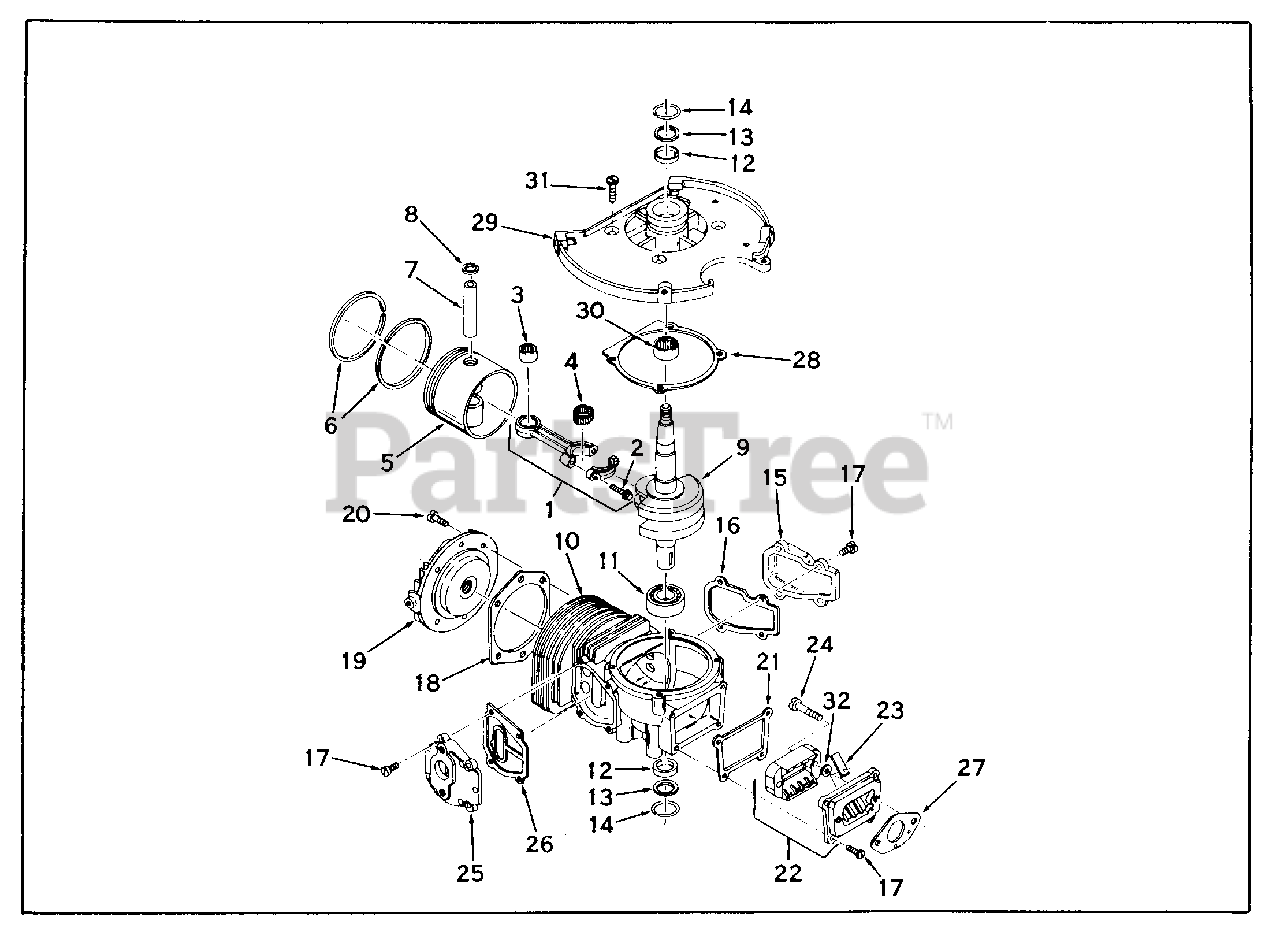

SBV-710361 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 310231

"Rod Assy., Connecting Incl. 2, 3 & 4

$

$

Currently unavailable

2

Tecumseh 650702

Screw, Connecting rod

$1.99

$

In Stock, only 1 left!

0

3

Tecumseh 530104A

Bearing, Cartridge

$15.99

$

Usually ships in 3-12 days

0

4

Tecumseh 530139

Bearing, Needle (Set of 33)

$

$

Currently unavailable

5

Tecumseh 310209

Piston
(Superseded to 310209B)

$

$

Currently unavailable

6

Tecumseh 310210A

Ring Set, Piston

$

$

Currently unavailable

7

Tecumseh 310176

Pin, Piston
(Superseded to 310180)

$

$

Currently unavailable

8

Tecumseh 310167

Ring, Piston pin retaining

$1.99

$

Usually ships in 3-12 days

0

9

Tecumseh 290418

Crankshaft

$

$

Currently unavailable

10

Tecumseh 250243

Cylinder (Incl. 11 thru 14)

$

$

Currently unavailable

11

Tecumseh 530110

Bearing, Ball

$30.99

$

Usually ships in 3-12 days

0

12

Tecumseh 510105

Seal, Crankshaft

$2.99

$

Usually ships in 3-12 days

0

13

Tecumseh 510106

Retainer, Crankshaft seal
(Superseded to 510106A)

$3.99

$

In Stock, only 1 left!

0

14

Tecumseh 510109

Spring, Crankshaft seal retainer
(Superseded to 510109A)

$3.99

$

Usually ships in 3-12 days

0

15

Tecumseh 570401

Plate, Cover

$

$

Currently unavailable

16

Tecumseh 510248

Gasket, Cover plate

$

$

Currently unavailable

17

Tecumseh 650579

Screw, 10-24 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 510265

Gasket, Cylinder head
(Superseded to 510265A)

$3.49

$

Usually ships in 3-12 days

0

19

Tecumseh 250244

Head, Cylinder

$

$

Currently unavailable

20

Tecumseh 650477

Screw, Torx T-30, 1/4-20 x 3/4"

$1.99

$

In Stock, Qty 20+

0

21

Tecumseh 510247

Gasket, Reed & cover plate
(Superseded to 510247A)

$3.49

$

In Stock, Qty 8

0

22

Tecumseh 470133

Plate Assy., Reed & cover Incl. 23 &2 4

$

$

Currently unavailable

23

Tecumseh 470134

Reed

$

$

Currently unavailable

24

Tecumseh 650651

Screw, 1/4-28 x 1-1/4"

$

$

Currently unavailable

25

Tecumseh 570433

Cover, Adapter

$

$

Currently unavailable

26

Tecumseh 510267

Gasket, Adapter cover
(Superseded to 510267A)

$

$

Currently unavailable

27

Tecumseh 510217

Gasket, Carburetor
(Superseded to 510217A)

$6.99

$

In Stock, only 1 left!

0

28

Tecumseh 510252

Gasket, Shroud base
(Superseded to 510252A)

$

$

Not available

29

Tecumseh 350371A

Shroud Base (Incl. 12, 13, 14 & 30)

$

$

Currently unavailable

30

Tecumseh 530105

Bearing, Needle

$11.99

$

Usually ships in 3-12 days

0

31

Tecumseh 650196

Screw, 1/4-20 x 5/8"

$

$

Currently unavailable

32

Tecumseh 650703

Washer

$

$

Currently unavailable
