SBH-SBH-9118B - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

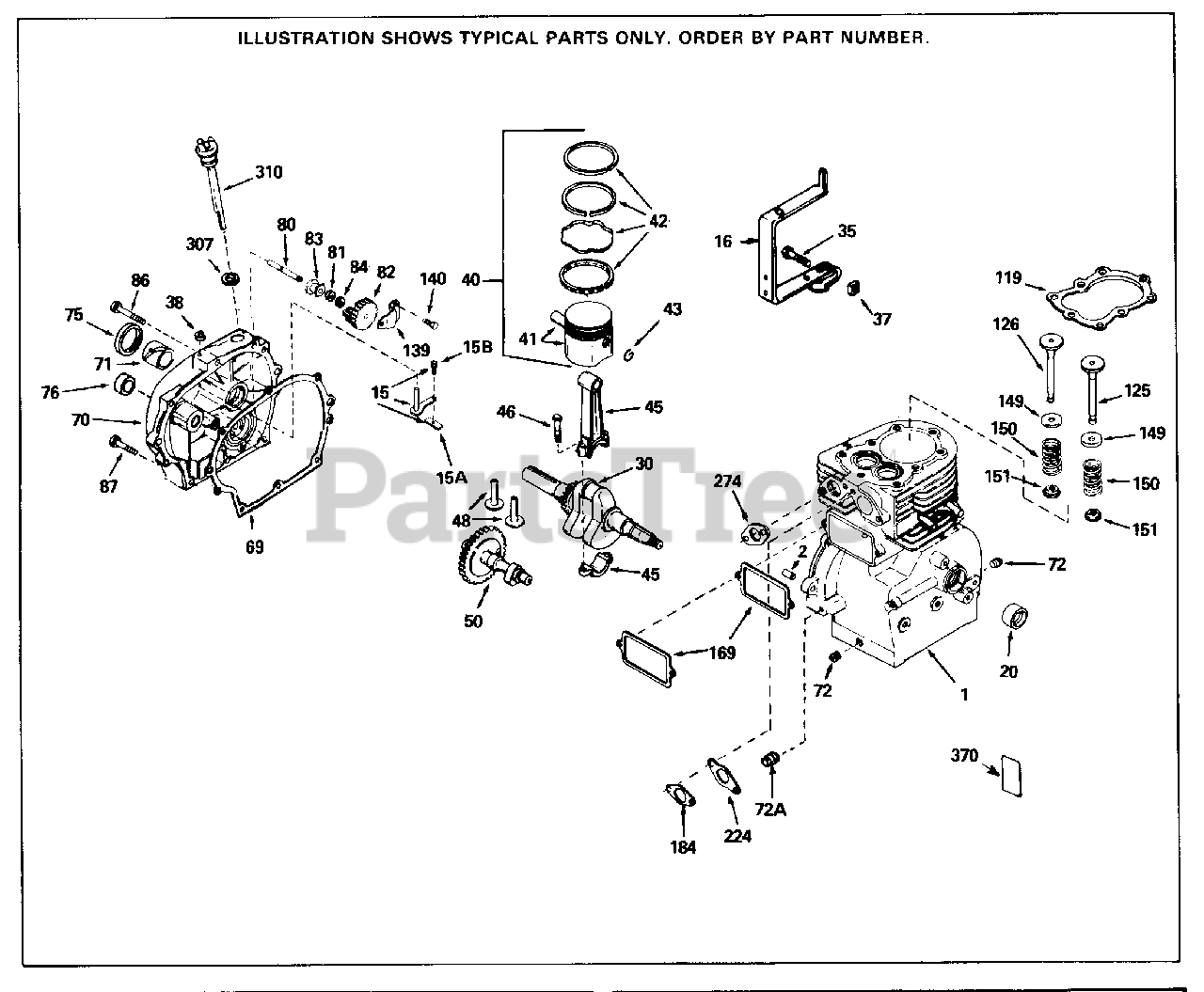

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 32586C

"Cylinder (Incl. 2, 20, 72 & 72A)

$

$

Not available

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

15B

Tecumseh 650494

Screw, 6-40 x 5/16"

$1.99

$

Usually ships in 3-12 days

0

15

Tecumseh 30699C

Governor Rod (Incl. 15A & 15B)

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Governor Yoke

$1.99

$

In Stock, only 1 left!

0

16

Tecumseh 32326A

Governor Lever

$16.99

$

Usually ships in 3-12 days

0

16A

Tecumseh 30205

Governor Bracket

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 651018

Screw, Torx T-15, 8-32 x 19/64"

$1.99

$

In Stock, Qty 9

0

20

Tecumseh 32630

Oil Seal

$8.49

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Lock Washer #8

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 34517

Piston, Pin & Ring Set (Std.)

$

$

Not available

40

Tecumseh 34518

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

40

Tecumseh 34519

Piston, Pin & Ring Set (.020" OS)

$

$

Not available

41

Tecumseh 32592B

Piston & Pin Ass'y. (Std.) (Incl. 43)

$52.99

$

In Stock, only 1 left!

0

41

Tecumseh 32593B

Piston & Pin Ass'y. (.010" OS) Incl. 43

$57.99

$

In Stock, only 1 left!

0

41

Tecumseh 32594B

Piston & Pin Ass'y. (.020" OS) Incl. 43

$61.99

$

Usually ships in 3-12 days

0

42

Tecumseh 32595

Ring Set (Std.)

$

$

Not available

42

Tecumseh 32596

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 32597

Ring SEt (.020" OS)

$

$

Not available

43

Tecumseh 27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 32591C

Connecting Rod Ass'y. (Incl. 46 & 49)

$

$

Not available

46

Tecumseh 650662C

Connecting Rod Bolt

$3.99

$

Usually ships in 3-12 days

0

48

Tecumseh 34034

Valve Lifter
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

49

Tecumseh 34242

Oil Dipper

$

$

Not available

50

Tecumseh 34082

Camshaft (MCR)

$

$

Not available

69

Tecumseh 30684

* Cylinder Cover Gasket

$4.49

$

In Stock, Qty 6

0

70

Tecumseh 31720A

Cylinder Cover Incl. 71,75,76,80 & 31 1

$

$

Not available

71

Tecumseh 31546

Crankshaft Bushing

$14.99

$

Usually ships in 3-12 days

0

72A

Tecumseh 28534

Oil Drain Plug

$1.99

$

In Stock, only 4 left!

0

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 28427

Oil Seal

$6.99

$

In Stock, only 2 left!

0

76

Tecumseh 28926

Camshaft Seal

$9.49

$

In Stock, only 1 left!

0

80

Tecumseh 31845

Governor Shaft
(Superseded to 37587)

$

$

Not available

81

Tecumseh 30590A

Washer

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Governor Gear Ass'y. (Incl. 81)

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Governor Spool

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650493

Screw, 1/4-20 x 1-3/4"

$3.99

$

In Stock, Qty 7

0

119

Tecumseh 36453

Cylinderhead Gasket
(Superseded to 32631A)

$11.99

$

In Stock, Qty 10

0

125

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

Usually ships in 3-12 days

0

125

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 32783

Intake Valve (Std.) (Incl. 151)

$16.99

$

In Stock, only 2 left!

0

126

Tecumseh 32784

Intake Valve (1/32" OS) (Incl. 151)

$69.99

$

Usually ships in 3-12 days

0

139

Tecumseh 31843A

Governor Gear Bracket

$5.49

$

In Stock, only 1 left!

0

140

Tecumseh 650965

Screw, Torx T-25, 10-24 x 1/2"

$

$

Not available

149

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

150

Tecumseh 27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 32581

Valve Spring Keeper

$6.49

$

In Stock, Qty 10

0

169

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 10

0

184

Tecumseh 31688A

Carburetor To Intake Pipe Gasket

$2.49

$

In Stock, only 2 left!

0

224

Tecumseh 27915A

Intake Pipe Gasket

$5.99

$

In Stock, Qty 19

0

305

Tecumseh 33951A

Oil Fill Tube

$11.99

$

Usually ships in 3-12 days

0

310

Tecumseh 34122A

Dipstick

$

$

Not available

370

Tecumseh 36261

Lubrication Decal

$

$

Not available
