SBH-SBH-6296B - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

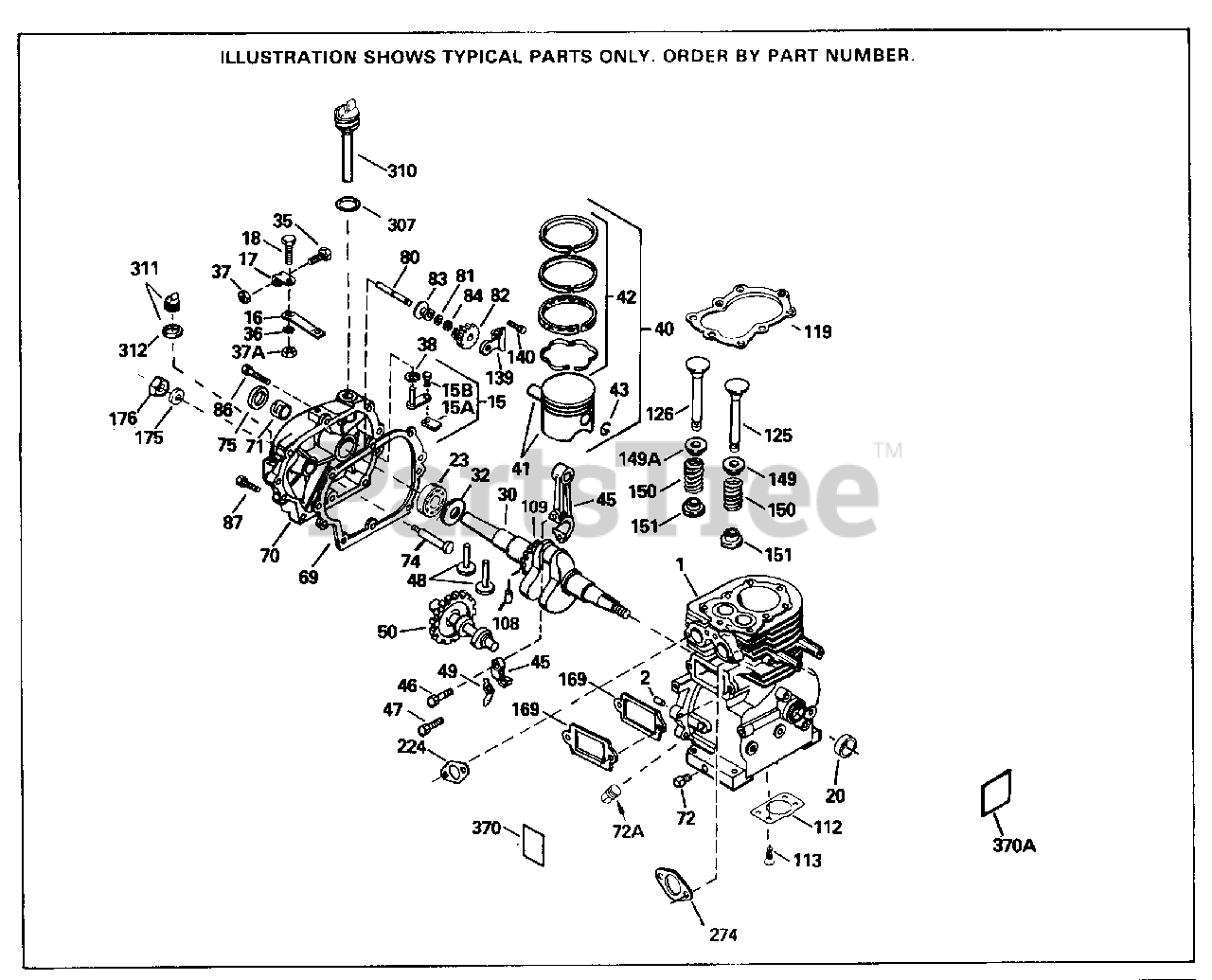

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 34348B

"Cylinder (Incl. 2, 20, 72 & 72A)

$

$

Not available

2

Tecumseh 27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 3 left!

0

15B

Tecumseh 650494

Screw, 6-40 x 5/16"

$1.99

$

Usually ships in 3-12 days

0

15

Tecumseh 30699C

Governor Rod (Incl. 15A & 15B)

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Governor Yoke

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 32630

Oil Seal

$8.49

$

In Stock, only 1 left!

0

30

Tecumseh 35255

Crankshaft

$

$

Not available

38

Tecumseh 29642

Retaining Ring

$100.99

$

In Stock, only 1 left!

0

40

Tecumseh 40012

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

40

Tecumseh 40011

Piston, Pin & Ring Set (Std.)
(Superseded to 40049)

$

$

Not available

41

Tecumseh 40009

Piston & Pin Ass'y. (Std.) (Incl. 43)
(Superseded to 40049)

$

$

Not available

41

Tecumseh 40010

Piston & Pin Ass'y. (.010" OS) Incl. 43
(Superseded to 40012)

$

$

Not available

42

Tecumseh 40013

Ring Set (Std.)

$28.99

$

In Stock, only 1 left!

0

42

Tecumseh 40014

Ring Set (.010" OS)

$43.99

$

Usually ships in 3-12 days

0

43

Tecumseh 27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 32591C

Connecting Rod Ass'y. (Incl. 47 & 49)

$

$

Not available

47

Tecumseh 650662C

Connecting Rod Bolt

$3.99

$

Usually ships in 3-12 days

0

48

Tecumseh 34034

Valve Lifter
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

49

Tecumseh 34242

Oil Dipper

$

$

Not available

50

Tecumseh 34143

Camshaft (MCR)

$92.99

$

Usually ships in 3-12 days

0

69

Tecumseh 37342

Cylinder Cover Gasket

$11.99

$

Usually ships in 3-12 days

0

70

Tecumseh 33367B

Cylinder Cover Incl. 71,75,80 & 311A

$

$

Not available

71

Tecumseh 33368

Crankshaft Bushing

$

$

Not available

72A

Tecumseh 28534

Oil Drain Plug

$1.99

$

In Stock, only 4 left!

0

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 31950

Oil Seal

$17.99

$

In Stock, only 1 left!

0

80

Tecumseh 31845

Governor Shaft
(Superseded to 37587)

$

$

Not available

81

Tecumseh 30590A

Washer

$1.99

$

In Stock, Qty 5

0

82

Tecumseh 30591

Governor Gear Ass'y. (Incl. 81)

$13.99

$

Usually ships in 3-12 days

0

83

Tecumseh 30588A

Governor Spool

$1.99

$

In Stock, Qty 5

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw, 1/4-20 x 1-11/16"

$

$

Not available

108

Tecumseh 29783

Pin, Crankshaft gear

$1.99

$

Usually ships in 3-12 days

0

109

Tecumseh 33245

Crankshaft Gear

$

$

Not available

125

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

Usually ships in 3-12 days

0

125

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 34035

Intake Valve (Std.) (Incl. 151)

$15.99

$

Usually ships in 3-12 days

0

126

Tecumseh 34036

Intake Valve (1/32" OS) (Incl. 151)

$

$

Not available

139

Tecumseh 33369

Governor Gear Bracket

$8.49

$

In Stock, only 1 left!

0

140

Tecumseh 650836

Screw, 10-24 x 1/2"
(Superseded to 650965)

$

$

Not available

149A

Tecumseh 35862

Valve Spring Cap

$9.49

$

Usually ships in 3-12 days

0

149

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, Qty 5

0

150

Tecumseh 27881

Valve Spring

$3.99

$

Usually ships in 3-12 days

0

151

Tecumseh 32581

Valve Spring Keeper

$6.49

$

In Stock, Qty 8

0

169

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 5

0

224

Tecumseh 27915A

Intake Pipe Gasket

$5.99

$

In Stock, Qty 13

0

274

Tecumseh 35865

Muffler Gasket

$2.49

$

In Stock, only 4 left!

0

311

Tecumseh 31297

Dipstick (Incl. 312)
(Superseded to 34011B)

$15.99

$

In Stock, only 1 left!

0

311A

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 5

0

312

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, only 2 left!

0

370

Tecumseh 36261

Lubrication Decal

$

$

Not available
