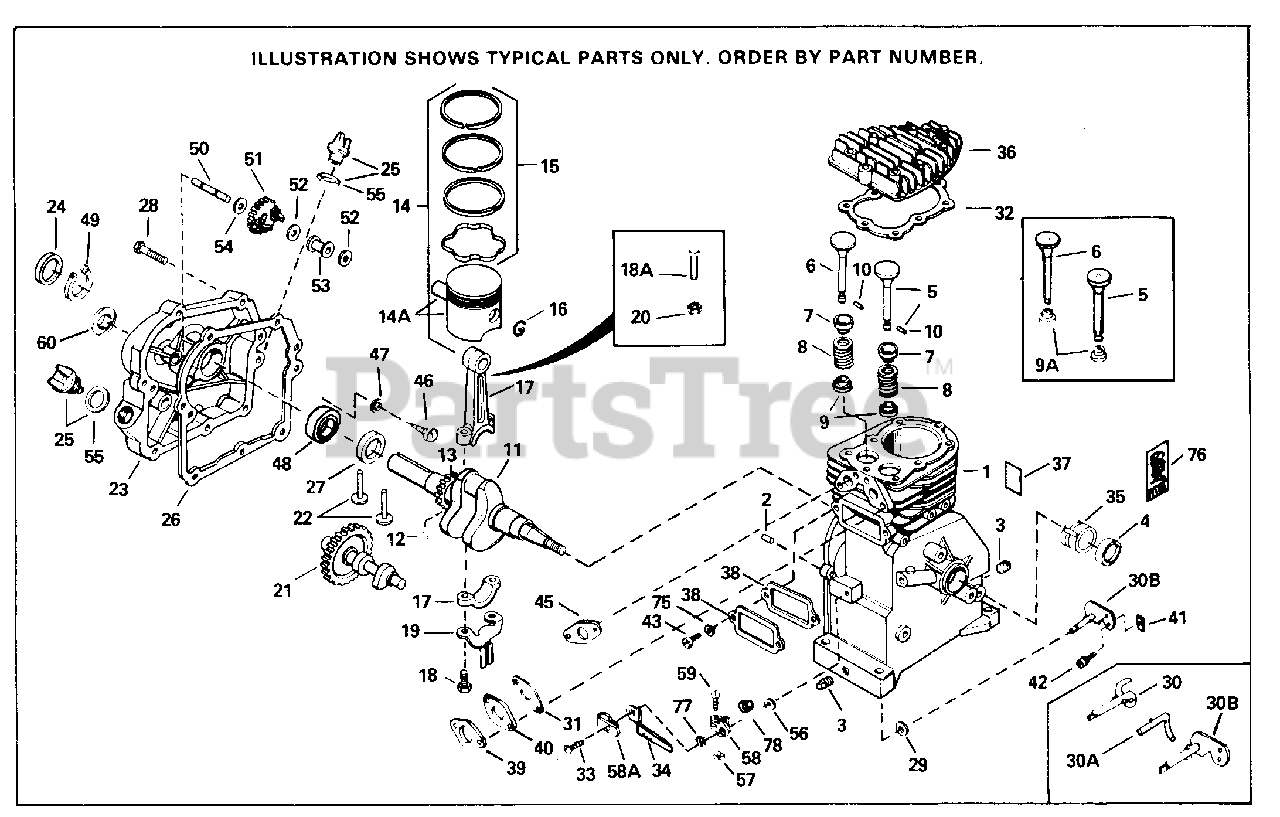

SBH-SBH-42A - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 31442

"Cylinder (CI liner)(Incl. 2, 3, 4, 35 ) 2-5/16"

$

$

Currently unavailable

1

Tecumseh 34708A

Cylinder (Incl. 2, 3 & 4) 2-1/2" Bor e
(Superseded to 36560A)

$

$

Not available

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 3 left!

0

4

Tecumseh 32600

Seal, Oil

$

$

Not available

5

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

5

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

5

Tecumseh 31444B

Intake Valve (Std.) (Incl. 9A)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

6

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

6

Tecumseh 34776

Exhaust Valve (Std.) (Incl. 9A)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 34777

Exhaust Valve (1/32" OS) (Incl. 9A)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

7

Tecumseh 31671

Cap, Upper valve spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

9A

Tecumseh 31673

Cap, Lower valve spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 31274

Crankshaft (Incl. 24)

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Crankshaft gear only)

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27613

Crankshaft Gear Early production onl y

$

$

Currently unavailable

14

Tecumseh 34499

Piston Ass'y (Std.)(Incl. 14A,15,16) 2-5/16"

$

$

Not available

14

Tecumseh 34514

Piston, Pin & Ring Set (Std.) 2-1/2" Bore

$

$

Not available

14

Tecumseh 34515

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

14

Tecumseh 34516

Piston, Pin & Ring Set (.020" OS)

$79.99

$

Usually ships in 3-12 days

0

14

Tecumseh 34526

Piston Ass'y (.010 OS) Incl. 14A, 15 & 16

$49.99

$

Usually ships in 3-12 days

0

14

Tecumseh 34527

Piston Ass'y (.020 OS) Incl. 14A, 15 & 16

$

$

Not available

14A

Tecumseh 31761B

Piston & Pin Ass'y. (Std.)(Incl. 16) 2-5/16"

$40.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 32538B

Piston & Pin Ass'y. (Std.)(Incl. 16) 2-1/2"

$

$

Not available

14A

Tecumseh 32548B

Piston & Pin Ass'y. (.010" OS) Incl. 16

$

$

Not available

14A

Tecumseh 32549B

Piston & Pin Ass'y. (.020" OS) Incl. 16

$50.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 32662B

Piston & Pin Ass'y. (.010" OS) Incl. 16

$30.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 32663B

Piston & Pin Ass'y. (.020" OS) Incl. 16

$

$

Not available

15

Tecumseh 28986

Ring Set (Std.)

$

$

Not available

15

Tecumseh 28987

Ring Set (.010" OS)

$

$

Not available

15

Tecumseh 28988

Ring Set (.020" OS)

$

$

Not available

15

Tecumseh 31443

Ring Set (Std.) (2-5/16" Bore)

$

$

Not available

15

Tecumseh 31484

Ring Set (.010" OS)

$

$

Currently unavailable

15

Tecumseh 31485

Ring Set (.020" OS)

$

$

Currently unavailable

16

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Connecting Rod (Incl. 18 & 19)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32610A

Bolt, Connecting rod Late Production

$1.99

$

In Stock, Qty 6

0

18A

Tecumseh 26706

Bolt, Connecting rod Early Productio n

$

$

Currently unavailable

19

Tecumseh 28594

Oil Dipper

$8.99

$

In Stock, only 2 left!

0

20

Tecumseh 27573

Nut, Lock (Used on Early Production)

$

$

Currently unavailable

21

Tecumseh 33149A

Camshaft

$

$

Not available

22

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 30756B

Cover, Cylinder (Incl. 24, 25 & 50)
(Superseded to 30756C)

$108.99

$

Usually ships in 3-12 days

0

24

Tecumseh 26208

Oil Seal

$8.49

$

In Stock, only 1 left!

0

24

Tecumseh 27897

Oil Seal equired)

$8.49

$

In Stock, only 3 left!

0

24

Tecumseh 28540

Oil Seal

$7.49

$

In Stock, only 1 left!

0

24

Tecumseh 30256

Oil Seal equired)

$8.99

$

In Stock, only 1 left!

0

24

Tecumseh 31333

Oil Seal (1-1/4", 1/4" thick) Use as required

$

$

Not available

25

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 8

0

26

Tecumseh 27677A

Cylinder Cover Gasket

$7.49

$

In Stock, Qty 8

0

28

Tecumseh 650451

Screw, 1/4-20 x 1" (Use as required)

$1.99

$

In Stock, only 4 left!

0

28

Tecumseh 650488

Screw, 1/4-20 x 1-1/4" Use as requir ed

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

30A

Tecumseh 31334

Rod, Governor NOTE: To determine whi ch governor rod to use for Models SBH -7C,SBH-24C, SBH-47,C,D, and SBH-48,C ,D, visibly compare rod from original engine. If rod from original engine is not available for visible compari son, refer to parts list

$5.49

$

In Stock, only 1 left!

0

30

Tecumseh 30637

Rod, Governor (Incl. 29) NOTE: To de termine which governor rod to use for Models SBH-7C,SBH-24C, SBH-47,C,D, a nd SBH-48,C,D, visibly compare rod fr om original engine. If rod from orig inal engine is not available for visi ble comparison, refer t

$

$

Currently unavailable

31

Tecumseh 26754A

Intake Pipe Gasket quired)

$1.99

$

In Stock, Qty 9

0

31

Tecumseh 30105

Flange Gasket (1/16" thick) Use as re quired

$

$

Currently unavailable

31

Tecumseh 32649A

Intake Gasket (1/8" thick) Use as req uired

$2.99

$

In Stock, Qty 18

0

32

Tecumseh 29953C

Cylinder Head Gasket

$16.99

$

In Stock, only 1 left!

0

34

Tecumseh 31336

Lever, Governor

$1.99

$

In Stock, only 4 left!

0

35

Tecumseh 30980

Bushing, Crankshaft (Use as required)

$

$

Not available

36

Tecumseh 30579A

Cylinder Head Not included with bloc k
(Superseded to 36438)

$

$

Not available

37

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available

38

Tecumseh 27234A

Valve Cover Gasket

$5.99

$

In Stock, only 2 left!

0

38

Tecumseh 31619A

Gasket, Breather (Use as required)

$7.49

$

In Stock, only 2 left!

0

43

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 2 left!

0

45

Tecumseh 26754A

Intake Pipe Gasket

$1.99

$

In Stock, Qty 9

0

45

Tecumseh 30081A

Exhaust Gasket

$1.49

$

In Stock, only 4 left!

0

46

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

47

Tecumseh 28537

Washer

$1.99

$

In Stock, only 1 left!

0

48

Tecumseh 28458

Ball Bearing

$

$

Not available

49

Tecumseh 28539

Bearing Retainer

$1.99

$

Usually ships in 3-12 days

0

50

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

51

Tecumseh 30591

Gear Assy., Governor (Incl. 54)

$13.99

$

In Stock, only 1 left!

0

52

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, Qty 6

0

53

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

54

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

55

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, only 3 left!

0

58A

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, only 3 left!

0

75

Tecumseh 27261

Washer

$1.99

$

Usually ships in 3-12 days

0

76

Tecumseh 550223

Decal, Name

$

$

Not available
