SBH-SBH-4255 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

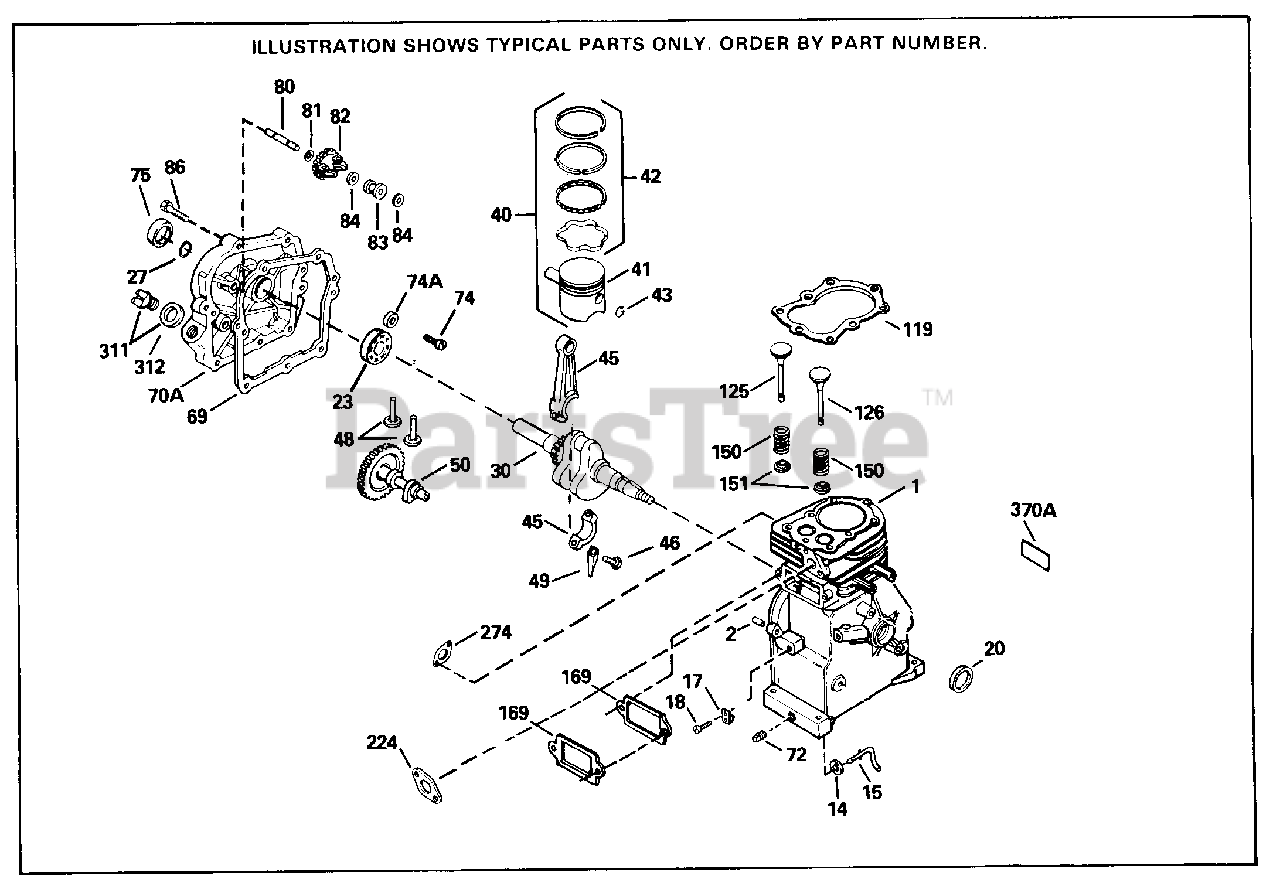

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 34755A

"Cylinder (Incl. 2, 30 & 72) 2-1/2" Bo re
(Superseded to 36562)

$

$

Not available

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 31334

Rod, Governor

$5.49

$

In Stock, only 1 left!

0

17

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

20

Tecumseh 32600

Seal, Oil

$

$

Not available

23

Tecumseh 28458

Ball Bearing

$

$

Not available

27

Tecumseh 28539

Bearing Retainer

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 34723

Crankshaft

$

$

Not available

40

Tecumseh 34514

Piston, Pin & Ring Set (Std.)

$

$

Not available

40

Tecumseh 34515

Piston, Pin & Ring Set (.010" OS)

$

$

Not available

40

Tecumseh 34516

Piston, Pin & Ring Set (.020" OS)

$79.99

$

Usually ships in 3-12 days

0

41

Tecumseh 32538B

Piston & Pin Ass'y. (Std.) (Incl. 43)

$

$

Not available

41

Tecumseh 32548B

Piston & Pin Ass'y. (.010" OS) Incl. 43

$

$

Not available

41

Tecumseh 32549B

Piston & Pin Ass'y. (.020" OS) Incl. 43

$50.99

$

Usually ships in 3-12 days

0

42

Tecumseh 28986

Ring Set (Std.)

$

$

Not available

42

Tecumseh 28987

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 28988

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 30963B

Rod Assy., Connecting (Incl. 46 & 49)

$29.99

$

Usually ships in 3-12 days

0

46

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

49

Tecumseh 32654

Dipper, Oil

$8.99

$

In Stock, only 4 left!

0

50

Tecumseh 33149A

Camshaft

$

$

Not available

69

Tecumseh 27677A

Cylinder Cover Gasket

$7.49

$

In Stock, Qty 8

0

70A

Tecumseh 30756B

Cover, Cylinder Incl. 75, 80, 311 &31 2
(Superseded to 30756C)

$108.99

$

Usually ships in 3-12 days

0

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 3 left!

0

74

Tecumseh 30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

74A

Tecumseh 28537

Washer

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 28540

Oil Seal

$7.49

$

In Stock, only 1 left!

0

80

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

81

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Gear, Governor (Incl. 81)

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

119

Tecumseh 29953C

Cylinder Head Gasket

$16.99

$

In Stock, only 1 left!

0

125

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

125

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

126

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

150

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Cap, Valve spring

$1.99

$

In Stock, only 1 left!

0

169

Tecumseh 31619A

Gasket, Breather

$7.49

$

In Stock, only 2 left!

0

274

Tecumseh 26754

Gasket, Exhaust
(Superseded to 26754A)

$1.99

$

In Stock, Qty 9

0

311

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 8

0

312

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, only 3 left!

0

370A

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available
