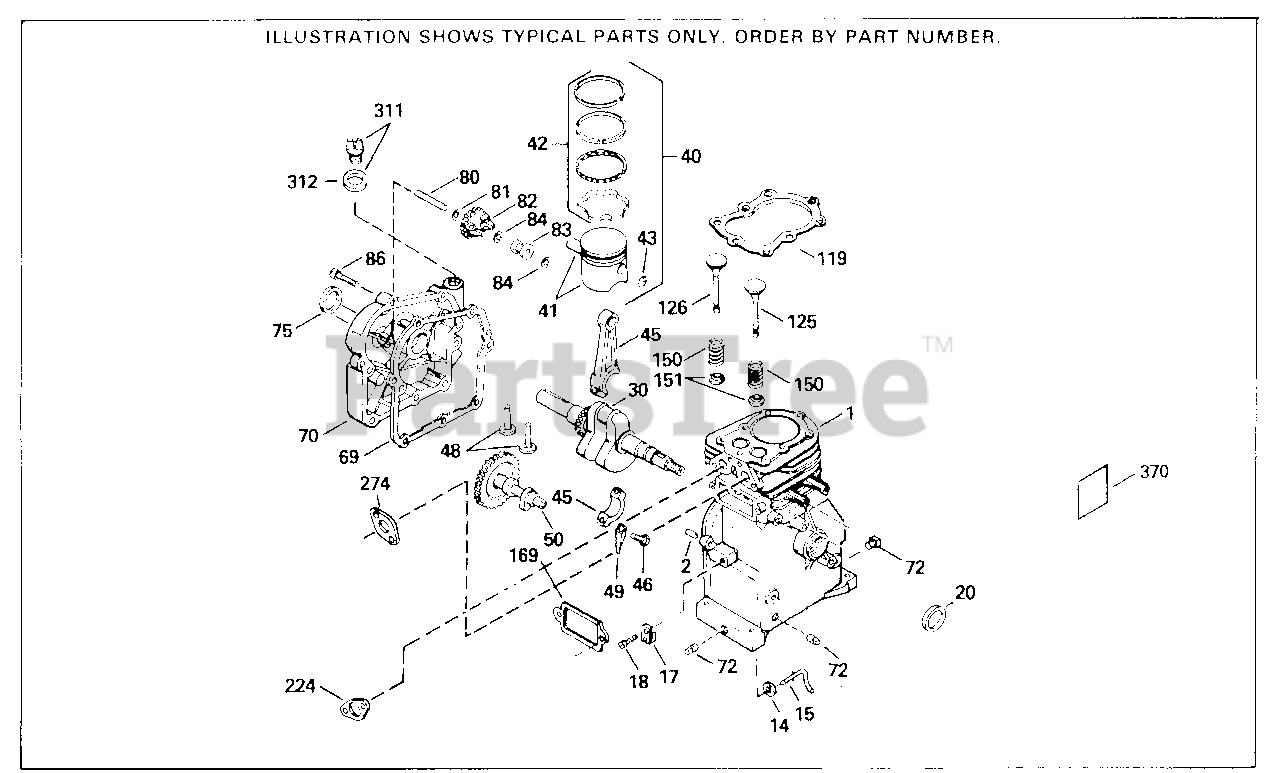

SBH-SBH-4247 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 33014C

"Cylinder (Incl. 2, 20, 72 & 72A) 2-5/ 8"
(Superseded to 36561)

$

$

Not available

2

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 31334

Rod, Governor

$5.49

$

In Stock, only 1 left!

0

17

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 650548

Screw, 8-32 x 5/16"
(Superseded to 651018)

$1.99

$

In Stock, Qty 8

0

20

Tecumseh 32600

Seal, Oil

$

$

Not available

30

Tecumseh 34734A

Crankshaft

$156.99

$

In Stock, only 1 left!

0

40

Tecumseh 35546

Piston, Pin & Ring Set (.020" OS) (In cl. 41, 42 & 43)

$

$

Not available

40

Tecumseh 35544

Piston, Pin & Ring Set (Std.) 2-5/8"
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

40

Tecumseh 35545

Piston, Pin & Ring Set (.010" OS)
(Superseded to 35545A)

$

$

Not available

41

Tecumseh 35541

Piston & Pin Assembly (Std.) (Incl. 4 3)(2-5/8")

$45.99

$

In Stock, only 1 left!

0

41

Tecumseh 35542

Piston & Pin Assembly (.010" OS) (Inc l. 43)

$

$

Not available

41

Tecumseh 35543

Piston & Pin Assembly (.020" OS) (Inc l. 43)

$

$

Not available

42

Tecumseh 35547

Ring Set (Std.) (2-5/8" Bore)
(Superseded to 35547A)

$

$

Not available

42

Tecumseh 35548

Ring Set (.010" OS)
(Superseded to 35548A)

$

$

Not available

42

Tecumseh 35549

Ring Set (.020" OS)

$

$

Not available

43

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 32875

Rod Assy., Connecting (Incl. 46 & 49)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

46

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 2 left!

0

49

Tecumseh 32654

Dipper, Oil

$8.99

$

In Stock, only 4 left!

0

50

Tecumseh 33158

Camshaft
(Superseded to 37040)

$30.99

$

In Stock, only 1 left!

0

69

Tecumseh 27677A

Cylinder Cover Gasket

$7.49

$

In Stock, Qty 7

0

70

Tecumseh 34674B

Cover, Cylinder (Incl. 75 & 80)
(Superseded to 34674C)

$

$

Not available

72

Tecumseh 27642

Oil Drain Plug (Sq. hd., 1/4-18)

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, Qty 17

0

80

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, only 3 left!

0

81

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Gear, Governor (Incl. 81)

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

119

Tecumseh 33015A

Gasket, Cylinder head

$11.99

$

Usually ships in 3-12 days

0

125

Tecumseh 29313C

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

125

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 32644A

Intake Valve (Std.) (Incl. 151)

$9.99

$

Usually ships in 3-12 days

0

126

Tecumseh 32645A

Intake Valve (1/32" OS) (Incl. 151)

$61.99

$

In Stock, only 2 left!

0

150

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Cap, Valve spring

$1.99

$

In Stock, only 3 left!

0

169

Tecumseh 31619A

Gasket, Valve cover

$7.49

$

In Stock, only 2 left!

0

224

Tecumseh 32649A

Gasket, Intake

$2.99

$

In Stock, Qty 18

0

274

Tecumseh 26754A

Intake Pipe Gasket

$1.99

$

In Stock, Qty 8

0

311

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 7

0

312

Tecumseh 29673

Oil Fill Plug Gasket

$1.99

$

In Stock, only 3 left!

0

370

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available
