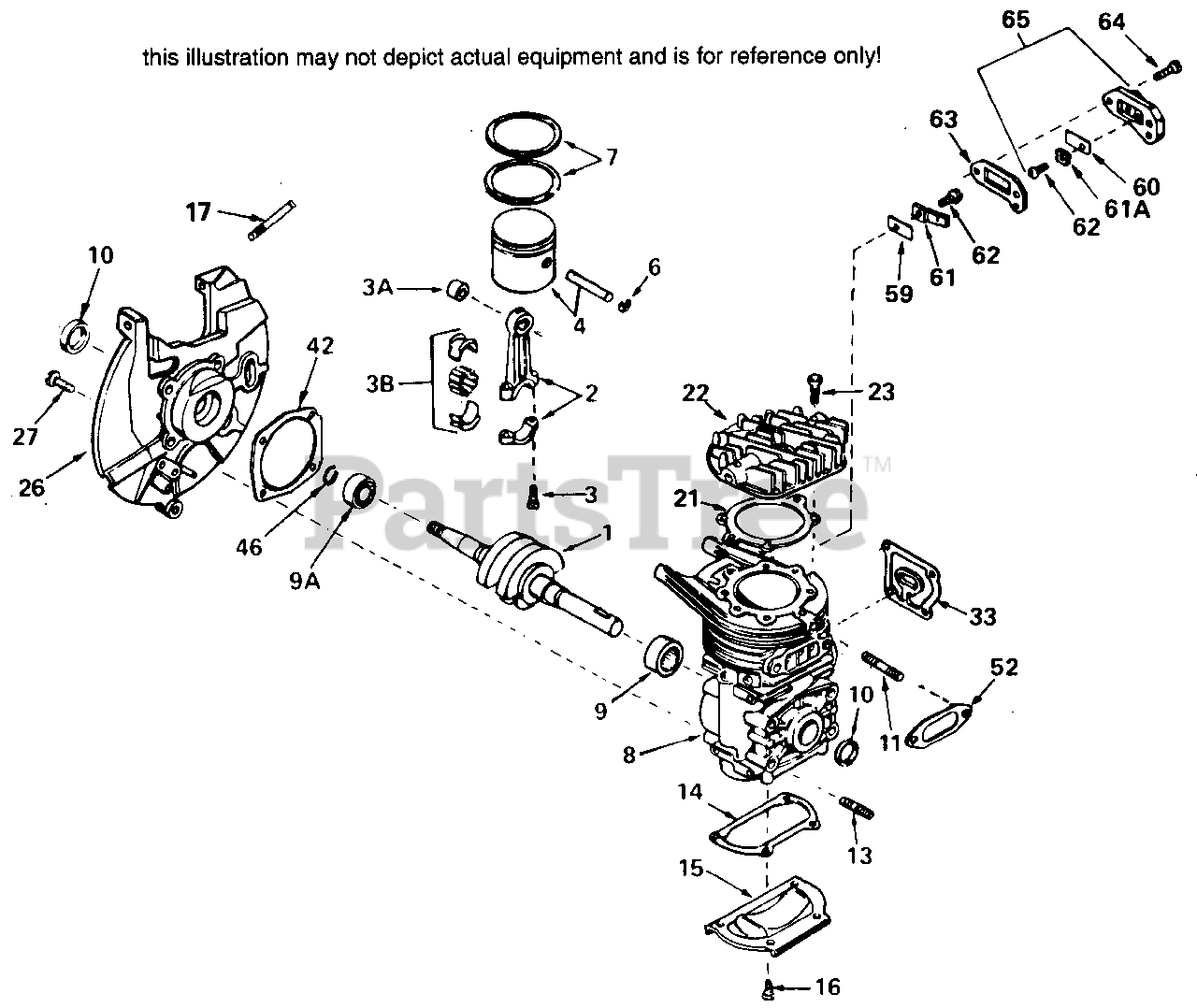

SBH-710414 - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 290497

"Crankshaft

$

$

Currently unavailable

2

Tecumseh 310244

Rod Assy., Connecting Incl. 3, 3A &3B

$

$

Currently unavailable

3B

Tecumseh 530149

Bearing & Liner Set, Needle

$27.99

$

Usually ships in 3-12 days

0

3A

Tecumseh 530104A

Bearing, Cartridge

$15.99

$

Usually ships in 3-12 days

0

3

Tecumseh 650633

Screw, Connecting rod

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 310269A

Piston & Pin Assy. (Incl. 6)
(Superseded to 310283A)

$33.99

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring, Piston pin retaining

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set, Piston
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

8

Cylinder Order SB if replacement isre q.

$

$

Not available

9A

Tecumseh 530110

Bearing, Ball

$30.99

$

Usually ships in 3-12 days

0

9

Tecumseh 530105

Bearing, Cartridge

$11.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510319

Seal, Crankshaft

$7.49

$

In Stock, Qty 8

0

11

Tecumseh 650801

Stud, Exhaust

$1.99

$

In Stock, only 3 left!

0

13

Tecumseh 650796

Stud, Mounting

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 510270A

Gasket, Cover

$5.49

$

Usually ships in 3-12 days

0

15

Tecumseh 570370A

Plate, Cover

$

$

Not available

16

Tecumseh 650579

Screw, Torx T-25, 10-24 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 490295

Shaft, Air vane

$

$

Currently unavailable

21

Tecumseh 510274A

Gasket, Cylinder head

$1.99

$

In Stock, only 4 left!

0

22

Tecumseh 250240A

CYL HEAD
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

23

Tecumseh 650477

Screw, Torx T-30, 1/4-20 x 3/4"

$1.99

$

In Stock, Qty 20+

0

26

Tecumseh 350402

Blower housing Base (Incl. 10 & 17)

$

$

Currently unavailable

27

Tecumseh 650911

Screw, Torx T-30, 1/4-20 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

33

Tecumseh 510312A

Gasket, Port

$1.99

$

In Stock, Qty 5

0

42

Tecumseh 510292A

Gasket, Blower housing base

$3.99

$

Usually ships in 3-12 days

0

46

Tecumseh 570630

Ring, Retaining Used on early product ion

$

$

Currently unavailable

52

Tecumseh 510207A

Gasket, Exhaust

$5.49

$

Usually ships in 3-12 days

0

59

Tecumseh 470136

Reed, Compression release

$3.99

$

In Stock, only 2 left!

0

60

Tecumseh 470135

Reed, Compression release

$5.49

$

In Stock, only 1 left!

0

61A

Tecumseh 470137

Plate, Reed hold-down

$2.49

$

In Stock, only 1 left!

0

61

Tecumseh 470151

Plate, Reed hold-down

$

$

Currently unavailable

62

Tecumseh 650654

Screw, 6-32 x 3/8"

$1.99

$

In Stock, only 2 left!

0

63

Tecumseh 510263A

Gasket, Compression release

$1.99

$

In Stock, only 4 left!

0

64

Tecumseh 650576

Screw, 10-24 x 5/8"
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

65

Tecumseh 570437A

Comp. Release Cover Assy. (Incl. 60,6 1A & 62)

$

$

Currently unavailable
