SB-983 (31AE983I190) - White Outdoor Snow Boss Snow Thrower (1998) Axle & Aluminum Drive Plate Parts Diagram

Snow Boss Snow Thrower

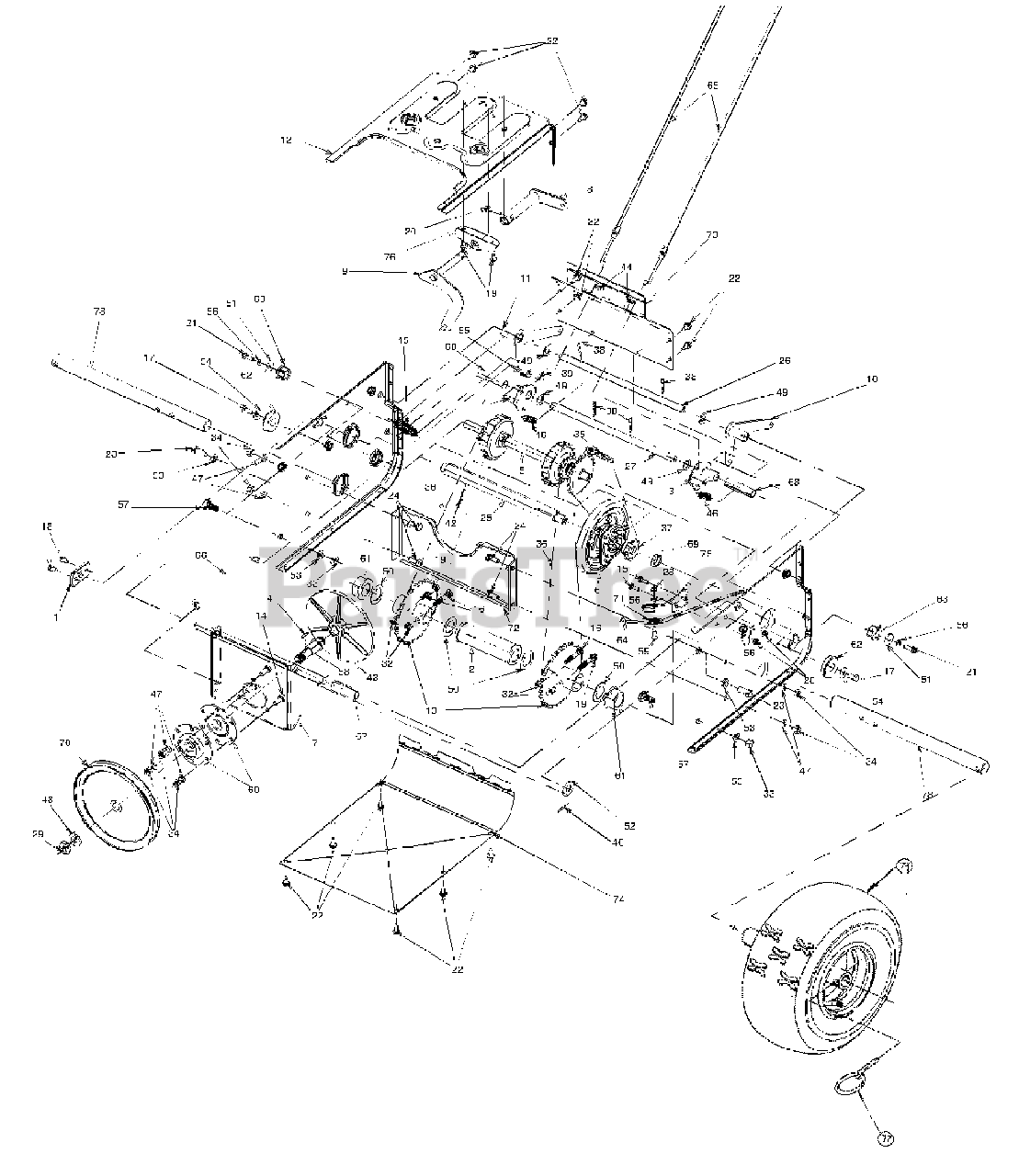

Axle & Aluminum Drive Plate Parts Diagram

  • Title

1

White Outdoor 05523

Pivot Axle Brkt. .63 Hole - Zinc

$

$

Not available

2

White Outdoor 618-0278

Bush Asm slev
(Superseded to 918-0278)

$

$

Not available

3

White Outdoor 618-0279

Dogg Asm Dr Lh
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

4

White Outdoor 618-0280

Dogg Asm Dr Rh
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

5

White Outdoor 618-0282

Shf Asm Dr
(Superseded to 918-0282E)

$559.99

$

Usually ships in 3-6 days

0

6

White Outdoor 618-0296

Whl Asm Brg 6.0 OD Friction
(Superseded to 918-0296B)

$207.99

$

Usually ships in 3-6 days

0

7

White Outdoor 684-0115

Brkt Asm Supt Friction Dr
(Superseded to 684-0115-0637)

Variations

White Outdoor 684-0115-0637

SUPPORT ASSY-FRICTION - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 684-0116

Arm Asm Shift

Variations

White Outdoor 684-0116-0637

No Longer Available ARM ASSY-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 684-0117

Shft Asm Rod

$91.99

$

Usually ships in 3-6 days

0

10

White Outdoor 684-0118

Brkt Asm Actr Auger
(Superseded to 684-0118B-0637)

$

$

Not available

11

White Outdoor 684-0119

Brkt Asm Actr Dr
(Superseded to 684-0119B-0637)

Variations

White Outdoor 684-0119-0637

BRACKET-AUGER ACTUR - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 684-0120

Frm Asm Trans

Variations

White Outdoor 684-0120-0498

FRAME ASSY-TRANSMISSION - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 684-0120-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0120-0650

FRAME ASSY-TRANSMISSION - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-0120-0662

FRAME ASSY-TRANSMISSION - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0120-0665

FRAME ASSY-TRANSMISSION - YARDMAN GREEN (0665)

$

$

Not available

$

$

13

White Outdoor 684-0122

Spkt Asm 32t

$238.99

$

Usually ships in 3-6 days

0

14

White Outdoor 710-0118

Hex Scr 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-0195

Hhcs 1/4-28 .625 Gr5 std
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

16

White Outdoor 710-0380

Hex Scr 5/16-18 x 1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 15

0

17

White Outdoor 710-0538

Hhcs 5/16-18 x .625 Gr5 Lock

$4.49

$

In Stock, Qty 9

0

18

White Outdoor 710-0599

Scr TT 1/4-20 x .5 Hxindwsh

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-0116

Hex Scr 5/16-18 2.00 Lg
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

20

White Outdoor 710-0809

Scr Hexwash 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

21

White Outdoor 710-0875

Scr Tt Cl 1/4-20 .75 Hxindwsh

$3.99

$

In Stock, only 2 left!

0

22

White Outdoor 710-0896

Scr Ab 1/4-14 .625 Hxindwsh

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 710-3001

Hhcs 3/8-16 x .880 Gr5 Std

$7.49

$

In Stock, Qty 9

0

24

White Outdoor 710-3008

Scr Cap 5/16-18 x .75 Gr 5

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 711-1191

Shf Dr .875 Hex

$

$

Not available

26

White Outdoor 711-1193

Shf Sctr

$

$

Not available

27

White Outdoor 711-1194

Shf Actr Dr

$

$

Not available

28

White Outdoor 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

29

White Outdoor 712-0221

Hex Ins Jam L-nut 5/8-18

$

$

Not available

32

White Outdoor 712-0429

Hex Ins L-nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

34

White Outdoor 712-3010

Nut Hex 5/16-18 Gd 5

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 713-0284

#41 Chain 1/2 Pitch x 36 L

$24.99

$

Usually ships in 3-6 days

0

36

White Outdoor 713-0286

#420 Chain 1/2 Pitch x 40 L

$66.99

$

Usually ships in 3-6 days

0

37

White Outdoor 713-0413

Spkt 10t #41 x .500

$12.99

$

Usually ships in 3-6 days

0

38

White Outdoor 714-0101

Internal Cot-pin 1/2 Dia

$4.99

$

In Stock, only 2 left!

0

39

White Outdoor 714-0104

Intern Cot-pin 5/16 Dia

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 714-0115

Cotter Pin 1/8 Dia x 1

$3.99

$

Usually ships in 3-6 days

0

41

White Outdoor 714-0388

#61 Hi-pro-key 3/16 x 5/8
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

42

White Outdoor 715-0249

Spring Pin Roll 5/32
(Superseded to 915-0249)

$6.99

$

In Stock, only 2 left!

0

43

White Outdoor 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

44

726-0345

Plug 5/8 Snap-in

$

$

Not available

45

White Outdoor 732-0121

Idler Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

46

White Outdoor 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

47

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

White Outdoor 736-0158

Lock Washer 5/8

$4.49

$

In Stock, only 1 left!

0

49

White Outdoor 736-0160

Wash Fl .531 ID x .930 OD x .05

$4.49

$

In Stock, only 2 left!

0

50

White Outdoor 736-0163

Wash Fl 1.03 ID x 1.62 OD

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 736-0176

Wash Flt 1/4 ID x .930 OD x .12

$4.99

$

In Stock, Qty 6

0

52

White Outdoor 736-0187

Wash Flt .640 ID x 1.24 OD x .06

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0217

Lock Washer 3/8 Heavy

$4.49

$

In Stock, Qty 9

0

54

White Outdoor 736-0242

Bell Wash .345 ID x .88 OD

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 736-0275

Fl-wash Sae .34 x .68 .062

$6.99

$

Usually ships in 3-6 days

0

56

White Outdoor 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

57

White Outdoor 738-0143

Shld Scr .498 Dia x .340

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

59

White Outdoor 738-0924

Scr Shldr .340 D. 1/4 Ab
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

60

White Outdoor 741-0163A

Asm Brg Hsg

$48.99

$

Usually ships in 3-6 days

0

61

White Outdoor 741-0192

Flange Brg Pm W/flts 1.0
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

62

White Outdoor 741-0563

Ball Bearing W/snap Ring
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

63

White Outdoor 741-0597

Brg Hex Flange x .564 ID
(Superseded to 941-0597)

$12.99

$

In Stock, Qty 12

0

64

White Outdoor 746-0951

Cb Idlr Auger
(Superseded to 946-0951A)

$45.99

$

In Stock, only 4 left!

0

65

White Outdoor 746-0949

Cbl Strg
(Superseded to 746-0949A)

$52.99

$

In Stock, only 1 left!

0

66

White Outdoor 747-0973

Rod Clu Dr

$48.99

$

Usually ships in 3-6 days

0

67

White Outdoor 750-1097

Spcr Splt .64 x .77 x 2.1

$

$

Not available

68

White Outdoor 750-0903

Split Spacer 1/2 x 5/8 x 2.44
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

69

White Outdoor 750-0997

Spcr .675 ID x 1.00 OD x .23
(Superseded to 950-0997)

$6.99

$

In Stock, only 4 left!

0

70

White Outdoor 756-0344

1/2 V-pulley .62 ID x 7.5

$81.99

$

Usually ships in 3-6 days

0

71

White Outdoor 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 16

0

72

White Outdoor 784-0377

Brkt Supt Frm
(Superseded to 784-0377-0637)

Variations

White Outdoor 784-0377-0637

SUPPORT-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

73

White Outdoor 784-0379

Cvr Frm Upr

Variations

White Outdoor 784-0379-0638

COVER:UPPER FRAME: - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 784-0379-0650

COVER:UPPER FRAME: - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-0379-0662

No Longer Available COVER-UPPER FRAME - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0379-0665

No Longer Available COVER-UPPER FRAME - YARDMAN GREEN (0665)

$

$

Not available

$13.99

$

Usually ships in 3-6 days

0

74

White Outdoor 784-0380

Cvr Frm Lwr

Variations

White Outdoor 784-0380-0637

COVER-LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0380-0638

COVER-LOWER FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0380-0650

COVER-LOWER FRAME - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-0380-0662

COVER-LOWER FRAME - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0380-0665

COVER-LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

$

$

75

White Outdoor 784-0384

Brkt Gde Auger Cbl
(Superseded to 784-0384-0637)

Variations

White Outdoor 784-0384-0637

GUIDE-AUGER CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

76

White Outdoor 784-5590

Shift Bracket Frame

Variations

White Outdoor 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

77

White Outdoor 714-0151A

Klik Pin Assy Danuse

$41.99

$

Usually ships in 3-6 days

0

78

White Outdoor 738-0975

Axle 1.0 OD x 14.1 Lg

$182.99

$

In Stock, only 1 left!

0

79

White Outdoor 734-1593

Cmp Whl Assy 16 x 6.5 Snohog
(Superseded to 734-1593A)

Variations

White Outdoor 734-1593-0911

WHEEL-COMPL 16 X 6 - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-1593-0931

WHEEL ASSY COMPLETE - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1593-0941

WHEEL-COMPL 16 X 6 - Carlisle Yellow (0941)

$

$

Not available

$225.99

$

Usually ships in 3-6 days

0
