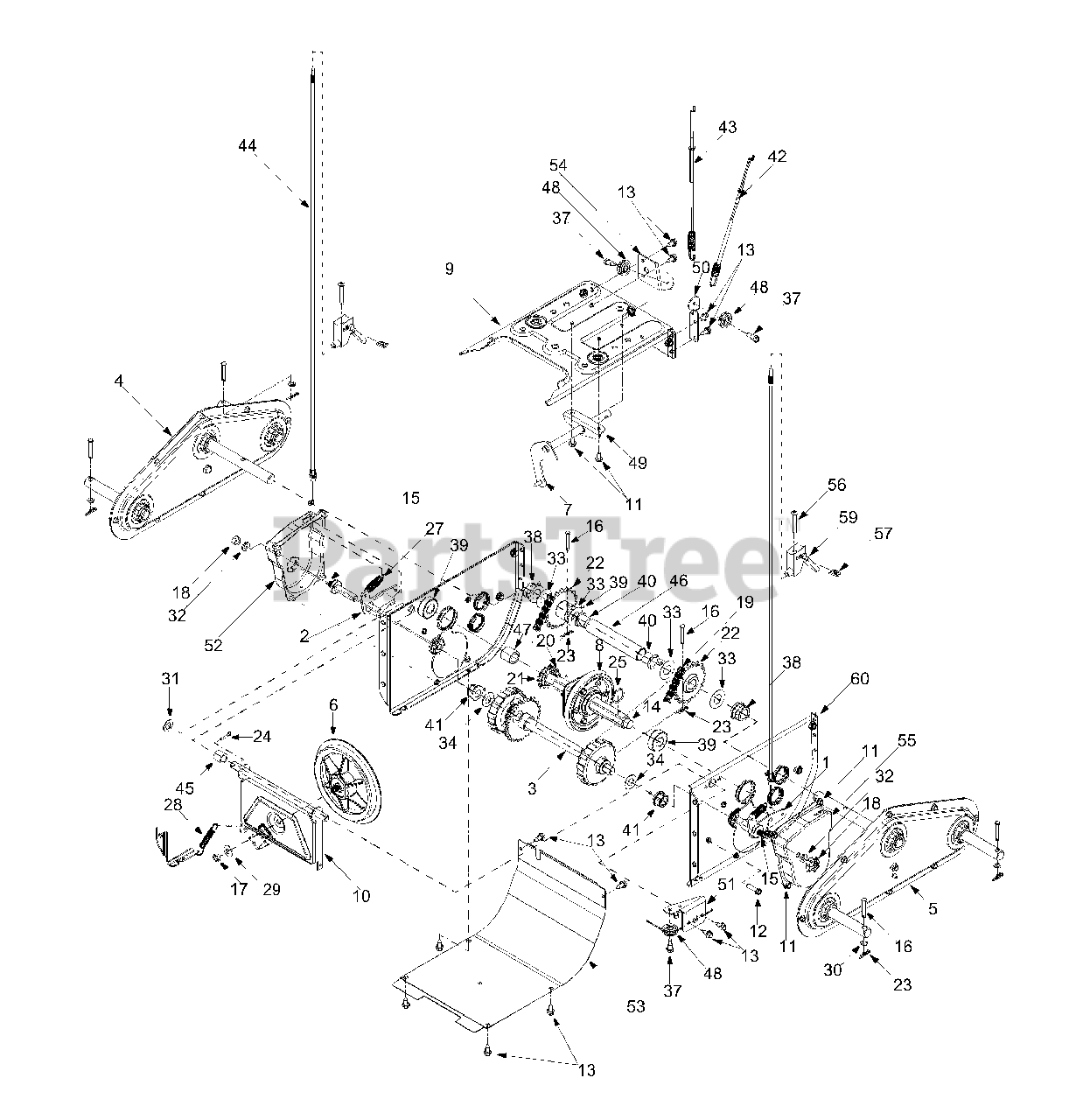

SB-955 4x4 (31AH4Q3G190) - White Outdoor Snow Boss Snow Thrower (2002) Frame Assembly Parts Diagram

Snow Boss Snow Thrower

Frame Assembly Parts Diagram

  • Title

1

MTD 618-0043

Dogg Assembly: RH

$23.99

$

In Stock, only 1 left!

0

2

MTD 618-0044

Dogg Assembly: LH

$24.99

$

In Stock, only 1 left!

0

3

MTD 618-0575

Shift Assembly: Steerable Drive

$

$

Not available

4

MTD 918-0420A

Chain Case Assembly: RH

$424.99

$

Usually ships in 3-6 days

0

5

MTD 918-0421A

Chain Case Assembly: LH

$

$

Not available

6

MTD 956-0012A

Friction Wheel Disc Assy.

$125.99

$

In Stock, Qty 6

0

7

MTD 684-0014B-0637

Shift Rod Assembly

$47.99

$

In Stock, only 1 left!

0

8

MTD 984-0042C

Wheel Assembly, Friction

Note: See 'Friction Wheel Assembly' for breakdown

$138.99

$

In Stock, Qty 17

0

9

MTD 684-0130

Transmission Frame Assembly

Variations

MTD 684-0130-0498

No Longer Available FRAME ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0130-0662

FRAME ASM. TRANS. - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0130-0665

No Longer Available FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0130-0689

Transmission Frame Assembly - POLO GREEN (0689)

$

$

Not available

MTD 684-0130-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

10

MTD 684-0131A-0637

Support Bracket Assembly

$

$

Not available

11

MTD 710-0599

Hex Washer Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0788

Hex Washer Screw 1/4-20 x 1.0"

$7.49

$

In Stock, only 2 left!

0

13

MTD 710-1652

Hex Washer Screw 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

14

MTD 711-1267

Drive Shaft

$70.99

$

In Stock, only 1 left!

0

15

MTD 711-1268

Actuator Shaft

$

$

Not available

16

MTD 711-1364

Pin

$8.49

$

In Stock, only 2 left!

0

17

MTD 712-0711

Jam Nut 3/8-24 Gr.8

$4.49

$

In Stock, Qty 20+

0

18

MTD 912-3017

Hex Nut: 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

19

MTD 713-0602

Chain

Note: NLA

$

$

Not available

20

MTD 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

21

MTD 713-0413

Sprocket: 19T

$12.99

$

Usually ships in 3-6 days

0

22

MTD 713-0473

Sprocket

$

$

Not available

23

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

24

MTD 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

25

MTD 916-0102

Snap Ring
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

27

MTD 932-0209

Extension Spring

$7.99

$

In Stock, only 2 left!

0

28

MTD 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

29

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

30

MTD 936-0142

Flat Washer
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

31

MTD 936-0160

Flat Washer

$4.49

$

In Stock, only 1 left!

0

32

MTD 936-0169

Lock Washer
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

33

MTD 936-0351

Flat Washer
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

34

MTD 736-0626

Flat Washer

$9.49

$

In Stock, only 2 left!

0

37

MTD 738-0924A

Shoulder Screw

$6.99

$

In Stock, Qty 5

0

38

MTD 941-0598

Hex Flange Bearing

$12.99

$

In Stock, Qty 20+

0

39

MTD 941-0600

Ball Bearing

$25.99

$

In Stock, Qty 20+

0

40

MTD 741-0701

Flange Bushing

$

$

Not available

41

MTD 741-1111

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

42

MTD 946-0897

Auger Clutch Cable

$24.99

$

In Stock, Qty 20+

0

43

MTD 946-0898

Drive Clutch Cable

$27.99

$

In Stock, Qty 19

0

44

MTD 946-0956B

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 15

0

45

MTD 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

46

MTD 750-1161A

Support Tube: Axle

$46.99

$

Usually ships in 3-6 days

0

47

MTD 750-1162

Spacer

$

$

Not available

48

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

49

MTD 784-5590

Shift Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

50

MTD 784-5687A-0637

Auger Clutch Cable Guide Bracket

$

$

Not available

51

MTD 784-5689A-0637

Front Support Guide Bracket

$

$

Not available

52

MTD 784-5730A-0637

Retaining Shaft RH: Actuator Drive

$

$

Not available

53

MTD 784-5638A

Frame Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5638A-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5638A-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

MTD 784-5638A-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5638A-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

MTD 784-5638A-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5638A-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5638A-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

MTD 784-5638A-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

MTD 784-5638A-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 784-5638A-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5638A-0721

Frame Cover, Black - SEARS RED (0721)

$

$

Not available

$

$

54

MTD 784-5733-0637

Roller Bracket: Drive Cable

$

$

Not available

55

MTD 784-5740-0637

Retaining Shaft LH: Actuator Drive

$

$

Not available

56

MTD 710-1233

Oval C-Sunk Machine Screw

$4.99

$

In Stock, Qty 11

0

57

MTD 712-0127

Weld Nut

$3.49

$

In Stock, Qty 13

0

58

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

59

MTD 746-0950A

Turn Trigger

$22.99

$

Usually ships in 3-6 days

0

60

MTD 684-0179

Frame

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0179-0650

No Longer Available FRAME HOUSING ASSY - RED METALLIC (0650)

$

$

Not available

MTD 684-0179-0665

No Longer Available FRAME HSG - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0179-0689

No Longer Available FRAME HSG - POLO GREEN (0689)

$

$

Not available

MTD 684-0179-0716

FRAME HOUSING ASSY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

58

MTD 777D04524

Label: Side Housing

$

$

Not available

59

MTD 777D05222

Label: Eng 9.5HP

Note: NLA

$

$

Not available

MTD 777D05226

Label: Housing 955 4x4

Note: NLA

$

$

Not available
