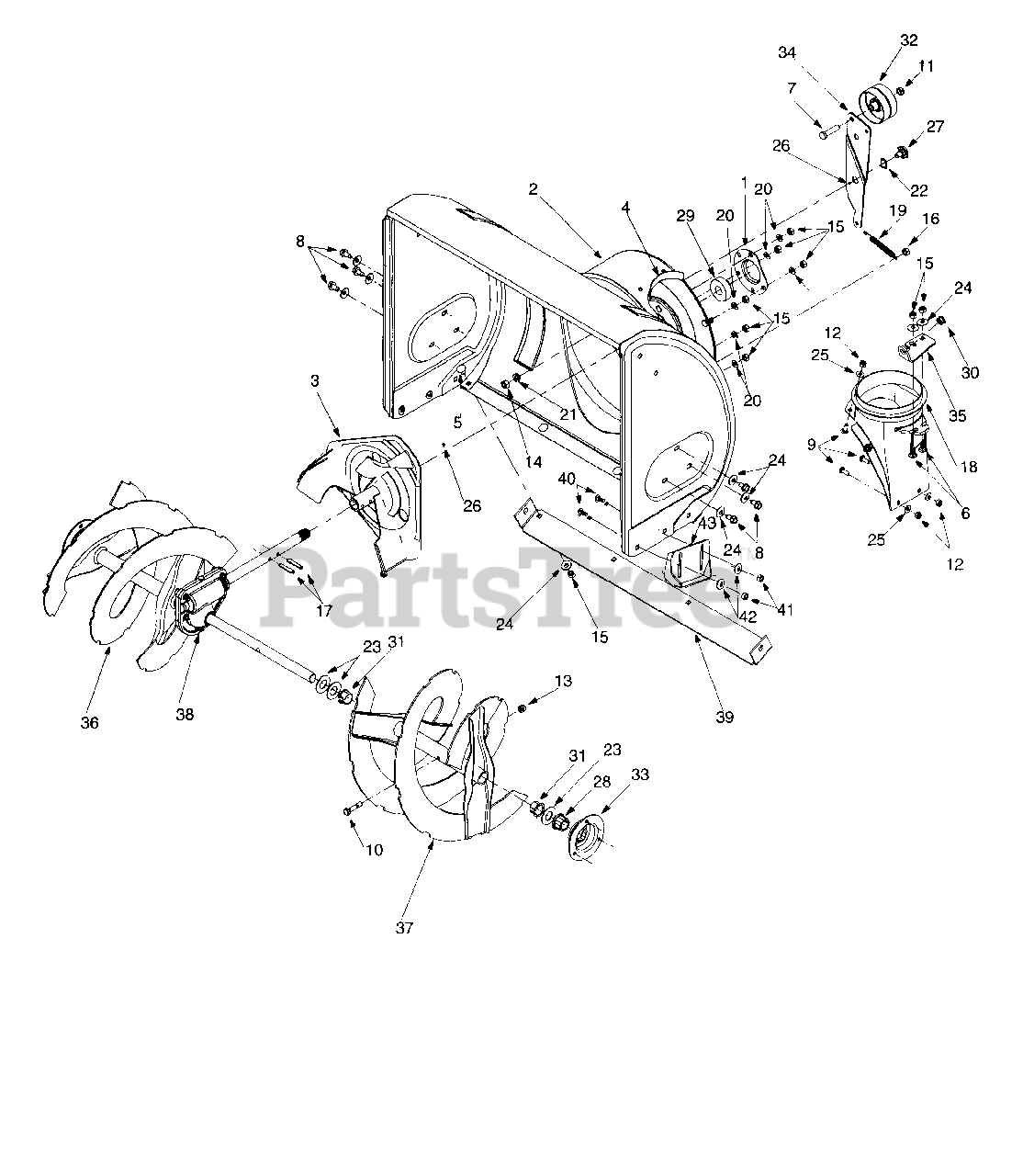

  • Title

1

MTD 05931A

Bearing Housing

$10.99

$

Usually ships in 3-6 days

0

2

MTD 684-0040B

Auger Housing Assy. 26" For model SB-950W
(Superseded to 684-0040D)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0040B-0483

HOUSING ASM-26" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0040B-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0040B-0638

HOUSING ASM-26" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0040B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0040B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 684-0040B-0629

HOUSING ASM-26" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0040B-0665

HOUSING ASM-26" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0040B-0689

HOUSING ASM-26" - POLO GREEN (0689)

$

$

Not available

$

$

2

MTD 684-0055C

Auger Housing Assy. 30" For model SB-1150W

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0055C-0638

"No Longer Available HOUSING ASM-30""" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0055C-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0055C-0650

No Longer Available HOUSING AS - RED METALLIC (0650)

$

$

Not available

MTD 684-0055C-0662

30" Housing Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0055C-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0055C-0709

"No Longer Available HOUSING ASM-30""" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-0055C-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

MTD 984-0065-0637

Impeller Assy. 12" Dia.
(Superseded to 684-06276-0637)

$90.99

$

In Stock, Qty 6

0

4

MTD 705-5226

Chute Reinforcement

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

5

MTD 710-0260A

Carriage Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Gr 2

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0459A

Hex Screw 3/8-24 x 1.5" Gr5

$6.99

$

In Stock, Qty 8

0

8

MTD 710-0604A

Hex Washer Head Self-Tapping Screw 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0703

Carriage Screw 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5"

$1.99

$

In Stock, Qty 20+

0

11

MTD 912-0116

Jam Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

12

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

13

MTD 912-0429

Hex Lock Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0798

Hex Nut 3/8-16 Gr.2

$4.49

$

In Stock, Qty 12

0

15

MTD 912-3010

Hex Nut 5/16-18 Gr.5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

16

MTD 912-3009

Hex Patch Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

17

MTD 915-0114

Spiral Pin
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 20+

0

18

MTD 731-1379D

Chute Adapter

$65.99

$

In Stock, Qty 8

0

19

MTD 932-0611

Extension Spring

$7.49

$

In Stock, Qty 20+

0

20

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

21

MTD 936-0169

Lock Washer
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

22

MTD 736-0174

Wave Washer

$6.99

$

In Stock, Qty 11

0

23

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

25

MTD 936-0463

Flat Washer
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

26

MTD n/a

Grease

$

$

Currently unavailable

27

MTD 938-0281

Shoulder Screw
(Superseded to 738-0281)

$

$

Not available

28

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

29

MTD 941-0309

Flange Ball Bearing

$74.99

$

Usually ships in 3-6 days

0

30

MTD 941-0475

Bushing

$4.49

$

In Stock, Qty 20+

0

31

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

32

MTD 756-0178

Flat Idler

$20.99

$

In Stock, Qty 6

0

33

MTD 784-5618A-0637

Bearing Housing

$13.99

$

In Stock, only 2 left!

0

34

MTD 984-0064-0637

Auger Idler Arm

$32.99

$

In Stock, only 2 left!

0

35

MTD 784-5647-0637

Chute Crank Bracket

$14.99

$

In Stock, Qty 5

0

36

MTD 684-04182-0637

Spiral Assembly: RH 26"

Note: For model SB-950W

$187.99

$

Usually ships in 3-6 days

0

36

MTD 684-04186-0637

Spiral Assembly: RH 30"

Note: For model SB-1150W

$201.99

$

Usually ships in 3-6 days

0

37

MTD 684-04183-0637

Spiral Assembly: LH 26"

Note: For model SB-950W

$

$

Not available

37

MTD 684-04187-0637

Spiral Assembly: LH 30"

Note: For model SB-1150W

$

$

Not available

38

MTD 918-0415B

Gear Assembly: Auger 26"

Note: For model SB-950W

$442.99

$

Usually ships in 3-6 days

0

38

MTD 918-0417B

Gear Assembly: Auger 30"

Note: For model SB-1150W

$400.99

$

Usually ships in 3-6 days

0

39

MTD 790-00121-0637

Shave Plate: Auger 26"

Note: For model SB-950W

$36.99

$

In Stock, Qty 20+

0

39

MTD 790-00119-0637

Shave Plate: Auger 30"

Note: For model SB-1150W

$39.99

$

In Stock, Qty 20+

0

40

MTD 710-0451

Carr. Bolt: 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

41

MTD 912-3010

Hex Nut: 5/16-18 Gr.5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

43

MTD 784-5580

Slide Shoe

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$
