SB-950 T (31AE7E3F190) - White Outdoor Snow Boss Snow Thrower (1999) Drive Assembly Model E7E3F Parts Diagram

Snow Boss Snow Thrower

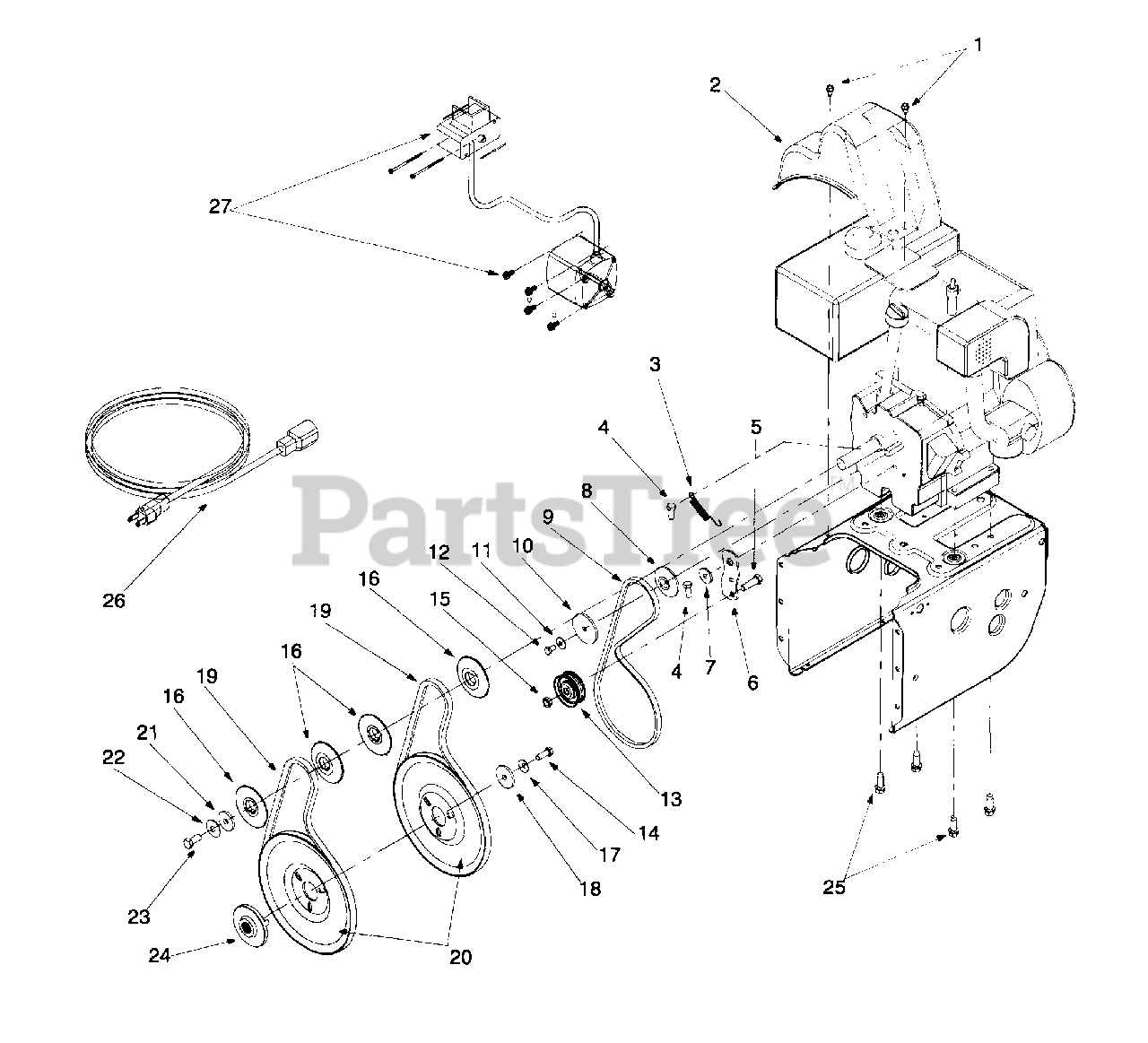

Drive Assembly Model E7E3F Parts Diagram

  • Title
1

White Outdoor 710-0599

Hex Washer Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

2

$21.99

$

In Stock, Qty 12

0

3

White Outdoor 732-0710

Extension Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 18

0

4

White Outdoor 710-0627

Hex Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 05896A

Drive Clutch Idler Bracket

Variations

White Outdoor 05896A-0637

No Longer Available BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

9

White Outdoor 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

10

White Outdoor 756-0966

Pulley Half
(Superseded to 956-0010)

$

$

Not available

11

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-0230

Hex Cap Screw 1/4-28 x .50

$

$

Not available

13

$26.99

$

In Stock, Qty 5

0

14

White Outdoor 710-1245

Lock Hex Cap Screw 5/16-24

$8.49

$

In Stock, only 1 left!

0

15

White Outdoor 712-0181

Lock Jam Nut 3/8-16

$4.49

$

In Stock, only 3 left!

0

16

$10.99

$

Usually ships in 3-6 days

0

17

$4.49

$

In Stock, Qty 20+

0

18

$6.49

$

In Stock, Qty 11

0

19

White Outdoor 754-0430

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

20

White Outdoor 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0247

Flat Washer 3/8 x 1.25 OD

$9.49

$

In Stock, Qty 14

0

22

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-0696

Hex Cap Screw 3/8-24

$6.99

$

In Stock, only 2 left!

0

24

White Outdoor 748-0360

Adapter Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

25

White Outdoor 710-0654A

Hex Tap Screw, 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0

27

White Outdoor OEM-390-987

Electric Start Kit
(Superseded to TC-33329H)

$

$

Not available
