SB-950 ST (31AE753F190) - White Outdoor Snow Boss Snow Thrower (1998) Spiral & Impeller Assemblies Parts Diagram

Snow Boss Snow Thrower

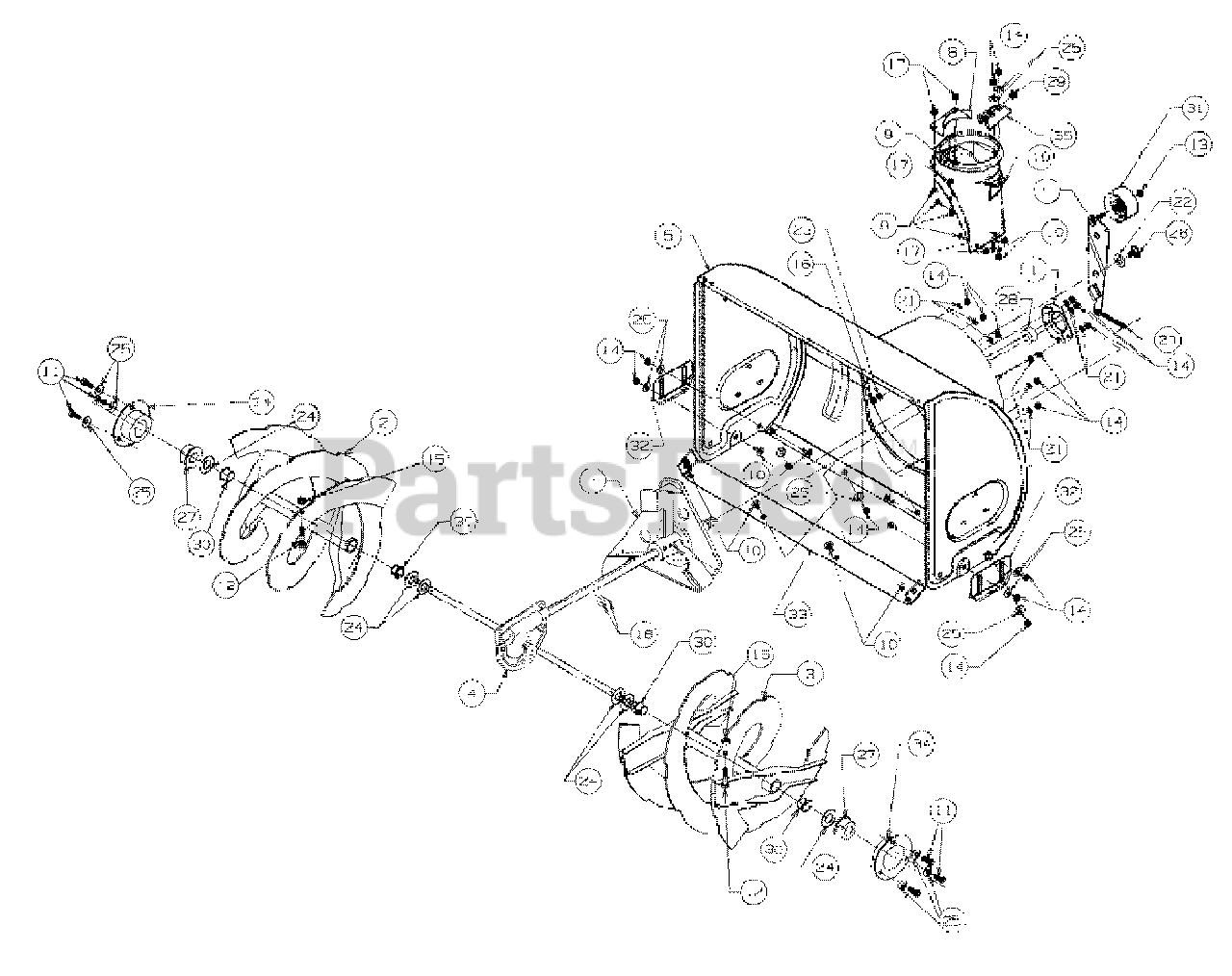

Spiral & Impeller Assemblies Parts Diagram

  • Title

1

White Outdoor 05931

Housing-Bearing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

2

White Outdoor 605-5189

Spiral Assembly-L.H. 24"
(Superseded to 684-04181-0637)

Variations

White Outdoor 605-5189-0688

Auger Spiral Assembly, LH 24" - SPRING GREEN (0688)

$178.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0

White Outdoor 605-5193-0662

Spiral Assembly-L.H. 26"
(Superseded to 684-04183-0637)

$

$

Not available

3

White Outdoor 605-5188

Spiral Assembly-R.H. 24"
(Superseded to 684-04180-0637)

Variations

White Outdoor 605-5188-0662

Auger Spiral Assembly, RH 24" - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 605-5188-0688

Auger Spiral Assembly, RH 24" - SPRING GREEN (0688)

$

$

Not available

$

$

White Outdoor 605-5192-0662

Spiral Assembly-R.H. 26"
(Superseded to 684-04182-0637)

$187.99

$

Usually ships in 3-6 days

0

4

White Outdoor 618-0120

Gear Assembly 24"
(Superseded to 918-0414B)

$

$

Not available

White Outdoor 618-0121

Gear Assembly 28"
(Superseded to 918-0415B)

$442.99

$

Usually ships in 3-6 days

0

5

White Outdoor 684-0039A-0662

Housing Assembly 24"
(Superseded to 684-0039D-0662)

$

$

Not available

White Outdoor 684-0040A

Housing Assembly 28"
(Superseded to 684-0040D)

Variations

White Outdoor 684-0040A-0483

HOUSING ASSEMBLY 26" CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 684-0040A-0638

HOUSING ASSEMBLY 26" RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0040A-0662

HOUSING ASSEMBLY 26" GREY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0040A-0629

HOUSING ASSEMBLY 26 SILVER - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 684-0040A-0665

HOUSING ASSY-26" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-0040A-0667

HOUSING ASSY-26" - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 684-0040A-0689

HOUSING ASSY-26" - POLO GREEN (0689)

$

$

Not available

$

$

6

White Outdoor 684-0064

Arm-Idler Assembly
(Superseded to 984-0064-0637)

$32.99

$

In Stock, only 2 left!

0

7

White Outdoor 684-0065-0662

Impeller Assembly
(Superseded to 984-0065-0637)

$90.99

$

In Stock, Qty 6

0

8

White Outdoor 705-5226

Reinforcement-Chute

Variations

White Outdoor 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

White Outdoor 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-0167

Screw-Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-0451

Screw-Carriage

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0604

Screw-Hex
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0890

Shear Bolt
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-0116

Nut-Hex Lock

$4.99

$

In Stock, Qty 6

0

14

White Outdoor 712-0267

Nut-Hex
(Superseded to 912-3010)

$

$

Not available

15

White Outdoor 712-0429

Nut-Hex

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-0798

Nut-Hex

$4.49

$

In Stock, Qty 6

0

17

White Outdoor 712-3027

Nut-Hex Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 715-0114

Pin-Spring

$9.49

$

In Stock, Qty 20+

0

19

White Outdoor 731-1379

Adapter-Chute
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

20

White Outdoor 732-0611

Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

21

White Outdoor 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 736-0167

Washer-Flat
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 6

0

23

White Outdoor 736-0169

Washer-Lock

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 736-0188

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 738-0281

Screw-Shoulder

$10.99

$

In Stock, only 2 left!

0

27

White Outdoor 741-0245

Bearing-Flange
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

28

White Outdoor 741-0309

Bearing-Ball
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

29

White Outdoor 741-0475

Bushing-Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 741-0493A

Bushing-Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 756-0178

Idler-Flat

$20.99

$

In Stock, only 4 left!

0

32

White Outdoor 784-5580-0662

Shoe-Slide
(Superseded to 784-5580-0637)

$23.99

$

In Stock, Qty 20+

0

33

White Outdoor 784-5581A-0662

Shave Plate 24"
(Superseded to 790-00120-0637)

$34.99

$

In Stock, Qty 20+

0

784-5579A-0662

Shave Plate 26"

$

$

Not available

34

White Outdoor 784-5618

Housing-Bearing
(Superseded to 784-5618A-0637)

Variations

White Outdoor 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

35

White Outdoor 784-5647

Bracket-Chute Crank
(Superseded to 784-5647-0637)

Variations

White Outdoor 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0
