SB-950 ST (31AE753F190) - White Outdoor Snow Boss Snow Thrower (1998) Axle Assembly Parts Diagram

Snow Boss Snow Thrower

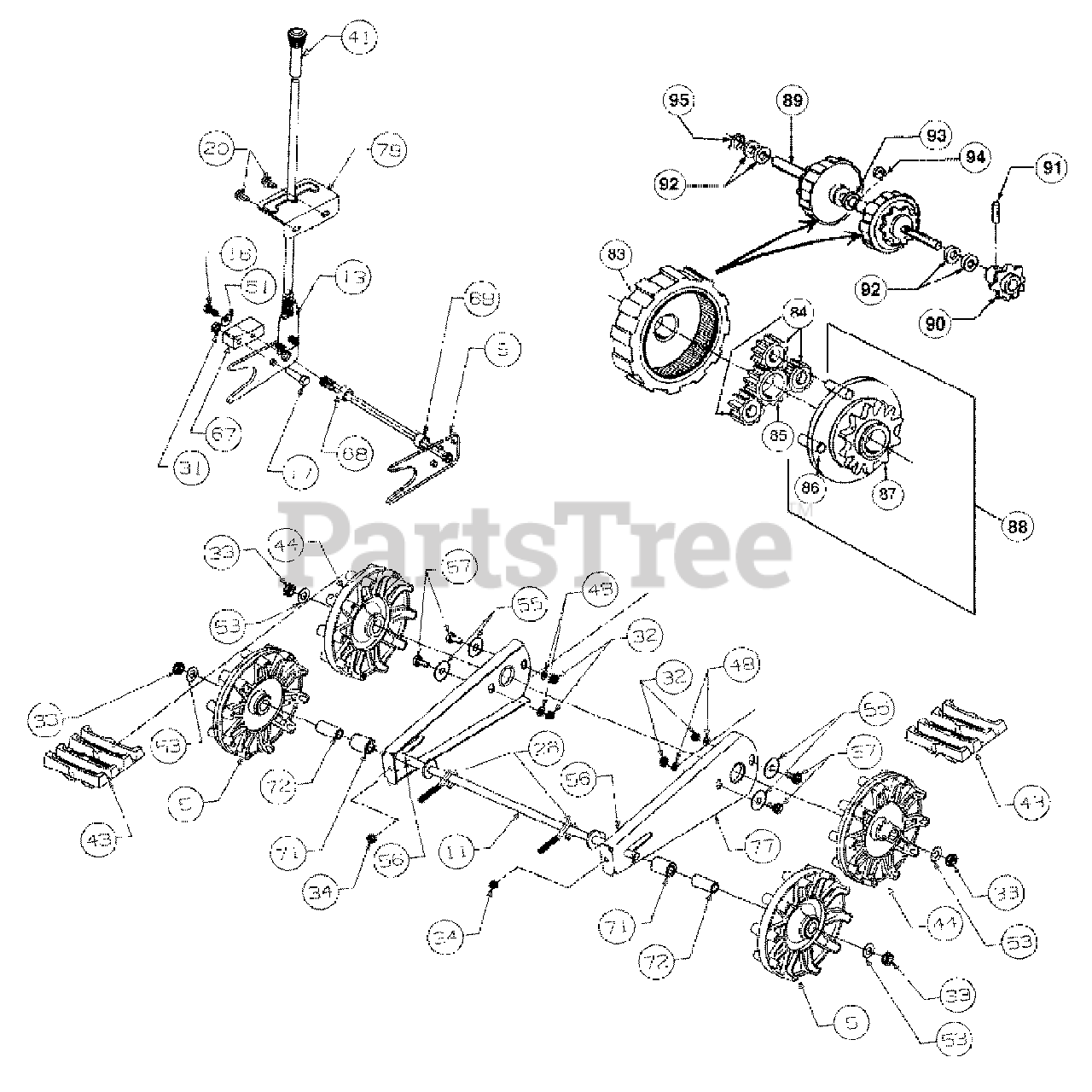

Axle Assembly Parts Diagram

  • Title

5

White Outdoor 631-0032

Wheel Assembly Idler
(Superseded to 631-0032A)

$45.99

$

In Stock, only 2 left!

0

8

White Outdoor 684-0009

Rod Track Pivot
(Superseded to 684-0009A)

Variations

White Outdoor 684-0009-0721

ROD ASSY PIVOT - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0009-4021

ROD ASSY PIVOT - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0009-4033

ROD ASSY PIVOT - FLINT MICA (4033)

$52.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

11

White Outdoor 684-0024

Axle Assembly
(Superseded to 753-05977)

Variations

White Outdoor 684-0024-0637

Replacement Kit, 6 - POWDER BLACK (0637)

$100.99

$

Usually ships in 3-6 days

0

$100.99

$

Usually ships in 3-6 days

0

13

White Outdoor 684-0038

Handle Assembly

Variations

White Outdoor 684-0038-0637

Handle Assembly, Trackloc - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0038-0638

Handle Assembly, Trackloc - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0038-4021

HANDLE ASSY-TRACKLOC - CUB YELLOW 2 (4021)

$58.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0038-0665

HANDLE ASSY-TRACKLOC - YARDMAN GREEN (0665)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

16

White Outdoor 710-0157

Screw

$4.49

$

In Stock, Qty 8

0

17

White Outdoor 710-0459

Screw
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

20

White Outdoor 710-0604

Screw
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 710-1231

Screw

$9.49

$

Usually ships in 3-6 days

0

31

White Outdoor 712-0214

Nut Lock

$6.49

$

In Stock, only 3 left!

0

32

White Outdoor 712-0267

Nut Hex
(Superseded to 912-3010)

$

$

Not available

33

White Outdoor 712-0346

Nut Jam

$4.99

$

In Stock, Qty 8

0

34

White Outdoor 712-0429

Nut Hex

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

43

White Outdoor 731-1292

Track

$291.99

$

Usually ships in 3-6 days

0

44

White Outdoor 731-1538

Wheel-Track Drive
(Superseded to 731-1538A)

$36.99

$

In Stock, Qty 5

0

48

White Outdoor 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

White Outdoor 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0272

Washer-Flat

$4.99

$

In Stock, Qty 20+

0

55

White Outdoor 736-0406

Washer-Flat
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

56

737-0170

Lubricant

$

$

Not available

57

White Outdoor 738-0140

Screw-Shoulder

$5.99

$

In Stock, Qty 15

0

67

White Outdoor 748-0353A

Lift-Shaft Drive

$21.99

$

Usually ships in 3-6 days

0

68

White Outdoor 750-0547

Spacer

$5.99

$

In Stock, only 2 left!

0

71

White Outdoor 750-0909

Spacer

$9.49

$

Usually ships in 3-6 days

0

72

White Outdoor 750-0995

Spacer

$16.99

$

Usually ships in 3-6 days

0

77

784-5639-0662

Plate-Track Side

$

$

Not available

78

White Outdoor 784-5642

Plate-Track Lockout

Variations

White Outdoor 784-5642-0637

PLATE-TRACK LOCKOUT - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5642-0483

PLATE-TRACK LOCKOUT - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-5642-0498

PLATE-TRACK LOCKOUT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-5642-0650

PLATE-TRACK LOCKOUT - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5642-0665

PLATE-TRACK LOCKOUT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 784-5642-0716

PLATE-TRACK LOCKOUT - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 784-5642-0721

PLATE-TRACK LOCKOUT - SEARS RED (0721)

$

$

Not available

White Outdoor 784-5642-4033

PLATE-TRACK LOCKOUT - FLINT MICA (4033)

$

$

Not available

White Outdoor 784-5642-4044

PLATE-TRACK LOCKOUT - CRAFTSMAN RED (4044)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

83

White Outdoor 717-1211

Gear Ring
(Superseded to 717-1211B)

$

$

Not available

84

White Outdoor 717-1209

Gear 12-Tooth
(Superseded to 717-1209A)

$4.99

$

Usually ships in 3-6 days

0

85

White Outdoor 717-1210

Gear 18-Tooth
(Superseded to 717-1210A)

$8.99

$

In Stock, only 3 left!

0

86

White Outdoor 741-0542

Pin Dowel

$11.99

$

Usually ships in 3-6 days

0

87

White Outdoor 718-0188

Carrier
(Superseded to 918-0576A)

$224.99

$

Usually ships in 3-6 days

0

88

White Outdoor 618-0046

Carrier Assembly
(Superseded to 918-0576A)

$224.99

$

Usually ships in 3-6 days

0

89

White Outdoor 711-0912

Shaft-Track Drive

$131.99

$

Usually ships in 3-6 days

0

90

White Outdoor 713-0414

Sprocket-13 Tooth

$35.99

$

Usually ships in 3-6 days

0

91

White Outdoor 715-0120

Spring Pin 3/16" Dia. x 1" Lg.

$10.99

$

In Stock, only 1 left!

0

92

White Outdoor 736-0502

Fl-Wash. .57" I.D. x 1.12" O.D.
(Superseded to 936-0502)

$6.99

$

Usually ships in 3-6 days

0

93

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

94

White Outdoor 716-0115

Snap Ring .625" Shaft
(Superseded to 916-0115)

$

$

Not available

95

White Outdoor 716-0114

Snap Ring .56" Shaft
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0
