SB-950 ST (317E753F190) - White Outdoor Snow Boss Snow Thrower (1997) Handle And Panel Ass'y Parts Diagram

Snow Boss Snow Thrower

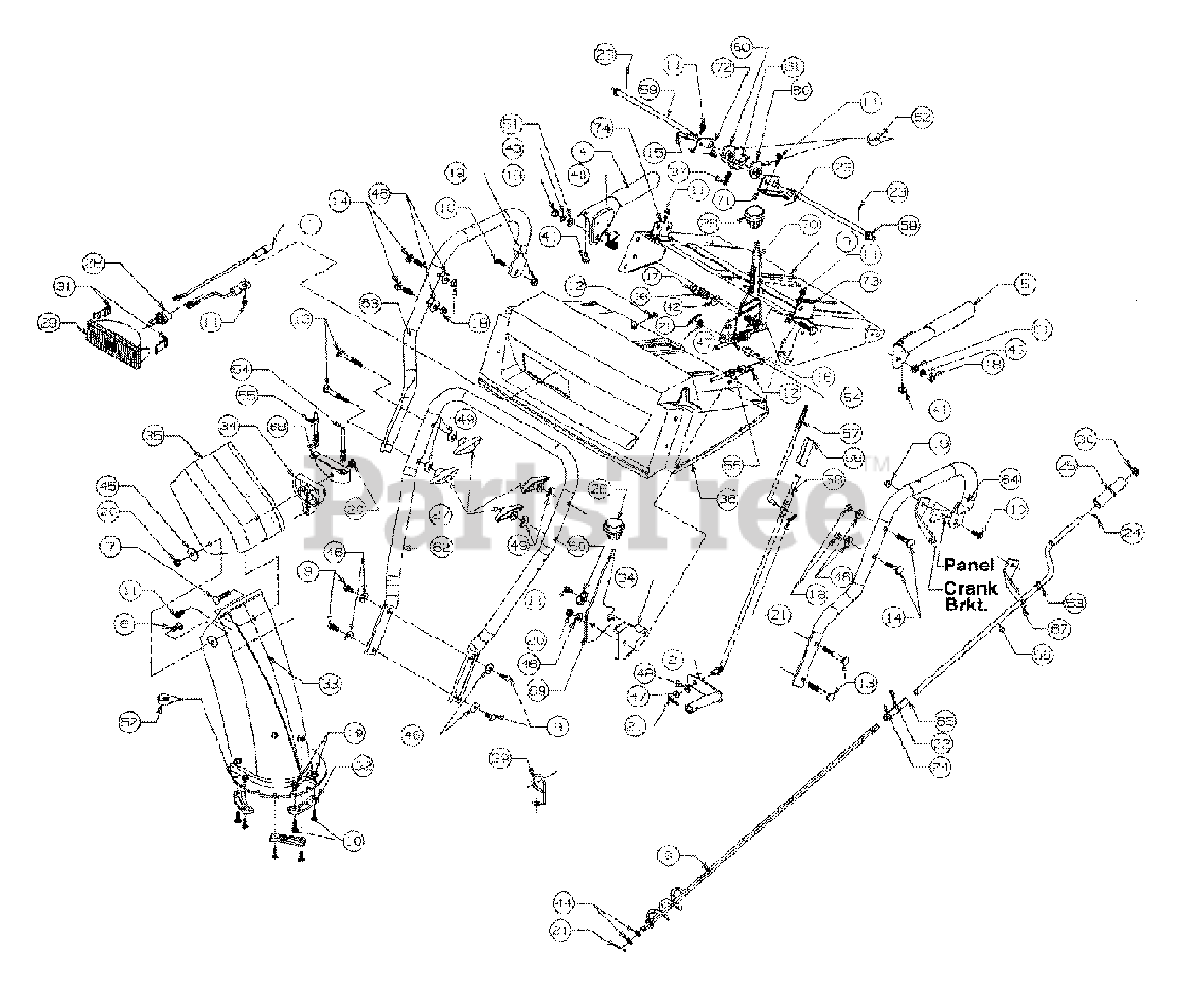

Handle And Panel Ass'y Parts Diagram

  • Title

1

White Outdoor 629-0059

Harness-Light
(Superseded to 929-0059)

$100.99

$

Usually ships in 3-6 days

0

2

White Outdoor 684-0008-0637

Arm-Shift
(Superseded to 684-0008A-0637)

$50.99

$

Usually ships in 3-6 days

0

3

White Outdoor 684-0032A

Panel Ass'y. - Handle w/Tilt

Variations

White Outdoor 684-0032A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 684-0032A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 684-0032A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 684-0032A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0032A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0032A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

White Outdoor 684-0036

Handle-Engagement - R.H.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

5

White Outdoor 684-0037

Handle-Engagement - L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

6

White Outdoor 684-0053

Crank-Chute
(Superseded to 684-0053B-0637)

Variations

White Outdoor 684-0053-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 710-0262

Bolt-Carriage

$3.99

$

In Stock, Qty 9

0

8

White Outdoor 710-0451

Bolt-Carriage

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0118

Screw-Hex
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3015

Screw-Hex

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0896

Screw-Washer Head-Hex

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-1003

Screw-Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-1178

Bolt-Carriage

$

$

Not available

14

White Outdoor 710-1250

Bolt-Carriage

$4.99

$

In Stock, only 3 left!

0

15

White Outdoor 711-0653

Pin-Clevis

$3.99

$

Usually ships in 3-6 days

0

16

White Outdoor 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

17

White Outdoor 712-0116

Nut-Hex Lock

$4.99

$

In Stock, Qty 6

0

18

White Outdoor 712-0267

Nut-Hex
(Superseded to 912-3010)

$

$

Not available

19

White Outdoor 712-3027

Nut-Hex Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 712-3068

Nut-Hex Lock
(Superseded to 912-3009)

$

$

Not available

21

White Outdoor 714-0104

Pin-Cotter Internal

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-0145

Pin-Cotter

$4.99

$

In Stock, Qty 20+

0

23

UNKNOWN

$

$

Not available

24

White Outdoor 715-0138

Pin-Roll
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

25

White Outdoor 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, Qty 5

0

26

White Outdoor 720-0232

Knob-Shift
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

27

White Outdoor 720-0284

Knob-Wing Nut

$6.99

$

In Stock, Qty 20+

0

28

White Outdoor 725-1658

Lamp
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

29

White Outdoor 725-1672

Housing-Lamp
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

30

White Outdoor 726-0100

Cap-Push

$4.49

$

In Stock, Qty 18

0

31

White Outdoor 726-0321A

Clip-Retaining
(Superseded to 747-1136)

$11.99

$

Usually ships in 3-6 days

0

32

White Outdoor 731-0851A

Keeper-Chute

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 731-1300A

Chute-Lower
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

34

White Outdoor 731-1313

Guide-Cable
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

35

White Outdoor 731-1320

Chute-Upper
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 8

0

36

White Outdoor 731-1737

Panel-Handle
(Superseded to 931-1737)

$

$

Not available

37

White Outdoor 732-0145

Spring

$4.49

$

Usually ships in 3-6 days

0

38

White Outdoor 732-0193

Spring

$4.99

$

In Stock, Qty 6

0

39

White Outdoor 732-0705

Wire-Control

$11.99

$

Usually ships in 3-6 days

0

40

White Outdoor 732-0746

Spring

$4.49

$

In Stock, Qty 13

0

41

White Outdoor 735-0199A

Bumper

$7.99

$

In Stock, only 1 left!

0

42

White Outdoor 736-0105

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

White Outdoor 736-0140

Washer-Flat

$7.49

$

In Stock, Qty 6

0

45

White Outdoor 736-0231

Washer

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 736-0264

Washer-Flat

$6.99

$

In Stock, only 2 left!

0

48

White Outdoor 736-0271

Washer-Lock
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

49

White Outdoor 736-0451

Washer-Saddle

$4.49

$

In Stock, Qty 11

0

50

White Outdoor 736-0506

Washer
(Superseded to 736-0506A)

$

$

Not available

51

White Outdoor 736-0509

Washer

$6.99

$

In Stock, only 1 left!

0

52

White Outdoor 737-0133

Lubricant
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

53

White Outdoor 741-0475

Bushing-Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 746-0896

Cable-Chute Control
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

55

White Outdoor 746-0901

Cable-Chute Control
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

56

White Outdoor 747-0618

Crank-Chute
(Superseded to 747-0737-0637)

$45.99

$

Usually ships in 3-6 days

0

57

White Outdoor 747-0620A

Rod-Shift Upper

$11.99

$

In Stock, only 3 left!

0

58

White Outdoor 747-0621

Rod-Shift Lower

$

$

Not available

59

White Outdoor 747-0877

Rod-Cam

$22.99

$

Usually ships in 3-6 days

0

60

White Outdoor 748-0362

Cam-Handle Lock

$7.99

$

Usually ships in 3-6 days

0

61

White Outdoor 748-0363

Pawl-Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

62

White Outdoor 749-0951-0637

Handle-Lower
(Superseded to 749-0951A)

$66.99

$

Usually ships in 3-6 days

0

63

White Outdoor 749-0954-0637

Handle - R.H.

$

$

Not available

64

White Outdoor 749-0955-0637

Handle - L.H.

$

$

Not available

65

White Outdoor 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

66

White Outdoor 750-0963

Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

67

White Outdoor 784-0309

Bracket
(Superseded to 705-5266-0637)

Variations

White Outdoor 784-0309-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

68

White Outdoor 784-5594

Bracket-Cable

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

69

White Outdoor 784-5604

Handle-Chute Tilt
(Superseded to 784-5604A-0637)

Variations

White Outdoor 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

70

White Outdoor 784-5619

Handle-Shift
(Superseded to 753-05395)

$

$

Not available

71

White Outdoor 784-5679

Bracket-Handle Support - L.H.
(Superseded to 784-5679-0637)

Variations

White Outdoor 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

72

White Outdoor 784-5680

Bracket-Handle Support - R.H.
(Superseded to 784-5680-0637)

Variations

White Outdoor 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

73

White Outdoor 784-5681

Bracket-Handle Support - L.H.

Variations

White Outdoor 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

74

White Outdoor 784-5682

Bracket-Handle Support - R.H.
(Superseded to 784-5682-0637)

Variations

White Outdoor 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0
