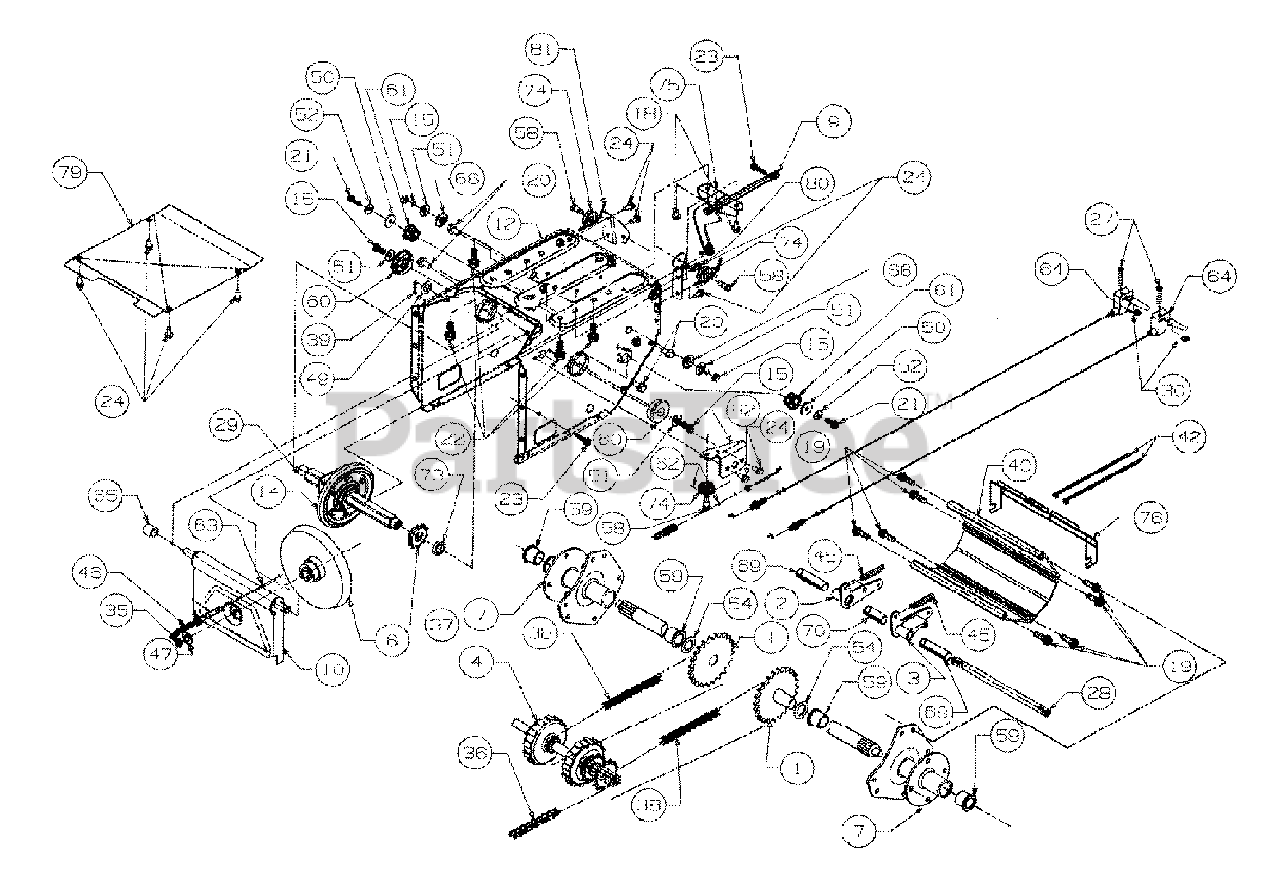

Axle Ass'y, Frame, Bracket Ass'y And Labels Parts Diagram

  • Title

1

White Outdoor 611-0053

Axle Assembly

$97.99

$

In Stock, only 2 left!

0

2

White Outdoor 618-0043

Dog Assembly-R.H.

$23.99

$

In Stock, only 1 left!

0

3

White Outdoor 618-0044

Dog Assembly-L.H.

$24.99

$

In Stock, only 1 left!

0

4

White Outdoor 618-0169

Shaft Assembly
(Superseded to 918-0169B)

$345.99

$

Usually ships in 3-6 days

0

6

White Outdoor 656-0012A

Disc Assembly
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 9

0

7

White Outdoor 683-0024

Hub Assembly
(Superseded to 683-0024-0637)

Variations

White Outdoor 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

9

White Outdoor 684-0014A

Rod Shift Assembly
(Superseded to 684-0014B-0637)

Variations

White Outdoor 684-0014A-0637

Shift Rod Assembly - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

10

White Outdoor 684-0021

Bracket Assembly
(Superseded to 984-0021-0637)

Variations

White Outdoor 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 684-0031-0662

Frame Assembly
(Superseded to 753-06327)

$

$

Not available

14

White Outdoor 684-0042A

Wheel Assembly Friction
(Superseded to 984-0042C)

$138.99

$

Usually ships in 3-6 days

0

White Outdoor 735-0243

Rubber Only
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-0118

Screw
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-0602

Screw

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 710-0604

Screw
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0654A

Screw

$4.49

$

In Stock, only 3 left!

0

23

White Outdoor 710-0788

Screw

$7.49

$

In Stock, only 4 left!

0

24

White Outdoor 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 710-1233

Screw

$4.99

$

In Stock, Qty 11

0

28

White Outdoor 711-0911

Shaft

$

$

Not available

29

White Outdoor 711-1042

Shaft

$149.99

$

In Stock, only 2 left!

0

30

White Outdoor 712-0127

Nut Flange

$3.49

$

In Stock, Qty 13

0

35

White Outdoor 712-0711

Nut Jam

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

37

White Outdoor 713-0413

Sprocket

$12.99

$

Usually ships in 3-6 days

0

38

White Outdoor 713-0437

Chain

$37.99

$

Usually ships in 3-6 days

0

39

White Outdoor 714-0474

Pin Cotter

$4.99

$

In Stock, Qty 14

0

40

White Outdoor 719-0295A

Housing Track

$

$

Not available

42

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

45

White Outdoor 732-0209

Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

46

White Outdoor 732-0264

Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

47

White Outdoor 736-0105

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 736-0160

Washer-Flat

$4.49

$

In Stock, only 2 left!

0

50

White Outdoor 736-0176

Washer-Flat

$4.99

$

In Stock, Qty 6

0

51

White Outdoor 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 736-0270

Washer-Bell

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 736-0287

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 738-0924

Screw-Shoulder
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

59

White Outdoor 741-0339

Bearing-Flange
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

60

White Outdoor 741-0563

Bearing-Ball
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

61

White Outdoor 741-0597

Bearing-Hex Flange
(Superseded to 941-0597)

$12.99

$

In Stock, Qty 12

0

62

White Outdoor 746-0897A

Cable-Auger Clutch
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

63

White Outdoor 746-0898A

Cable-Drive Clutch
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

64

White Outdoor 746-0900

Cable with Trigger Lever
(Superseded to 753-0707)

$74.99

$

In Stock, Qty 5

0

65

White Outdoor 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

66

White Outdoor 748-0234

Spacer-Shoulder

$4.49

$

Usually ships in 3-6 days

0

69

White Outdoor 750-0903

Spacer-Split
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

70

White Outdoor 750-0904

Spacer-Split

$

$

Not available

73

White Outdoor 750-0997

Spacer
(Superseded to 950-0997)

$6.99

$

In Stock, only 4 left!

0

74

White Outdoor 756-0625

Roller-Cable

$9.49

$

In Stock, Qty 16

0

75

White Outdoor 784-5590

Bracket

Variations

White Outdoor 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

76

White Outdoor 784-5609-0662

Bracket

$

$

Not available

79

White Outdoor 784-5648-0662

Cover-Frame
(Superseded to 784-5648A-0662)

$

$

Not available

80

White Outdoor 784-5687-0662

Bracket-Guide
(Superseded to 784-5687A-0637)

$

$

Not available

81

White Outdoor 784-5688-0662

Bracket-Guide
(Superseded to 784-5688-0637)

$

$

Not available

82

White Outdoor 784-5689-0662

Bracket-Guide
(Superseded to 784-5689A-0637)

$

$

Not available

777-4337

Label-Auger Housing

Note: (Snow Boss 750)

$

$

Not available

777-4338

Label-Auger Housing

Note: (Snow Boss 950)

$

$

Not available

White Outdoor 777-4345

Label-Handle Panel

$

$

Not available
