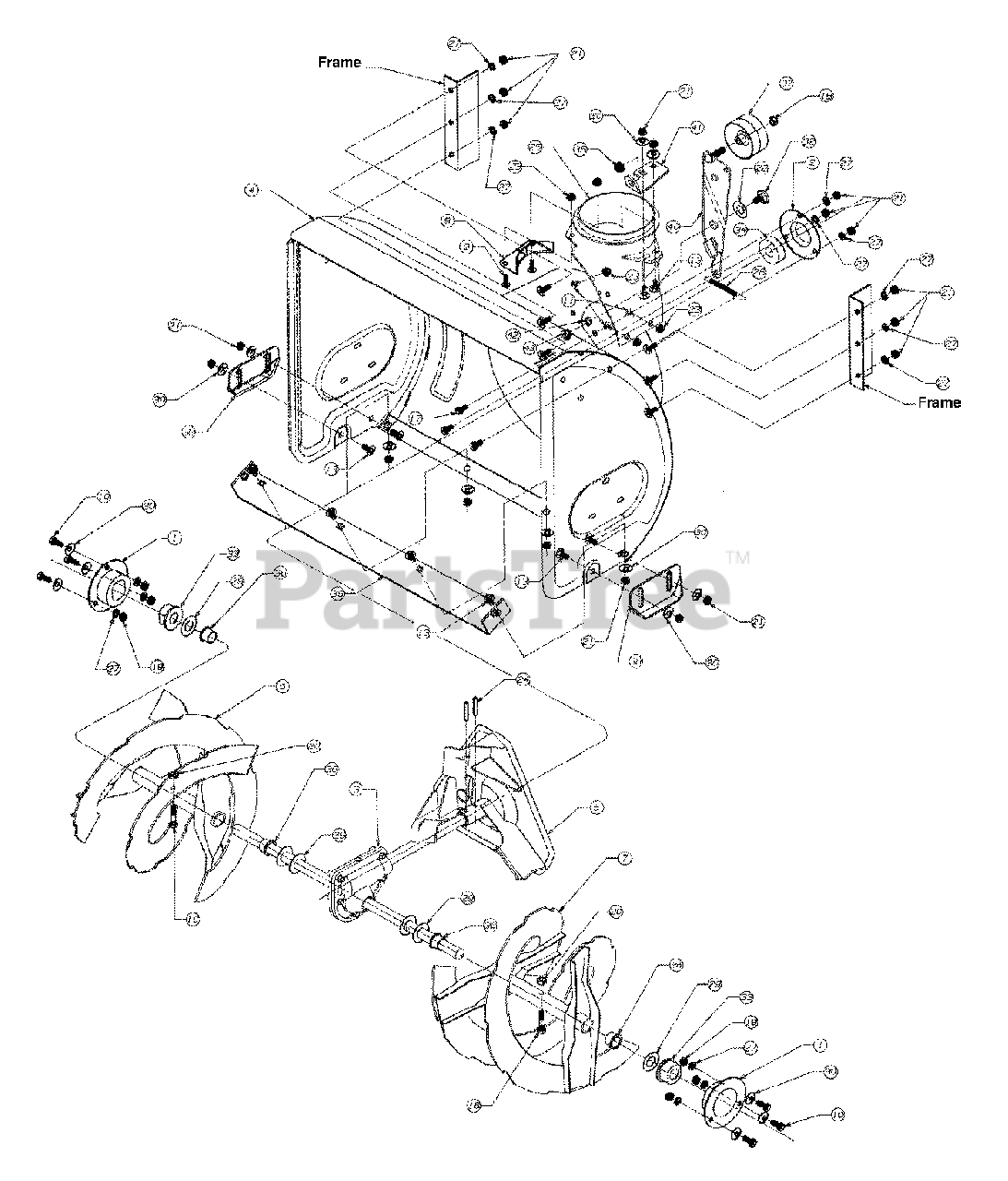

SB-950 (317E653F190) - White Outdoor Snow Boss Snow Thrower (1997) Housing, Axle And Shaft Parts Diagram

Snow Boss Snow Thrower

Housing, Axle And Shaft Parts Diagram

  • Title

1

White Outdoor 784-5618

Housing, Bearing
(Superseded to 784-5618A-0637)

Variations

White Outdoor 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

2

White Outdoor 05931

Housing, Bearing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

3

White Outdoor 618-0152

Gear Assembly
(Superseded to 918-0413B)

Note: (623)

$

$

Not available

White Outdoor 618-0120

Gear Assembly
(Superseded to 918-0414B)

Note: (633)

$

$

Not available

White Outdoor 618-0121

Gear Assembly
(Superseded to 918-0415B)

Note: (653)

$442.99

$

Usually ships in 3-6 days

0

White Outdoor 618-0160

Gear Assembly
(Superseded to 918-0417B)

Note: (663)

$400.99

$

Usually ships in 3-6 days

0

4

White Outdoor 684-0052-0662

22" Housing Assembly
(Superseded to 684-0052C-0662)

Note: (623)

$

$

Not available

White Outdoor 684-0039A-0662

24" Housing Assembly
(Superseded to 684-0039D-0662)

Note: (633)

$

$

Not available

White Outdoor 684-0040A-0662

26" Housing Assembly
(Superseded to 684-0040D-0662)

Note: (653)

$

$

Not available

White Outdoor 684-0055-0662

30" Housing Assembly
(Superseded to 684-0055C-0662)

Note: (663)

$

$

Not available

5

White Outdoor 684-0065-0662

Impeller Assembly
(Superseded to 984-0065-0637)

$90.99

$

In Stock, Qty 6

0

6

White Outdoor 605-5252-0662

Spiral, 22" R.H.
(Superseded to 684-04178-0637)

Note: (623)

$170.99

$

In Stock, only 1 left!

0

White Outdoor 605-5188-0662

Spiral, 24" R.H.
(Superseded to 684-04180-0637)

Note: (633)

$

$

Not available

White Outdoor 605-5192-0662

Spiral, 26" R.H.
(Superseded to 684-04182-0637)

Note: (653)

$187.99

$

Usually ships in 3-6 days

0

605-5248-0662

Spiral, 30" R.H.

Note: (663)

$

$

Not available

7

White Outdoor 605-5253-0662

Spiral, 22" L.H.
(Superseded to 684-04179-0637)

Note: (623)

$

$

Not available

605-5189-0662

Spiral, 24" L.H.

Note: (633)

$

$

Not available

White Outdoor 605-5193-0662

Spiral, 26" L.H.
(Superseded to 684-04183-0637)

Note: (653)

$

$

Not available

White Outdoor 605-5249-0662

Spiral, 30" L.H.
(Superseded to 684-04187-0637)

Note: (663)

$

$

Not available

8

White Outdoor 705-5226

Reinforcement, Chute

Variations

White Outdoor 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

White Outdoor 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-0167

Bolt, Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-0604

Screw, Hex
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0167

Screw, Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-0451

Screw, Carriage

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 710-0890A

Bolt, Shear

$1.99

$

In Stock, Qty 20+

0

17

UNKNOWN

$

$

Not available

18

White Outdoor 712-0116

Hex Lock Nut

$4.99

$

In Stock, Qty 6

0

19

UNKNOWN

$

$

Not available

20

White Outdoor 712-0429

Nut, Hex Lock

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 712-0267

Nut, Hex
(Superseded to 912-3010)

$

$

Not available

23

White Outdoor 712-3027

Nut, Lock, Hex, Flanged
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 715-0114

Spring Pin

$9.49

$

In Stock, Qty 20+

0

25

White Outdoor 731-1379

Adapter, Chute
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

26

White Outdoor 732-0611

Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

27

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0167

Washer, Flat
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 6

0

29

White Outdoor 736-0188

Washer, Flat, .76 I.D. x 1.49 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 738-0281

Screw, Shoulder

$10.99

$

In Stock, only 2 left!

0

33

White Outdoor 741-0245

Bearing, Flange
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

34

White Outdoor 741-0309

Bearing, Ball
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

35

White Outdoor 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 741-0493A

Bushing, Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 756-0178

Idler, Flat

$20.99

$

In Stock, only 4 left!

0

38

White Outdoor 784-5580-0662

Shoe, Slide
(Superseded to 784-5580-0637)

$23.99

$

In Stock, Qty 20+

0

39

784-5576-0662

22" Shave Plate

Note: (623)

$

$

Not available

White Outdoor 784-5581A-0662

24" Shave Plate
(Superseded to 790-00120-0637)

Note: (633)

$34.99

$

In Stock, Qty 20+

0

784-5579A-0662

26" Shave Plate

Note: (653)

$

$

Not available

784-5575-0662

30" Shave Plate

Note: (663)

$

$

Not available

40

White Outdoor 684-0064

Arm, Auger Idler
(Superseded to 984-0064-0637)

$32.99

$

In Stock, only 2 left!

0

41

White Outdoor 784-5647

Bracket, Chute Crank
(Superseded to 784-5647-0637)

Variations

White Outdoor 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

42

White Outdoor 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 712-0798

Hex Nut

$4.49

$

In Stock, Qty 6

0
