SB-950 (317E653F190) - White Outdoor Snow Boss Snow Thrower (1997) Belts And Pulleys Parts Diagram

Snow Boss Snow Thrower

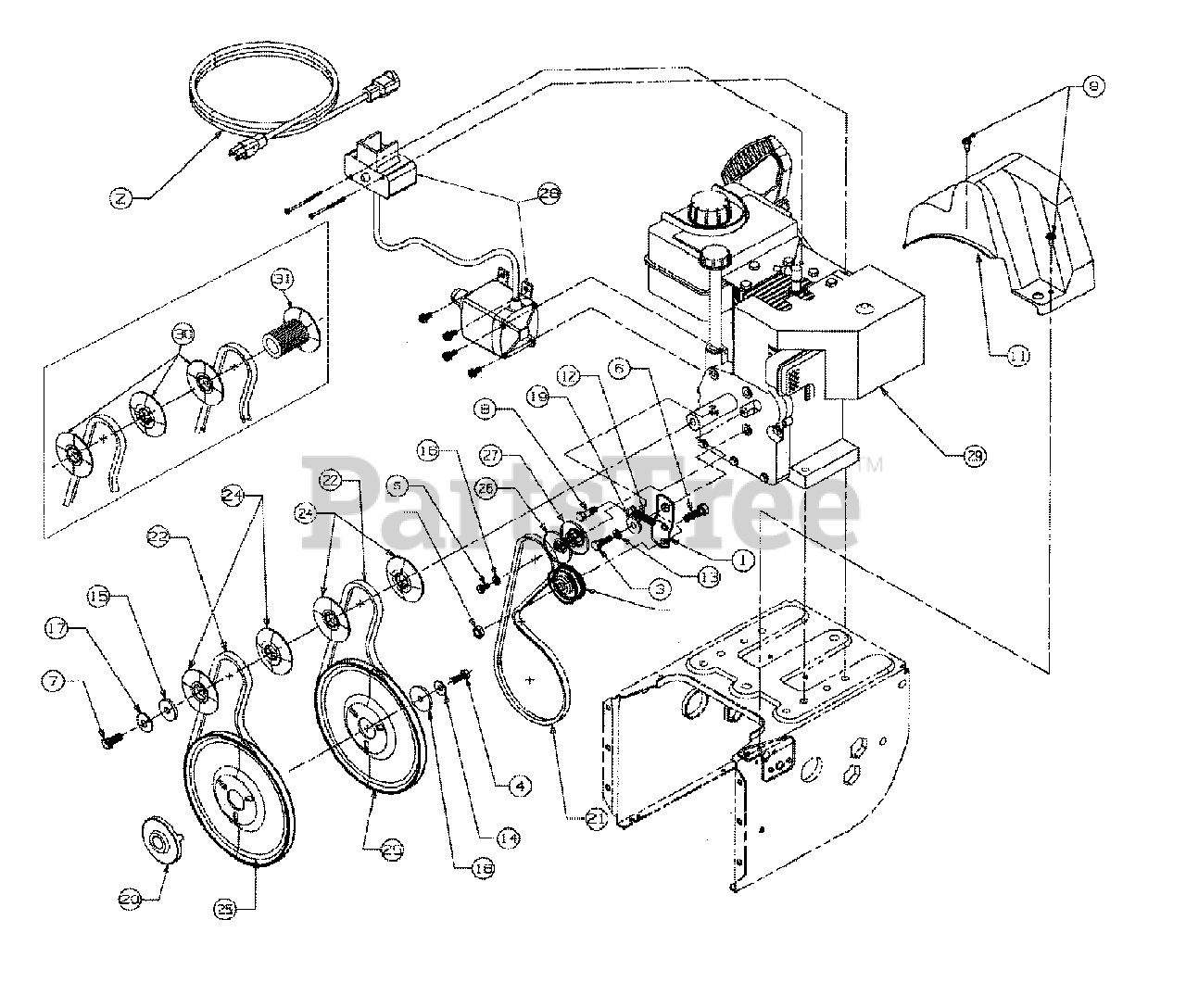

Belts And Pulleys Parts Diagram

  • Title

1

White Outdoor 05896A

Bracket

Variations

White Outdoor 05896A-0637

No Longer Available BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 629-0071

Cord, Extension
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

3

White Outdoor 710-0117

Screw
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

4

White Outdoor 710-0157

Screw

$4.49

$

In Stock, Qty 8

0

5

White Outdoor 710-0230

Screw

$

$

Not available

6

White Outdoor 710-0342

Screw
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

7

White Outdoor 710-0696

Screw

$6.99

$

In Stock, only 2 left!

0

8

White Outdoor 710-0888

Screw

$4.49

$

In Stock, Qty 5

0

9

White Outdoor 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

?10

White Outdoor 712-0181

Nut, Hex

$4.49

$

In Stock, only 3 left!

0

11

White Outdoor 731-1324

Belt Cover

$21.99

$

Usually ships in 3-6 days

0

12

White Outdoor 732-0710

Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 8

0

13

White Outdoor 736-0119

Washer-Flat
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 736-0247

Washer-Flat

$9.49

$

In Stock, Qty 15

0

16

White Outdoor 736-0329

Washer-Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

White Outdoor 736-0331

Washer-Bell

$3.99

$

In Stock, Qty 16

0

18

White Outdoor 736-0505

Washer-Flat

$6.49

$

In Stock, only 2 left!

0

19

White Outdoor 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

20

White Outdoor 748-0360

Pulley, Adapter
(Superseded to 948-0360)

$22.99

$

In Stock, only 2 left!

0

21

White Outdoor 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 5

0

22

White Outdoor 754-0430

V-Belt Matched
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

?23

White Outdoor 756-0313

Idler, Flat

$26.99

$

In Stock, Qty 6

0

24

White Outdoor 756-0569

Pulley, Half

Note: (653 and 663)

$10.99

$

Usually ships in 3-6 days

0

25

White Outdoor 756-0967

Pulley-Auger

$56.99

$

Usually ships in 3-6 days

0

26

White Outdoor 756-0986

Pulley Half

$

$

Not available

27

White Outdoor 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

28

390-985

Starter

Note: (633)

$

$

Not available

390-987

Starter

Note: (653 and 663)

$

$

Not available

29

Engine

$

$

Not available

30

White Outdoor 756-0620

Pulley, Half

Note: (633)

$

$

Not available

31

White Outdoor 756-0621

Pulley, Half
(Superseded to 956-0621)

Note: (633)

$

$

Not available
