SB-950 (317E653F190) - White Outdoor Snow Boss Snow Thrower (1997) Axle, Bearing Ass'y And Frame Ass'y Parts Diagram

Snow Boss Snow Thrower

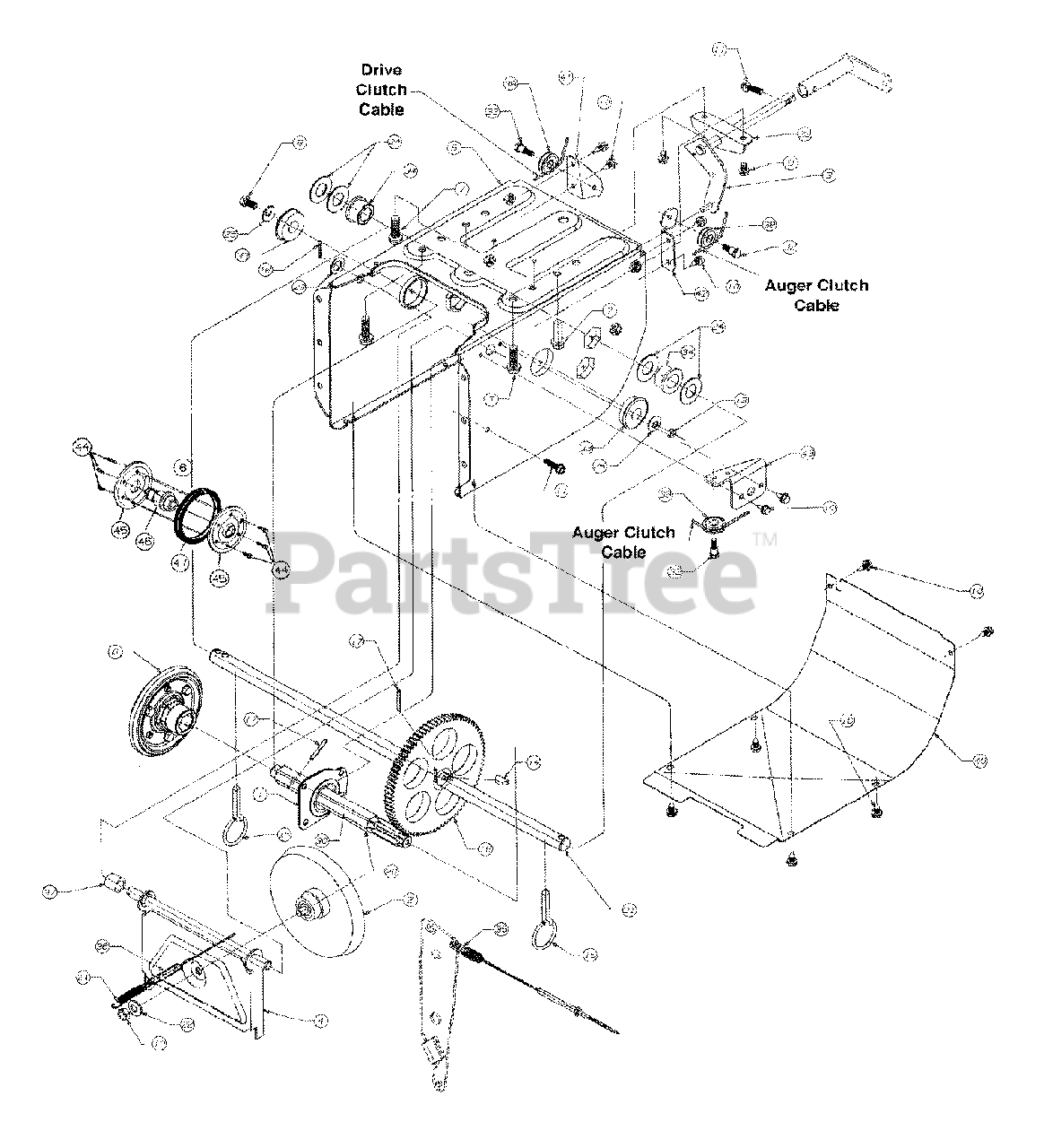

Axle, Bearing Ass'y And Frame Ass'y Parts Diagram

  • Title

1

White Outdoor 618-0063

Bearing Ass'y.

$92.99

$

Usually ships in 3-6 days

0

2

White Outdoor 656-0012A

Ass'y., Friction Wheel Disc
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 8

0

3

White Outdoor 684-0013

Rod Shift, Wheel Drive

$

$

Not available

4

White Outdoor 684-0021

Brkt. Ass'y. Friction Wheel
(Superseded to 984-0021-0637)

Variations

White Outdoor 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 684-0030-0662

Frame Ass'y., 600 S/T

$

$

Not available

6

White Outdoor 684-0042A

Wheel Friction
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 17

0

7

White Outdoor 710-0654A

Hex Self-Tap Screw

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0538

Hex, Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 9

0

9

White Outdoor 710-0599

Scr., Hex Wash. Hd., TT 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0896

Hex Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0788

Screw, Hex

$7.49

$

In Stock, only 2 left!

0

13

White Outdoor 712-0711

Nut, Hex

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 714-0126

Key

$4.99

$

In Stock, Qty 16

0

15

White Outdoor 714-0143

Pin, Klick
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

16

White Outdoor 714-0474

Pin, Cotter

$4.99

$

In Stock, Qty 13

0

17

White Outdoor 715-0249

Pin, Roll
(Superseded to 915-0249)

$6.99

$

In Stock, Qty 20+

0

19

White Outdoor 717-1445

Gear

$107.99

$

Usually ships in 3-6 days

0

20

White Outdoor 717-1444

Shaft, Hex
(Superseded to 917-04094)

$96.99

$

In Stock, only 2 left!

0

21

White Outdoor 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 736-0105

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

24

White Outdoor 736-0188

Washer, Flat

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

30

Lubricant

$

$

Not available

31

White Outdoor 738-0869

Axle

$139.99

$

Usually ships in 3-6 days

0

31

White Outdoor 738-0830

Axle

$

$

Not available

32

White Outdoor 738-0924

Screw, Shoulder
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

33

White Outdoor 741-0563

Bearing, Ball
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

34

White Outdoor 741-0598

Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

35

White Outdoor 746-0897

Cable, Auger
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

36

White Outdoor 746-0898

Cable, Clutch
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

37

White Outdoor 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

38

White Outdoor 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

39

White Outdoor 784-5590

Frame, Shift Bracket

Variations

White Outdoor 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

40

White Outdoor 784-5638-0662

Cover, Frame
(Superseded to 784-5638A-0637)

$

$

Not available

41

White Outdoor 784-5688

Bracket, Drive Cable Roller
(Superseded to 784-5688-0637)

Variations

White Outdoor 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

42

White Outdoor 784-5687

Brkt., Auger Clutch Cable Guide
(Superseded to 784-5687A-0637)

Variations

White Outdoor 784-5687-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5687-0662

BRACKET-GUIDE-AUGER - OYSTER GRAY (0662)

$

$

Not available

$

$

43

White Outdoor 784-5689

Brkt., Front Support Guide
(Superseded to 784-5689A-0637)

Variations

White Outdoor 784-5689-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5689-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

44

White Outdoor 710-0599

Hex Wash Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

45

784-5617

Friction Plate

$

$

Not available

46

White Outdoor 718-0301A

Friction Wheel Hub
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 17

0

47

White Outdoor 735-0243

Friction Wheel Rubber
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+
