SB-945 (31AE9P6J590) - White Outdoor Snow Boss Snow Thrower (2005-2) Handle Assembly Parts Diagram

Snow Boss Snow Thrower

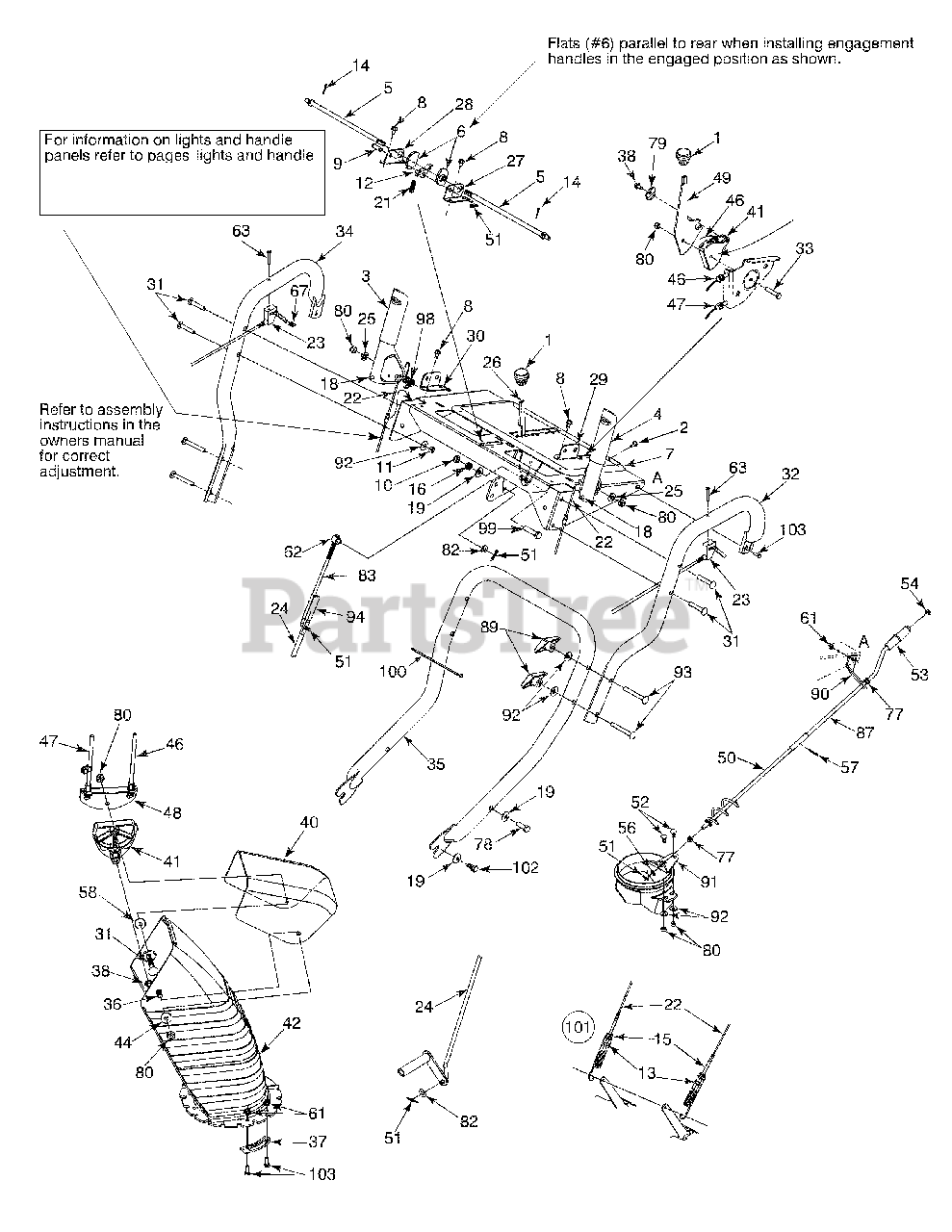

Handle Assembly Parts Diagram

  • Title

1

White Outdoor 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

2

White Outdoor 710-0351

Truss Mach B-Tapp Scr #10-16 x .50 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

3

White Outdoor 705-5218

Engagement Handle RH Black

$37.99

$

Usually ships in 3-6 days

0

4

White Outdoor 705-5219

Engagement Handle LH Black

$37.99

$

Usually ships in 3-6 days

0

5

White Outdoor 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

6

White Outdoor 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

7

White Outdoor 684-0102

Handle Panel Ass’y w/tilt
(Superseded to 684-0102A)

Variations

White Outdoor 684-0102-0638

PANEL ASSY:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0650

PANEL ASSY:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0662

PANEL ASSY:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0665

SUPPORT HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0689

SUPPORT HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0721

PANEL ASSY:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

7

White Outdoor 684-0103

Handle Panel Support Ass’y w/o slot
(Superseded to 684-0103A)

Variations

White Outdoor 684-0103-0498

PANEL ASSY:HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 684-0103-0629

PANEL ASSY:HANDLE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 684-0103-0637

PANEL ASSY:HANDLE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 684-0103-0638

PANEL ASSY HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0103-0662

PANEL ASSY HANDLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0103-0665

PANEL ASSY:HANDLE - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 711-0653

Clevis Pin .31 Dia. x 1.0" Lg.

$3.99

$

Usually ships in 3-6 days

0

10

White Outdoor 712-0116

Hex Nut 3/8-24 Gr. 5

$4.99

$

In Stock, Qty 6

0

11

White Outdoor 712-3010

Hex Nut 5/16-18 hd. Gr. 5

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 748-0363

Cam Lock Pawl
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0324

Hex Ins. Locknut 1/4-20

$3.99

$

In Stock, Qty 16

0

14

White Outdoor 714-0507

Cotter Pin 3/32 x .75

$4.49

$

In Stock, Qty 12

0

15

White Outdoor 732-0184

Extension Spring

$25.99

$

Usually ships in 3-6 days

0

16

White Outdoor 732-0193

Compression Spring .39 ID x .88 Lg

$4.99

$

In Stock, Qty 6

0

18

White Outdoor 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 1 left!

0

19

White Outdoor 736-0105

Cupped Washer .401 ID x .870 OD x .063

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 732-0145

Compression Spring .36 DIA x 1.0" LG.

$4.49

$

Usually ships in 3-6 days

0

22

White Outdoor 746-0952

Clutch Cable
(Superseded to 746P0952)

$46.99

$

Usually ships in 3-6 days

0

23

White Outdoor 746-0950A

Trigger Assembly

$22.99

$

Usually ships in 3-6 days

0

24

White Outdoor 747-0983A

Lower Shift Rod

$45.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0509

Washer (special)

$6.99

$

In Stock, only 1 left!

0

26

White Outdoor 784-5619A

Shift Lever
(Superseded to 753-05395)

Variations

White Outdoor 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 784-5679

LH Handle Support Brkt. 5/8"
(Superseded to 784-5679-0637)

Variations

White Outdoor 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

28

White Outdoor 784-5680

RH Handle Support Brkt. 5/8"
(Superseded to 784-5680-0637)

Variations

White Outdoor 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

29

White Outdoor 784-5681

LH Handle Support Brkt. 3/8"

Variations

White Outdoor 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

30

White Outdoor 784-5682

RH Handle Support Brkt. 3/8"
(Superseded to 784-5682-0637)

Variations

White Outdoor 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

31

White Outdoor 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

32

White Outdoor 749-0989A

LH Upper Handle

Variations

White Outdoor 749-0989A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0989A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0989A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0989A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0989A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

33

White Outdoor 710-0805

Hex Cap Scr. 5/16 - 18 x 1.50" Lg. Gr. 5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 749-0990A

RH Upper Handle

Variations

White Outdoor 749-0990A-0637

HANDLE-UPPER RT - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0990A-0638

HANDLE-UPPER RT - MTD/TROY-BILT RED (0638)

$94.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0990A-0650

HANDLE-UPPER RT - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0990A-0665

HANDLE-UPPER RT - YARDMAN GREEN (0665)

$76.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0990A-0691

HANDLE-UPPER RT - BLACK JACK (0691)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

35

White Outdoor 749-0991

Lower Handle

Variations

White Outdoor 749-0991-0637

Lower Handle - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0991-0638

HANDLE-LOWER - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0991-0650

HANDLE-LOWER - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0991-0665

HANDLE-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0991-0691

HANDLE-LOWER - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0991-4033

HANDLE-LOWER - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

36

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 710-0895

Hex HL Index Washer Screw 1/4-15 X .75

$6.49

$

In Stock, Qty 10

0

40

White Outdoor 731-0846C

Upper Chute Remote Tilt

$52.99

$

In Stock, only 3 left!

0

41

White Outdoor 731-1313C

Cable Guide

$11.99

$

In Stock, Qty 20+

0

42

White Outdoor 731-0903D

Lower Chute Remote Tilt
(Superseded to 731-0903E)

$43.99

$

In Stock, Qty 17

0

44

White Outdoor 736-0159

Flat Washer .349 ID x .879 OD x .063

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 746-0902

Chute Control Cable 66"
(Superseded to 946-0902)

$49.99

$

Usually ships in 3-6 days

0

47

White Outdoor 746-0903

Chute Control Cable w/clip
(Superseded to 946-0903)

$53.99

$

In Stock, only 1 left!

0

48

White Outdoor 784-5594

Cable Bracket Chute Tilt

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

49

White Outdoor 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

White Outdoor 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

50

White Outdoor 684-0053B

Lower Chute Crank
(Superseded to 684-0053B-0637)

Variations

White Outdoor 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

51

White Outdoor 714-0104

Int. Cotter Pin .072 x 1.13" Lg.

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75 Gr. 2

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 720-0201A

Knob 1.0 x 3.2

$10.99

$

In Stock, Qty 5

0

54

White Outdoor 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 18

0

56

White Outdoor 736-0185

Flat Washer .375 ID x .738 OD X.063

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 714-0101

Internal Cotter Pin

$4.99

$

In Stock, only 1 left!

0

58

White Outdoor 736-0231

Flat Washer .344 ID x 1.125 OD x .125

$4.99

$

In Stock, Qty 20+

0

61

White Outdoor 712-04064

Hex Flg. L-Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

63

White Outdoor 710-1625

Oval C-Sunk Screw #10-24 x 1.75

$6.99

$

Usually ships in 3-6 days

0

77

White Outdoor 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 710-1878

Hex Screw 3/8-16 x 1.75 Gr.5 w/patch
(Superseded to 710-04682)

$5.99

$

Usually ships in 3-6 days

0

79

White Outdoor 736-0506A

Contour Washer

$

$

Not available

80

White Outdoor 712-04063

Hex Flg. L-Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

81

White Outdoor 712-3027

Hex L-Flanged Nut 1/4-20 Gr. "F"
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 736-0275

Flat Washer .344 ID x .688 OD x .065

$6.99

$

Usually ships in 3-6 days

0

83

White Outdoor 747-0997

Upper Shift Rod

$69.99

$

Usually ships in 3-6 days

0

84

White Outdoor 710-3015

Hex Screw 1/4-20 x .75" Lg. Gr. 5

$3.99

$

In Stock, Qty 20+

0

87

White Outdoor 747-0624

Upper Chute Crank Assembly
(Superseded to 747-0624-0637)

Variations

White Outdoor 747-0624-0637

Crank Chute - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

89

White Outdoor 720-0284

Wingnut Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

90

White Outdoor 705-5266

Upper Chute Crank Support
(Superseded to 705-5266-0637)

Variations

White Outdoor 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

91

White Outdoor 784-5123

Lower Chute Crank Brkt.
(Superseded to 784-5123-0637)

Variations

White Outdoor 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

92

White Outdoor 736-0242

Cupped Washer .340 ID x .872 OD x .06

$4.49

$

In Stock, Qty 20+

0

93

White Outdoor 710-0572

Carriage Bolt 5/16-18 x 2.50

$4.49

$

In Stock, Qty 20+

0

94

White Outdoor 750-0963

Connector - Shift Rod
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

98

White Outdoor 732-0746

Torsion Spring .44 ID

$4.49

$

In Stock, Qty 13

0

99

White Outdoor 710-0459A

Hex Scr 3/8-24 x 1.50 Gr. 5

$6.99

$

In Stock, Qty 8

0

100

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

101

White Outdoor 646-0012

Auger/Drive Cable Assembly

$36.99

$

Usually ships in 3-6 days

0

102

White Outdoor 710-1879

Hex Screw 3/8-16 x .880 Gr. 5

$6.99

$

Usually ships in 3-6 days

0

103

White Outdoor 710-0597

Hex Screw 1/4-20 x 1.00 Gr. 5

$3.99

$

In Stock, Qty 13

0
