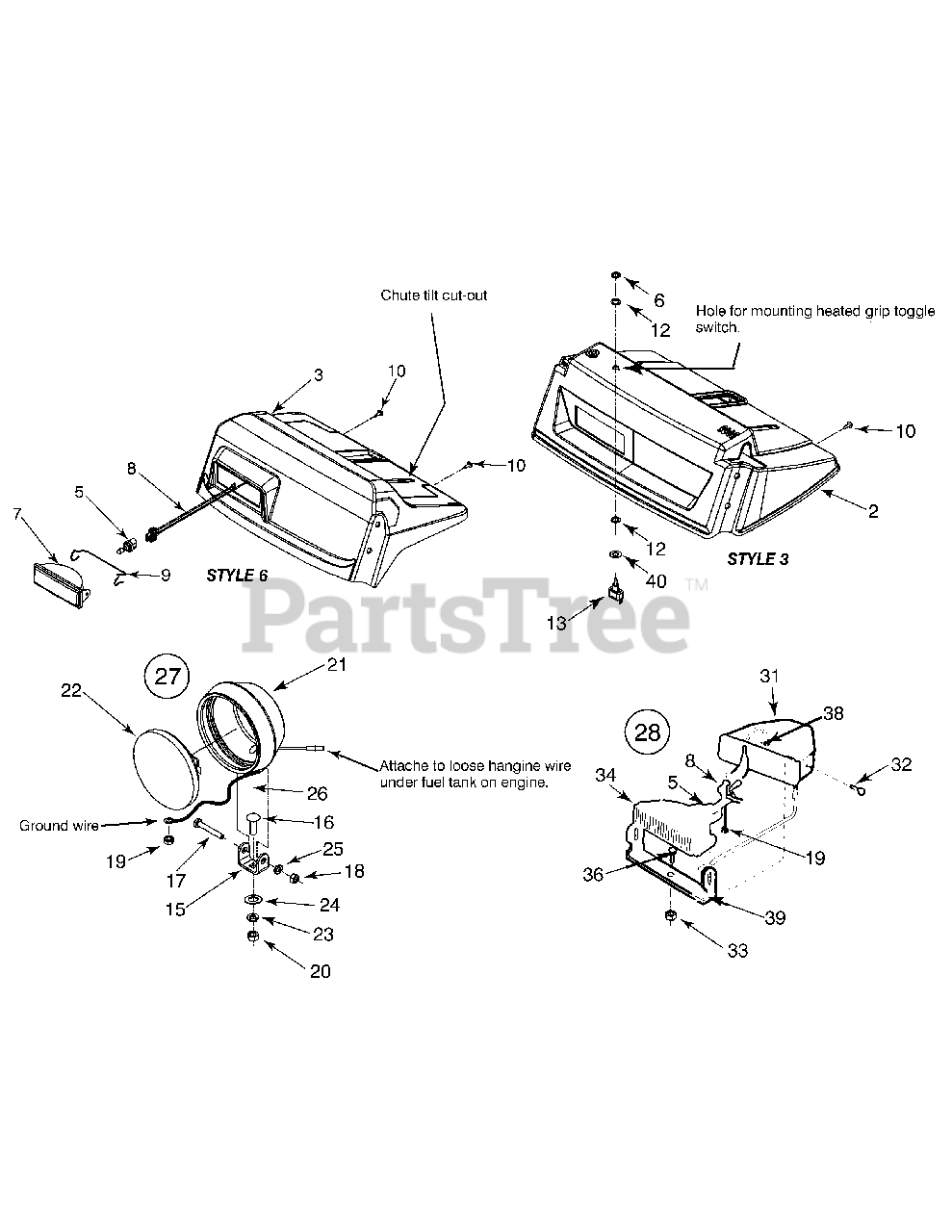

SB-933 (31AE9P6I590) - White Outdoor Snow Boss Snow Thrower (2005-2) Lights & Handle Parts Diagram

Snow Boss Snow Thrower

Lights & Handle Parts Diagram

  • Title

2

White Outdoor 731-1737A

Black Handle Panel (w/light cut out and chute tilt cut out) STYLE 3

$

$

Not available

2

White Outdoor 731-0061

Black Handle Panel (w/hole for top mounting light and chute tilt cut out) STYLE 3

$

$

Not available

2

White Outdoor 731-1873A

Yellow Handle Panel (w/hole for top mounting light and chute tilt cut out) STYLE 3

$

$

Not available

2

White Outdoor 731-2564

Yellow Handle Panel (w/ light cut out, chute tilt cut out & heated grips) STYLE 3
(Superseded to 931-2564)

$

$

Not available

2

731-2606

Black Handle Panel (w/light cut out & w/o chute tilt cut out) STYLE 3

$

$

Not available

3

731-2516

Grey Handle Panel (w/light cut out and chute tilt cut out) STYLE 6

$

$

Not available

3

731-2519

Grey Handle Panel (w/hole for top mounting light and chute tilt cut out) STYLE 6

$

$

Not available

3

White Outdoor 731-2298

Black Handle Panel (w/hole for top mounting light and chute tilt cut out) STYLE 6

$

$

Not available

3

731-1582A

Black Handle Panel ( w/light cut out and chute tilt cut out) STYLE 6

$

$

Not available

5

White Outdoor 725-1658

Bulb #890, 12 V, 27 Watt
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

5

White Outdoor 725-1759

Bulb, #886, 12 V, 50 Watt (Style 3 w/heated grips)
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

6

White Outdoor 712-0693

Hex Nut

$

$

Not available

7

White Outdoor 725-1672

Headlight Housing
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

8

White Outdoor 629-0059

Wire Harness
(Superseded to 929-0059)

$100.99

$

Usually ships in 3-6 days

0

9

White Outdoor 747-1136

Retainer

$11.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-1003

Hex Tapp Wash Hd. Scr. #10 x 5/8
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

12

White Outdoor 716-0398

Lock Ring - Toggle Switch

$

$

Not available

13

White Outdoor 725-1756

Toggle Switch,Single Throw (heated grips)
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

14

White Outdoor 629-04010

Dual Light Wiring Harness
(Superseded to 629-04010A)

$

$

Not available

15

White Outdoor 13359

Mounting Lamp Bracket

$

$

Not available

16

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 12

0

17

White Outdoor 710-0559

Hex Screw 1/4-28 x 1.75 Gr 5

$

$

Not available

18

White Outdoor 712-0138

Hex Nut 1/4-28 Gr 5

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

20

White Outdoor 712-3010

Hex Nut 5/16-18 hd. Gr. 5

$4.49

$

In Stock, Qty 20+

0

21

725-0586

Lamp Housing

$

$

Not available

22

White Outdoor 725-1300

Sealed Beam 18 Watt CGE #4414-1
(Superseded to 925-1300)

$

$

Not available

23

White Outdoor 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

26

Ground Wire

$

$

Not available

27

White Outdoor 725-1301

Top Mount 18 watt Lamp Ass’y (sealed beam)

$

$

Not available

28

White Outdoor 625-0007

Top Mounting Halogen Lamp Assembly
(Superseded to 625-0007AP)

$

$

Not available

31

White Outdoor 731-1364

Halogen Lamp Housing

$39.99

$

Usually ships in 3-6 days

0

32

White Outdoor 710-1240

Phillips Pan Hd. Scr. M4 x 16mm

$7.49

$

Usually ships in 3-6 days

0

33

White Outdoor 712-04063

Hex Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 725-1669

Lamp/Lens Housing Ass’y
(Superseded to 925-1669P)

$

$

Not available

36

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 735-0225

Grommet .38 ID X .50 OD X .12

$3.49

$

Usually ships in 3-6 days

0

39

White Outdoor 705-5217

Lamp Mounting Brkt.

$43.99

$

Usually ships in 3-6 days

0

40

White Outdoor 736-0226

Flat Washer .474 ID x .879 OD x .064
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0
