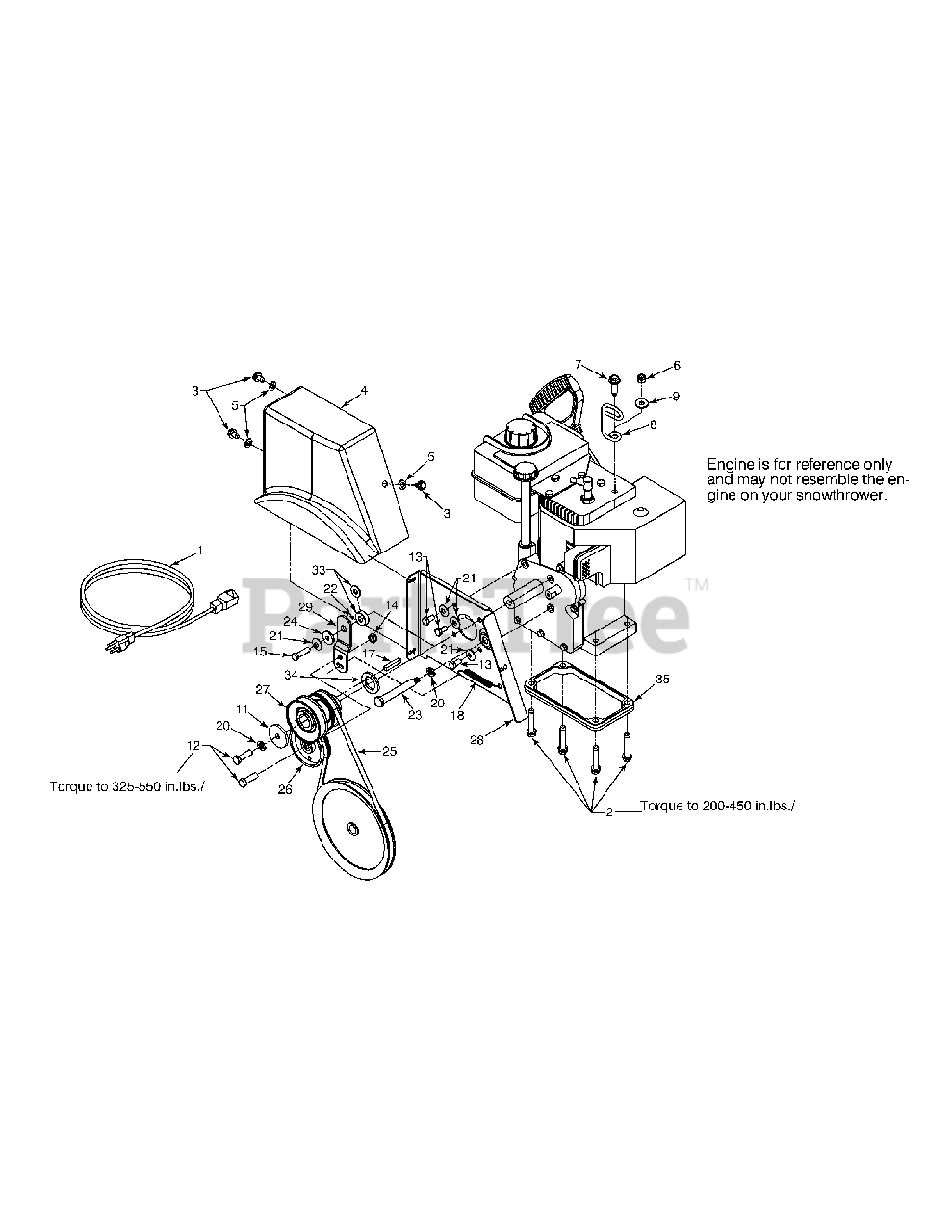

SB-928 (31AE9M6G590) - White Outdoor Snow Boss Snow Thrower (2005-2) Pulley & Drive Assembly Parts Diagram

Snow Boss Snow Thrower

Pulley & Drive Assembly Parts Diagram

  • Title

1

White Outdoor 629-0071

Extension Cord 10 Ft.
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

2

White Outdoor 710-1008

Hex L-Wash TT Scr. 3/8-16 x 1.8 (for 10 & 11 HP)

$5.49

$

In Stock, Qty 7

0

2

White Outdoor 710-0502A

Hex Washer Scr 3/8-16 x 1.25 (for 12 & 13 HP)

$6.99

$

In Stock, only 2 left!

0

3

White Outdoor 710-0607

Hex Wash HD S-Tapp Scr 5/16-18 x .50

$6.99

$

In Stock, Qty 9

0

4

White Outdoor 731-2531

Plastic Belt Cover
(Superseded to 931-2531)

$51.99

$

In Stock, only 1 left!

0

5

White Outdoor 736-0264

Flat Washer .330 ID x .630 OD x .0635

$6.99

$

In Stock, only 2 left!

0

6

White Outdoor 712-04064

Hex Flg. L-Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0602

Hex Wash Hd Tapp Scr 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

9

White Outdoor 736-0173

Flat Washer .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-0322

Flat Washer .450 ID x 1.250 OD x .164

$9.49

$

In Stock, Qty 8

0

12

White Outdoor 710-0191

Hex Screw 3/8-24 x 1.25 Gr. 8 Special

$4.99

$

In Stock, Qty 9

0

13

White Outdoor 710-0237

Hex Screw 5/16-24 x .625 Gr. 5

$4.49

$

In Stock, only 1 left!

0

14

White Outdoor 712-0116

Hex Nut 3/8-24 Gr. 5 Nylon

$4.99

$

In Stock, Qty 6

0

15

White Outdoor 710-0672

Hex HD. Cap Scr. 5/16-24 x 1.25 Lg. Gr 5 (for 10 & 11 HP)

$4.49

$

In Stock, Qty 16

0

15

White Outdoor 710-1245B

Hex Screw 5/16-24 x .875 Gr. 5 Lock (for 12 & 13 HP)

$8.49

$

In Stock, only 4 left!

0

17

White Outdoor 714-0118

Square Key 1/4 x 1/4 x 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

18

White Outdoor 732-0303

Brake Return Ext. Spring 3.18" Lg.
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 11

0

20

White Outdoor 736-0217

Lockwasher Heavy 3/8" ID

$4.49

$

In Stock, Qty 6

0

21

White Outdoor 736-0242

Cupped Washer .340 ID x .872 OD x .06

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 737-0318

Grease Arctic
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

23

White Outdoor 738-0982

Shoulder Screw .498 x 3.245 x 3/8-16 (for 10 & 11 HP)

$14.99

$

Usually ships in 3-6 days

0

23

White Outdoor 738-0215A

Shoulder Screw .498 Dia x 3.00 (for 12 & 13 HP)

$9.49

$

Usually ships in 3-6 days

0

24

White Outdoor 748-0234

Shoulder Spacer .25 THK

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 754-0131

V-Belt 3/8 x 35.5" Lg.
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 7

0

26

White Outdoor 756-0240

Flat Idler w/flanges 3.0 OD

$

$

Not available

27

White Outdoor 756-0241B

Double Groove Engine Pulley

$99.99

$

In Stock, only 4 left!

0

28

White Outdoor 684-0123A

Belt Cover Bracket Ass’y
(Superseded to 684-0123A-0637)

Variations

White Outdoor 684-0123A-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

29

White Outdoor 784-5726

Idler Bracket

$39.99

$

Usually ships in 3-6 days

0

33

White Outdoor 748-0418

Spacer .33 ID x 1.01 OD x .36 (for 10 & 11 HP)

$7.49

$

In Stock, only 1 left!

0

33

White Outdoor 736-0159

Flat Washer .349 ID x .879 OD x .063 (for 12 & 13 HP)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 750-1148A

Spacer 1.02 x 1.63 x .1425 (for 10 & 11 HP)

$46.99

$

Usually ships in 3-6 days

0

35

White Outdoor 717-0882A

Engine Spacer .560 Thick (for 10 & 11 HP)

$

$

Not available
