SB-928 (31AE9M6G590) - White Outdoor Snow Boss Snow Thrower (2005-2) Chute Assembly Parts Diagram

Snow Boss Snow Thrower

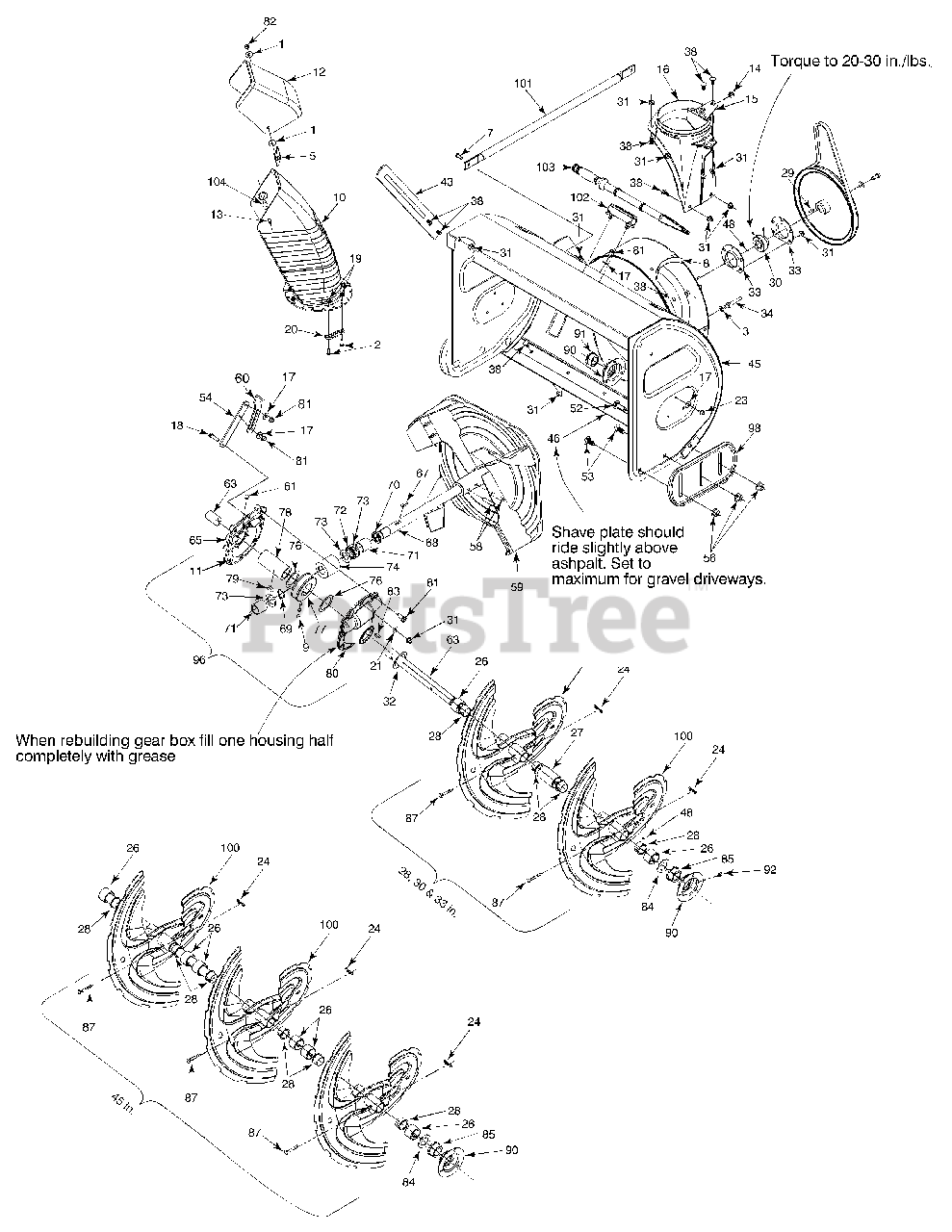

Chute Assembly Parts Diagram

  • Title

1

White Outdoor 736-0159

Flat Washer .344 ID x .875 OD

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0597

Hex. Scr. 1/4-20 x 1.00 Gr. 5

$3.99

$

In Stock, Qty 13

0

3

White Outdoor 736-0169

Lockwasher 3/8" ID

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-3008

Hex Hd Cap Scr. 5/16-18 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 784-5711

Chute Bracket
(Superseded to 784-5711-0637)

Variations

White Outdoor 784-5711-0498

Chute Bracket - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-5711-0637

Chute Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 737-0168

Shell Alvania Grease (3 oz.)
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 13

0

10

White Outdoor 731-0903D

Extended Lower Black Plastic Chute
(Superseded to 731-0903E)

$43.99

$

In Stock, Qty 17

0

11

Ultra Grey Loctite #5699 (purchase locally)

$

$

Not available

12

White Outdoor 731-0846C

Upper Black Plastic Chute

$52.99

$

In Stock, only 3 left!

0

13

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 784-5123

Chute Brkt.
(Superseded to 784-5123-0637)

Variations

White Outdoor 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

16

White Outdoor 731-1696A

Chute Adapter
(Superseded to 731-1696B)

$91.99

$

In Stock, Qty 11

0

17

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .06

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-0528

Hex Screw 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

19

White Outdoor 712-04064

Hex Flange L-Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 736-0271

Lockwasher 5/16" ID
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

22

White Outdoor 712-3004A

Flange L-Nut 5/16-18 Gr. 5 Nylon

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-0726

Hex Wash HD Tap Scr 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

26

White Outdoor 731-05163

Spacer 1.5 x 1.0 ID x 1.0" Lg.

$7.49

$

In Stock, Qty 20+

0

27

White Outdoor 731-05162

Spacer 1.5 x 1.0 ID x 2.5" Lg.

$7.49

$

Usually ships in 3-6 days

0

28

White Outdoor 741-0494

Flange Bushing 1.05 ID x 1.16 OD

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 714-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT

$4.99

$

In Stock, Qty 12

0

30

White Outdoor 741-04024

Self-Aligning Bearing .875 ID
(Superseded to 941-04024)

$64.99

$

Usually ships in 3-6 days

0

31

White Outdoor 712-04063

Hex Flg. L-Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-3046A

Flat Washer 1.010 x 1.88 x .060

$8.99

$

Usually ships in 3-6 days

0

33

White Outdoor 05244A

Bearing Housing
(Superseded to 05244B)

$23.99

$

Usually ships in 3-6 days

0

34

White Outdoor 711-0640

Belt Keeper Studs 3/8-16 x 2.75

$7.99

$

Usually ships in 3-6 days

0

38

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 790-00181

Drift Cutter

Variations

White Outdoor 790-00181-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0691

BLADE-GUIDE (DRIFT - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0606

BLADE-GUIDE (DRIFT - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0650

BLADE-GUIDE (DRIFT - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0689

BLADE-GUIDE (DRIFT - POLO GREEN (0689)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0709

BLADE-GUIDE (DRIFT - MASTERCRAFT GREEN (0709)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0721

BLADE-GUIDE (DRIFT - SEARS RED (0721)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-4021

BLADE-GUIDE (DRIFT - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-4044

BLADE-GUIDE (DRIFT - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

45

White Outdoor 684-0164A

Snowthrower Housing Assembly - Heavy Duty w/brace 28"

Variations

White Outdoor 684-0164A-0650

HOUSING-28" AUGER - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-0164A-0716

HOUSING-28" AUGER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

45

White Outdoor 684-0166A

Snowthrower Housing Assembly -Heavy Duty w/brace 33"

Variations

White Outdoor 684-0166A-0650

HOUSING-AUGER 33" - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-0166A-0665

HOUSING-AUGER 33" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-0166A-0674

HOUSING-AUGER 33" - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 684-0166A-0716

HOUSING-AUGER 33" - CUB YELLOW-99 (0716)

$

$

Not available

$667.99

$

Usually ships in 3-6 days

0

45

White Outdoor 684-0155A

Snowthrower Housing Assembly -Heavy Duty w/brace 45"

Variations

White Outdoor 684-0155A-0662

HOUSING ASSY-45" - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0155A-0665

HOUSING ASSY-45" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-0155A-0716

HOUSING ASSY-45" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

46

White Outdoor 784-5716A

Shave Plate 28"
(Superseded to 784-5716B)

Variations

White Outdoor 784-5716A-0637

SHAVE PLATE:28" - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

46

White Outdoor 784-5714A

Shave Plate 33"
(Superseded to 784-5714B-0637)

Variations

White Outdoor 784-5714A-0637

Shave Plate, 33" Black - POWDER BLACK (0637)

$55.99

$

In Stock, only 3 left!

0

$55.99

$

In Stock, only 3 left!

0

46

White Outdoor 784-5696B

Shave Plate 45"
(Superseded to 790-00280-0637)

Variations

White Outdoor 784-5696B-0637

Shave Plate, 45" Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 3 left!

0

$60.99

$

In Stock, only 3 left!

0

48

White Outdoor 737-0318

Arctic Grease
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

52

White Outdoor 710-3168

Carriage Bolt 3/8-16 x 1.00 Gr. 5

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 710-0389

Carriage Bolt 3/8-16 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

54

White Outdoor 784-5710

Gear Housing Support Plate 1 x 3/16
(Superseded to 784-5710-0637)

Variations

White Outdoor 784-5710-0637

PLATE-SUPPORT - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

56

White Outdoor 712-04065

Hex Flange L-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 715-0118

Spring Spirol Pin Heavy - 5/16 dia x 1.7

$12.99

$

In Stock, Qty 7

0

59

White Outdoor 684-0090A

Blower Fan Ass’y Complete
(Superseded to 684-0090B-0637)

Variations

White Outdoor 684-0090A-0637

IMPELLER ASSEMBLY 16" BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

60

White Outdoor 784-5076

Gear Housing Support Bracket
(Superseded to 784-5076-0637)

Variations

White Outdoor 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

61

White Outdoor 721-0325

Barbed Plug

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 738-04156

Spiral Axle 28"

$149.99

$

Usually ships in 3-6 days

0

63

White Outdoor 738-04158

Spiral Axle 33"
(Superseded to 938-04158)

$186.99

$

Usually ships in 3-6 days

0

63

White Outdoor 738-04159

Spiral Axle 45"

$

$

Not available

65

White Outdoor 618-0246

Gear Housing Half - RH
(Superseded to 918-0246)

$

$

Not available

67

White Outdoor 714-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT

$4.99

$

In Stock, Qty 12

0

68

White Outdoor 711-1133

Auger Drive Shaft

$287.99

$

Usually ships in 3-6 days

0

69

White Outdoor 716-0111

Snap Ring for .875 dia. shaft

$6.99

$

In Stock, only 4 left!

0

70

White Outdoor 721-0145

Oil seal for .875 ID Garlock (76 x 6133)
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

71

White Outdoor 741-0217

Sleeve Bearing .875 ID
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 7

0

72

White Outdoor 741-0184

Thrust Bearing .88 ID x 1.44 OD x .078

$16.99

$

Usually ships in 3-6 days

0

73

White Outdoor 736-0291

Flat Washer .88 ID x 1.4 OD x .125

$11.99

$

Usually ships in 3-6 days

0

74

White Outdoor 717-0299

Worm Gear LH Double Thread
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

76

White Outdoor 736-0266

Flat Washer 1.5 ID x 2.0 OD x .03
(Superseded to 936-0266)

$

$

Not available

77

White Outdoor 717-1425

Worm Gear LH Double Thread (Bronze)
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

78

White Outdoor 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

79

White Outdoor 714-0135

#91 Woodruff Key 1/4 x 3/4 Dia.

$4.99

$

In Stock, only 2 left!

0

80

White Outdoor 618-0247

Gear Housing Half LH
(Superseded to 918-0247)

$103.99

$

In Stock, only 1 left!

0

80

White Outdoor 618-0435

Gear Housing Half LH (w/grease fitting hole)
(Superseded to 918-0435)

$109.99

$

Usually ships in 3-6 days

0

81

White Outdoor 710-1260A

Hex Flange Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 714-0135

#91 Woodruff Key 1/4 x 3/4 Dia.

$4.99

$

In Stock, only 2 left!

0

84

MTD 750-04020

Spacer
(Superseded to 950-04020)

$12.99

$

In Stock, only 1 left!

0

85

White Outdoor 741-0192

Flange Bearing
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

87

White Outdoor 738-04155

Shear Bolt 5/16-18 x 1.75

$1.99

$

In Stock, Qty 20+

0

90

White Outdoor 05845C

Bearing Housing

Variations

White Outdoor 05845C-0637

Housing Bearing - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 05845C-0665

HOUSING BEARING - YARDMAN GREEN (0665)

$

$

Not available

$19.99

$

Usually ships in 3-6 days

0

90

White Outdoor 784-0315A

Bearing Housing (for 45")

Variations

White Outdoor 784-0315A-0637

Housing Bearing - POWDER BLACK (0637)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

91

White Outdoor 741-0192

Flange bearing w/flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

92

White Outdoor 737-3000

Grease Fitting (optional)
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

96

White Outdoor 618-0257

Worm Gear Box Ass’y
(Superseded to 618-0436)

$710.99

$

Usually ships in 3-6 days

0

96

White Outdoor 618-0436

Worm Gear Box Ass’y (w/grease fitting)

$710.99

$

Usually ships in 3-6 days

0

98

White Outdoor 784-5697

Reversible Slide Shoe

Variations

White Outdoor 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$44.99

$

In Stock, Qty 7

0

White Outdoor 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$44.99

$

In Stock, only 2 left!

0

$45.99

$

Usually ships in 3-6 days

0

100

White Outdoor 684-04151

Left Hand Augers

Variations

White Outdoor 684-04151-0606

Spiral Assembly, LH 900 - MAJESTIC ORANGE (0606)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-0637

SPIRAL ASSY:LH 900 - POWDER BLACK (0637)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-0638

SPIRAL ASSY:LH 900 - MTD/TROY-BILT RED (0638)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-0650

SPIRAL ASSY:LH 900 - RED METALLIC (0650)

$231.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-0662

SPIRAL ASSY:LH 900 - OYSTER GRAY (0662)

$201.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-0674

SPIRAL ASSY:LH 900 - YARDMAN YELLOW (0674)

$231.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-0716

SPIRAL ASSY:LH 900 - CUB YELLOW-99 (0716)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-0717

SPIRAL ASSY:LH 900 - SILVER MIST (0717)

$201.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-4021

SPIRAL ASSY:LH 900 - CUB YELLOW 2 (4021)

$249.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-4028

SPIRAL ASSY:LH 900 - SEARS YELLOW (4028)

$249.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04151-4044

SPIRAL ASSY:LH 900 - CRAFTSMAN RED (4044)

$231.99

$

Usually ships in 3-6 days

0

$249.99

$

Usually ships in 3-6 days

0

100

White Outdoor 684-04152

Right Hand Augers

Variations

White Outdoor 684-04152-0638

SPIRAL ASSY:RH 900 - MTD/TROY-BILT RED (0638)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-0499

SPIRAL ASSY-RH 900 - CUB BEIGE (0499)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-0606

SPIRAL ASSY:RH 900 - MAJESTIC ORANGE (0606)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-0637

SPIRAL ASSY:RH 900 - POWDER BLACK (0637)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-0650

SPIRAL ASSY:RH 900 - RED METALLIC (0650)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-0662

SPIRAL ASSY:RH 900 - OYSTER GRAY (0662)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-0674

SPIRAL ASSY:RH 900 - YARDMAN YELLOW (0674)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-0716

SPIRAL ASSY:RH 900 - CUB YELLOW-99 (0716)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-0717

SPIRAL ASSY:RH 900 - SILVER MIST (0717)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-4021

SPIRAL ASSY:RH 900 - CUB YELLOW 2 (4021)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-4028

SPIRAL ASSY:RH 900 - SEARS YELLOW (4028)

$261.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04152-4044

SPIRAL ASSY:RH 900 - CRAFTSMAN RED (4044)

$261.99

$

Usually ships in 3-6 days

0

$216.99

$

Usually ships in 3-6 days

0

101

White Outdoor 749-1117

Support Tubing (33" & 45" Only)

Variations

White Outdoor 749-1117-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

102

White Outdoor 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 18

0
