SB-855 4X4 - White Outdoor Snow Boss Snow Thrower (2000) Chain Case & Wheels Parts Diagram

Snow Boss Snow Thrower

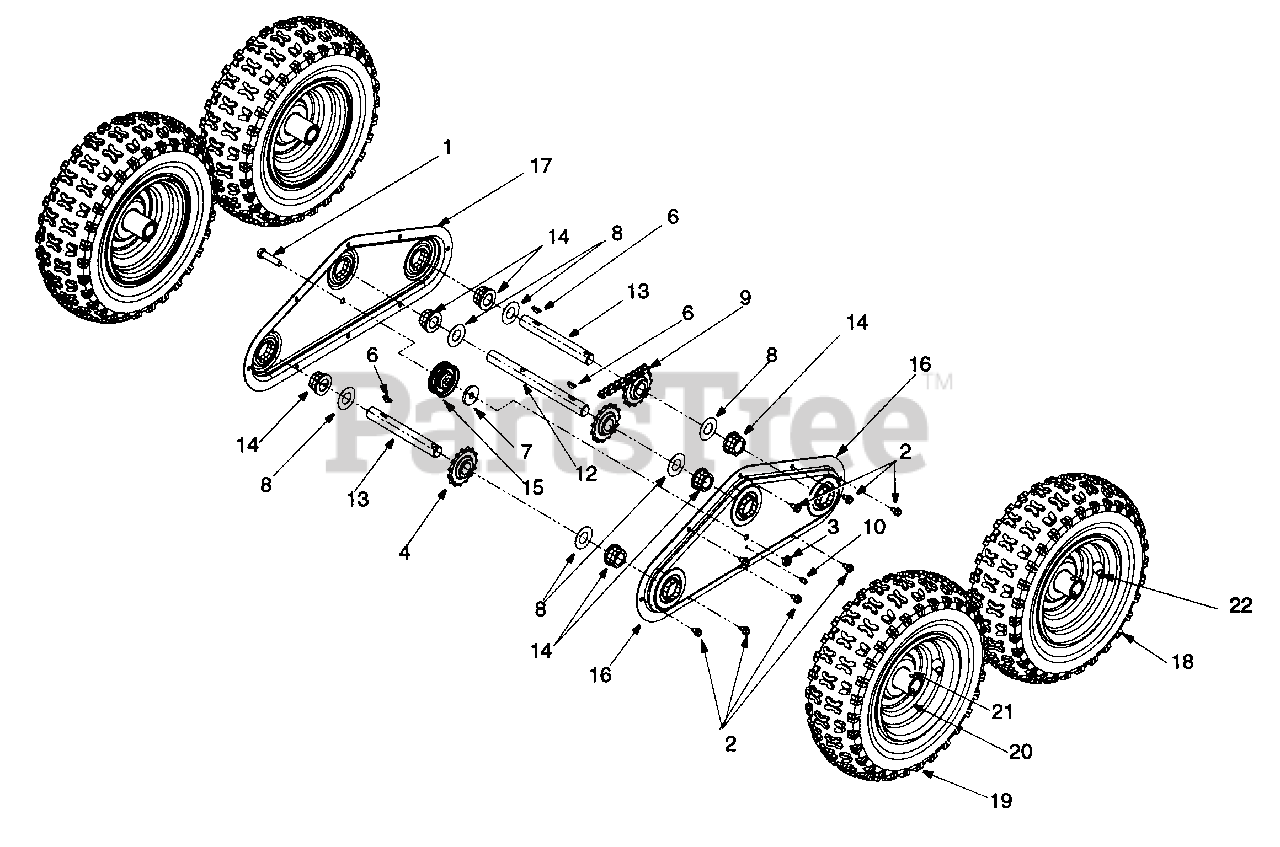

Chain Case & Wheels Parts Diagram

  • Title

1

MTD 710-0459A

Special Hex Screw: 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

2

MTD 710-0599

TT Screw: 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

3

MTD 912-0116

Jam Nut
(Superseded to 712-0116)

$

$

Not available

4

MTD 713-0491

Sprocket

Note: NLA

$

$

Not available

5

MTD 713-0492

Chain

Note: NLA

$

$

Not available

6

MTD 914-0161

Key

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

8

MTD 936-0351

Flat Washer
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

9

MTD n/a

Lubricant: 6in 1

$

$

Currently unavailable

10

MTD 937-3000

Lube Fitting

$4.99

$

In Stock, Qty 20+

0

11

MTD n/a

Grease

$

$

Currently unavailable

12

MTD 738-1135A

Drive Axle

$

$

Not available

13

MTD 738-1136

Wheel Axle

Note: NLA

$

$

Not available

14

MTD 941-0598

Hex Flange Bearing

$12.99

$

In Stock, Qty 20+

0

15

MTD 756-0313

Flat Idler

$26.99

$

In Stock, only 4 left!

0

16

MTD 784-0400

Chain Case: Outer

Note: NLA

Variations

MTD 784-0400-0637

No Longer Available CASE-OUTER - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 784-0401A-0637

Chain Case: Inner

$

$

Not available

18

MTD 634-0195

Complete Wheel Assembly

Note: *CHOOSE COLOR WHEN ORDERING* Includes items 19 - 22

Variations

MTD 634-0195-0911

No Longer Available WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0195-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

$

$

19

MTD 734-1732

Tire Assembly

Variations

MTD 734-1732-0901

TIRE:SNOW HOG 13X4 - Carlisle (0901)

$150.99

$

Usually ships in 3-6 days

0

MTD 734-1732-0904

TIRE:SNOW HOG 13X4 - Cheng (0904)

$150.99

$

Usually ships in 3-6 days

0

MTD 734-1732-0905

TIRE:SNOW HOG 13X4 - Duro (0905)

$150.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

20

MTD 734-1735

Rim Assembly

Note: NLA

Variations

MTD 734-1735-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 734-1735-0662

Rim Assembly: Oyster Grey - OYSTER GRAY (0662)

$

$

Not available

$

$

21

MTD 941-0401

Bearing

$7.49

$

In Stock, Qty 6

0

22

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0
