SB-855 4X4 (31AH4G3F190) - White Outdoor Snow Boss Snow Thrower (2000) Blower Housing & Gear Assembly Parts Diagram

Snow Boss Snow Thrower

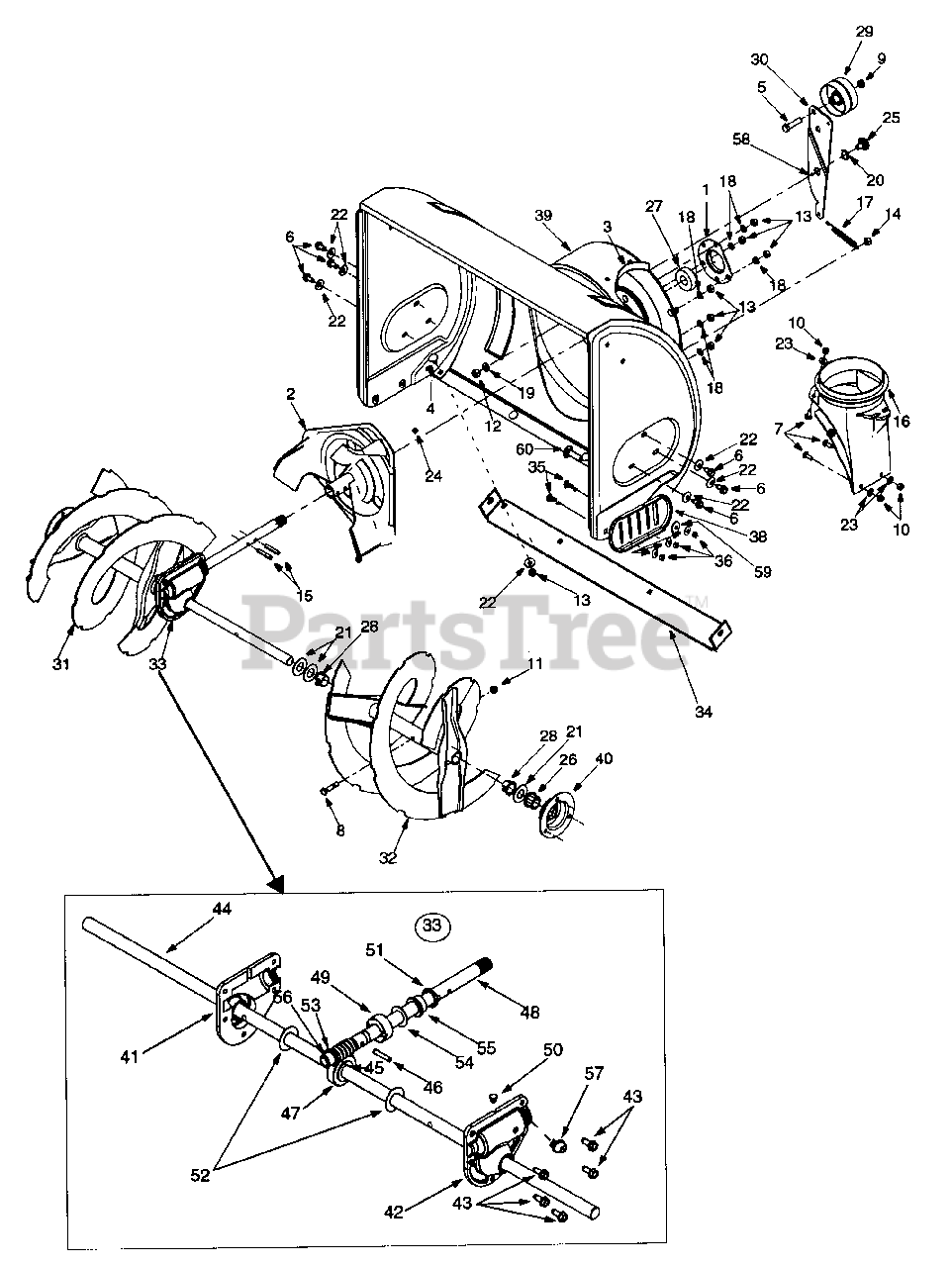

Blower Housing & Gear Assembly Parts Diagram

  • Title

1

White Outdoor 05931

Bearing Housing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

2

White Outdoor 684-0065

Impeller Assy. 12" dia.
(Superseded to 984-0065-0637)

Variations

White Outdoor 684-0065-0662

Impeller Assembly - OYSTER GRAY (0662)

$90.99

$

In Stock, Qty 6

0

White Outdoor 684-0065-0665

Impeller Assembly - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

3

White Outdoor 705-5226

Chute Reinforcement

Variations

White Outdoor 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

White Outdoor 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75" Gr.2

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0459A

Hex Screw 3/8-24 x 1.5" Gr.5

$6.99

$

In Stock, Qty 8

0

6

White Outdoor 710-0604

Hex Washer Head Self-Tapping Screw 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0703

Carriage Screw 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0890A

Shear Bolt 5/16-18 x 1.5"

$1.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0116

Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

10

White Outdoor 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

11

White Outdoor 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0798

Hex Nut 3/8-16 Gr.2

$4.49

$

In Stock, Qty 6

0

13

White Outdoor 712-3010

Hex Nut 5/16-18 Gr.5

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-3068

Hex Patch Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

15

White Outdoor 715-0114

Spiral Pin

$9.49

$

In Stock, Qty 20+

0

16

White Outdoor 731-1379A

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

17

White Outdoor 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

18

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0174

Wave Washer

$6.99

$

In Stock, Qty 8

0

21

White Outdoor 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-0463

Flat Washer

$4.49

$

In Stock, Qty 20+

0

24

737-3007

Grease

$

$

Not available

25

White Outdoor 738-0281

Shoulder Screw

$10.99

$

In Stock, only 2 left!

0

26

White Outdoor 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

27

White Outdoor 741-0309

Flange Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

28

White Outdoor 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

30

White Outdoor 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

White Outdoor 784-5632A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

31

605-5192A-0662

Spiral Assembly: RH 26"

$

$

Not available

32

605-5193A-0662

Spiral Assembly: LH 26"

$

$

Not available

33

White Outdoor 618-0415

Gear Assembly: Auger 26"
(Superseded to 918-0415B)

Note: Includes Ref. # 41 - 56

$442.99

$

Usually ships in 3-6 days

0

34

White Outdoor 784-5579A

Shave Plate: Auger 26"
(Superseded to 790-00121-0637)

Variations

White Outdoor 784-5579A-0629

Shave Plate, 26" Powder Black - SILVER FLAKE (0629)

$36.99

$

In Stock, Qty 20+

0

White Outdoor 784-5579A-0637

Shave Plate, 26" Powder Black - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 20+

0

White Outdoor 784-5579A-0638

Shave Plate, 26" Powder Black - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, Qty 20+

0

White Outdoor 784-5579A-0667

Shave Plate, 26" Powder Black - MIDNIGHT BLUE (0667)

$36.99

$

In Stock, Qty 20+

0

White Outdoor 784-5579A-0689

Shave Plate, 26" Powder Black - POLO GREEN (0689)

$36.99

$

In Stock, Qty 20+

0

White Outdoor 784-5579A-0691

Shave Plate, 26" Powder Black - BLACK JACK (0691)

$36.99

$

In Stock, Qty 20+

0

White Outdoor 784-5579A-0692

Shave Plate, 26" Powder Black - AGWAY BLUE (0692)

$36.99

$

In Stock, Qty 20+

0

$36.99

$

In Stock, Qty 20+

0

35

White Outdoor 710-0451

Carr. Bolt: 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 712-3010

Hex Nut: 5/16-18 Gr.5

$4.49

$

In Stock, Qty 20+

0

?37

White Outdoor 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 784-5038B

Slide Shoe
(Superseded to 784-5038B-0637)

Variations

White Outdoor 784-5038B-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5038B-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

39

White Outdoor 684-0040C-0662

Auger Housing Assy. 26"
(Superseded to 684-0040D-0662)

$

$

Not available

40

White Outdoor 784-5618

Bearing Housing
(Superseded to 784-5618A-0637)

Variations

White Outdoor 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

41

White Outdoor 618-0123

RH Housing
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 11

0

42

White Outdoor 618-0124

LH Housing
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 10

0

43

White Outdoor 710-0642

TT Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 711-0909

Spiral Axle, 26"
(Superseded to 711-0909A)

$

$

Not available

45

White Outdoor 714-0161

Hi-Pro Key, 3/1 6 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 715-0143

Spring Spiral Pin, .25 x 1.25

$4.99

$

In Stock, Qty 9

0

47

White Outdoor 717-0528

Worm Gear, 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

48

White Outdoor 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, only 2 left!

0

49

White Outdoor 718-0186

Thrust Collar

$8.49

$

In Stock, Qty 11

0

50

White Outdoor 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

52

White Outdoor 736-0351

Flat Washer, .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0369

Flat Washer, .508 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 736-0445

Flat Washer, .76 x 1.5 x .060

$4.49

$

In Stock, Qty 11

0

55

White Outdoor 741-0662

Flange Bearing, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 16

0

56

White Outdoor 741-0663

Flange Bearing, .503 ID x .75 OD

$9.99

$

In Stock, Qty 20+

0

57

White Outdoor 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

58

White Outdoor 737-0168

Alvania Grease (2 Ounces)
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 13

0

59

White Outdoor 736-0231

Flat Washer

$4.99

$

In Stock, Qty 20+

0

60

White Outdoor 710-0276

Carriage Screw: Special

$3.99

$

In Stock, Qty 20+

0
