SB-855 4X4 (31AD4M3F190) - White Outdoor Snow Boss Snow Thrower (2001) Engine & V-Belts Parts Diagram

Snow Boss Snow Thrower

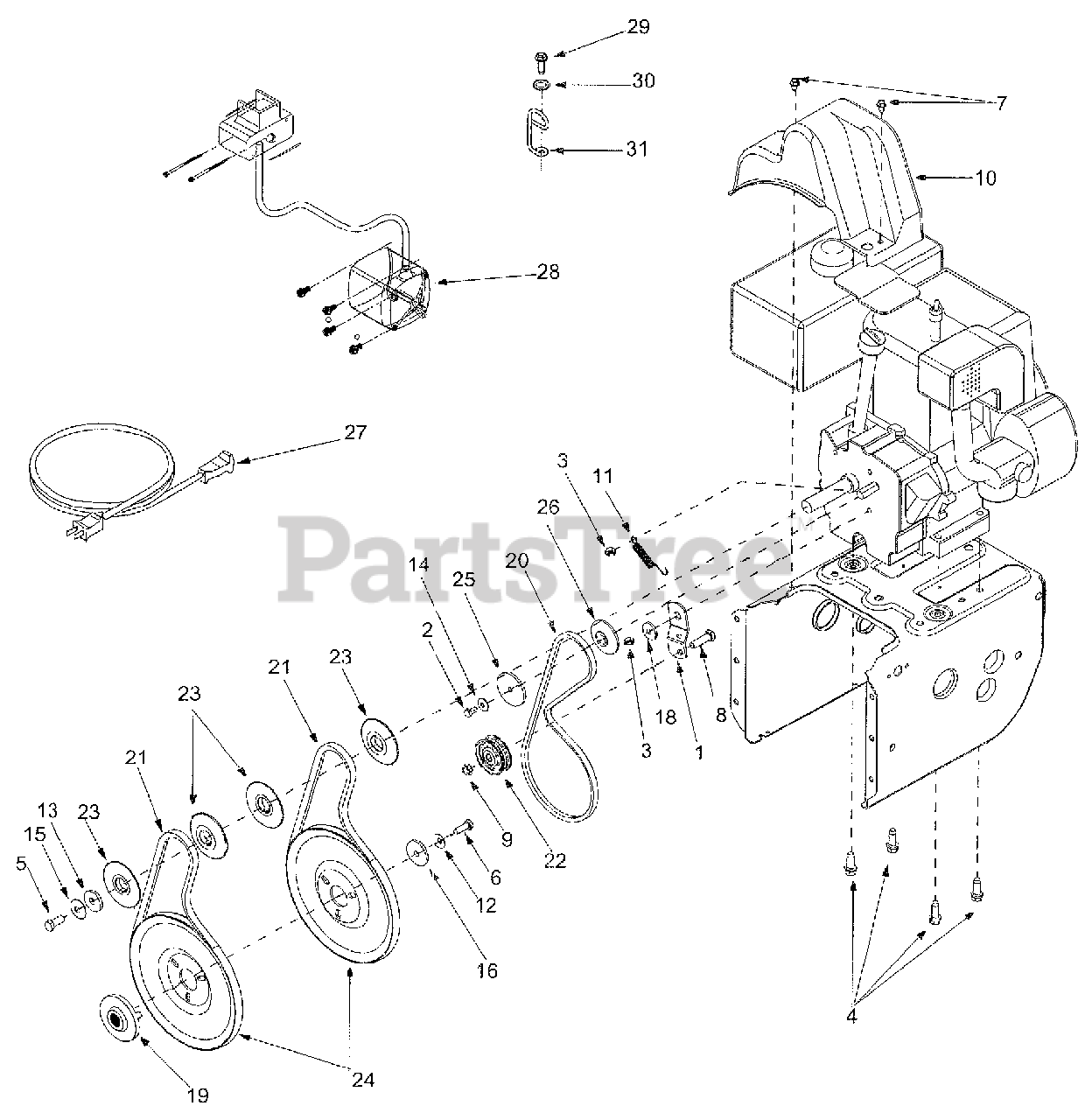

Engine & V-Belts Parts Diagram

  • Title
1

White Outdoor 05896A

Idler Bracket

Variations

White Outdoor 05896A-0637

No Longer Available BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 710-0230

Hex Bolt 1/4-28 x 0.5" Gr.5

$

$

Not available

3

White Outdoor 710-0627

Hex Scr w/ Patch: 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0654A

Hex Washer Head Sems Screw

$4.49

$

In Stock, only 3 left!

0

5

White Outdoor 710-0696

Hex Bolt 3/8-24 x .875" Gr.8

$6.99

$

In Stock, only 2 left!

0

6

White Outdoor 710-1245

Hex Scr w/ Patch: 5/16-24 x .875"

$8.49

$

In Stock, only 2 left!

0

7

White Outdoor 710-1652

Hex Washer Head TT

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-3005

Hex Screw: 3/8-16 x 1.0"

$3.99

$

In Stock, Qty 10

0

9

White Outdoor 712-0181

Top Lock Jam Nut: 3/8-16

$4.49

$

In Stock, only 3 left!

0

10

$21.99

$

Usually ships in 3-6 days

0

11

White Outdoor 732-0710

Extension Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 8

0

12

White Outdoor 736-0242

Bellevile Washer

$4.49

$

In Stock, Qty 20+

0

13

$9.49

$

In Stock, Qty 15

0

14

$3.99

$

In Stock, Qty 20+

0

15

$3.99

$

In Stock, Qty 16

0

16

$6.49

$

In Stock, only 2 left!

0

18

White Outdoor 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

19

White Outdoor 748-0360

Adapter Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 2 left!

0

20

White Outdoor 754-0346

V -Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 5

0

21

White Outdoor 754-0430A

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

22

$26.99

$

In Stock, Qty 6

0

23

$10.99

$

Usually ships in 3-6 days

0

24

White Outdoor 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

25

$

$

Not available

26

White Outdoor 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

27

White Outdoor 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

28

White Outdoor OEM-390-987

Electric Start Kit
(Superseded to TC-33329H)

$

$

Not available

29

White Outdoor 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

30

White Outdoor 736-0173

Flat Washer.28 ID x .74 OD

$4.49

$

In Stock, only 4 left!

0

31

$11.99

$

Usually ships in 3-6 days

0
