SB-855 (31AH4G3F190) - White Outdoor Snow Boss Snow Thrower (2000) Engine & V-Belts Parts Diagram

Snow Boss Snow Thrower

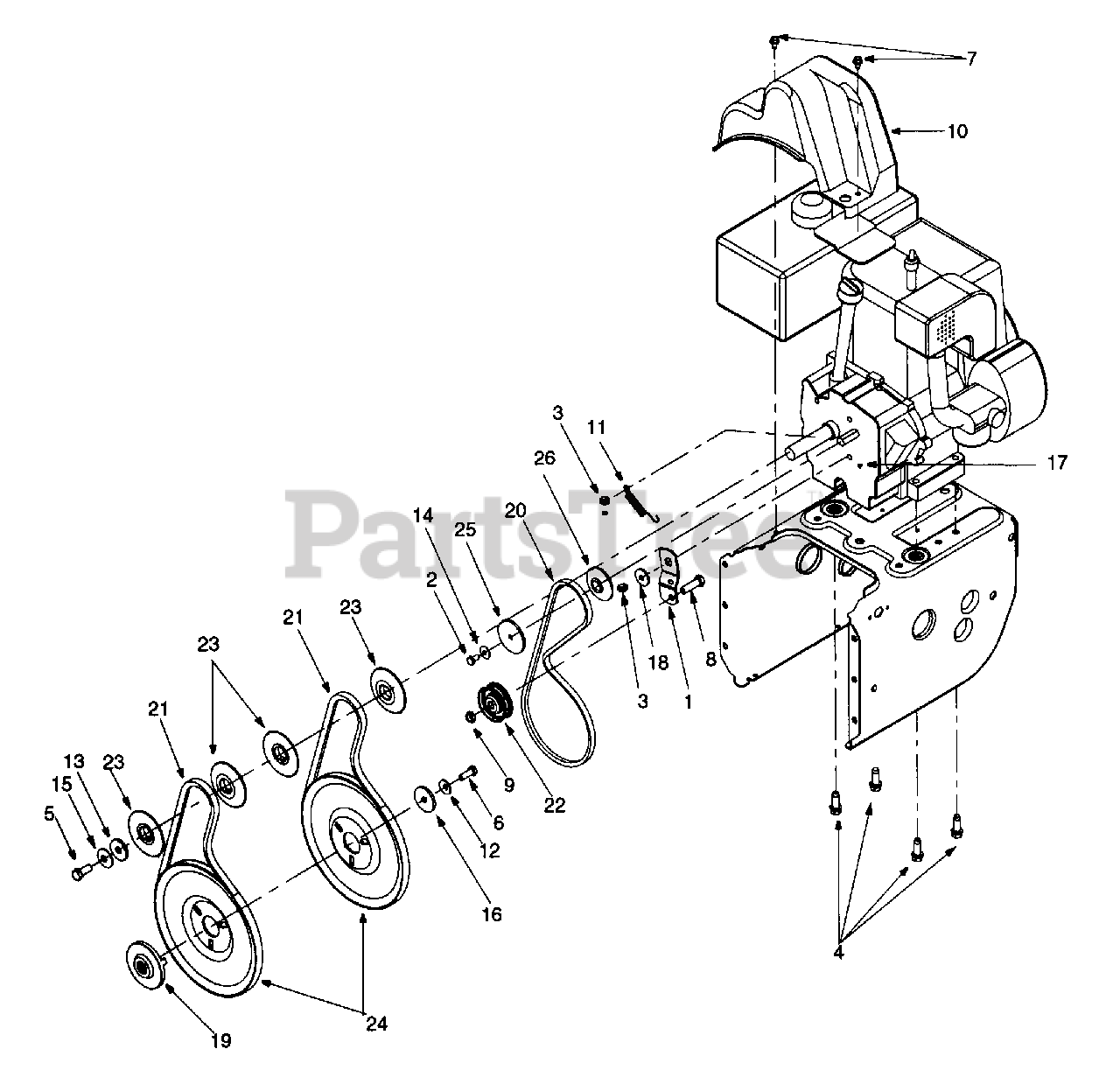

Engine & V-Belts Parts Diagram

  • Title

1

MTD 05896A

Idler Bracket

Note: NLA

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0230

Hex Bolt 1/4-28 x 0.5" Gr.5

$

$

Not available

3

MTD 710-0627

Hex Screw w/ Patch: 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0654A

Hex Washer Head TT Sems Screw

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0696

Hex Bolt 3/8-24 x .875" Gr.8

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-1245

Hex Screw w/ Patch: 5/16-24 x .875" Gr 5

$8.49

$

In Stock, only 4 left!

0

7

MTD 710-1652

Hex Washer Head TT

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3005

Hex Screw: 3/8-16 x 1.0"

$3.99

$

In Stock, Qty 20+

0

9

MTD 912-0181

Top Lock Jam Nut: 3/8-16
(Superseded to 712-0181)

$

$

Not available

10

MTD 731-1324

Belt Cover

$21.99

$

In Stock, only 3 left!

0

11

MTD 932-0710

Extension Spring

$7.49

$

In Stock, Qty 16

0

12

MTD 736-0242

Bellevile Washer

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

14

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

15

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

16

MTD 736-0505

Flat Washer

$6.49

$

In Stock, Qty 11

0

17

MTD n/a

Grease

$

$

Currently unavailable

18

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

19

MTD 948-0360

Adapter Pulley

$22.99

$

In Stock, only 1 left!

0

20

MTD 954-0346

V-Belt

$28.99

$

In Stock, Qty 20+

0

21

MTD 954-0430B

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

22

MTD 756-0313

Flat Idler

$26.99

$

In Stock, only 4 left!

0

23

MTD 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

24

MTD 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

25

MTD 756-0986

Pulley Half

$

$

Not available

26

MTD 956-0987

Pulley Half

$

$

Not available
