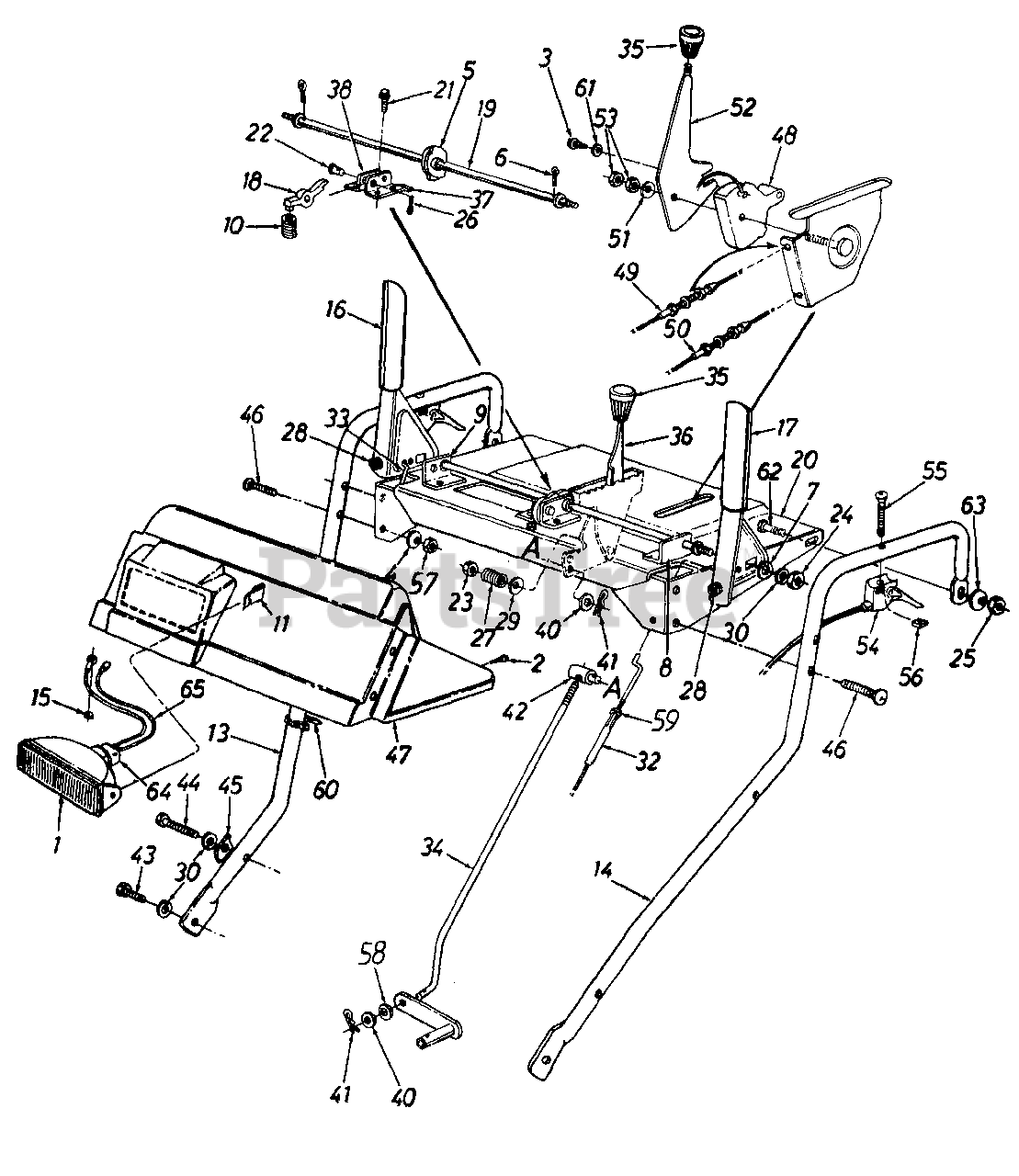

SB-850 ST (313-648F190) - White Outdoor Snow Boss Snow Thrower (1993) Snow Thrower Parts Diagram

Snow Boss Snow Thrower

Snow Thrower Parts Diagram

  • Title

1

White Outdoor 725-1646

Lamp Housing w/Lens
(Superseded to 925-1672)

Note: Code: N Notates a new part (not previously existing)

$89.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5

$4.49

$

In Stock, only 2 left!

0

3

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 736-0242

Bell-Wash. .325" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 748-0362

Cam Handle Lock

Note: Code: N Notates a new part (not previously existing)

$7.99

$

Usually ships in 3-6 days

0

6

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

7

White Outdoor 736-0509

Washer (Special) .72" O.D.

Note: Code: N Notates a new part (not previously existing)

$6.99

$

In Stock, only 1 left!

0

8

White Outdoor 784-5681

Handle Support Brkt. - L.H.

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

9

White Outdoor 784-5682

Handle Support Brkt. - R.H.
(Superseded to 784-5682-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

10

White Outdoor 732-0437

Compression Spring

$10.99

$

In Stock, only 1 left!

0

11

White Outdoor 726-0321

Retaining Clip
(Superseded to 747-1136)

Note: Code: N Notates a new part (not previously existing)

$11.99

$

Usually ships in 3-6 days

0

13

White Outdoor 749-0908

Handle - R.H.
(Superseded to 749-0908A-0637)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

14

White Outdoor 749-0909

Handle - L.H.
(Superseded to 749-0909-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 749-0909-0637

HANDLE-LH-C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

16

White Outdoor 684-0036

Engagement Handle - R.H.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

17

White Outdoor 684-0037

Engagement Handle - L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

18

White Outdoor 748-0363

Pawl Handle Lock
(Superseded to 948-0363)

Note: Code: N Notates a new part (not previously existing)

$16.99

$

Usually ships in 3-6 days

0

19

White Outdoor 747-0877

Rod Cam

$22.99

$

Usually ships in 3-6 days

0

20

White Outdoor 684-0032A

Handle Panel Support

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 684-0032A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 684-0032A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 684-0032A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 684-0032A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0032A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0032A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 711-0946

Clevis Pin .437" Dia. x .65" Eg.

$

$

Not available

23

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

24

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

25

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

26

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

27

White Outdoor 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

28

White Outdoor 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

29

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?31

White Outdoor 736-0175

Spring Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

32

White Outdoor 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

33

White Outdoor 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

34

White Outdoor 747-0798

Shift Rod
(Superseded to 747-0798A)

$38.99

$

Usually ships in 3-6 days

0

35

White Outdoor 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

36

White Outdoor 784-0297

Shift Handle
(Superseded to 784-0297A)

$

$

Not available

37

White Outdoor 784-5679

Handle Brkt. - L.H.
(Superseded to 784-5679-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

38

White Outdoor 784-5680

Handle Brkt. - R.H.
(Superseded to 784-5680-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

40

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

41

White Outdoor 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

43

White Outdoor 710-0538

Hex Bolt 5/16-18 x .62" Lg. (Special)

$4.49

$

In Stock, Qty 9

0

44

White Outdoor 710-3180

Hex Bolt 5/16-18 x 1.75" Lg. (Gr. 5)

$5.49

$

In Stock, Qty 15

0

45

White Outdoor 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 710-1250

Curved Carr. Bolt 5/16-18 x 1.5" Lg.

$4.99

$

In Stock, Qty 5

0

47

White Outdoor 731-1347

Handle Panel

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

48

White Outdoor 731-1313

Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

49

White Outdoor 746-0896

Chute Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

50

White Outdoor 746-0901

Chute Control Cable w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

51

White Outdoor 736-0425

Bell-Wash. .325" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 13

0

52

White Outdoor 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

White Outdoor 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

53

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

54

White Outdoor 746-0900

Track Steer Cable w/Trigger
(Superseded to 753-0707)

$74.99

$

In Stock, Qty 5

0

55

White Outdoor 710-1233

Oval C-Sunk Hd. Scr. 10-24 x 1.375" Lg.

$4.99

$

In Stock, Qty 11

0

56

White Outdoor 712-0127

Flat Weld Nut #10-24 Thd.

$3.49

$

In Stock, Qty 13

0

57

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

58

White Outdoor 736-0271

Spr. Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

59

White Outdoor 712-0121

Hex Nut #10-24 Thd.

Note: (Incl. w/Ref. 32 & 33)

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

61

White Outdoor 736-0506

Washer (Special) 1.25" O.D.
(Superseded to 736-0506A)

$

$

Not available

62

White Outdoor 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

64

White Outdoor 725-1645

Bulb
(Superseded to 925-1658)

Note: Code: N Notates a new part (not previously existing)

$60.99

$

In Stock, only 4 left!

0

65

White Outdoor 629-0059

Wire Harness
(Superseded to 929-0059)

Note: Code: N Notates a new part (not previously existing)

$100.99

$

Usually ships in 3-6 days

0

777-0733

Snow Boss 850ST Label

$

$

Not available

MTD 777-0019

Transport Label

$

$

Not available

777-0144

G-Speed Label

$

$

Not available

777-0145A

Chute Crank Label

$

$

Not available

777-0147A

Chute Tilt Label

$

$

Not available
