SB-850 ST (313-648F190) - White Outdoor Snow Boss Snow Thrower (1993) Shift Arm & Frame Assembly Parts Diagram

Snow Boss Snow Thrower

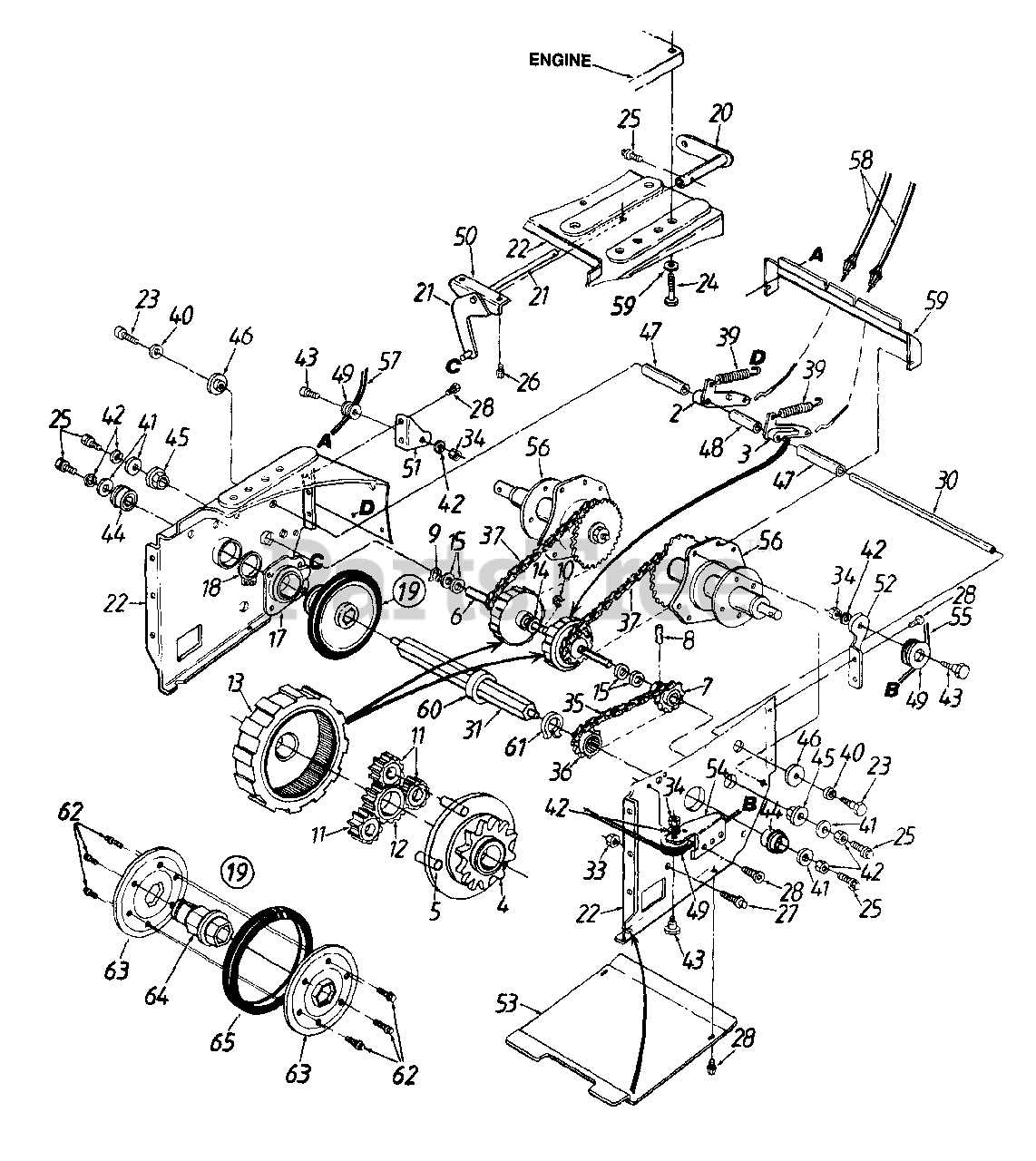

Shift Arm & Frame Assembly Parts Diagram

  • Title

2

White Outdoor 618-0043

R.H. Dog Ass'y.

$23.99

$

In Stock, only 1 left!

0

3

White Outdoor 618-0044

L.H. Dog Ass'y.

$24.99

$

In Stock, only 1 left!

0

4

White Outdoor 718-0188

Carrier
(Superseded to 918-0576A)

$224.99

$

Usually ships in 3-6 days

0

5

White Outdoor 741-0542

5/16" Dowel Pin

$11.99

$

Usually ships in 3-6 days

0

6

White Outdoor 711-0912

Drive Shaft

$131.99

$

Usually ships in 3-6 days

0

7

White Outdoor 713-0411

12 Tooth Sprocket

$

$

Not available

8

White Outdoor 715-0247

Spring Pin 3/16" Dia. x 1" Lg.
(Superseded to 915-0247)

$

$

Not available

9

White Outdoor 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0

10

White Outdoor 716-0115

Snap Ring .625" Shaft
(Superseded to 916-0115)

$

$

Not available

11

White Outdoor 717-1209

12 Tooth Gear
(Superseded to 717-1209A)

$4.99

$

Usually ships in 3-6 days

0

12

White Outdoor 717-1210

18 Tooth Gear
(Superseded to 717-1210A)

$8.99

$

In Stock, only 3 left!

0

13

White Outdoor 717-1211

Ring Gear
(Superseded to 717-1211B)

$

$

Not available

14

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

15

White Outdoor 736-0502

Fl-Wash. .57" I.D. x 1.12" O.D.
(Superseded to 936-0502)

$6.99

$

Usually ships in 3-6 days

0

17

White Outdoor 618-0063

Friction Wheel Brg. Ass'y.

$92.99

$

Usually ships in 3-6 days

0

18

White Outdoor 716-0185

Retaining Ring 1.375" Dia. Shaft

$3.99

$

Usually ships in 3-6 days

0

19

White Outdoor 684-0042

Friction Wheel
(Superseded to 984-0042C)

Note: Code: N Notates a new part (not previously existing)

$138.99

$

Usually ships in 3-6 days

0

20

White Outdoor 684-0008

Shift Arm Ass'y.
(Superseded to 684-0008A-0637)

Variations

White Outdoor 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0008-0638

Shift Arm Assembly - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

21

White Outdoor 684-0014

Shift Rod Ass'y.
(Superseded to 684-0014B-0637)

$47.99

$

In Stock, only 1 left!

0

22

White Outdoor 684-0031

Frame Ass'y.
(Superseded to 984-0031)

Variations

White Outdoor 684-0031-0483

KIT-REPLACEMENT (6 - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 684-0031-0499

KIT-REPLACEMENT (6 - CUB BEIGE (0499)

$

$

Not available

White Outdoor 684-0031-0637

KIT-REPLACEMENT (6 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 684-0031-0650

FRAME ASSY - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-0031-0662

KIT-REPLACEMENT (6 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0031-0665

KIT-REPLACEMENT (6 - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-0031-0721

KIT-REPLACEMENT (6 - SEARS RED (0721)

$

$

Not available

$122.99

$

Usually ships in 3-6 days

0

23

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 710-0502

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

25

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 13

0

27

White Outdoor 710-0788

Hex Wash. TT-Tap Scr. 1/4-20 x 1" Lg.

$7.49

$

In Stock, only 4 left!

0

28

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

30

White Outdoor 711-0911

Actuator Shaft

$

$

Not available

31

White Outdoor 711-0944

Drive Shaft

$

$

Not available

33

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

34

White Outdoor 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

35

White Outdoor 713-0267

#420 Chain - 1/2 Pitch x 30 Link (Endless)

$

$

Not available

36

White Outdoor 713-0415

11 Tooth Sprocket

$

$

Not available

37

White Outdoor 713-0437

#420 Chain - 32 Links (Endless)

$37.99

$

Usually ships in 3-6 days

0

39

White Outdoor 732-0209

Extension Spring 2.03" Lg.
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

40

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 6

0

42

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

43

White Outdoor 738-0870

Shld. Bolt 5/16" Dia. x .35" Lg.

$

$

Not available

44

White Outdoor 741-0563

Ball Brg. w/Snap Ring
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

45

White Outdoor 741-0597

Hex Flange Bearing
(Superseded to 941-0597)

$12.99

$

In Stock, Qty 12

0

46

White Outdoor 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 750-0903

Split Shld. Spacer 2.69" Lg.
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

48

756-0904

Split Shld. Spacer 1.77" Lg.

$

$

Not available

49

White Outdoor 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

50

White Outdoor 784-5590

Shift Brkt. Frame

Variations

White Outdoor 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

51

White Outdoor 784-5644

Drive Cable Roller Brkt.

Variations

White Outdoor 784-5644-0637

No Longer Available BRACKET-DRIVE CABL - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 784-5646

Auger Cable Guide Brkt.

Variations

White Outdoor 784-5646-0637

No Longer Available BRACKET-AUGER CABL - POWDER BLACK (0637)

$

$

Not available

$

$

53

White Outdoor 784-5648

Frame Cover
(Superseded to 784-5648A-0637)

Variations

White Outdoor 784-5648-0483

Frame Track Cover - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-5648-0638

COVER-FRAME:TRACK - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-5648-0662

COVER-FRAME:TRACK - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-5648-0687

COVER-FRAME:TRACK - PINE GREEN (0687)

$

$

Not available

White Outdoor 784-5648-0637

COVER-FRAME:TRACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5648-0650

COVER-FRAME:TRACK - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5648-0665

COVER-FRAME:TRACK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 784-5648-0689

COVER-FRAME:TRACK - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5648-0721

COVER-FRAME:TRACK - SEARS RED (0721)

$

$

Not available

$

$

54

White Outdoor 784-5658

Front Support Brkt. Guide
(Superseded to 784-5658-0637)

Variations

White Outdoor 784-5658-0637

Support Bracket, FR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5658-0638

Support Bracket, FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

55

White Outdoor 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

56

White Outdoor 683-0023

Track Hub Ass'y.

$

$

Not available

57

White Outdoor 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

58

White Outdoor 746-0900

Track Steer Cable w/Trigger
(Superseded to 753-0707)

$74.99

$

In Stock, Qty 5

0

59

White Outdoor 736-3052

Fl-Wash. .406" I.D. x 1" O.D.

Note: Code: N Notates a new part (not previously existing)

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 750-0920

Spacer 1.02" I.D. x 1.25" O.D.
(Superseded to 950-0920)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

61

White Outdoor 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

62

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 784-5677

Friction Plate

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

64

White Outdoor 718-0240

Friction Wheel Hub

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

65

White Outdoor 735-0243

Friction Wheel Rubber
(Superseded to 935-0243B)

Note: Code: N Notates a new part (not previously existing)

$15.99

$

In Stock, Qty 20+

0
