SB-850 (316E646-190) - White Outdoor Snow Boss Snow Thrower (1996) Handle Grip & Chute Crank Parts Diagram

Snow Boss Snow Thrower

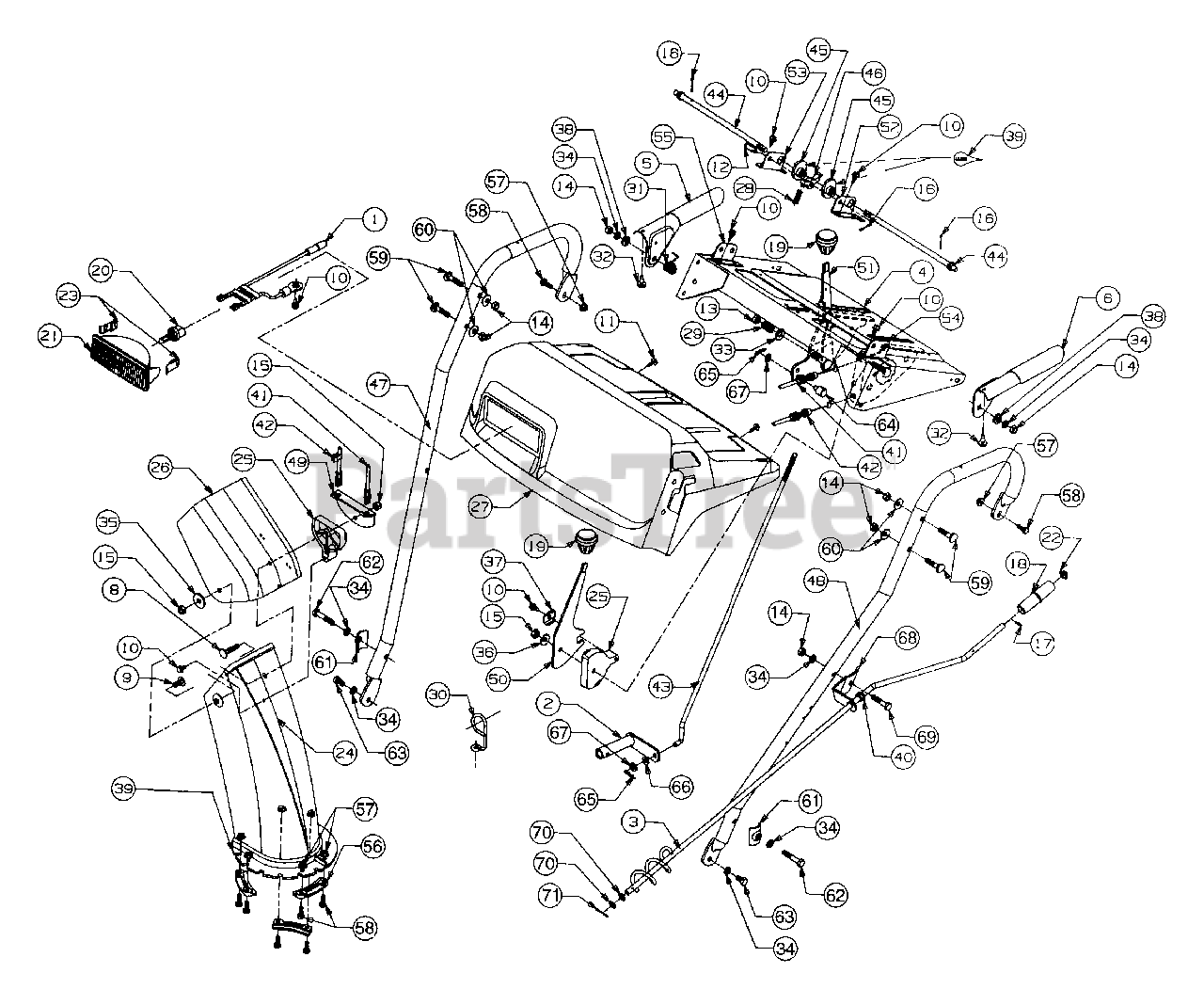

Handle Grip & Chute Crank Parts Diagram

  • Title

1

MTD 929-0059

Harness

$100.99

$

Usually ships in 3-6 days

0

2

MTD 684-0008A-0637

Arm Shift

$50.99

$

Usually ships in 3-6 days

0

3

MTD 984-0022

Crank Chute

$99.99

$

In Stock, only 2 left!

0

4

MTD 684-0032A

Panel Handle w/Tilt

Note: NLA

Variations

MTD 684-0032A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0032A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0032A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0032A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0032A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0032A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

MTD 684-0036A

Handle, Engagement - R.H.

$44.99

$

Usually ships in 3-6 days

0

6

MTD 684-0037B

Handle, Engagement - L.H.

$38.99

$

In Stock, only 2 left!

0

8

MTD 710-0262

Bolt - Carriage

$3.99

$

In Stock, Qty 10

0

9

MTD 710-0451

Bolt - Carriage

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-04669

Screw

$3.49

$

In Stock, Qty 20+

0

12

MTD 711-0653

Pin, Clevis

$3.99

$

Usually ships in 3-6 days

0

13

MTD 912-0116

Nut, Hex Lock
(Superseded to 712-0116)

$

$

Not available

14

MTD 912-0267

Nut, Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 912-3009

Nut, Hex Lock
(Superseded to 712-3009)

$

$

Not available

16

MTD 914-0507

Pin, Cotter

$4.49

$

In Stock, Qty 17

0

17

MTD 915-0138

Roll Pin

$4.99

$

Usually ships in 3-6 days

0

18

MTD 720-0201A

Knob, Chute Crank

$10.99

$

In Stock, only 3 left!

0

19

MTD 920-0232

Knob, Shift

$10.99

$

In Stock, Qty 10

0

20

MTD 925-1658

Lamp, Halogen

$60.99

$

In Stock, only 4 left!

0

21

MTD 925-1672

Housing, Lamp, Lens

$89.99

$

Usually ships in 3-6 days

0

22

MTD 926-0100

Cap, Push
(Superseded to 726-0100)

$

$

Not available

23

MTD 747-1136

Clip, Retaining

$11.99

$

Usually ships in 3-6 days

0

24

MTD 731-1300E

Lower Chute

$56.99

$

In Stock, Qty 8

0

25

MTD 731-1313C

Cable Guide

$11.99

$

In Stock, Qty 20+

0

26

MTD 731-04427A

Chute, Upper
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 8

0

27

MTD 731-1578

Panel Handle

Note: NLA

$

$

Not available

28

MTD 732-0145

Spring

$4.49

$

Usually ships in 3-6 days

0

29

MTD 732-0193

Spring

$4.99

$

In Stock, Qty 5

0

30

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

31

MTD 732-0746

Spring

$4.49

$

In Stock, Qty 13

0

32

MTD 935-0199A

Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 1 left!

0

33

MTD 736-0105

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

34

MTD 936-0119

Washer - Lock

$4.99

$

In Stock, Qty 20+

0

35

MTD 936-0231

Washer
(Superseded to 736-0231)

$

$

Not available

36

MTD 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0506A

Washer

$

$

Not available

38

MTD 736-0509

Washer

$6.99

$

In Stock, only 1 left!

0

39

MTD 737-0300A

Grease

$34.99

$

In Stock, Qty 20+

0

40

MTD 941-0475

Bushing, Plastic

$4.49

$

In Stock, Qty 20+

0

41

MTD 946-0896

Cable, Chute Control

$56.99

$

In Stock, only 1 left!

0

42

MTD 946-0901

Cable, Chute Deflector

$64.99

$

Usually ships in 3-6 days

0

43

MTD 747-0798A

Rod, Shift

$38.99

$

Usually ships in 3-6 days

0

44

MTD 747-0877

Rod, Cam

$22.99

$

Usually ships in 3-6 days

0

45

MTD 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

46

MTD 948-0363

Pawl Handle Lock

$16.99

$

Usually ships in 3-6 days

0

47

MTD 749-0908A-0637

Handle - R.H.

$

$

Not available

48

MTD 749-0909-0637

Handle - L.H.

$

$

Not available

49

MTD 784-5594

Bracket - Cable

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

50

MTD 784-5604A-0637

Handle - Shift Chute

$25.99

$

Usually ships in 3-6 days

0

51

MTD 753-05395

Handle - Shift

$

$

Not available

52

MTD 784-5679-0637

Bracket, Handle Support - L.H.

$8.99

$

Usually ships in 3-6 days

0

53

MTD 784-5680-0637

Bracket, Handle Support - R.H.

$12.99

$

Usually ships in 3-6 days

0

54

MTD 784-5681

Bracket, Handle Support - L.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

55

MTD 784-5682-0637

Bracket, Handle Support - R.H.

$28.99

$

Usually ships in 3-6 days

0

56

MTD 731-0851A

Chute Flange Keepers

$4.49

$

In Stock, Qty 20+

0

57

MTD 912-3027

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

58

MTD 710-3015

Hex Bolt 1/4-20 x 3/4" Lg.

$3.99

$

In Stock, Qty 20+

0

59

MTD 710-1250

Carr. Bolt 5/16-18 x 1.5" Lg.

$4.99

$

In Stock, only 3 left!

0

60

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

61

MTD 984-5599

Handle Tab

$4.49

$

In Stock, Qty 18

0

62

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

63

MTD 710-0538

Hex Bolt 5/16-18 x 5/8" Lg.

$4.49

$

In Stock, Qty 7

0

64

MTD 911-0677

Ferrule

$17.99

$

In Stock, only 4 left!

0

65

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

66

MTD 936-0271

Spr. Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 10

0

67

MTD 936-0264

Fl-Wash. 5/16" I.D.

$6.99

$

In Stock, only 2 left!

0

68

MTD 784-5678

Upper Chute Crank Brkt.

Note: NLA

Variations

MTD 784-5678-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

69

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

70

MTD 936-0140

Fl-Wash. 3/8" I.D.
(Superseded to 736-0140)

$

$

Not available

71

MTD 914-0507

Cotter Pin

$4.49

$

In Stock, Qty 17

0
