SB-850 (315E646F190) - White Outdoor Snow Boss Snow Thrower (1995) Snow Throwers Illustration (Part 2) Parts Diagram

Snow Boss Snow Thrower

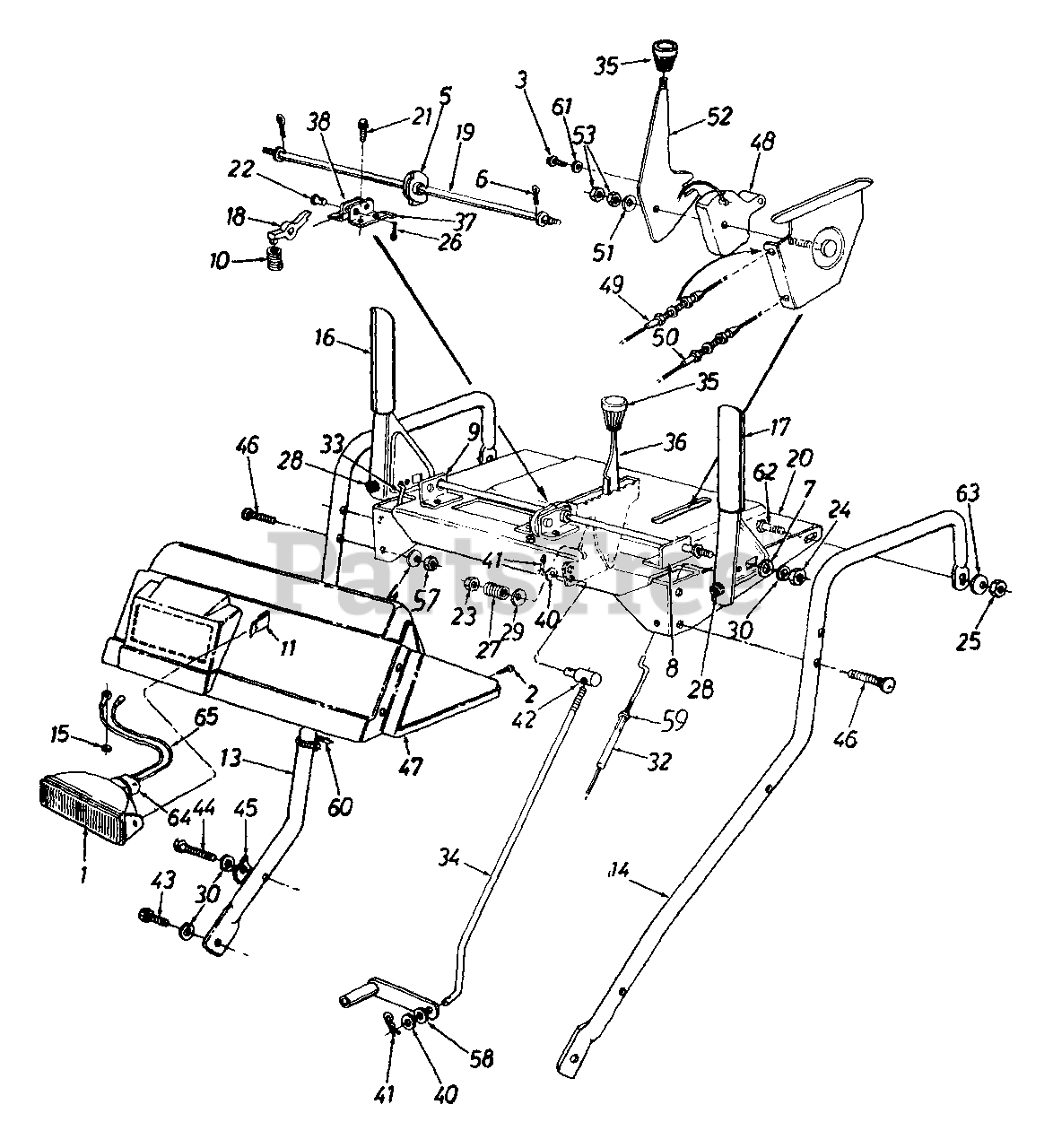

Snow Throwers Illustration (Part 2) Parts Diagram

  • Title

1

MTD 925-1672

Lamp Housing w/Lens

Note: For models 646F and 666H Only

$89.99

$

Usually ships in 3-6 days

0

2

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5

$4.49

$

Usually ships in 3-6 days

0

3

MTD 710-0896

Hex AB-Tap Scr. 1/4 x .62" Lg.

Note: For models 646F and 666H Only

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0242

Bell - Wash. .325" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

5

MTD 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

6

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 17

0

7

MTD 736-0509

Washer (Special) .72" O.D.

$6.99

$

In Stock, only 1 left!

0

8

MTD 784-5681

Handle Support Brkt. - L.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

9

MTD 784-5682-0637

Handle Support Brkt. - R.H.

$28.99

$

Usually ships in 3-6 days

0

10

MTD 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

11

MTD 747-1136

Retaining Clip

Note: For models 646F and 666H Only

$11.99

$

Usually ships in 3-6 days

0

13

MTD 749-0908A-0637

Handle - R.H.

$

$

Not available

14

MTD 749-0909-0637

Handle - L.H.

$

$

Not available

15

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.t

Note: For models 646F and 666H Only

$4.49

$

In Stock, Qty 19

0

16

MTD 684-0036A

Engagement Handle - R.H.

$44.99

$

Usually ships in 3-6 days

0

17

MTD 684-0037B

Engagement Handle - L.H.

$38.99

$

In Stock, only 2 left!

0

18

MTD 948-0363

Pawl Handle Lock

$16.99

$

Usually ships in 3-6 days

0

19

MTD 747-0877

Rod Cam

$22.99

$

Usually ships in 3-6 days

0

20

MTD 684-0032A

Handle Panel Support

Note: NLA

Variations

MTD 684-0032A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0032A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0032A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0032A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0032A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0032A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

MTD 684-0033A

Handle Panel Support

Note: NLA

Variations

MTD 684-0033A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0033A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0033A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0033A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0033A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 684-0033A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0033A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 711-0946

Clevis Pin .437" Dia. x .65" Lg.

Note: NLA

$

$

Not available

23

MTD 912-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

24

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

26

MTD 914-0111

Cotter Pin 3/32" Dia. x 1" Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

27

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

28

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

29

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

31

MTD 936-0175

Spring Wash. .265" I.D.

$3.99

$

In Stock, only 3 left!

0

32

MTD 946-0897

Auger Clutch Cable

$24.99

$

In Stock, Qty 20+

0

33

MTD 946-0898

Drive Clutch Cable

$27.99

$

In Stock, Qty 19

0

34

MTD 747-0798A

Shift Rod

$38.99

$

Usually ships in 3-6 days

0

35

MTD 920-0232

Shift Knob

$10.99

$

In Stock, Qty 10

0

36

MTD 784-0297

Shift Handle

Note: NLA

$

$

Not available

37

MTD 784-5679-0637

Handle Brkt. - L.H.

$8.99

$

Usually ships in 3-6 days

0

38

MTD 784-5680-0637

Handle Brkt. - R.H.

$12.99

$

Usually ships in 3-6 days

0

40

MTD 936-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

41

MTD 914-0104

Internal Cotter Pin 5/16" Dia
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

42

MTD 911-0677

Ferrule

$17.99

$

In Stock, only 4 left!

0

43

MTD 710-0538

Hex Bolt 5/16-18 x .62" Lg. (Special)

$4.49

$

In Stock, Qty 7

0

44

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg (Gr 5)

$5.49

$

In Stock, Qty 20+

0

45

MTD 984-5599

Handle Tab

$4.49

$

In Stock, Qty 18

0

46

MTD 710-1250

Curved Carr. Bolt 5/16-18 x 1.5" Lg.

$4.99

$

In Stock, only 3 left!

0

47

MTD 731-1334

Handle Panel

Note: NLA

$

$

Not available

47

MTD 731-1347

Handle Panel

Note: NLA

$

$

Not available

48

MTD 731-1313C

Cable Guide

Note: For models 646F and 666H Only

$11.99

$

In Stock, Qty 20+

0

49

MTD 946-0896

Chute Control Cable

Note: For models 646F and 666H Only

$56.99

$

In Stock, only 1 left!

0

50

MTD 946-0901

Chute Control Cable w/Clip

Note: For models 646F and 666H Only

$64.99

$

Usually ships in 3-6 days

0

51

MTD 936-0425

Bell-Wash. .325" I.D. x .93" O.D.
(Superseded to 736-0425)

Note: For models 646F and 666H Only

$

$

Not available

52

MTD 784-5604A-0637

Chute Tilt Handle

Note: For models 646F and 666H Only

$25.99

$

Usually ships in 3-6 days

0

53

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

Note: For models 646F and 666H Only

$3.49

$

In Stock, Qty 18

0

57

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 936-0271

Spr. Wash. .32" I.D. x .62" O.D.

$4.49

$

In Stock, Qty 10

0

59

MTD 912-0121

Hex Nut #10-24 Thd.
(Superseded to 712-0121)

Note: Included w/Ref 32 & 33

$4.49

$

In Stock, Qty 20+

0

60

MTD 725-0157

Cable Tie

Note: For models 646F and 666H Only

$3.99

$

In Stock, Qty 20+

0

61

MTD 736-0506A

Washer (Special) 1.25" O.D.

Note: For models 646F and 666H Only

$

$

Not available

62

MTD 710-3015

Hex Bolt 1/4-20 x .85" Lg.

$3.99

$

In Stock, Qty 20+

0

63

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

64

MTD 925-1658

Bulb

$60.99

$

In Stock, only 4 left!

0

65

MTD 929-0059

Wire Harness

$100.99

$

Usually ships in 3-6 days

0

MTD 777-0932

Right Control Panel

Note: NLA

$

$

Currently unavailable

MTD 777-0934

Left Control Panel w/o Chute

Note: NLA

$

$

Currently unavailable

MTD 777-8160

Axle Pin Label

Note: NLA

$

$

Not available

MTD 777-2377

Snow Boss 500

Note: NLA

$

$

Currently unavailable

MTD 777-2393

Handle Panel w/o Lights

Note: NLA

$

$

Currently unavailable

MTD 777-0873

Handle Panel Center

Note: NLA

$

$

Currently unavailable

MTD 777-0932

Right Control Panel

Note: NLA

$

$

Currently unavailable

MTD 777-0933

Left Control Panel

Note: NLA

$

$

Currently unavailable

MTD 777-2379

Snow Boss 850

Note: NLA

$

$

Currently unavailable

MTD 777-2382

Handle Panel with Lights

Note: NLA

$

$

Currently unavailable

MTD 777-2436

8 HP Snow Thrower Engine

Note: NLA

$

$

Currently unavailable

MTD 777-0873

Handle Panel Center

Note: NLA

$

$

Currently unavailable

MTD 777-0932

Right Control Panel

Note: NLA

$

$

Currently unavailable

MTD 777-0933

Left Control Panel

Note: NLA

$

$

Currently unavailable

MTD 777-2381

Snow Boss 1050

Note: NLA

$

$

Currently unavailable

MTD 777-2382

Handle Panel with Lights

Note: NLA

$

$

Currently unavailable

MTD 777-2438

10 HP Snow Thrower Engine

Note: NLA

$

$

Currently unavailable

MTD 777-0783

Warning

$

$

Not available

MTD 777-2361

Auger

Note: NLA

$

$

Currently unavailable

MTD 777-8088B

Top of Chute

Note: NLA

$

$

Not available
