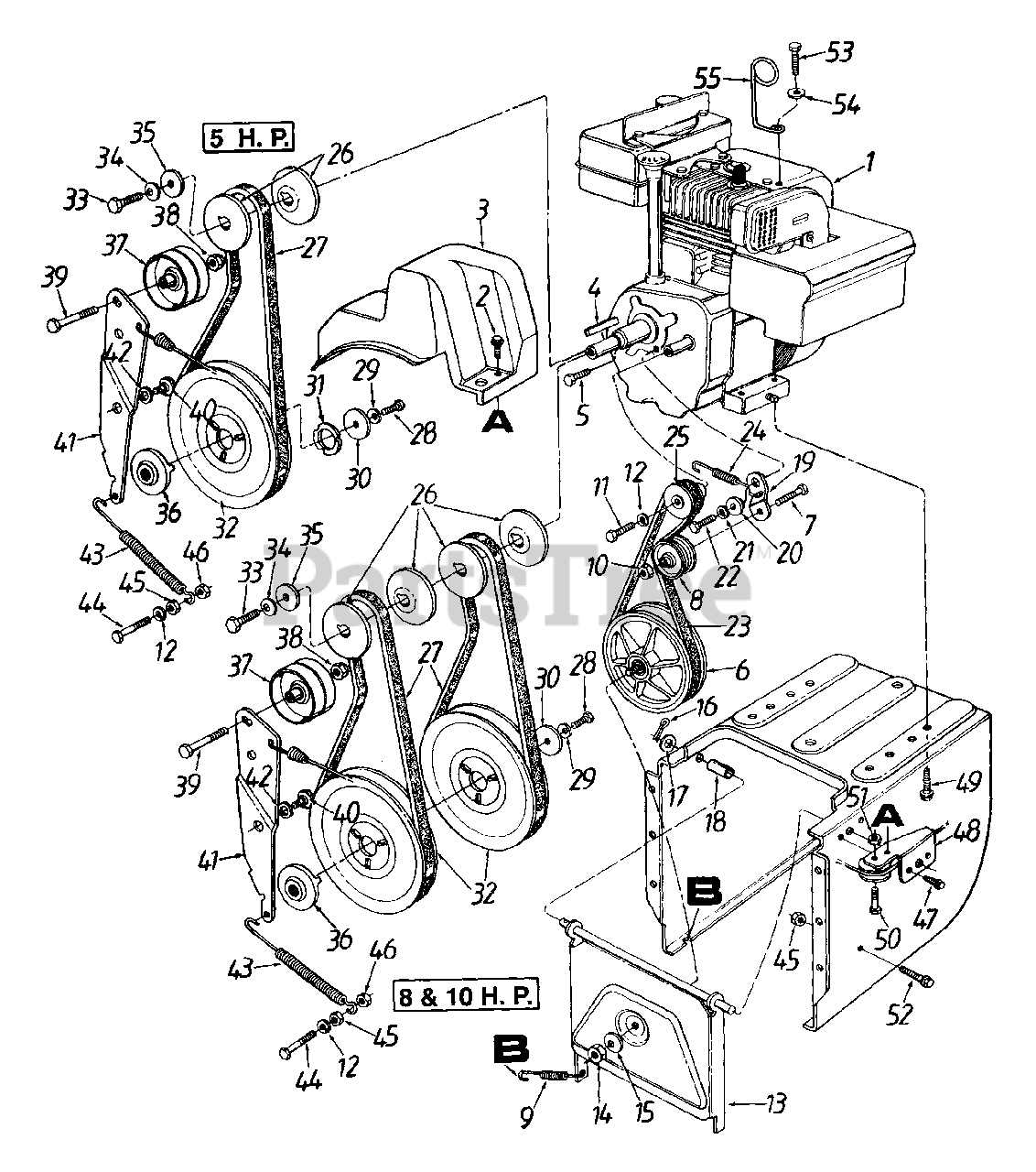

SB-850 (314-646F190) - White Outdoor Snow Boss Snow Thrower (1994) Snow Throwers (Part 3) Parts Diagram

Snow Boss Snow Thrower

Snow Throwers (Part 3) Parts Diagram

  • Title

1

Engine

$

$

Not available

2

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 731-1324

Belt Cover

$21.99

$

Usually ships in 3-6 days

0

4

White Outdoor 714-0133

Sq.-Key 3/16 x 1.5" Lg.

Note: 646F & 666G

$4.99

$

In Stock, Qty 12

0

White Outdoor 714-0122

Sq.-Key 3/16 x .75" Lg.

Note: 616E

$3.99

$

In Stock, Qty 15

0

5

White Outdoor 710-3166

Hex Patch Bolt 5/16-24 x 1" Lg. (Gr. 5)
(Superseded to 710-0627)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 656-0009

Friction Wheel Disc Ass'y.
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 9

0

7

White Outdoor 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

8

White Outdoor 756-0313

Fl-Idler 2.12" O.D.

$26.99

$

In Stock, Qty 6

0

9

White Outdoor 732-0264

Ext. Spring 2.5" Lg.
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

11

White Outdoor 710-0230

Hex Bolt 1/4-28 x .5" Lg.

$

$

Not available

12

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

White Outdoor 684-0021

Friction Wheel Support Brkt. Ass'y.
(Superseded to 984-0021-0637)

Variations

White Outdoor 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

14

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 736-0105

Bell-Wash..38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 714-0474

Cotter Pin 1/8" x .75" Lg.

$4.99

$

In Stock, Qty 14

0

17

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

18

White Outdoor 748-0190

Spacer .508" I.D. x .75" O.D.

$6.49

$

In Stock, only 1 left!

0

19

White Outdoor 05896

Drive Clutch Idler Bracket

$

$

Not available

20

White Outdoor 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

21

UNKNOWN

$

$

Not available

22

White Outdoor 710-0117

Hex Bolt 5/16-24 x 1" Lg.
(Superseded to 710-0888)

Note: 616E

$4.49

$

In Stock, Qty 5

0

White Outdoor 710-0604

Hex Wash. Hd. Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

Note: 646F & 666G

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 754-0343

"V"-Belt
(Superseded to 954-0343)

Note: 616E

$29.99

$

In Stock, only 4 left!

0

White Outdoor 754-0346

"V"-Belt
(Superseded to 954-0346)

Note: 646F & 666G

$28.99

$

In Stock, Qty 6

0

24

White Outdoor 732-0339

Extension Spring
(Superseded to 932-0339)

Note: 616E

$

$

Not available

White Outdoor 732-0710

Extension Spring
(Superseded to 932-0710)

Note: 646F & 666G

$7.49

$

In Stock, Qty 8

0

25

White Outdoor 756-0959

2" Dia. Pulley
(Superseded to 956-0959)

$

$

Not available

26

White Outdoor 756-0569

3/8 "V"-Pulley Half

$10.99

$

Usually ships in 3-6 days

0

27

White Outdoor 754-0431

"V"-Belt
(Superseded to 954-0430C)

Note: 616E

$28.99

$

In Stock, Qty 20+

0

White Outdoor 754-0430

"V"-Belt
(Superseded to 954-0430C)

Note: 646F & 666G

$28.99

$

In Stock, Qty 20+

0

28

White Outdoor 710-0627

Hex Cap L-Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0505

Fl-Wash. .34" I.D. x 1.5" O.D.

$6.49

$

In Stock, only 2 left!

0

31

White Outdoor 736-0507

Brg. Retaining Washer
(Superseded to 936-0507)

Note: 616E Only

$6.99

$

Usually ships in 3-6 days

0

32

White Outdoor 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

33

White Outdoor 710-0696

Hex Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

34

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 16

0

35

White Outdoor 736-0247

Fl-Wash. .406" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 15

0

36

White Outdoor 748-0360

Adapter Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 2 left!

0

37

White Outdoor 756-0178

Fl-Idler 2.75" O.D.

$20.99

$

In Stock, only 4 left!

0

38

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

39

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

40

White Outdoor 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, only 1 left!

0

41

White Outdoor 784-5632

Auger Idler Brkt.
(Superseded to 984-0064-0637)

Variations

White Outdoor 784-5632-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

42

White Outdoor 736-0174

Wave Wash. .66" I.D. x .88"

$6.99

$

In Stock, only 2 left!

0

43

White Outdoor 732-0611

Ext. Spring 3.6" Lg.
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

44

White Outdoor 710-0812

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$

$

Not available

45

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

46

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

47

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

48

White Outdoor 784-5658

Front Support Brkt. Guide
(Superseded to 784-5658-0637)

Variations

White Outdoor 784-5658-0637

Support Bracket, FR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5658-0638

Support Bracket, FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

49

White Outdoor 710-0502

Hex
(Superseded to 710-0502A)

Note: L-Wash. TT-Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

50

White Outdoor 738-0870

Shld. Bolt 5/16" Dia. x .35" Lg.

$

$

Not available

?51

White Outdoor 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

52

White Outdoor 710-0788

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg.

$7.49

$

In Stock, only 4 left!

0

53

White Outdoor 710-0602

Hex Wash. Hd. Tap Scr. 5/16-18 x 1" Lg.

Note: 646F & 666G

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 736-0159

Fl-Wash. .349" I.D. x .879" O.D.

Note: 646F & 666G

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 732-0705

Cable Control Wire

Note: 646F

$11.99

$

Usually ships in 3-6 days

0
