SB-850 (313-646F190) - White Outdoor Snow Boss Snow Thrower (1993) Friction Wheel And Wheel Assemblies Parts Diagram

Snow Boss Snow Thrower

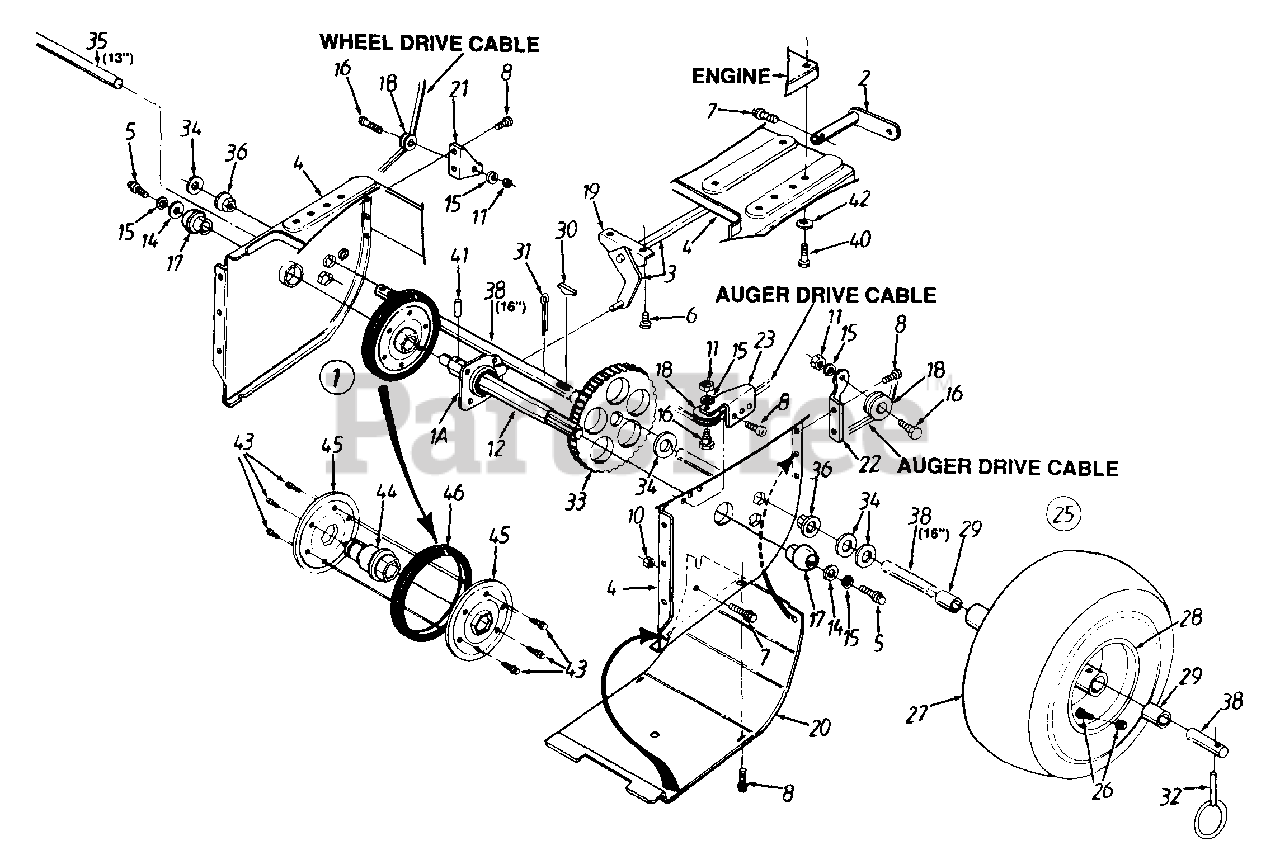

Friction Wheel And Wheel Assemblies Parts Diagram

  • Title

1

White Outdoor 684-0042

Friction Wheel Ass'y. Comp.
(Superseded to 984-0042C)

Note: Code: N Notates a new part (not previously existing)

$138.99

$

In Stock, Qty 17

0

1A

White Outdoor 618-0063

Friction Wheel Brg. Ass'y.

$92.99

$

Usually ships in 3-6 days

0

2

White Outdoor 684-0008

Shift Arm Ass'y.
(Superseded to 684-0008A-0637)

Variations

White Outdoor 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0008-0638

Shift Arm Assembly - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

3

White Outdoor 684-0013

Shift Rod Ass'y.

$

$

Not available

4

White Outdoor 684-0030

Frame Ass'y.

Variations

White Outdoor 684-0030-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 684-0030-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 684-0030-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0030-0662

Frame Ass'y., 600 S/T - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0030-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0653

Hex Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0

7

White Outdoor 710-0788

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg.

$7.49

$

In Stock, only 2 left!

0

8

White Outdoor 710-1017

Torx Mach, AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

10

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

11

White Outdoor 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

12

White Outdoor 717-1415

Gear Shaft

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

14

White Outdoor 736-0176

Fl-Wash. .265" I.D. x .938" O.D.

$4.99

$

In Stock, only 4 left!

0

15

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

White Outdoor 738-0870

Shld. Bolt 5/16 Dia. x .35" Lg.

$

$

Not available

17

White Outdoor 741-0563

Ball Brg. w/Snap Ring
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

18

White Outdoor 756-0625

Cable Roller Guide

$9.49

$

In Stock, Qty 14

0

19

White Outdoor 784-5590

Shift Bracket - Frame

Variations

White Outdoor 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

20

White Outdoor 784-5638

Frame Cover
(Superseded to 784-5638A)

Variations

White Outdoor 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

$

Not available

White Outdoor 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

White Outdoor 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

21

White Outdoor 784-5644

Drive Cable Guide Brkt.

Variations

White Outdoor 784-5644-0637

No Longer Available BRACKET-DRIVE CABL - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 784-5646

Auger Cable Guide Brkt.

Variations

White Outdoor 784-5646-0637

No Longer Available BRACKET-AUGER CABL - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 784-5658

Front Support Brkt. Guide
(Superseded to 784-5658-0637)

Variations

White Outdoor 784-5658-0637

Support Bracket, FR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5658-0638

Support Bracket, FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

25

White Outdoor 734-1714

Wheel Ass'y. Comp.

Note: (616E)

Variations

White Outdoor 734-1714-0911

WHL ASM 13X5 - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-1714-0915

WHL ASM 13X5 - Duro Gray (0915)

$

$

Not available

White Outdoor 734-1714-0931

WHL ASM 13X5 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1714-0985

No Longer Available WHEEL ASSY COMP 13 - Duro Green (0985)

$

$

Not available

$

$

White Outdoor 734-1709

Wheel Ass'y. Comp.

Note: (646F)

Variations

White Outdoor 734-1709-0911

WHL ASM 16X4.8 - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-1709-0931

WHL ASM 16X4.8 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1709-0915

No Longer Available WHEEL - Duro Gray (0915)

$

$

Not available

White Outdoor 734-1709-0935

WHL ASM 16X4.8 - Duro Beige (0935)

$

$

Not available

White Outdoor 734-1709-0941

WHL ASM 16X4.8 - Carlisle Yellow (0941)

$

$

Not available

$

$

26

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 734-1527

Tire Only

Note: (616E)

Variations

White Outdoor 734-1527-0901

SNOW HOG TIRE 13 X 5 - Carlisle (0901)

$

$

Not available

White Outdoor 734-1527-0905

DURO SNOW HOG TIRE 13 X 5 - Duro (0905)

$

$

Not available

$

$

White Outdoor 734-1530

Tire Only

Note: (646F)

Variations

White Outdoor 734-1530-0901

SNOW HOG TIRE 4.80 - Carlisle (0901)

$168.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$168.99

$

Usually ships in 3-6 days

0

$137.99

$

Usually ships in 3-6 days

0

28

White Outdoor 734-1713

Rim Only

Note: (616E)

Variations

White Outdoor 734-1713-0662

WHEEL RIM 6.0 X 3. - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 734-1713-0499

No Longer Available WHEEL RIM 6.0 X 3. - CUB BEIGE (0499)

$

$

Not available

White Outdoor 734-1713-0674

WHEEL RIM 6.0 - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 734-1713-0688

No Longer Available WHEEL RIM 6.0 X 3. - SPRING GREEN (0688)

$

$

Not available

$

$

White Outdoor 734-1708

Rim Only

Note: (646F)

Variations

White Outdoor 734-1708-0499

WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

White Outdoor 734-1708-0629

WHEEL-RIM - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 734-1708-0662

WHEEL-RIM - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 734-1708-0674

WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

29

White Outdoor 741-0401

Sleeve Bearing .752" I.D.
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 12

0

30

White Outdoor 714-0126

#9 Hi-Pro Key 3/16" x 3/4" Dia.

$4.99

$

In Stock, Qty 16

0

31

White Outdoor 714-0162

Cotter Pin 5/32" x 1-1/4" Lg.

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 714-0143

Klik Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

33

White Outdoor 717-1414

79 Tooth Gear

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

34

White Outdoor 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 738-0869

Wheel Axle

Note: (616E)

$139.99

$

Usually ships in 3-6 days

0

36

White Outdoor 741-0598

Hex Flange Brg. .752" I.D.
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

38

White Outdoor 738-0830

Wheel Axle

Note: (646F)

$

$

Not available

40

White Outdoor 710-0502

Hex Bolt 3/8-16 x 1.25"
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

41

White Outdoor 715-0249

Spr. Roll Pin 1.12" Lg.
(Superseded to 915-0249)

$6.99

$

In Stock, Qty 20+

0

42

White Outdoor 736-3052

Fl-Wash. .406" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 718-0240

Friction Wheel Hub

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

45

White Outdoor 784-5677

Friction Plate

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

46

White Outdoor 735-0243

Friction Wheel Rubber
(Superseded to 935-0243B)

Note: Code: N Notates a new part (not previously existing)

$15.99

$

In Stock, Qty 20+

0
