SB-826 (31AE6C0F382) - White Outdoor Snow Boss Snow Thrower (1999) Frame Assembly Parts Diagram

Snow Boss Snow Thrower

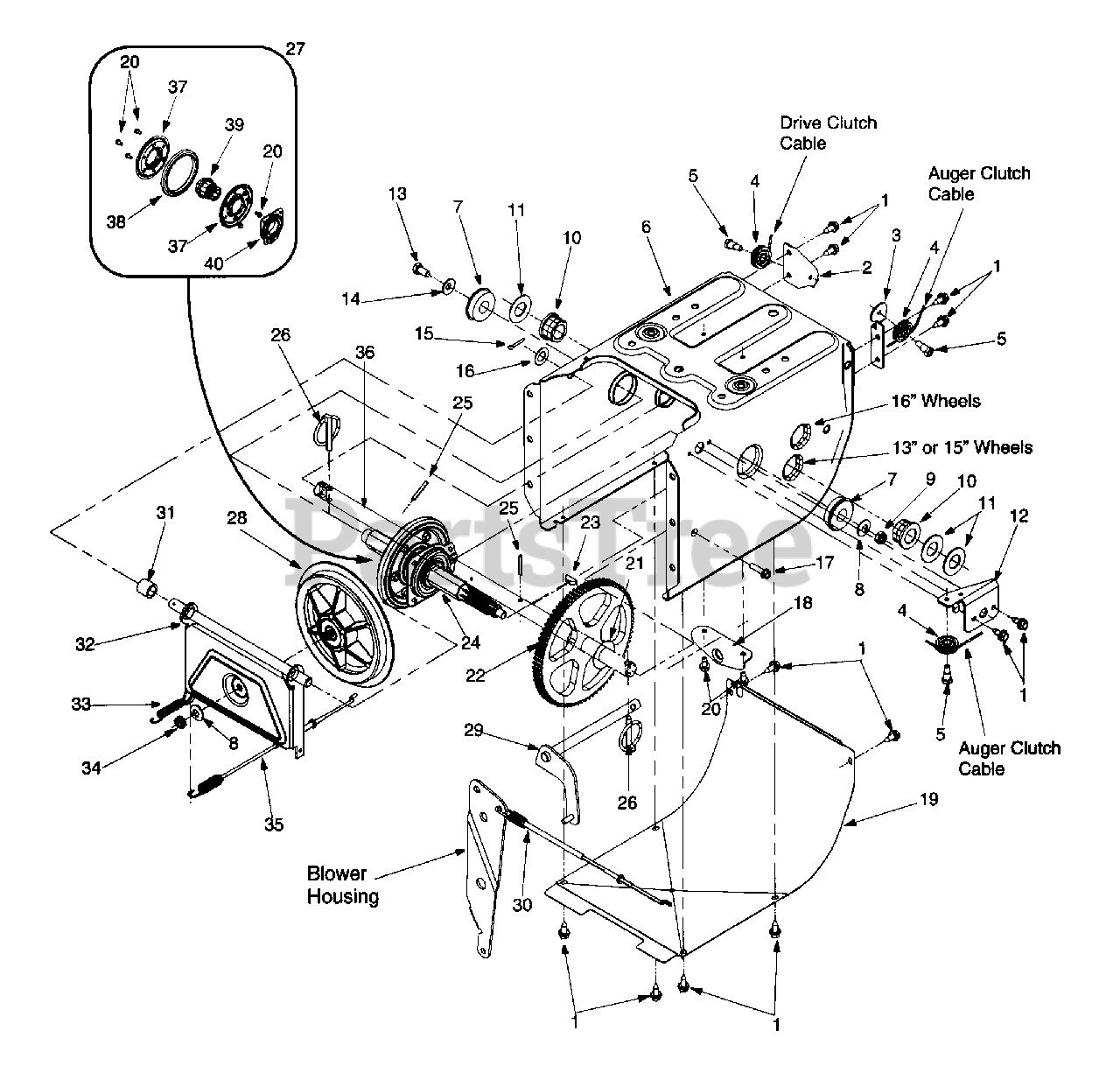

Frame Assembly Parts Diagram

  • Title

1

MTD 710-1652

Hex Screw

$4.49

$

In Stock, Qty 20+

0

2

MTD 784-5688-0637

Drive Cable Guide Bracket

$

$

Not available

3

MTD 784-5687A-0637

Auger Clutch Cable Bracket

$

$

Not available

4

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 16

0

5

MTD 738-0924A

Hex Screw 1/4-28

$6.99

$

In Stock, Qty 5

0

6

MTD 684-0030

Frame Assembly

Note: NLA

Variations

MTD 684-0030-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0030-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0030-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0030-0662

Frame Ass'y., 600 S/T - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0030-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

7

MTD 941-0563

Ball Bearing

$36.99

$

In Stock, Qty 11

0

8

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

9

MTD 912-0116

Lock Jam Nut
(Superseded to 712-0116)

$

$

Not available

10

MTD 941-0598

Hex Flange Bearing

$12.99

$

In Stock, Qty 20+

0

11

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

12

MTD 784-5689A-0637

Front Support Guide Bracket

$

$

Not available

13

MTD 710-0538

Lock Hex Screw

$4.49

$

In Stock, Qty 9

0

14

MTD 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

15

MTD 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

16

MTD 936-0160

Flat Washer .536 ID x .930 OD

$4.49

$

In Stock, Qty 9

0

17

MTD 710-0788

Hex Washer Screw 1/4-20

$7.49

$

In Stock, only 4 left!

0

18

MTD 784-5590

Frame Shift Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

19

MTD 784-5638

Frame Cover
(Superseded to 784-5638A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5638-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

$

Not available

MTD 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

MTD 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

MTD 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

MTD 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

MTD 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 784-5638-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

$

$

20

MTD 710-0599

Hex Washer Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

21

MTD 936-0351

Flat Washer .760 ID x .50 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

22

MTD 717-1445

Gear

$107.99

$

Usually ships in 3-6 days

0

23

MTD 914-0126

Key
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 18

0

24

MTD 917-04094

7-Tooth Shaft

$96.99

$

In Stock, only 2 left!

0

25

MTD 915-0249

Roll Pin

$6.99

$

In Stock, only 2 left!

0

26

MTD 714-0143A

Klik Pin

$6.49

$

In Stock, Qty 7

0

27

MTD 984-0042C

Friction Wheel Assembly

$138.99

$

Usually ships in 3-6 days

0

28

MTD 956-0012A

Friction Disc Wheel

$125.99

$

In Stock, Qty 9

0

29

MTD 684-04243

Wheel Shift Rod Assembly

$

$

Not available

30

MTD 946-0897

Drive Cable

$24.99

$

In Stock, Qty 20+

0

31

MTD 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

32

MTD 984-0021-0637

Friction Wheel Bracket Assembly

$

$

Not available

33

MTD 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

34

MTD 712-0711

Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

35

MTD 946-0898

Drive Cable

$27.99

$

In Stock, Qty 20+

0

36

MTD 738-0869

Axle 13" Wheels

Note: For model 524

$139.99

$

Usually ships in 3-6 days

0

36

MTD 738-0830

Axle 16" Wheels

Note: For model 826

$

$

Not available

37

MTD 984-0042C

Friction Plate

$138.99

$

Usually ships in 3-6 days

0

38

MTD 935-0243B

Friction Wheel Rubber

$15.99

$

In Stock, Qty 20+

0

39

MTD 984-0042C

Friction Wheel Hub

$138.99

$

Usually ships in 3-6 days

0

40

MTD 618-0063

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

0
