SB-810 (318-840-190) - White Outdoor Snow Boss Snow Thrower (1988) Handle Assembly Parts Diagram

Snow Boss Snow Thrower

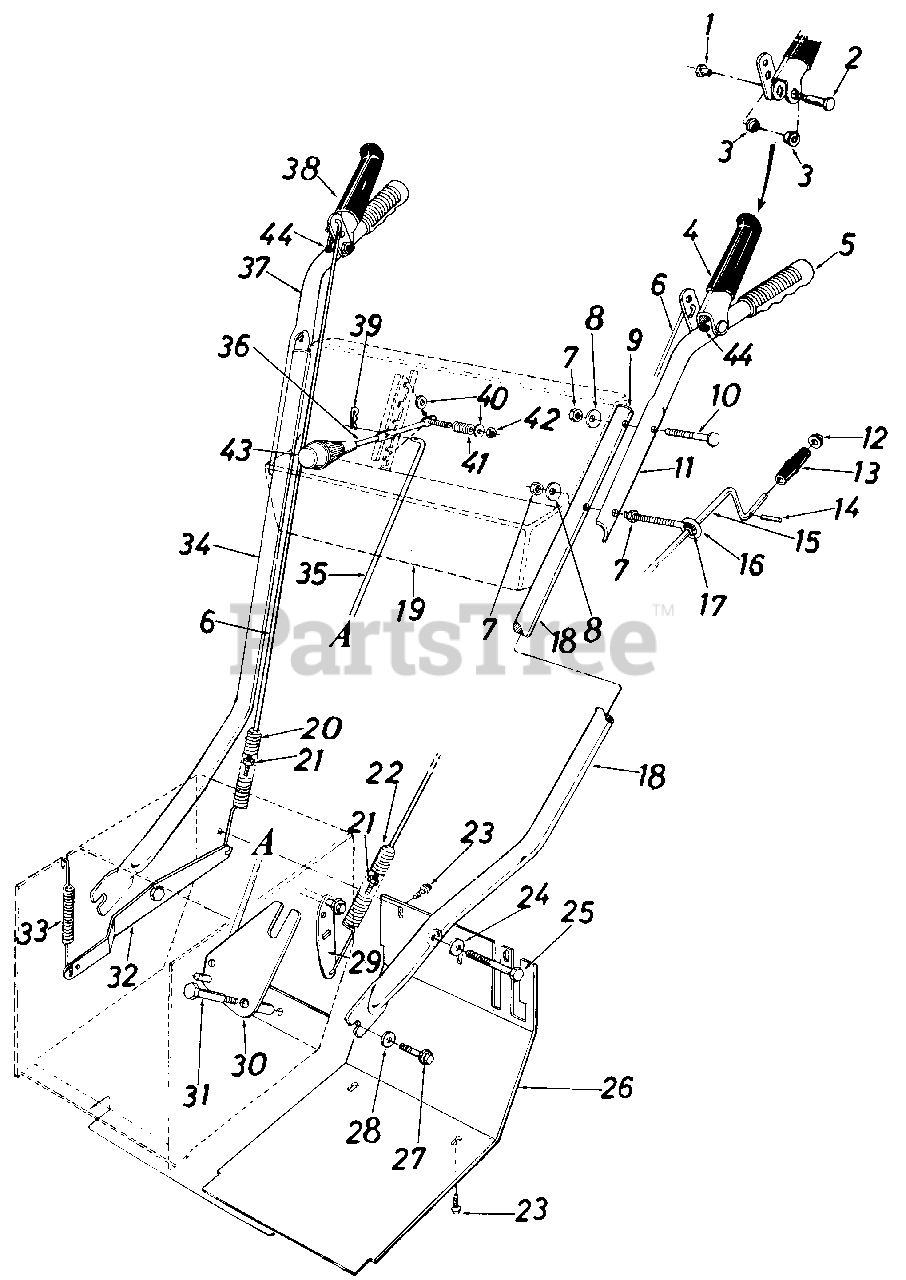

Handle Assembly Parts Diagram

  • Title

1

MTD 938-0561

Shld. Nut 1/4-20 Thd.

$9.49

$

Usually ships in 3-6 days

0

2

MTD 938-0560

Shld. Bolt .374 Dia. x 1.53"-Lg.

$10.99

$

In Stock, only 1 left!

0

3

MTD 941-0402

Hex Flange Plastic Bearing .38" I.D.

$

$

Not available

4

MTD 05987

Clutch Grip Ass'y.-L.H.

Note: NLA

$

$

Currently unavailable

5

MTD 720-0220

Grip

Note: NLA

$

$

Not available

6

MTD 747-0461

Lockout Rod

Note: NLA

$

$

Not available

7

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

9

MTD 731-0496

Plastic Plug

Note: NLA

$

$

Not available

10

MTD 710-0487

Curved Carriage Bolt 5/16-18 x 2.0" Lg.

$7.49

$

Usually ships in 3-6 days

0

11

MTD 749-0593

Upper Handle-L.H.

Note: NLA

$

$

Not available

12

MTD 926-0100

Push Nut 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

13

MTD 720-0201A

Knob 3/8" Rod

$10.99

$

In Stock, Qty 5

0

14

MTD 915-0138

Roll Pin .12 Dia. x .631" Lg.

$4.99

$

In Stock, only 1 left!

0

15

MTD 05980

Chute Crank Ass'y.

Note: NLA

$

$

Not available

16

MTD 747-0416

Eye Bolt 5/16-18 x 5.0" Lg.

Note: NLA

$

$

Not available

17

MTD 941-0475

Plastic Bushing

$4.49

$

In Stock, Qty 20+

0

18

MTD 749-0341

Lower Handle-L.H.

Note: NLA

$

$

Currently unavailable

19

MTD 784-5451

Handle Panel Ass'y.

Note: NLA

$

$

Not available

20

MTD 732-0463A

Extension Spring .75" O.D. x 5.0" Lg

$18.99

$

Usually ships in 3-6 days

0

21

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

22

MTD 732-0184

Extension Spring .75" O.D. x 5.0" Lg.

$25.99

$

Usually ships in 3-6 days

0

23

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

24

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 710-3144

Hex Bolt 3/8-16 x 2.0" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 784-5131

Frame Cover

Note: NLA

$

$

Currently unavailable

27

MTD 710-0216

Pilot Hex Scr. 3/8-16 x .88"-Lg.

$4.49

$

In Stock, Qty 14

0

28

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

29

MTD 05500

Drive Clutch Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

30

MTD 784-5133

Shifting Linkage Brkt. Ass'y.

Note: NLA

Variations

MTD 784-5133-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 738-0129

Shld. Bolt .498 Dia. x 2.0"-Lg.

$11.99

$

In Stock, only 1 left!

0

32

MTD 05518

Auger Clutch Brkt.

Note: NLA

$

$

Not available

33

MTD 932-0303

Extension Spring .38" O.D. x 3.18" Lg.

$10.99

$

In Stock, Qty 11

0

34

MTD 749-0342

Lower Handle-R.H.

Note: NLA

$

$

Currently unavailable

35

MTD 747-0356

Shifting Rod

Note: NLA

$

$

Not available

36

MTD 747-0696

Shift Handle

Note: NLA

$

$

Not available

37

MTD 749-0594

Upper Handle-R.H.

Note: NLA

$

$

Not available

38

MTD 05988

Clutch Grip Ass'y.-R.H.

Note: NLA

$

$

Not available

39

MTD 914-0104

Int. Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

40

MTD 936-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

41

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

42

MTD 912-0429

Hex Ins. L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

43

MTD 720-0218

Knob

$19.99

$

Usually ships in 3-6 days

0

44

MTD 935-0199A

Push Cap
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0
