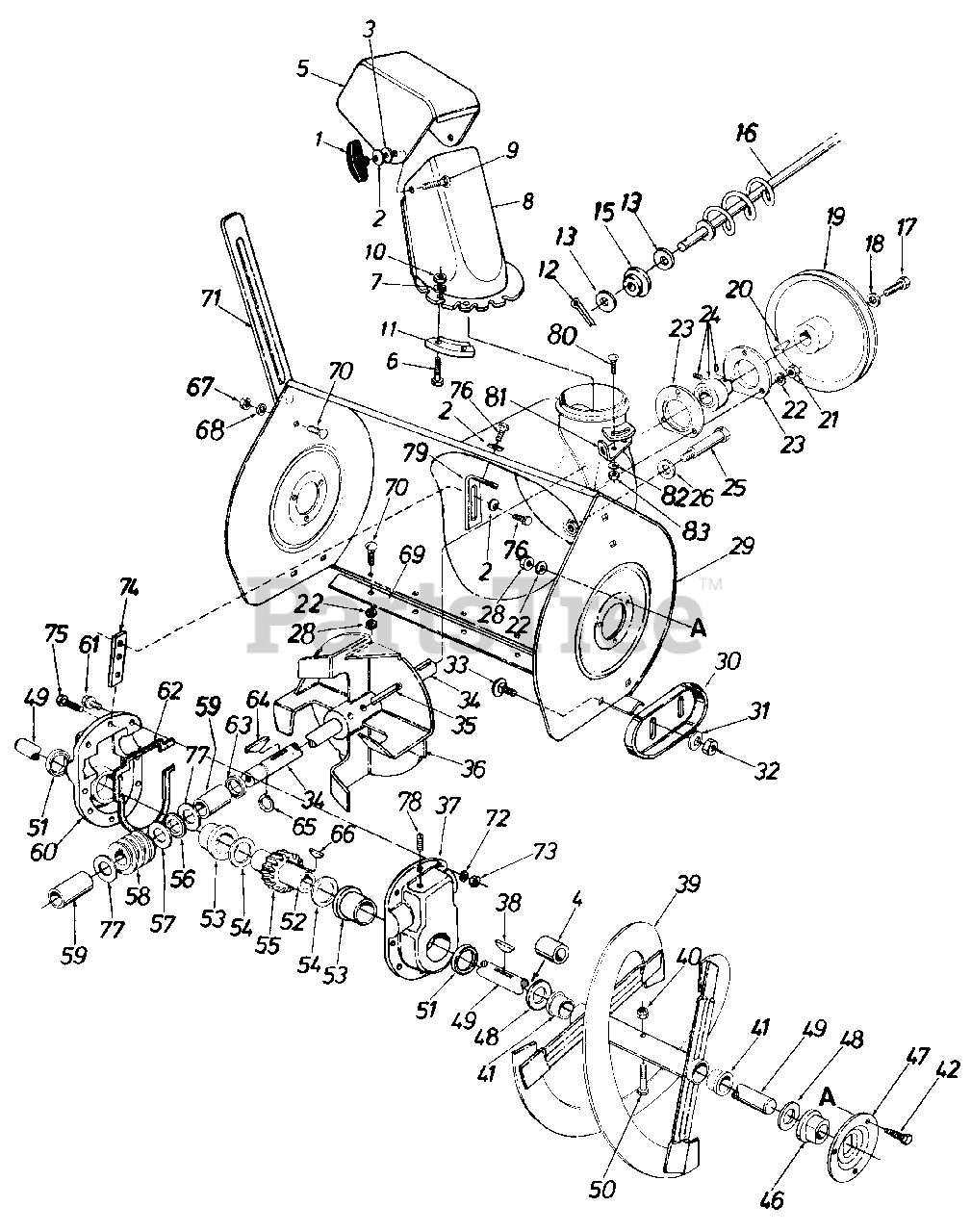

SB-810 (317-840-190) - White Outdoor Snow Boss Snow Thrower (1987) Chute Assembly Parts Diagram

Snow Boss Snow Thrower

Chute Assembly Parts Diagram

  • Title

1

White Outdoor 09966

Hand Knob Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

White Outdoor 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 736-0231

Fl. Wash. .312 I.D. x 1.125 0 O.D. x .125

$4.99

$

In Stock, Qty 20+

0

4

750-0653

Spacer

$

$

Not available

5

White Outdoor 731-0846

Top Chute (Black)
(Superseded to 731-0846C)

$52.99

$

In Stock, only 3 left!

0

6

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 X .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 736-0142

Fl-Wash 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 731-0840

Chute (Black)
(Superseded to 931-0840B)

$84.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-0276

Carr. Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0107

Hex Cent. L-Nut 1/2-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

White Outdoor 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

13

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 6

0

15

White Outdoor 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 05981

Chute Crank Ass'y.

$

$

Not available

17

White Outdoor 710-0371

Hex L-Scr. 5/16-18 x .88" Lg.
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

18

White Outdoor 736-0242

Bell-Wash. .345 I.D. x .88

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 756-0243

V-Pulley .875 I.D. x 10.12

$94.99

$

Usually ships in 3-6 days

0

20

White Outdoor 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 12

0

21

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

22

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

White Outdoor 05244

Bearing Hsg.-Self Aligning Brg.
(Superseded to 05244B)

$23.99

$

Usually ships in 3-6 days

0

24

White Outdoor 741-0185

Self Aligning Brg. .875 I.D.
(Superseded to 941-0185)

$66.99

$

In Stock, only 1 left!

0

25

White Outdoor 711-0640

Stud 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

26

White Outdoor 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

29

705-5082

Blower Hsg. Ass'y.

$

$

Not available

30

White Outdoor 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

33

White Outdoor 710-0790

Carr. Bolt 3/8-16 x .62" Lg.
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

34

White Outdoor 738-0276

Blower Axle

$102.99

$

Usually ships in 3-6 days

0

35

White Outdoor 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

36

White Outdoor 05812

Blower Fan Ass'y.

Variations

White Outdoor 05812-0637

No Longer Available FAN ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 717-0297

Complete Gear Hsg. Half L.H. (Incl. Bearing)
(Superseded to 753-0889)

$

$

Not available

38

White Outdoor 714-0135

#91 Woodruff Key 1/4" X 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

39

White Outdoor 05463

Spiral Ass'v.-L.H.

Variations

White Outdoor 05463-0637

No Longer Available SPIRAL ASSY-LH-26I - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 05464

Spiral Ass'y-R.H.

Variations

White Outdoor 05464-0637

No Longer Available SPIRAL ASSY-RH-26I - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 05136

Plastic Bushing

$

$

Not available

42

White Outdoor 710-0198

Hex Sems Scr. 5/16-18 x .75"
(Superseded to 910-0198)

$

$

Not available

46

White Outdoor 741-0192

Flange Brg. w/Flats 1.0" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

47

White Outdoor 05845

Bearing Hsg.-Spiral Hsg.
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 1 left!

0

48

White Outdoor 736-0250

Fl-Wash. 1.06 I.D. x 1.75" O.D. x .100

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 738-0493

Spiral Axle

$

$

Not available

50

White Outdoor 710-0891

Hex Bolt 5/16-18 x 1.75" Lg.

$7.49

$

In Stock, Qty 10

0

51

White Outdoor 721-0146

Oil Seal 1.50" I.D.
(Superseded to 921-0146)

$12.99

$

Usually ships in 3-6 days

0

52

White Outdoor 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

53

White Outdoor 741-0182

Flange Brg. 1.503 I.D.

$

$

Not available

54

White Outdoor 736-0266

Fl-Wash. 1.5 I.D. x 2.0 O.D.
(Superseded to 936-0266)

$

$

Not available

55

White Outdoor 717-0300

Double Threaded Worm Gear
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

56

White Outdoor 741-0184

Thrust Brg. .88 I.D. x 1.44 0 O.D. x .078

$16.99

$

Usually ships in 3-6 days

0

57

White Outdoor 736-0291

Fl-Wash. .88 I.D. x 1.40 O.D.

$11.99

$

Usually ships in 3-6 days

0

58

White Outdoor 717-0299

Double Threaded Worm- 0 L.H .
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

59

White Outdoor 741-0217

Sleeve Brg. .875 I.D.
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 7

0

60

White Outdoor 717-0298

Complete Gear Hsg. Half- 0 R.H.
(Superseded to 753-0889)

Note: (Incl. Ref. Nos. 51 & 53)

$

$

Not available

61

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 721-0144

Gasket
(Superseded to 921-0144)

$11.99

$

Usually ships in 3-6 days

0

63

White Outdoor 721-0145

Oil Seal .875" I.D.
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

64

White Outdoor 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 12

0

65

White Outdoor 716-0111

Snap Ring-.875" Dia.

$6.99

$

In Stock, only 4 left!

0

66

White Outdoor 714-0135

#91 Woodruff Key 1/4 X 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

67

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

68

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

69

White Outdoor 705-5084

Shave Plate-28"
(Superseded to 705-5084-0637)

Variations

White Outdoor 705-5084-0637

Shave Plate, 28" - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

70

White Outdoor 710-0260

Carr. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 05139

Drift Cutter
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

72

White Outdoor 736-0271

Wave Wash. 5/16" I.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

73

White Outdoor 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 784-5075

Gear Hsg. Support Plate

$

$

Not available

75

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25"*

$4.49

$

In Stock, Qty 19

0

76

White Outdoor 710-0726

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

77

White Outdoor 736-0291

Fl-Wash. .88 I.D. x 1.40 O.D.

$11.99

$

Usually ships in 3-6 days

0

78

White Outdoor 737-0175

Filler Plug

$6.99

$

In Stock, only 4 left!

0

79

White Outdoor 784-5076

Gear Hsg. Support Brkt.
(Superseded to 784-5076-0637)

Variations

White Outdoor 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

80

White Outdoor 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 784-5123

Chute Crank Bracket
(Superseded to 784-5123-0637)

Variations

White Outdoor 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

82

White Outdoor 736-0242

Bell-Wash. .345 I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available
