SB-810 (316-800-190) - White Outdoor Snow Boss Snow Thrower (1986) Wheel Chain Drive Assembly Parts Diagram

Snow Boss Snow Thrower

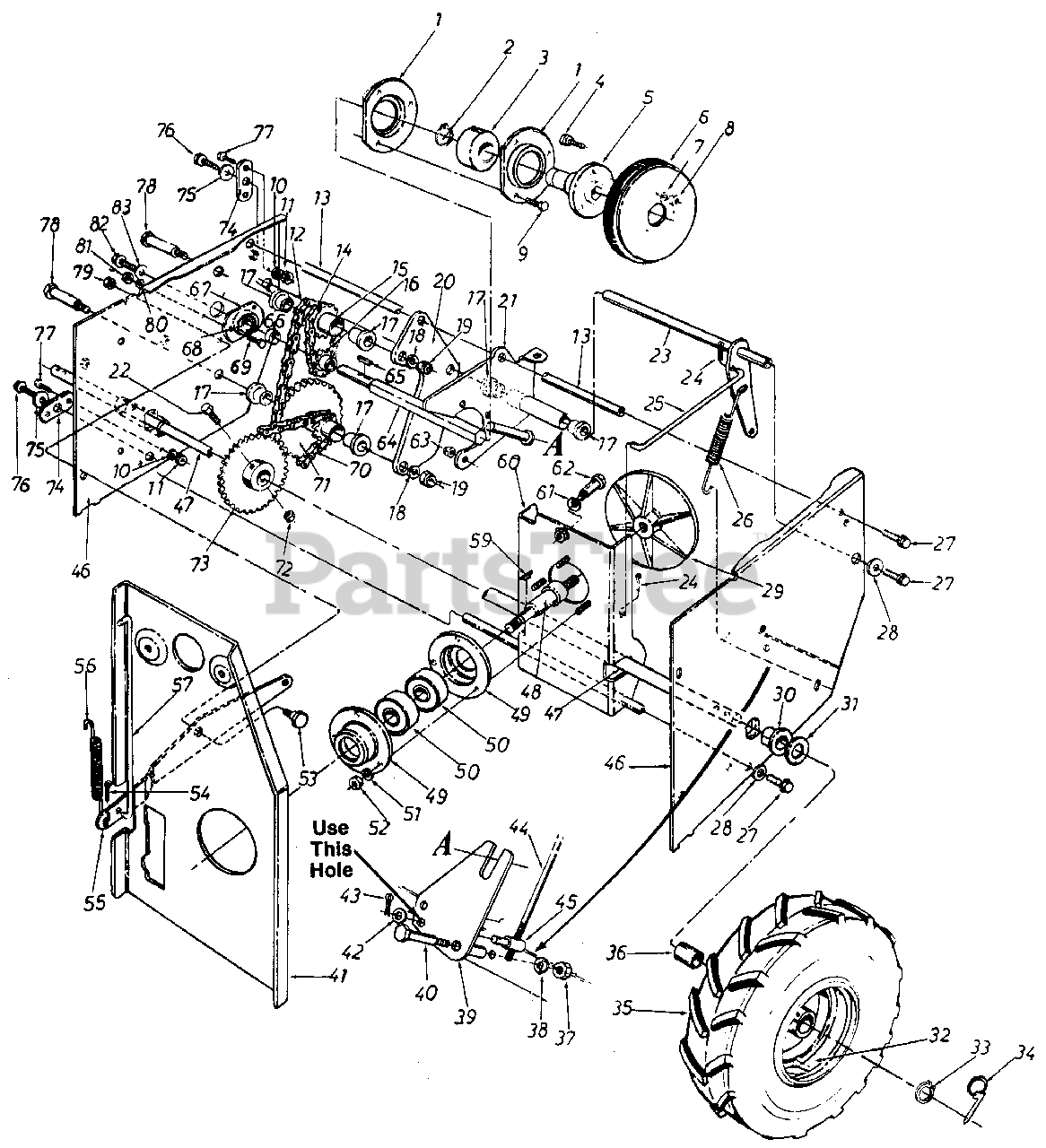

Wheel Chain Drive Assembly Parts Diagram

  • Title

1

MTD 05794

Bearing Housing

Note: NLA

$

$

Not available

2

MTD 916-0102

Snap Ring-1.0" Dia.
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

3

MTD 941-0301

Ball Brg. .25MM x 52MM x 15MM Thk.

$53.99

$

In Stock, only 4 left!

0

4

MTD 910-0198

Hex Sems Bolt 5/16-18 x .75" Lg.*

$

$

Not available

5

MTD 748-0281

Friction Wheel Adapter

Note: NLA

$

$

Not available

6

MTD 05080AP

Friction Wheel Ass'y.

$30.99

$

In Stock, Qty 6

0

7

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

8

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 910-0195

Hex Bolt 1/4-28 x .62" Lg.

$3.99

$

In Stock, only 1 left!

0

10

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 9

0

11

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

12

MTD 713-0270

#41 Chain-1/2" Pitch x 43 Links

Note: NLA

$

$

Not available

12

MTD 913-0723

Master Link

Note: (Service Only)

$

$

Not available

13

MTD 738-0278

Sliding Support Axle

Note: NLA

$

$

Not available

14

MTD 713-0199

#41 Chain-1/2" Pitch x 19 Links

Note: NLA

$

$

Not available

14

MTD 913-0723

Master Link

Note: (Service Only)

$

$

Not available

15

MTD 913-0193

9 and 14 Teeth Sprocket Hub Ass'y.

$81.99

$

Usually ships in 3-6 days

0

16

MTD 748-0204

8 Teeth Sprocket

$

$

Not available

17

MTD 748-0184

Flange Bearing .63" I.D.

$7.49

$

Usually ships in 3-6 days

0

18

MTD 936-0217

L-Wash. 3/8" I.D.-Heavy Duty
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

19

MTD 912-0116

Hex L-Jam Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

20

MTD 05520

Chain Support Brkt.

Note: NLA

Variations

MTD 05520-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 784-5137

Sliding Brkt. Ass'y.

Note: NLA

$

$

Not available

22

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

23

MTD 05500

Drive Ciutch Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

24

MTD 914-0104

Inter. Cot. Pin 5/16" Dia.*
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

25

MTD 747-0150

Drive Clutch Rod .31" Dia. x 7.38" Lg.

Note: NLA

$

$

Not available

26

MTD 932-0121

Extension Spring .73" O.D. x 4.31" Lg.

$14.99

$

In Stock, only 1 left!

0

27

MTD 710-0538

Hex L-Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 7

0

28

MTD 936-0264

Fl-Wash. .345" I.D. x .75" O.D.

$6.99

$

In Stock, only 2 left!

0

29

MTD 917-0302

Aluminum Drive Plate

$82.99

$

In Stock, only 1 left!

0

30

MTD 941-0170

Flange Brg. w/ Flats 1" I.D.

$19.99

$

In Stock, Qty 6

0

31

MTD 736-0187

Fl-Wash. .62" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

32

MTD 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

33

MTD 916-0102

Snap Ring 1" Shaft
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

34

MTD 736-0617

Klick Pin Ass'y.

$11.99

$

In Stock, Qty 13

0

35

MTD 734-1153

Wheel Ass'y. Comp. 16 x 4.5-L.H.

Note: NLA

$

$

Currently unavailable

35

MTD 734-1152

Wheel Ass'y. Comp. 16 x 4.5-R.H.

Note: NLA

$

$

Currently unavailable

35

MTD 734-0808A

Tire Only 16 x 4.5

$123.99

$

Usually ships in 3-6 days

0

35

MTD 734-1121

Rim Only-8 x 2.75

Note: NLA

$

$

Currently unavailable

36

MTD 741-0246

Bearing 1.0" I.D. x 1.12 O.D. x 1.0" Lg.

Note: NLA

$14.99

$

Usually ships in 3-6 days

0

37

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

38

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

39

MTD 784-5133

Shifting Linkage Brkt. Ass'y.

Note: NLA

Variations

MTD 784-5133-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 738-0129

Shld. Bolt .498" Dia. x 2.005" Lg.

$11.99

$

In Stock, only 1 left!

0

41

MTD 05491

Engine Brkt. Ass'y.

Note: NLA

$

$

Not available

42

MTD 936-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

43

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg. *

$4.49

$

In Stock, Qty 17

0

44

MTD 747-0356

Shifting Rod

Note: NLA

$

$

Not available

45

MTD 711-0628

Adjustment Ferrule

Note: NLA

$

$

Not available

46

MTD 784-5129

Frame Ass'y.

Note: NLA

$

$

Currently unavailable

47

MTD 738-0548

Free Wheeling Axle

Note: NLA

$

$

Currently unavailable

48

MTD 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

49

MTD 08253B

Bearing Housing

$19.99

$

In Stock, only 1 left!

0

50

MTD 941-0919A

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

51

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

52

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

53

MTD 938-0281

Shld. Bolt .625" Dia. x .170" Lg.
(Superseded to 738-0281)

$

$

Not available

54

MTD 914-0104

Inter. Cotter Pin 5/16" Dia.*
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

55

MTD 05518

Auger Clutch Brkt.

Note: NLA

$

$

Not available

56

MTD 932-0303

Extension Spring .38" O.D. x 3.18" Lg.

$10.99

$

In Stock, Qty 11

0

57

MTD 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

Note: NLA

$

$

Currently unavailable

59

MTD 914-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.

$7.99

$

In Stock, Qty 20+

0

60

MTD 05497

Drive Plate Mtg. Brkt. Ass'y.

Note: NLA

Variations

MTD 05497-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 736-0105

Bell-Wash. .44" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

62

MTD 938-0144

Shld. Bolt

$

$

Not available

63

MTD 712-0896

Hex Ins. Jam Nut 1/4-28 Thd.

$4.99

$

In Stock, Qty 6

0

64

MTD 738-0280

Hex Shaft

Note: NLA

$

$

Not available

65

MTD 914-0129

#9 Hi-Pro Key 3/32" x 5/8" Dia.

$

$

Not available

66

MTD 750-0277

Spacer .51" I.D. x .69" O.D.

Note: NLA

$

$

Not available

67

MTD 05034A

Bearing Housing

$

$

Not available

68

MTD 741-0133

Ball Bearing

$35.99

$

Usually ships in 3-6 days

0

69

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.*

$3.99

$

In Stock, Qty 20+

0

70

MTD 913-0269

#420 Chain .50" Pitch x 37 Links

$

$

Not available

70

MTD 913-0154

Master Link

$

$

Not available

71

MTD 913-0194

9 and 32 Teeth Sprocket Hub Ass'y.

$153.99

$

In Stock, only 1 left!

0

72

MTD 912-0273

Hex L-Nut 5/16-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

73

MTD 713-0320

28 Teeth Sprocket Hub Ass'y.

Note: NLA

$

$

Currently unavailable

74

MTD 05523

Pivot Axle Brkt.

Note: NLA

$

$

Not available

75

MTD 936-0264

Fl-Wash. .345" I.D. x .75" O.D.

$6.99

$

In Stock, only 2 left!

0

76

MTD 710-0538

Hex L-Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 7

0

77

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.*

$3.99

$

In Stock, Qty 20+

0

78

MTD 750-0275

Sprocket Hub Tubing 1.880" Lg.

Note: NLA

$

$

Not available

79

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

80

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 9

0

81

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 1 left!

0

82

MTD 710-0538

Hex L-Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 7

0

83

MTD 936-0264

Fl-Wash. .345" I.D. x .75" O.D.

$6.99

$

In Stock, only 2 left!

0
