SB-810 (316-800-190) - White Outdoor Snow Boss Snow Thrower (1986) Chute Assembly Parts Diagram

Snow Boss Snow Thrower

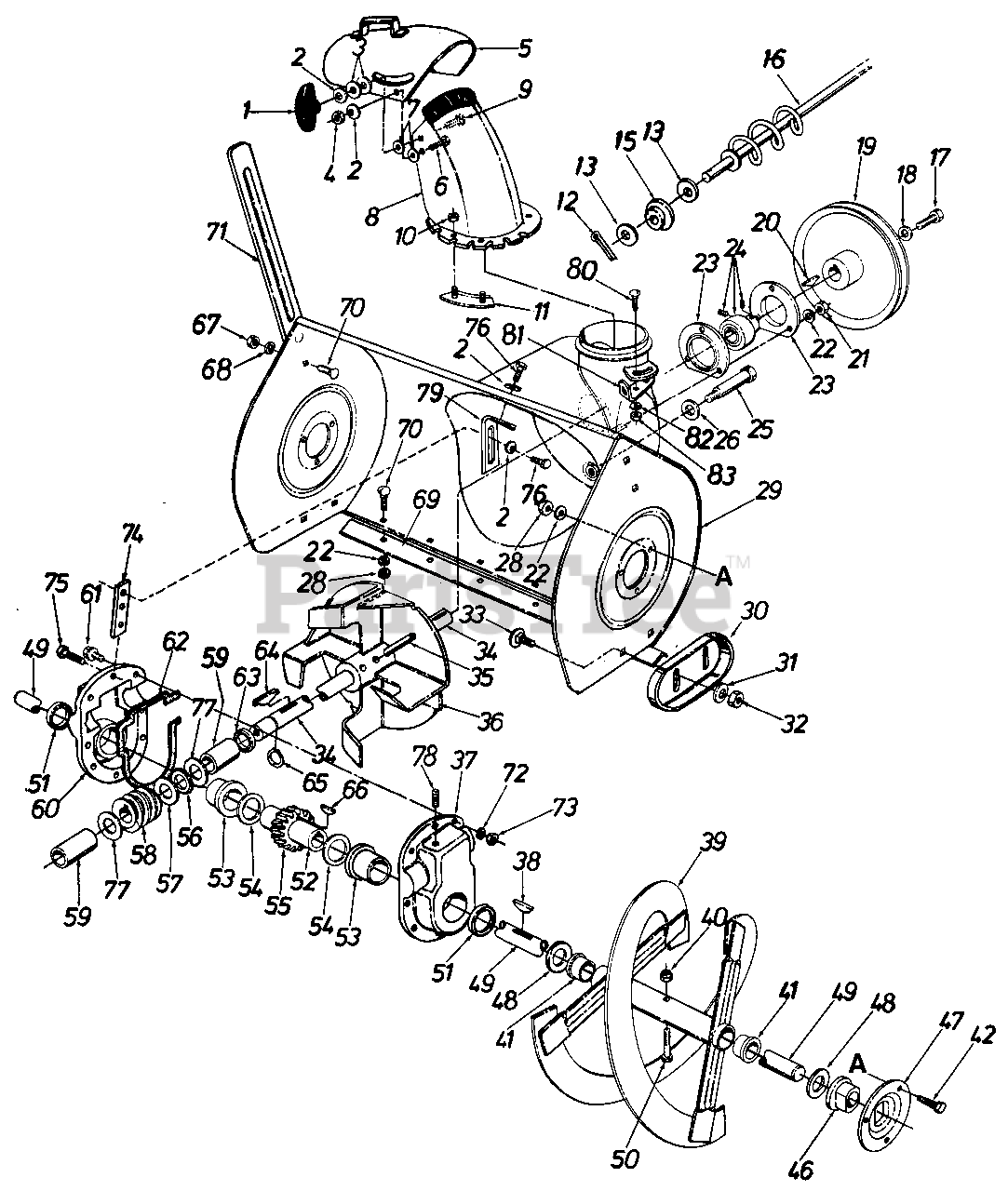

Chute Assembly Parts Diagram

  • Title

1

MTD 720-04072A

Hand Knob Ass'y.

$6.99

$

In Stock, Qty 20+

0

2

MTD 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

3

MTD 936-0231

Fl. Wash. .312 I.D. x 1.125 O.D. x .125
(Superseded to 736-0231)

$

$

Not available

4

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

5

MTD 731-0846C

Top Chute Ass'y.

$52.99

$

In Stock, only 3 left!

0

6

MTD 710-0260A

Carr. Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

7

MTD 936-0179

Fl-Wash. .53 I.D. x 1.25 O.D. x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

8

MTD 05951

Chute Ass'y.

Note: NLA

$

$

Currently unavailable

9

MTD 710-0276

Carr. Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

10

MTD 912-0107

Hex Cent. L-Nut 1/2-20 Thd.

$4.99

$

In Stock, only 1 left!

0

11

MTD 05783

Chute Flange Keeper Ass'y.

Note: NLA

$

$

Not available

12

MTD 914-0507

Cotter Pin

$4.49

$

In Stock, Qty 17

0

13

MTD 936-0140

Fl-Wash. .385" I.D. x .62" O.D.
(Superseded to 736-0140)

$

$

Not available

15

MTD 941-0475

Bushing

$4.49

$

In Stock, Qty 20+

0

16

MTD 05981

Chute Crank Ass'y.

Note: NLA

$

$

Not available

17

MTD 710-0371

Hex L-Scr. 5/16-18 x .88" Lg.
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

18

MTD 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

19

MTD 756-0243

V-Pulley .875 I.D. x 10.12 O.D.

$94.99

$

Usually ships in 3-6 days

0

20

MTD 914-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

21

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 936-0119

L-Wash. 5/16" Scr.*

$4.99

$

In Stock, Qty 20+

0

23

MTD 05244B

Bearing Hsg.-Self Aligning Brg.

$23.99

$

Usually ships in 3-6 days

0

24

MTD 941-0185

Self Aligning Brg. .875 I.D.

$66.99

$

In Stock, only 1 left!

0

25

MTD 911-0640

Stud 3/8-16 x 2.75" Lg.
(Superseded to 711-0640)

$7.99

$

Usually ships in 3-6 days

0

26

MTD 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

28

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 784-5010

Blower Hsg. Ass'y.

Note: NLA

$

$

Currently unavailable

30

MTD 784-5038B-0637

Slide Shoe

$27.99

$

Usually ships in 3-6 days

0

31

MTD 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

32

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

33

MTD 710-0389

Carr. Bolt 3/8-16 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

MTD 738-0276

Blower Axle

$102.99

$

Usually ships in 3-6 days

0

35

MTD 915-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.
(Superseded to 715-0118)

$

$

Not available

36

MTD 05812

Blower Fan Ass'y.

Note: NLA

Variations

MTD 05812-0637

No Longer Available FAN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 753-0889

Complete Gear Hsg. Half-L.H.

Note: (Incl. Bearing)

$

$

Not available

38

MTD 914-0135

#91 Woodruff Key 1/4" X 3/4" Dia.
(Superseded to 714-0135)

$

$

Not available

39

MTD 05463

26" Spiral Ass'y.-L.H.

Note: NLA

Variations

MTD 05463-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 05464

26" Spiral Ass'y-R.H. 33" Spiral Ass'y.-L.H.

Note: NLA

Variations

MTD 05464-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 912-0429

Hex Ins. L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

41

MTD 05136

Plastic Bushing

$

$

Not available

42

MTD 910-0198

Hex Sems Scr. 5/16-18 x .75" Lg.*

$

$

Not available

46

MTD 941-0170

Flange Brg. w/ Flats 1.0" I.D.

$19.99

$

In Stock, Qty 6

0

47

MTD 05845C-0637

Bearing Hsg.-Spiral Hsg.

$23.99

$

In Stock, only 1 left!

0

48

MTD 736-0250

Fl-Wash. 1.06 I.D. x 1.75" O.D. x .100

$4.49

$

In Stock, Qty 20+

0

49

MTD 738-0490

Spiral Axle-26"

Note: NLA

$

$

Not available

50

MTD 710-0891

Hex Bolt 5/16-18 x 1.75" Lg.

$7.49

$

In Stock, Qty 10

0

51

MTD 921-0146

Oil Seal 1.50" I.D.

$12.99

$

Usually ships in 3-6 days

0

52

MTD 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

53

MTD 741-0182

Flange Brg. 1.503 I.D.

Note: NLA

$

$

Not available

54

MTD 936-0266

Fl-Wash. 1.50 I.D. x 2.00 O.D. x .030
(Superseded to 736-0266)

$

$

Not available

55

MTD 917-1425

Double Threaded Worm Gear

$177.99

$

In Stock, only 2 left!

0

56

MTD 741-0184

Thrust Brg. .88 I.D. x 1.44 O.D. x .078

$16.99

$

Usually ships in 3-6 days

0

57

MTD 936-0291

Fl-Wash. .88 I.D. x 1.40 O.D. x . 1 50
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

58

MTD 917-0299

Double Threaded Worm-L.H.

$124.99

$

In Stock, only 2 left!

0

59

MTD 941-0217

Sleeve Brg. .875 I.D.

$17.99

$

In Stock, Qty 7

0

60

MTD 753-0889

Complete Gear Hsg. Half-R.H.

Note: (Incl. Ref. Nos. 51 & 53)

$

$

Not available

61

MTD 710-0376

Hex Scr. 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

62

MTD 921-0144

Gasket

$11.99

$

Usually ships in 3-6 days

0

63

MTD 921-0145

Oil Seal .875" I.D.

$9.99

$

Usually ships in 3-6 days

0

64

MTD 914-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

65

MTD 716-0111

Snap Ring for .875" Dia. Shaft

$6.99

$

In Stock, only 4 left!

0

66

MTD 914-0135

#91 Woodruff Key 1/4 X 3/4" Dia.
(Superseded to 714-0135)

$

$

Not available

67

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

Note: (Optional equipment)

$4.49

$

In Stock, Qty 20+

0

68

MTD 936-0119

L-Wash. 5/16" Scr.*

Note: (Optional equipment)

$4.99

$

In Stock, Qty 20+

0

69

MTD 05000-0637

Shave Plate-26"

$47.99

$

In Stock, only 1 left!

0

70

MTD 710-0260A

Carr. Bolt 5/16-18 x .62" Lg.

Note: (Optional equipment)

$4.49

$

In Stock, Qty 20+

0

71

MTD 790-00181-0637

Drift Cutter

Note: (Optional equipment)

$43.99

$

Usually ships in 3-6 days

0

72

MTD 936-0271

Wave Wash. 5/16" Scr.*

$4.49

$

In Stock, Qty 10

0

73

MTD 912-0429

Hex Ins. L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

74

MTD 784-5075

Gear Hsg. Support Plate

$

$

Not available

75

MTD 710-0528

Hex Scr. 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 19

0

76

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

77

MTD 936-0291

Fl-Wash. .88 I.D. x 1.40 O.D. x .1 50
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

78

MTD 737-0175

Filler Plug

$6.99

$

In Stock, only 4 left!

0

79

MTD 784-5076-0637

Gear Hsg. Support Brkt.

$46.99

$

Usually ships in 3-6 days

0

80

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

81

MTD 784-5123-0637

Chute Crank Bracket

$17.99

$

In Stock, only 1 left!

0

82

MTD 736-0242

Bell-Wash. .345 I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

83

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
