SB-810 (315-800-190) - White Outdoor Snow Boss Snow Thrower (1985) Handle Assembly Parts Diagram

Snow Boss Snow Thrower

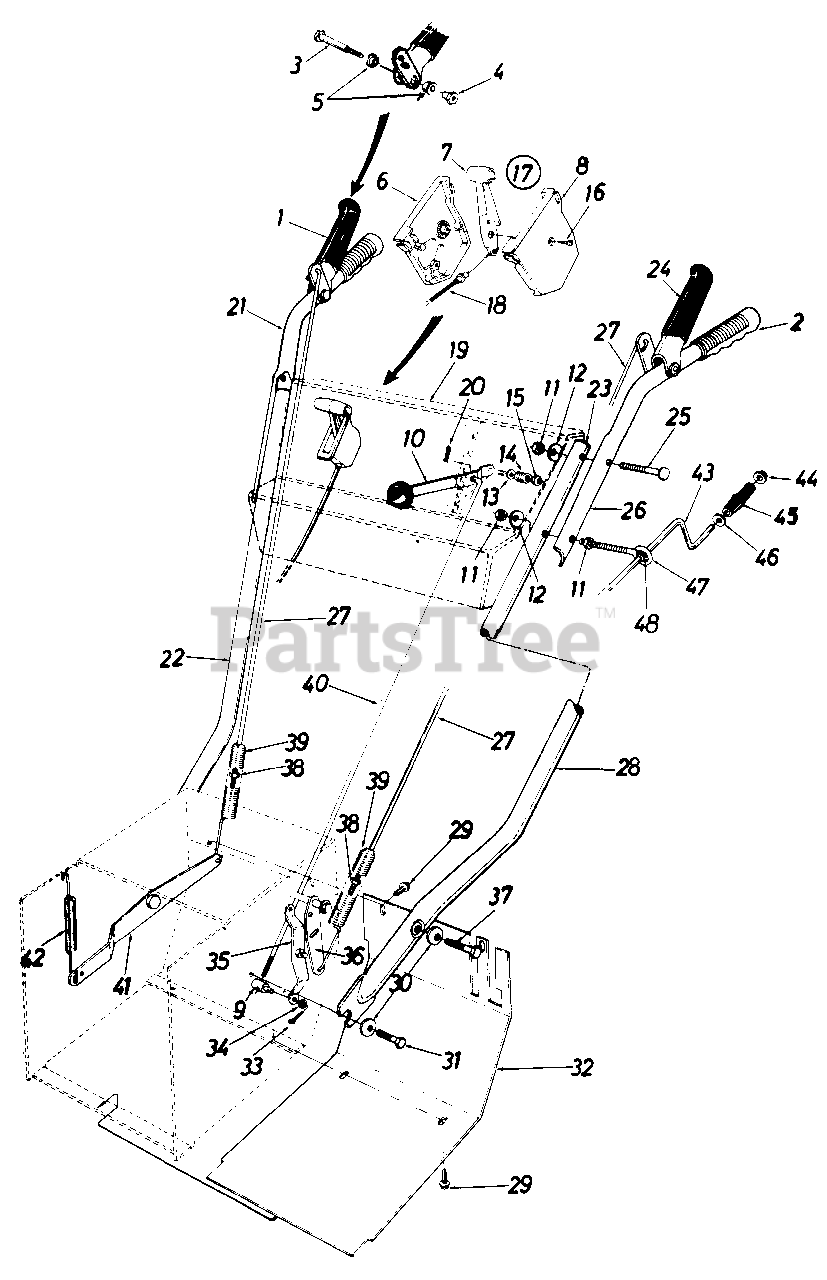

Handle Assembly Parts Diagram

  • Title

1

White Outdoor 05988

Clutch Grip Ass'y. R.H.

$

$

Not available

2

White Outdoor 720-0180

Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

3

White Outdoor 738-0560

Shoulder Bolt .374 Dia. x 1.53" Lg.
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

4

White Outdoor 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 2 left!

0

5

White Outdoor 741-0402

Hex Flange Plastic Bearing .38" I.D.
(Superseded to 941-0402)

$

$

Not available

6

Part of Ref. No. 17

$

$

Not available

7

Part of Ref. No. 17

$

$

Not available

8

Part of Ref. No. 17

$

$

Not available

9

White Outdoor 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

10

White Outdoor 05694

Shift Handle Ass'y.

$

$

Not available

11

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

12

White Outdoor 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

15

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

16

Part of Ref. No. 17

$

$

Not available

17

White Outdoor 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

In Stock, only 2 left!

0

18

White Outdoor 746-0500

Throttle Control Wire
(Superseded to 946-0500)

$15.99

$

In Stock, only 2 left!

0

19

784-5002

Handle Panel Ass'y.

$

$

Not available

20

White Outdoor 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 749-0594

Upper Handle R.H.

$

$

Not available

22

749-0342

Lower Handle R.H.

$

$

Not available

23

White Outdoor 731-0496

Plastic Plug

$

$

Not available

24

05987

Clutch Grip Ass'y. L.H.

$

$

Not available

25

White Outdoor 710-0487

Curved Carriage Bolt 5/16-18 x 2.0" Lg.

$7.49

$

Usually ships in 3-6 days

0

26

White Outdoor 749-0593

Upper Handle L.H.

$

$

Not available

27

White Outdoor 747-0461

Lockout Rod

$

$

Not available

28

749-0341

Lower Handle L.H.

$

$

Not available

29

White Outdoor 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

30

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 710-0555

Pilot Hex Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

32

05517

Frame Cover

$

$

Not available

33

White Outdoor 714-0507

Cotter Pin 3/32" Dia.*

$4.49

$

In Stock, only 2 left!

0

34

White Outdoor 736-0264

Fl-Wash. .345 0 I.D. x .62 O.D. x .06

$6.99

$

In Stock, only 1 left!

0

35

White Outdoor 05522

Shifting Linkage Brkt.

$

$

Not available

36

05500

Drive Clutch Brkt. Ass'y.

$

$

Not available

37

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.*
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

38

White Outdoor 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

39

White Outdoor 732-0184

Ext. Spring .75" O.D. x 5" Lg.

$25.99

$

Usually ships in 3-6 days

0

40

711-0374

Shift Rod

$

$

Not available

41

White Outdoor 05518

Auger Clutch Brkt.

$

$

Not available

42

White Outdoor 732-0303

Ext. Spring .38" O.D. x 3.18" Lg.
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

43

White Outdoor 05981

Chute Crank Ass'y.

$

$

Not available

44

White Outdoor 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, only 3 left!

0

45

White Outdoor 720-0171

Knob 3/8" Rod
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

46

White Outdoor 736-0140

Fl-Wash. .40" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

47

White Outdoor 747-0416

Eyebolt 5/16-18 x 5.0" Lg.

$

$

Not available

48

White Outdoor 735-0218

Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0
