SB-800 ST (316-746E190) - White Outdoor Snow Boss Snow Thrower (1996) Worm Gear And Shaft Parts Diagram

Snow Boss Snow Thrower

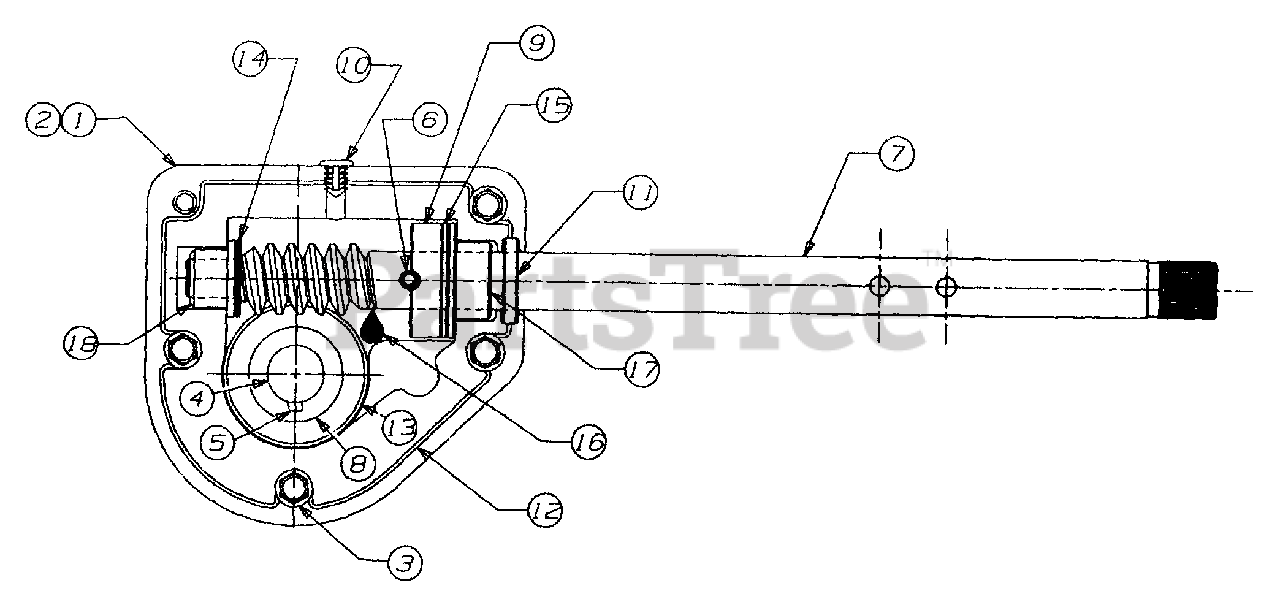

Worm Gear And Shaft Parts Diagram

  • Title

1

MTD 918-0123A

Housing - R.H.

$52.99

$

In Stock, Qty 20+

0

2

MTD 918-0124A

Housing - L.H.

$52.99

$

In Stock, Qty 17

0

3

MTD 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0910A

Axle, Spiral 28"

Note: (E756G)

$130.99

$

Usually ships in 3-6 days

0

4

MTD 711-0908A

Axle, Spiral 24"

Note: (746E)

$

$

Not available

5

MTD 914-0161

Key, Hi-Pro

$4.49

$

In Stock, Qty 20+

0

6

MTD 915-0143

Pin, Spiral
(Superseded to 715-0143)

$

$

Not available

7

MTD 717-0526

Worm, Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

8

MTD 917-0528A

Gear, Worm
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

MTD 718-0186

Collar, Thrust

$8.49

$

In Stock, Qty 12

0

10

MTD 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

11

MTD 721-0327

Seal, Oil

$6.99

$

In Stock, Qty 20+

0

12

MTD n/a

Loctite 5699, Ultra

$

$

Currently unavailable

13

MTD 936-0351

Washer
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

14

MTD 936-0369

Washer
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

15

MTD 936-0445

Washer
(Superseded to 736-0445)

$

$

Not available

16

MTD 737-0168A

Grease

$30.99

$

In Stock, Qty 14

0

17

MTD 941-0376

Bearing Flange

$8.99

$

In Stock, Qty 7

0

18

MTD 948-0108

Bearing Flange

$8.99

$

In Stock, Qty 20+

0
