SB-800 ST (316-746E190) - White Outdoor Snow Boss Snow Thrower (1996) Housing, Spiral And Gear Assemblies Parts Diagram

Snow Boss Snow Thrower

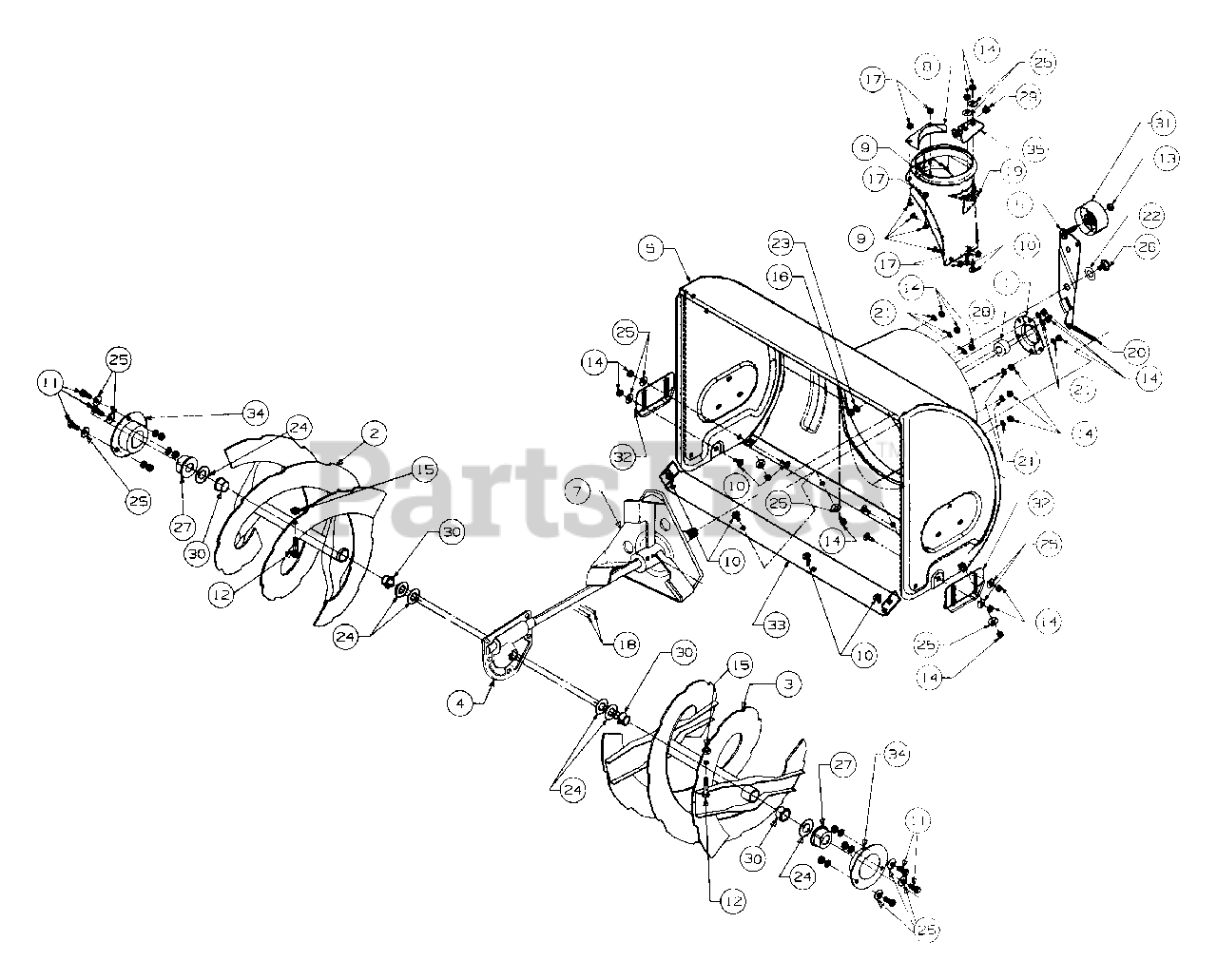

Housing, Spiral And Gear Assemblies Parts Diagram

  • Title

1

MTD 05931A

Housing - Bearing

$10.99

$

Usually ships in 3-6 days

0

2

MTD 684-04181-0637

Spiral Assembly - L.H. 24"

$178.99

$

In Stock, only 1 left!

0

2

MTD 684-04185-0637

Spiral Assembly - L.H. 28"

$184.99

$

Usually ships in 3-6 days

0

3

MTD 684-04180-0637

Spiral Assembly - R.H. 24"

$

$

Not available

3

MTD 684-04184-0637

Spiral Assembly - R.H. 28"

$218.99

$

Usually ships in 3-6 days

0

4

MTD 918-0414B

Gear Assembly 24"

$

$

Not available

4

MTD 918-0416B

Gear Assembly 28"

$474.99

$

Usually ships in 3-6 days

0

5

MTD 684-0039D

Housing Assembly 24"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0039D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0039D-0498

No Longer Available HOUSINGAS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0039D-0629

HOUSING ASM-24" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0039D-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0039D-0650

HOUSING ASM-24" - RED METALLIC (0650)

$

$

Not available

MTD 684-0039D-0662

HOUSING ASM-24" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0039D-0665

HOUSING ASM-24" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0039D-0687

HOUSING ASM-24" - PINE GREEN (0687)

$

$

Not available

MTD 684-0039D-0689

HOUSING ASM-24" - POLO GREEN (0689)

$

$

Not available

MTD 684-0039D-0691

HOUSING ASM-24" - BLACK JACK (0691)

$

$

Not available

MTD 684-0039D-0716

"No Longer Available HOUSING ASM-24""" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-0039D-0709

"No Longer Available HOUSING ASM-24""" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

5

MTD 684-0041A

Housing Assembly 28"
(Superseded to 684-0041D)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0041A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0041A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0041A-0662

HOUSING ASM-28" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0041A-0665

HOUSING ASM-28" - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

MTD 984-0064-0637

Arm - Idler Assembly

$32.99

$

In Stock, only 2 left!

0

7

MTD 984-0065-0637

Impeller Assembly
(Superseded to 684-06276-0637)

$90.99

$

In Stock, Qty 6

0

8

MTD 705-5226

Reinforcement - Chute

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

9

MTD 710-0167

Screw - Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

MTD 710-0451

Screw - Carriage

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0604A

Screw - Hex

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0890A

Shear Bolt

$1.99

$

In Stock, Qty 20+

0

13

MTD 912-0116

Nut - Hex Lock
(Superseded to 712-0116)

$

$

Not available

14

MTD 912-0267

Nut - Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 912-0429

Nut - Hex
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0798

Nut - Hex

$4.49

$

In Stock, Qty 6

0

17

MTD 912-3027

Nut - Hex Lock

$4.49

$

In Stock, Qty 20+

0

18

MTD 915-0114

Pin - Spring
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 20+

0

19

MTD 731-1379D

Adapter - Chute

$65.99

$

In Stock, Qty 8

0

20

MTD 932-0611

Spring

$7.49

$

In Stock, Qty 20+

0

21

MTD 936-0119

Washer - Lock

$4.99

$

In Stock, Qty 20+

0

22

MTD 936-0167

Washer - Flat

$6.99

$

In Stock, Qty 6

0

23

MTD 936-0169

Washer - Lock
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

24

MTD 736-0188

Washer - Flat

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

26

MTD 938-0281

Screw - Shoulder
(Superseded to 738-0281)

$

$

Not available

27

MTD 941-0245

Bearing - Flange

$9.99

$

In Stock, Qty 20+

0

28

MTD 941-0309

Bearing - Ball

$74.99

$

Usually ships in 3-6 days

0

29

MTD 941-0475

Bushing - Plastic

$4.49

$

In Stock, Qty 20+

0

30

MTD 741-0493A

Bushing - Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

31

MTD 756-0178

Idler - Flat

$20.99

$

In Stock, only 4 left!

0

32

MTD 784-5580

Shoe - Slide

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 16

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 16

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

33

MTD 790-00120-0637

Shave Plate 24"

$34.99

$

In Stock, Qty 20+

0

33

MTD 790-00118-0637

Shave Plate 28"

$37.99

$

In Stock, Qty 20+

0

34

MTD 784-5618A-0637

Housing - Bearing

$13.99

$

In Stock, only 2 left!

0

35

MTD 784-5647-0637

Bracket - Chute Crank

$14.99

$

In Stock, Qty 5

0
