SB-800 ST (316-746E190) - White Outdoor Snow Boss Snow Thrower (1996) Engine, Starter, V-Belt And Pulley Parts Diagram

Snow Boss Snow Thrower

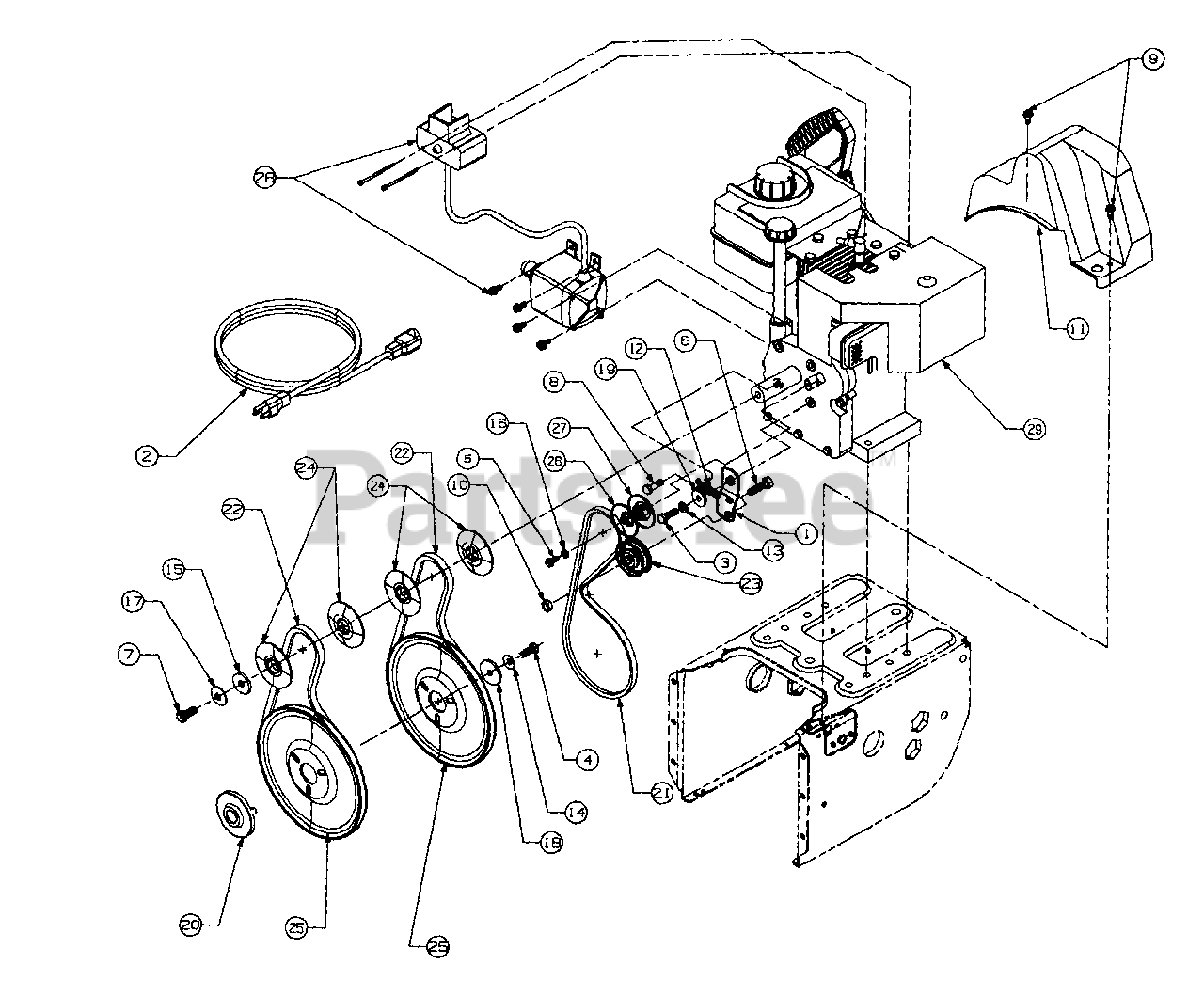

Engine, Starter, V-Belt And Pulley Parts Diagram

  • Title

1

MTD 05896A

Bracket

Note: NLA

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 929-0071A

Cord, Extension
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

3

MTD 710-0888

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0157

Screw

$4.49

$

In Stock, Qty 15

0

5

MTD 710-0230

Screw

$

$

Not available

6

MTD 710-3005

Screw

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0696

Screw

$6.99

$

In Stock, only 2 left!

0

8

MTD 710-0888

Screw

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

10

MTD 912-0181

Nut, Hex
(Superseded to 712-0181)

$

$

Not available

11

MTD 731-1324

Belt Cover

$21.99

$

In Stock, only 3 left!

0

12

MTD 932-0710

Spring

$7.49

$

In Stock, Qty 16

0

13

MTD 936-0119

Washer - Lock

$4.99

$

In Stock, Qty 20+

0

14

MTD 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

16

MTD 936-0329

Washer - Lock

$4.49

$

In Stock, Qty 9

0

17

MTD 736-0331

Washer

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-0505

Washer

$6.49

$

In Stock, Qty 11

0

19

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

20

MTD 948-0360

Pulley Adapter

$22.99

$

In Stock, only 1 left!

0

21

MTD 954-0346

V-Belt

$28.99

$

In Stock, Qty 20+

0

22

MTD 954-0430B

V-Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

MTD 756-0313

Idler, Flat

$26.99

$

In Stock, only 4 left!

0

24

MTD 756-0569

Pulley, Half

$10.99

$

Usually ships in 3-6 days

0

25

MTD 756-0967

Pulley, Auger

$56.99

$

Usually ships in 3-6 days

0

26

MTD 756-0986

Pulley, Half

$

$

Not available

27

MTD 956-0987

Pulley, Half

$

$

Not available

28

MTD TC-33329F

Starter
(Superseded to TC-33329H)

Note: For model E756G Only

$

$

Not available

29

Engine

$

$

Not available
