SB-800 ST (315-746E190) - White Outdoor Snow Boss Snow Thrower (1995) Snow Throwers Illustration (Part 2) Parts Diagram

Snow Boss Snow Thrower

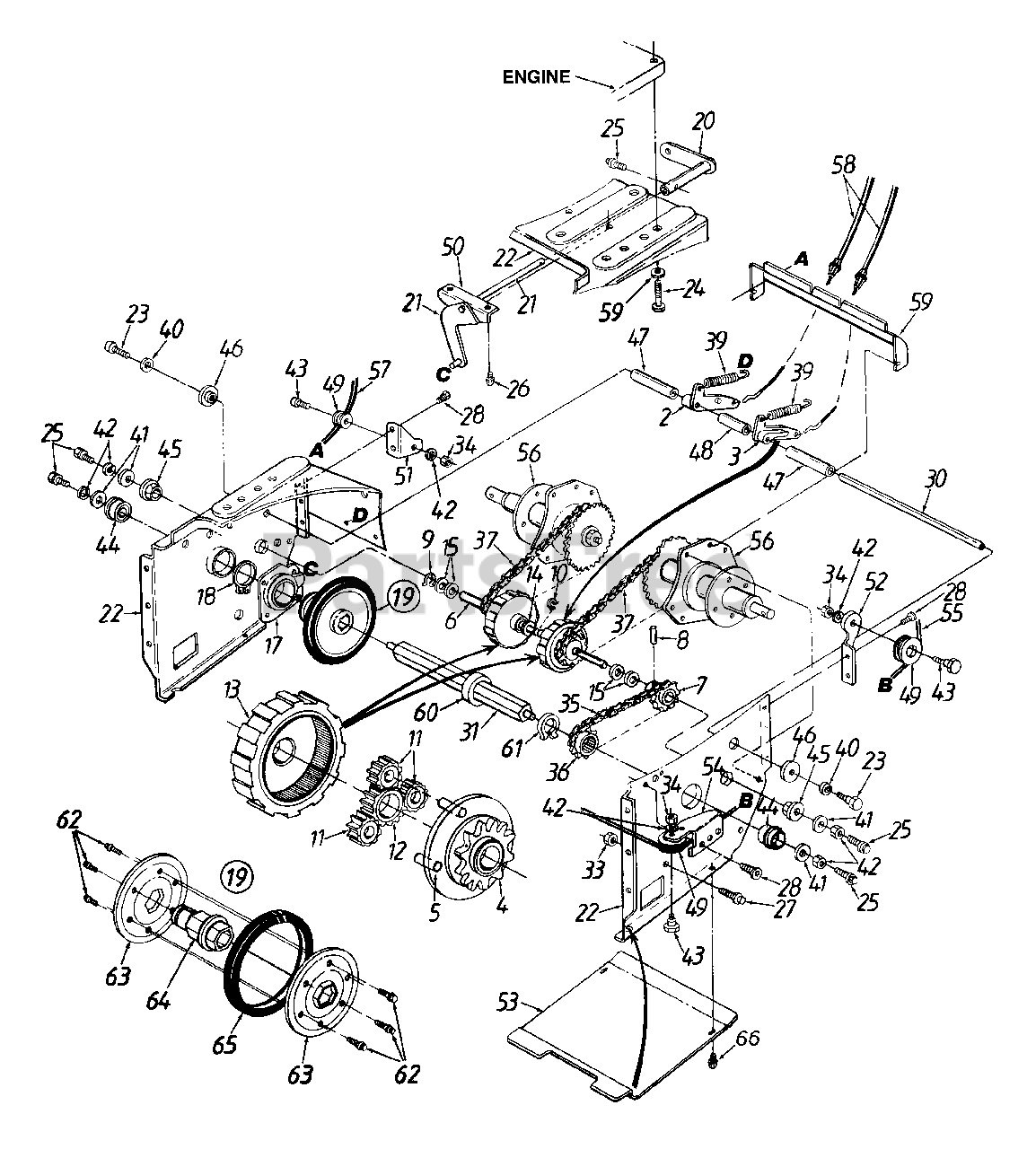

Snow Throwers Illustration (Part 2) Parts Diagram

  • Title

2

MTD 618-0043

R.H. Dog Ass'y.

$23.99

$

In Stock, only 1 left!

0

3

MTD 618-0044

L.H. Dog Ass'y.

$24.99

$

In Stock, only 1 left!

0

4

MTD 918-0576A

Carrier

$224.99

$

Usually ships in 3-6 days

0

5

MTD 741-0542

5/16" Dowel Pin

$11.99

$

Usually ships in 3-6 days

0

6

MTD 711-0912

Drive Shaft

$131.99

$

Usually ships in 3-6 days

0

7

MTD 713-0411

12 Tooth Sprocket

Note: NLA

$

$

Not available

8

MTD 915-0247

Spring Pin 3/16" Dia. x 1" Lg.

$

$

Not available

9

MTD 916-0114

Snap Ring .56" Dia.

$6.99

$

In Stock, only 2 left!

0

10

MTD 916-0115

Snap Ring .625" Shaft

$

$

Not available

11

MTD 717-1209A

12 Tooth Gear

$4.99

$

Usually ships in 3-6 days

0

12

MTD 717-1210A

18 Tooth Gear

$8.99

$

In Stock, only 2 left!

0

13

MTD 717-1211B

Ring Gear

$

$

Not available

14

MTD 936-0336

Fl-Wash. 5/8" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 7

0

15

MTD 936-0502

Fl-Wash. .57" I.D. x 1.12" O.D.

$6.99

$

Usually ships in 3-6 days

0

17

MTD 618-0063

Friction Wheel Brg. Ass'y.

$92.99

$

Usually ships in 3-6 days

0

18

MTD 716-0185

Retaining Ring 1.375" Dia. Shaft

$3.99

$

Usually ships in 3-6 days

0

19

MTD 984-0042C

Friction Wheel

$138.99

$

In Stock, Qty 17

0

20

MTD 684-0008A-0637

Shift Arm Ass'y.

$50.99

$

Usually ships in 3-6 days

0

21

MTD 684-0014B-0637

Shift Rod Ass'y.

$47.99

$

In Stock, only 1 left!

0

22

MTD 984-0031

Frame Ass'y.

Variations

MTD 984-0031-0483

KIT-REPLACEMENT (6 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 984-0031-0499

KIT-REPLACEMENT (6 - CUB BEIGE (0499)

$

$

Not available

MTD 984-0031-0637

KIT-REPLACEMENT (6 - POWDER BLACK (0637)

$

$

Not available

MTD 984-0031-0638

KIT-REPLACEMENT (6 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 984-0031-0650

KIT-REPLACEMENT (6 - RED METALLIC (0650)

$

$

Not available

MTD 984-0031-0662

KIT-REPLACEMENT (6 - OYSTER GRAY (0662)

$

$

Not available

MTD 984-0031-0665

KIT-REPLACEMENT (6 - YARDMAN GREEN (0665)

$

$

Not available

MTD 984-0031-0716

REPLACEMENT KIT - CUB YELLOW-99 (0716)

$

$

Not available

MTD 984-0031-0721

KIT-REPLACEMENT (6 - SEARS RED (0721)

$

$

Not available

$122.99

$

Usually ships in 3-6 days

0

23

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0502A

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

25

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 7

0

27

MTD 710-0788

Hex Wash. TT-Tap Scr. 1/4-20 x 1" Lg.

$7.49

$

In Stock, only 2 left!

0

28

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

30

MTD 711-0911

Actuator Shaft

$

$

Not available

31

MTD 711-0944

Drive Shaft

Note: NLA

$

$

Not available

33

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

34

MTD 912-0298

Hex Jam Nut 1/4-20 Thd.

$6.49

$

Usually ships in 3-6 days

0

35

MTD 713-0267

#420 Chain - 1/2 Pitch x 30 Links (Endless)

Note: NLA

$

$

Not available

36

MTD 713-0415

11 Tooth Sprocket

Note: NLA

$

$

Not available

37

MTD 713-0437

#420 Chain - 32 Links (Endless)

$37.99

$

Usually ships in 3-6 days

0

39

MTD 932-0209

Extension Spring 2.03" Lg.

$7.99

$

In Stock, only 2 left!

0

40

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

41

MTD 936-0176

Fl-Wash. 1/4" I.D. x .93" O.D.
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

42

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 9

0

43

MTD 738-0870

Shld. Bolt 5/16" Dia. x .35" Lg.

Note: NLA

$

$

Not available

44

MTD 941-0563

Ball Brg. w/Snap Ring

$36.99

$

In Stock, Qty 7

0

45

MTD 941-0597

Hex Flange Bearing

$12.99

$

In Stock, Qty 10

0

46

MTD 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

In Stock, Qty 20+

0

47

MTD 750-0903B

Split Shld. Spacer 2.69" Lg.

$10.99

$

Usually ships in 3-6 days

0

48

MTD 750-0904

Split Shld. Spacer 1.77" Lg.

$

$

Not available

49

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

50

MTD 784-5590

Shift Brkt. Frame

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

51

MTD 784-5644

Drive Cable Roller Brkt.

Note: NLA

Variations

MTD 784-5644-0637

No Longer Available BRACKET-DR - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 784-5646

Auger Cable Guide Brkt.

Note: NLA

Variations

MTD 784-5646-0637

No Longer Available BRACKET-AU - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 784-5648A

Frame Cover
(Superseded to 784-5648A-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5648A-0483

Track Frame Cover - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5648A-0638

Track Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5648A-0662

Track Frame Cover - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5648A-0687

COVER-FRAME:TRACK - PINE GREEN (0687)

$

$

Not available

MTD 784-5648A-4033

Track Frame Cover - FLINT MICA (4033)

$

$

Not available

MTD 784-5648A-0498

Track Frame Cover - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5648A-0637

Track Frame Cover - POWDER BLACK (0637)

$

$

Not available

MTD 784-5648A-0650

Track Frame Cover - RED METALLIC (0650)

$

$

Not available

MTD 784-5648A-0665

Track Frame Cover - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5648A-0689

Track Frame Cover - POLO GREEN (0689)

$

$

Not available

MTD 784-5648A-0716

Track Frame Cover - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5648A-0721

Track Frame Cover - SEARS RED (0721)

$

$

Not available

MTD 784-5648A-4044

Track Frame Cover - CRAFTSMAN RED (4044)

$

$

Not available

$

$

54

MTD 784-5658-0637

Front Support Brkt. Guide

$

$

Not available

55

MTD 946-0897

Auger Clutch Cable

$24.99

$

In Stock, Qty 20+

0

56

MTD 683-0024-0637

Track Hub Ass'y.

$84.99

$

Usually ships in 3-6 days

0

57

MTD 946-0898

Drive Clutch Cable

$27.99

$

In Stock, Qty 19

0

58

MTD 753-0707

Track Steer Cable w/Trigger

$74.99

$

In Stock, only 4 left!

0

59

MTD 736-3052

Fl-Wash. .406" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

60

MTD 950-0920

Spacer 1.02" I.D. x 1.25" O.D.

$

$

Not available

61

MTD 916-0102

Snap Ring
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

62

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

63

MTD 784-5677

Friction Plate

Note: NLA

$

$

Not available

64

MTD 718-0240

Friction Wheel Hub

Note: NLA

$

$

Not available

65

MTD 935-0243B

Friction Wheel Rubber

$15.99

$

In Stock, Qty 20+

0

66

MTD 710-3007

Hex Wash. Tap Scr. .38" Lg.

$4.49

$

In Stock, Qty 20+

0
