SB-800 (319-586-190) - White Outdoor Snow Boss Snow Thrower (1989) Wheel Chain Drive Assembly Parts Diagram

Snow Boss Snow Thrower

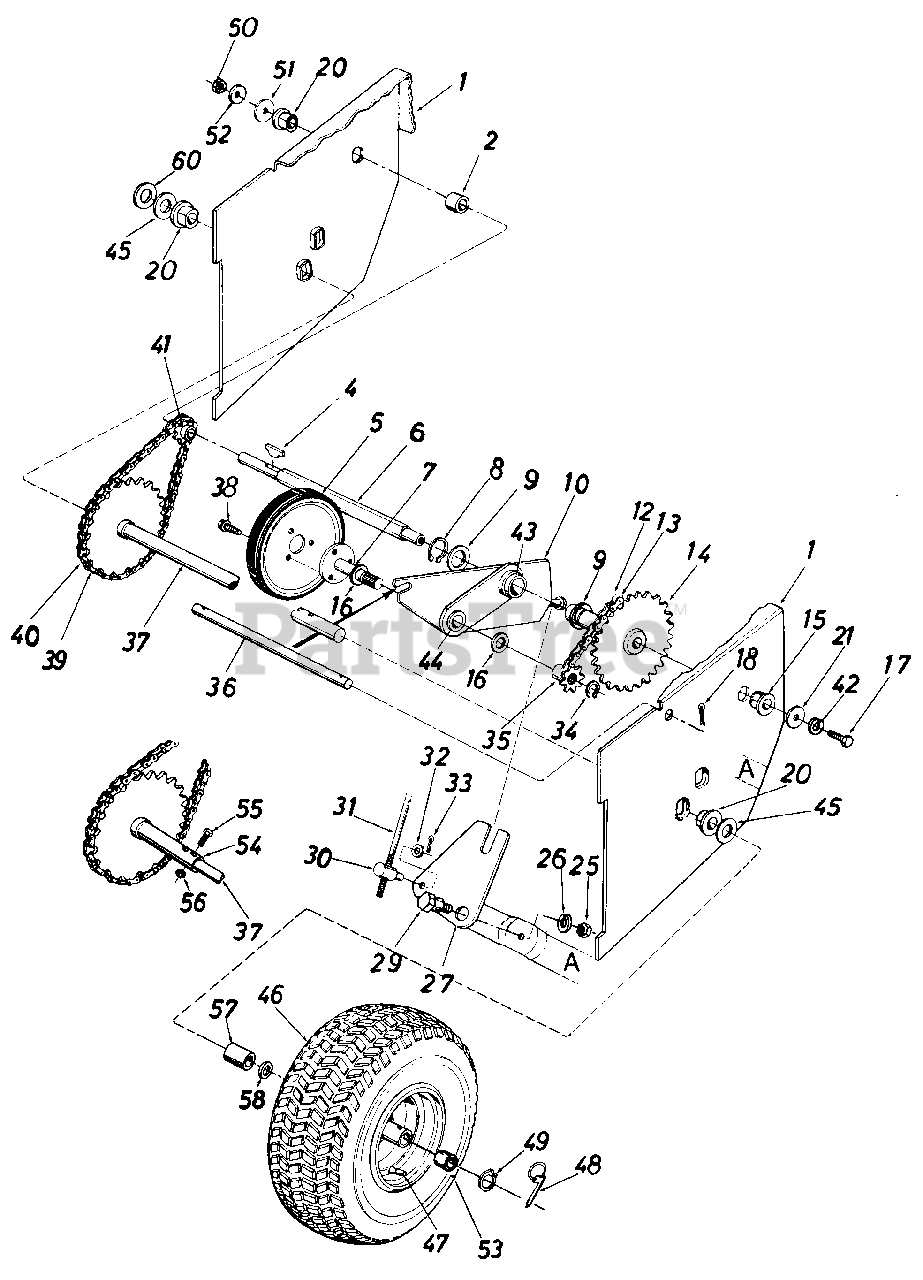

Wheel Chain Drive Assembly Parts Diagram

  • Title

1

MTD 784-5197

Frame Ass'y.

Note: NLA

$

$

Not available

2

MTD 750-0499

Spacer.50" l.D. x 75" O.D. x.78 Lg.

$23.99

$

Usually ships in 3-6 days

0

4

MTD 914-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.

$

$

Not available

5

MTD 05080AP

Friction Wheel Ass'y.

$30.99

$

In Stock, Qty 11

0

6

MTD 738-0496

Hex Shaft

Note: NLA

$

$

Not available

7

MTD 05883

Friction Wheel Mounting Plate Ass'y.

Note: NLA

$

$

Not available

8

MTD 916-0102

Snap Ring 1.00n Dia. Shaft
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

9

MTD 936-0163

Fl-Wash. 1.00" x 1.63" O.D. x .03
(Superseded to 736-0163)

$

$

Not available

10

MTD 05880

Sliding Bracket Ass'y.

Note: NLA

$

$

Not available

12

MTD 713-0285

#41 Chain 1/2" Pitch x 35 Links

Note: NLA

$

$

Not available

13

MTD 913-0723

Master Link for #41 Chain

$

$

Not available

14

MTD 713-0281

32 Teeth Sprocket Ass'y.

Note: NLA

$

$

Currently unavailable

15

MTD 941-0225

Hex Flange Brg. .630" I.D.

$7.49

$

In Stock, Qty 20+

0

16

MTD 736-0290

Fl-Wash. .62l1 I.D. x 1.00n O.D. x .06

$6.99

$

In Stock, Qty 20+

0

17

MTD 710-0538

Hex Lock Bolt 5/16-18 X .62" Lg.

$4.49

$

In Stock, Qty 9

0

18

MTD 914-0507

Cotter Pin 3/32n Dia. x .75" Lg.

$4.49

$

In Stock, Qty 17

0

20

MTD 941-0490

Flange Brg. w/Flats .756" I.D.

$13.99

$

In Stock, Qty 20+

0

21

MTD 936-0231

Fl-Wash. 34" l.D. x 1.12 0 O.D. x .125
(Superseded to 736-0231)

$

$

Not available

25

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

26

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

27

MTD 05898

Shifting Linkage Bracket

Note: NLA

$

$

Not available

29

MTD 938-0281

Shld. Bolt .625" Dia. x 170n Lg.
(Superseded to 738-0281)

$

$

Not available

30

MTD 911-0677

Adjustment Ferrule

$17.99

$

In Stock, only 4 left!

0

31

MTD 747-0356

Shifting Rod 5/16n Dia. x 32 50" Lg .

Note: NLA

$

$

Not available

32

MTD 936-0264

Fl-Wash. 34n l.D. x .64 0 O.D. x .06

$6.99

$

In Stock, only 3 left!

0

33

MTD 914-0507

Cotter Pin 3/32n Dia. x .75" Lg.

$4.49

$

In Stock, Qty 17

0

34

MTD 716-0397

Snap Ring .562n Dia. Shaft

$

$

Not available

35

MTD 713-0280

Sprocket 7 Teeth x 50n Pitch

Note: NLA

$

$

Not available

36

MTD 738-0497

Shaft 50n Dia. x 9.50" Lg.

Note: NLA

$

$

Currently unavailable

37

MTD 713-0283

28 Teeth Wheel Axle Ass'y.

Note: NLA - (440 & 450)

$

$

Currently unavailable

37

MTD 713-0323

32 Teeth Wheel Axle Ass'y.

Note: NLA - (550)

$

$

Not available

37

MTD 738-0713

Wheel Axle

Note: NLA - (586)

$

$

Not available

38

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

39

MTD 713-0270

#41 Chain 1/2" Pitch x 43 Links

Note: NLA - (440 & 450)

$

$

Not available

39

MTD 913-0287

#420 Chain 1/2" Pitch x 39 Links

Note: (550 & 586)

$

$

Not available

40

MTD 913-0723

Master Link for #41 Chain

Note: (440 & 450)

$

$

Not available

40

MTD 913-0154

Master Link for #420 Chain

Note: (550 & 586)

$

$

Not available

41

MTD 748-0204

8 Teeth Cooler Sprocket

$

$

Not available

42

MTD 936-0119

L-Wash. 5/18" I.Ds

$4.99

$

In Stock, Qty 20+

0

43

MTD 741-04488

Bearing

$9.49

$

In Stock, Qty 20+

0

44

MTD 748-0184

Bronze Bearing

$7.49

$

Usually ships in 3-6 days

0

45

MTD 736-0188

Fl-Wash. .76" .D. x 1.49 0 O.D.

Note: (440, 450 & 550)

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0315

Fl-Wash. .76" I.D. x 1.49

$6.99

$

In Stock, Qty 6

0

46

MTD 734-1528

Wheel Ass'y. Comp. 13 x 5.0

Note: NLA - (440 & 550)

$

$

Currently unavailable

46

MTD 734-1521

Wheel Ass'y. Comp. 13 x 6.5

Note: NLA - (586)

$

$

Not available

47

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

48

MTD 714-0143A

Klick Pin

Note: (550 & 586)

$6.49

$

In Stock, Qty 7

0

49

MTD 916-0101

Snap Ring .75 Dia.
(Superseded to 716-0101)

Note: (550 & 586)

$3.99

$

In Stock, Qty 20+

0

50

MTD 712-0200A

Hex Ins. L-Nut 1/2-20 Thd.

$4.49

$

In Stock, only 1 left!

0

51

MTD 936-0179

Fl-Wash. .53 I.D. x 1.25 O.D. x .10
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

52

MTD 936-0253

Bell-Wash. .50 I.D. x 1.0 O.D. x .075
(Superseded to 736-0253)

$

$

Not available

53

MTD 941-0401

Sleeve Brg.

Note: (550 & 586)

$7.49

$

In Stock, Qty 8

0

54

MTD 713-0384

32 Teeth Sprocket Hub Ass'y.

Note: NLA - (586)

$

$

Not available

55

MTD 710-0698

Hex Bolt 1/4-28 x 1.5"

Note: (586)

$

$

Not available

56

MTD 712-0896

Hex L-Nut 1/4-28 Thd.

Note: (586)

$4.99

$

In Stock, Qty 6

0

57

MTD 750-0506

Spacer

Note: NLA - (586)

$

$

Not available

58

MTD 936-0287

Fl-Washer
(Superseded to 736-0287)

Note: (586)

$

$

Not available

60

MTD 736-0315

Fl-Washer

Note: (586 Only)

$6.99

$

In Stock, Qty 6

0
