SB-800 (311-586-190) - White Outdoor Snow Boss Snow Thrower (1991) Frame Assembly Parts Diagram

Snow Boss Snow Thrower

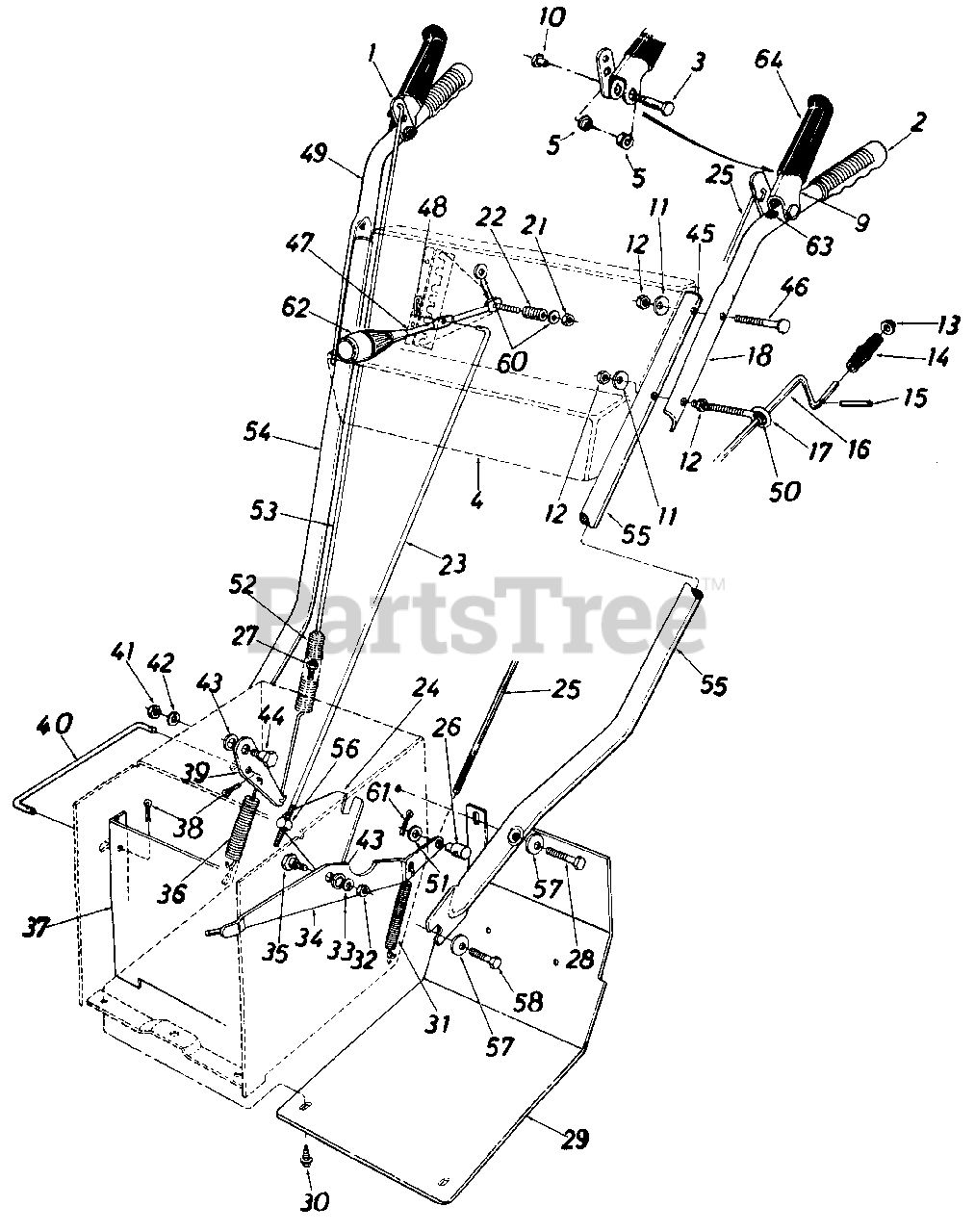

Frame Assembly Parts Diagram

  • Title

1

White Outdoor 05988

Clutch Grip Ass'y.-R.H.

$

$

Not available

2

White Outdoor 720-0220

Grip-Red

$

$

Not available

3

White Outdoor 738-0560

Shoulder Bolt .374 Dia. x 1.375" Lg.
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

4

784-5451-629

Handle Panel Ass'y.

$

$

Not available

5

White Outdoor 741-0402

Hex Flange Plastic Bearing .380" I.D.
(Superseded to 941-0402)

$

$

Not available

9

05987

Clutch Grip Ass'y.-L.H.

$

$

Not available

10

White Outdoor 738-0561

Shoulder Nut '/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 2 left!

0

11

White Outdoor 736-0242

Bell-Wash. 34'/ I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, only 3 left!

0

14

White Outdoor 720-0201A

Knob 3/8" Rod

$10.99

$

In Stock, only 4 left!

0

15

White Outdoor 715-0138

Roll Pin .12 Dia. X .63" Lg.
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

16

White Outdoor 05980

Chute Crank Ass'y. 39" Lg.

$

$

Not available

17

White Outdoor 747-0416A

Eye Bolt 5/16-18 x 5.0" Lg.

$

$

Not available

18

White Outdoor 749-0595

Upper Handle-L.H.

$

$

Not available

21

White Outdoor 712-0429

Hex Ins. Jam L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 732-0193

Compression Spring .50" O.D. x .88" Lg.

$4.99

$

In Stock, Qty 6

0

23

White Outdoor 747-0356A

Shifting Rod 5/16" x 32.50" Lg.

$

$

Not available

24

White Outdoor 05898

Shifting Linkage Bracket

$

$

Not available

25

White Outdoor 747-0452

Lockout Rod .214" Dia. x 36.0" Lg.

$

$

Not available

26

White Outdoor 711-0736

Adjustment Ferrule 1/4-20

$13.99

$

In Stock, only 2 left!

0

27

White Outdoor 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

28

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

29

05899B

Frame Cover

$

$

Not available

30

White Outdoor 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 732-0320

Extension Spring .38" O.D. x 3.25" Lg.
(Superseded to 932-0320)

$10.99

$

In Stock, only 1 left!

0

32

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

33

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 784-5050

Auger Clutch Bracket Ass'y.

$

$

Not available

35

White Outdoor 738-0281

Shld. Bolt .625" Dia. x .170

$10.99

$

In Stock, only 1 left!

0

36

White Outdoor 732-0121

Extension Spring .75" O.D. x 4.31 " Lg.
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

37

05878

Drive Pulley Support Brkt. Ass'y.

$

$

Not available

38

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

39

White Outdoor 05501

Drive Clutch Bracket

$

$

Not available

40

White Outdoor 10080

Drive Clutch Rod

$

$

Not available

41

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

42

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 736-0219

Bell-Wash. .40" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

44

White Outdoor 738-0281

Shld. Bolt .625" Dia. x .170

$10.99

$

In Stock, only 1 left!

0

45

White Outdoor 731-0496

Plastic Plug

$

$

Not available

46

White Outdoor 710-0487

Carriage Bolt 5/16-18 x 2.0" Lg.

$7.49

$

Usually ships in 3-6 days

0

47

White Outdoor 747-0696

Shift Handle

$

$

Not available

48

White Outdoor 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 749-0596

Upper Handle-R.H.

Variations

White Outdoor 749-0596-0637

No Longer Available HANDLE-FOLDING-RH - POWDER BLACK (0637)

$

$

Not available

$

$

50

White Outdoor 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

52

White Outdoor 732-0184

Extension Spring .75" O.D. x 5.00" Lg.

$25.99

$

Usually ships in 3-6 days

0

53

White Outdoor 747-0154

Lockout Rod .214" Dia. x 32" Lg.

$

$

Not available

54

White Outdoor 749-0418

Lower Handle-R.H.

$

$

Not available

55

White Outdoor 749-0417

Lower Handle-L.H.

$

$

Not available

56

White Outdoor 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

57

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 710-0623

Hex Wash. Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

60

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

61

White Outdoor 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 2 left!

0

62

White Outdoor 720-0218

Knob

$19.99

$

In Stock, only 1 left!

0

63

White Outdoor 726-0247

Push Cap
(Superseded to 935-0199A)

$7.99

$

In Stock, only 4 left!

0

64

White Outdoor 731-0473

Black Vinyl Grip

$4.49

$

Usually ships in 3-6 days

0
