SB-750 T (31AE733E190) - White Outdoor Snow Boss Snow Thrower (1999) Spiral & Impeller Assembly Parts Diagram

Snow Boss Snow Thrower

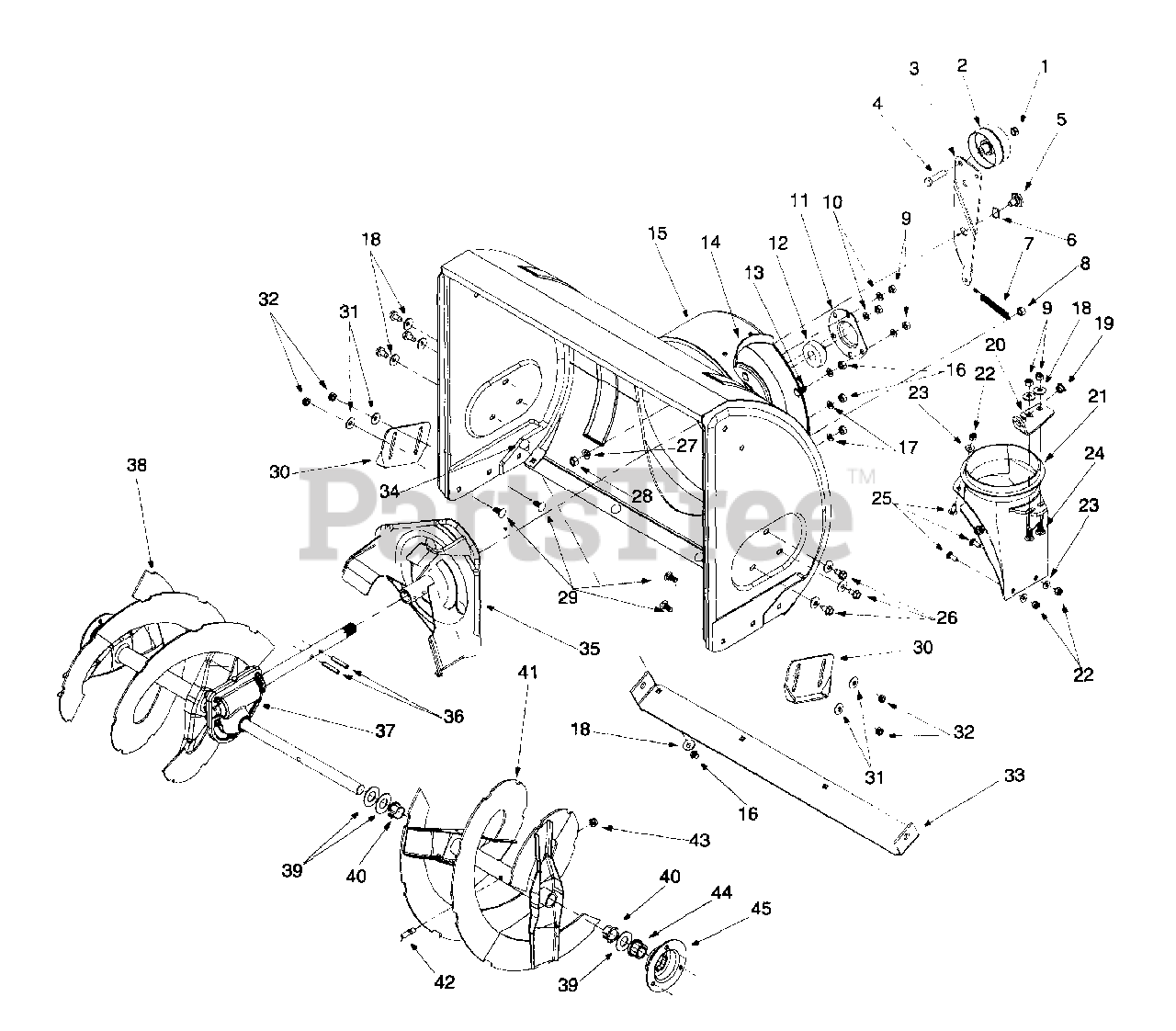

Spiral & Impeller Assembly Parts Diagram

  • Title

1

MTD 912-0116

Lock Jam Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

2

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

3

MTD 984-0064-0637

Auger Idler Arm

$32.99

$

In Stock, only 3 left!

0

4

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

5

MTD 938-0281

Shoulder Screw
(Superseded to 738-0281)

$

$

Not available

6

MTD 736-0174

Wave Washer

$6.99

$

In Stock, only 2 left!

0

7

MTD 932-0611

Extension Spring

$7.49

$

In Stock, Qty 20+

0

8

MTD 912-3009

Hex Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

9

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

11

MTD 05931A

Bearing Housing

$10.99

$

In Stock, only 2 left!

0

12

MTD 941-0309

Ball Bearing

$74.99

$

In Stock, only 1 left!

0

13

MTD 710-0451

Carriage Bolt 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

MTD 705-5226

Reinforcement Chute

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

MTD 684-0039D-0662

24" Housing Assembly

Note: (For model E733E)

$

$

Not available

15

MTD 684-0040D-0662

26" Housing Assembly

Note: (For model E7E3F)

$

$

Not available

16

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

19

MTD 941-0475

Bushing

$4.49

$

In Stock, Qty 20+

0

20

MTD 784-5647-0637

Chute Crank Bracket

$14.99

$

In Stock, Qty 7

0

21

MTD 731-1379D

Chute Adapter

$65.99

$

In Stock, only 1 left!

0

22

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

23

MTD 936-0463

Flat Washer
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

24

MTD 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

25

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

26

MTD 710-0604A

Hex Washer Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

27

MTD 936-0169

Lock Washer 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

29

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

30

MTD 784-5580-0637

Slide Shoe

$23.99

$

In Stock, Qty 20+

0

31

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

32

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 790-00120-0637

Shave Plate 24"

Note: (For model E733E)

$34.99

$

In Stock, Qty 20+

0

33

MTD 790-00121-0637

Shave Plate 26"

Note: (For model E7E3F)

$36.99

$

In Stock, Qty 20+

0

34

MTD 710-0260A

Carriage Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

35

MTD 984-0065-0637

Impeller Assembly
(Superseded to 684-06276-0637)

$90.99

$

In Stock, only 1 left!

0

36

MTD 915-0114

Pin
(Superseded to 715-0114)

$9.49

$

In Stock, only 3 left!

0

37

MTD 918-0414B

24" Gear Assembly

Note: (For model E733E)

$

$

Not available

37

MTD 918-0415B

26" Gear Assembly

Note: (For model E7E3F)

$442.99

$

Usually ships in 3-6 days

0

38

MTD 905-5188A

Spiral 24" RH
(Superseded to 684-04180-0637)

Note: (For model E733E)

Variations

MTD 905-5188A-0637

Auger Spiral Assembly, RH 24" - POWDER BLACK (0637)

$

$

Not available

MTD 905-5188A-0638

Auger Spiral Assembly, RH 24" - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

38

MTD 684-04182-0637

Spiral 26" RH

Note: (For model E7E3F)

$187.99

$

Usually ships in 3-6 days

0

39

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

MTD 684-04181-0637

Spiral 24" LH

Note: (For model E733E)

$178.99

$

In Stock, only 1 left!

0

41

MTD 684-04183-0637

Spiral 26" LH

Note: (For model E7E3F)

$

$

Not available

42

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

43

MTD 912-0429

Lock Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

44

MTD 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

45

MTD 784-5618A-0637

Bearing Housing

$13.99

$

In Stock, Qty 6

0
