SB-750 T (31AE733E190) - White Outdoor Snow Boss Snow Thrower (1999) Frame Assembly Parts Diagram

Snow Boss Snow Thrower

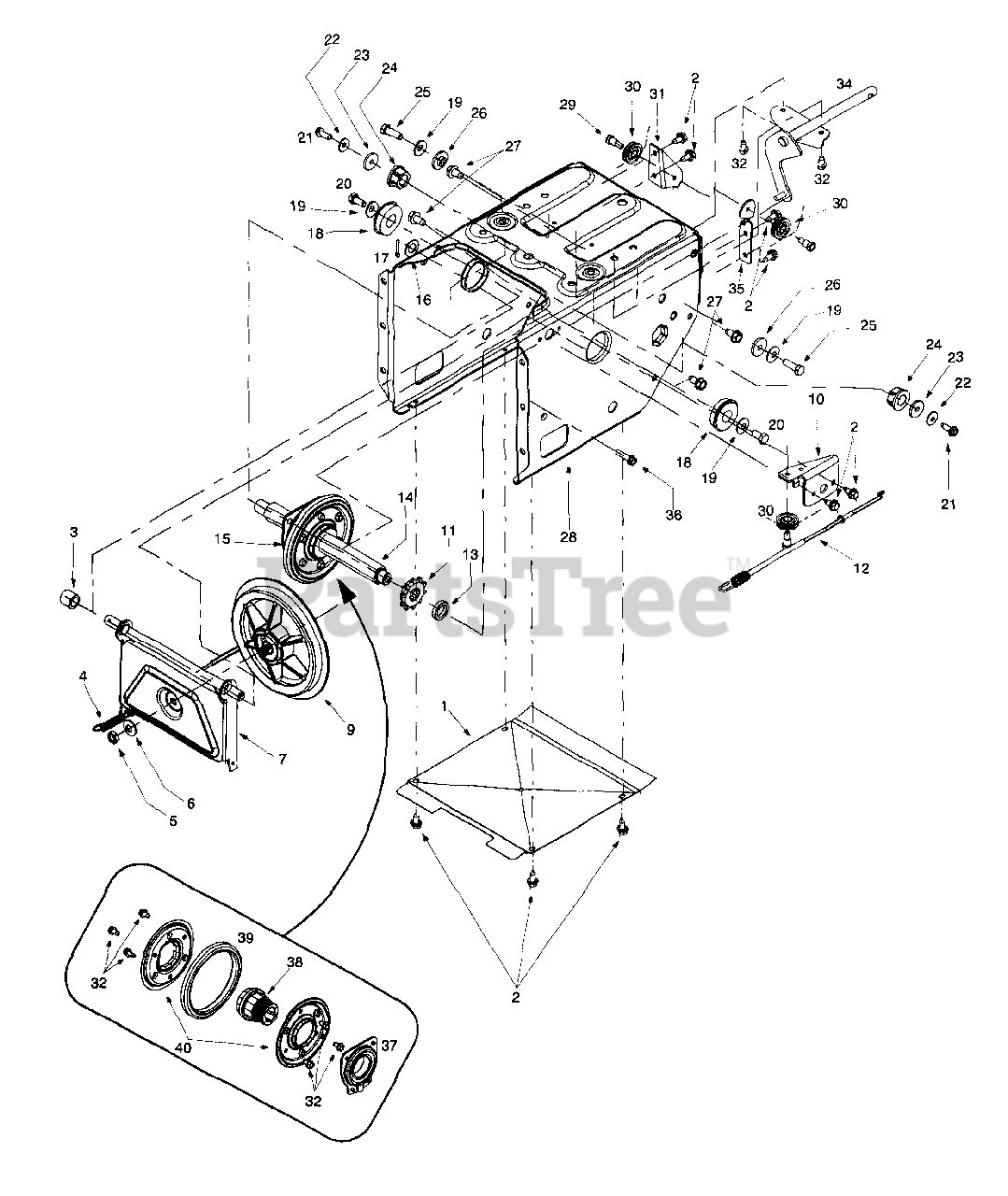

Frame Assembly Parts Diagram

  • Title

1

MTD 784-5648A-0662

Frame Cover
(Superseded to 784-5648A-0637)

$

$

Not available

2

MTD 710-1652

Tap Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

3

MTD 748-0190

Spacer, .508 ID x .75 OD x .68

$6.49

$

In Stock, Qty 11

0

4

MTD 932-0264

Ext. Spring

$4.99

$

In Stock, Qty 20+

0

4

MTD 946-0898

Drive Cable, 39.88"

$27.99

$

In Stock, Qty 19

0

5

MTD 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

7

MTD 984-0021-0637

Friction Wheel Support Bracket Assembly

$

$

Not available

9

MTD 956-0012A

Friction Disc

$125.99

$

In Stock, Qty 6

0

10

MTD 784-5689A-0637

Front Support Guide Bracket

$

$

Not available

11

MTD 713-0413

Ten-Tooth Sprocket

$12.99

$

Usually ships in 3-6 days

0

12

MTD 946-0897

Auger Cable, 44.75"

$24.99

$

In Stock, Qty 20+

0

13

MTD 950-0997

Spacer, .675 ID x 1 OD x .23

$6.99

$

In Stock, only 4 left!

0

14

MTD 711-1042

Hex Track Shaft

$149.99

$

In Stock, only 2 left!

0

15

MTD 984-0042C

Friction Wheel Assembly

$138.99

$

In Stock, Qty 17

0

16

MTD 936-0160

Flat Washer, .536 ID x .93 OD x .05

$4.49

$

In Stock, only 1 left!

0

17

MTD 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

18

MTD 941-0563

Ball Bearing

$36.99

$

In Stock, Qty 7

0

19

MTD 736-0242

Bell Washer, .34 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0538

Hex Cap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 7

0

21

MTD 710-0642

Tap Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

23

MTD 936-0176

Flat Washer, 1/4 ID x .93 OD x .12
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

24

MTD 941-0597

Hex Flange Bearing

$12.99

$

In Stock, Qty 10

0

25

MTD 710-0643

Hex Cap Screw, 5/16-18 x 1

$6.99

$

In Stock, Qty 5

0

26

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0604A

Tap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

28

MTD 753-06327

Frame Assembly

$

$

Not available

29

MTD 738-0924A

Spacer

$6.99

$

In Stock, Qty 5

0

30

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

31

MTD 784-5688-0637

Drive Cable Guide Bracket

$

$

Not available

32

MTD 710-0599

Tap Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

33

MTD 784-5590

Shift Frame Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

34

MTD 684-0014B-0637

Shift Rod Assembly

$47.99

$

In Stock, only 1 left!

0

35

MTD 784-5687A-0637

Auger Cable Guide Bracket

$

$

Not available

36

MTD 710-0788

Tap Screw, 1/4-20 x 1

$7.49

$

In Stock, only 2 left!

0

37

MTD 618-0063

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

0

38

MTD 984-0042C

Friction Wheel Hub

$138.99

$

In Stock, Qty 17

0

39

MTD 935-0243B

Friction Wheel Rubber

$15.99

$

In Stock, Qty 20+

0

40

MTD 984-0042C

Friction Plate

$138.99

$

In Stock, Qty 17

0
